| Quantity: | |
|---|---|
MX-3DC24V/S-40
100-200 L/min
Motor
Stainless Steel
Single-stage Pump
Liquid Pumps
Solar Energy
DC Pump
Submersible Pump
Submersible Pump
Agriculture
Clean Water
No Leakage Pump
Centrifugal Pump
CE GS RoHS PAHs
Carton
7kg
MAXIS
China
8413709990
500000PCS/Year
10.00cm * 30.00cm * 50.00cm
12.000kg
Free Spare Parts
1 Year
10-30m
Application

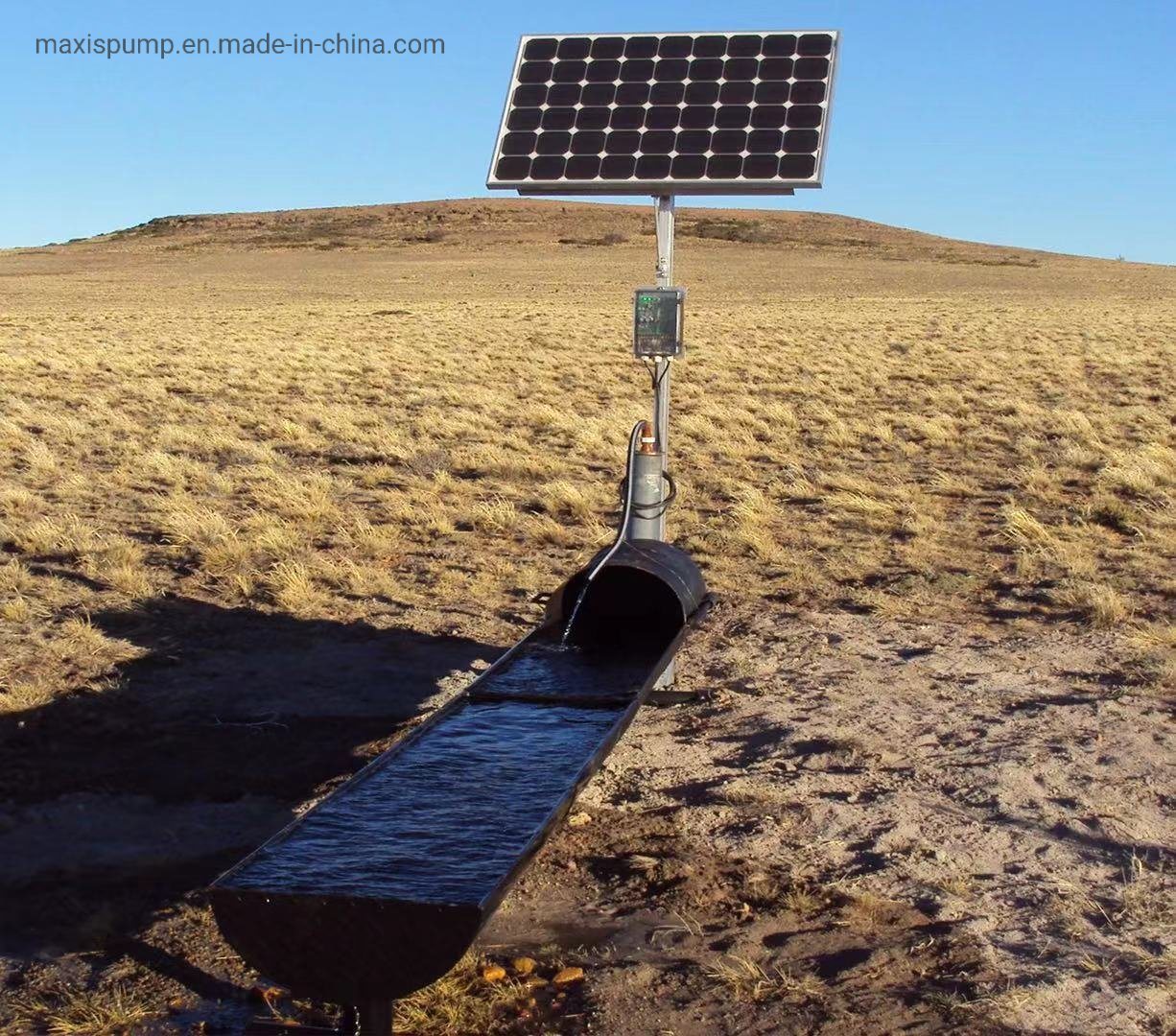

1.For water supply from wells or reservoris in irrigation of agriculture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Product Advantage
1. Solar pump with high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
4. Much longer life than the nomal AC water pump.
Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC

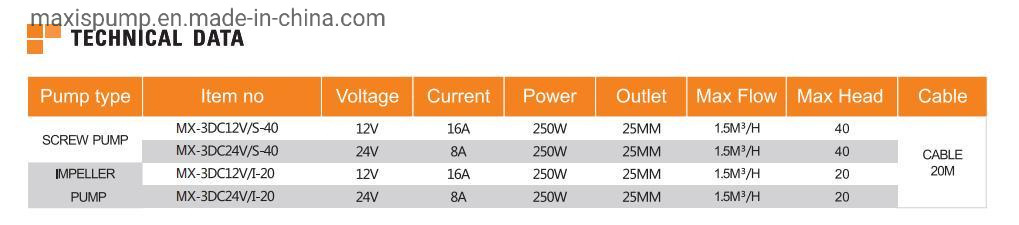

Techenical Data
| Nr | Model | Voltage | Current | Power | Outlet | Max Flow | Max Head | Cable |
| 278 | MX-3DC12V/S-40 | 12V | 16A | 250W | 25 MM | 1500 L/H | 40 M | 20 |
| 279 | MX-3DC24V/S-40 | 24V | 8A | 250W | 25 MM | 1500 L/H | 40 M | 20 |
| 280 | MX-3DC12V/I-20 | 12V | 16A | 250W | 25 MM | 1500 L/H | 20 M | 20 |
| 281 | MX-3DC24V/I-20 | 24V | 8A | 250W | 25 MM | 1500 L/H | 20 M | 20 |
Application
1.For water supply from wells or reservoris in irrigation of agriculture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Product Advantage
1. Solar pump with high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
4. Much longer life than the nomal AC water pump.
Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Techenical Data
| Nr | Model | Voltage | Current | Power | Outlet | Max Flow | Max Head | Cable |
| 278 | MX-3DC12V/S-40 | 12V | 16A | 250W | 25 MM | 1500 L/H | 40 M | 20 |
| 279 | MX-3DC24V/S-40 | 24V | 8A | 250W | 25 MM | 1500 L/H | 40 M | 20 |
| 280 | MX-3DC12V/I-20 | 12V | 16A | 250W | 25 MM | 1500 L/H | 20 M | 20 |
| 281 | MX-3DC24V/I-20 | 24V | 8A | 250W | 25 MM | 1500 L/H | 20 M | 20 |
