Screw Motor with Controller Solar Energy Systems Water Pumping Kit Solar Pump for Drip Irrigation

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
200-300 L/min
Driving Type:
Motor
Material:
Stainless Steel
Model NO.:
MX-DC30V/S-30-3-0.3-1
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Solar Energy
Start Up:
Magnetic Pump
Type:
Submersible Pump
Application:
Submersible Pump, Sewage Pump
Industry:
Agriculture
Media:
Clean Water
Performance:
Wear Pump
Theory:
Rotary Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Carton
Specification:
13kg
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 100/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Screw Motor with Controller Solar Energy Systems Water Pumping Kit Solar Pump for Drip Irrigation
Product Advantage
1. With high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
With MPPT function
4. Much longer life than the nomal AC water pump.

Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"

Techenical Data

Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Solar Panel
Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Open Voltage	Power
202	MX-6SSC70-40-380-4000-A/D	350V-460V	480V-750V	4000 W	70000 L/H	40 M	4"	2 M	<800V	≥5000W
203	MX-6SSC70-60-380-5500-A/D	350V-460V	480V-750V	5500 W	70000 L/H	60 M	4"	2 M	<800V	≥6000W
204	MX-6SSC70-80-380-7500-A/D	350V-460V	480V-750V	7500 W	70000 L/H	80 M	4"	2 M	<800V	≥8500W
205	MX-6SSC70-100-380-9200-A/D	350V-460V	480V-750V	9200 W	70000 L/H	100 M	4"	2 M	<800V	≥10000W
206	MX-6SSC70-120-380-11000-A/D	350V-460V	480V-750V	11000 W	70000 L/H	120 M	4"	2 M	<800V	≥15000W
207	MX-6SSC70-160-380-15000-A/D	350V-460V	480V-750V	15000 W	70000 L/H	160 M	4"	2 M	<800V	≥20000W
208	MX-6SSC95-66-380-7500-A/D	350V-460V	480V-750V	7500 W	95000 L/H	66 M	4"	2 M	<800V	≥8500W
209	MX-6SSC95-88-380-11000-A/D	350V-460V	480V-750V	11000 W	95000 L/H	88 M	4"	2 M	<800V	≥10000W
210	MX-6SSC95-110-380-15000-A/D	350V-460V	480V-750V	15000 W	95000 L/H	110 M	4"	2 M	<800V	≥15000W
211	MX-6SSC130-60-380-15000-A/D	350V-460V	480V-750V	15000 W	130000 L/H	60 M	4"	2 M	<800V	≥20000W

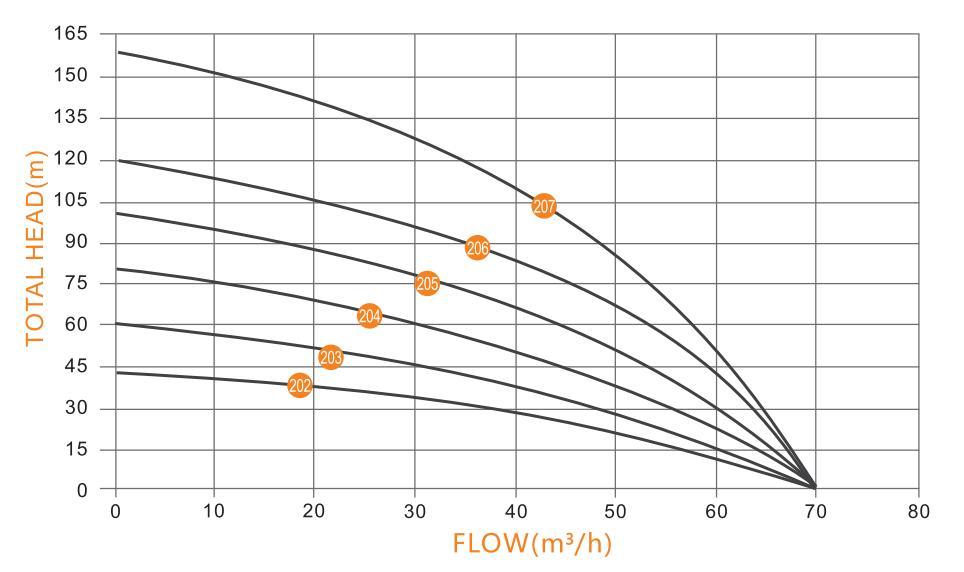

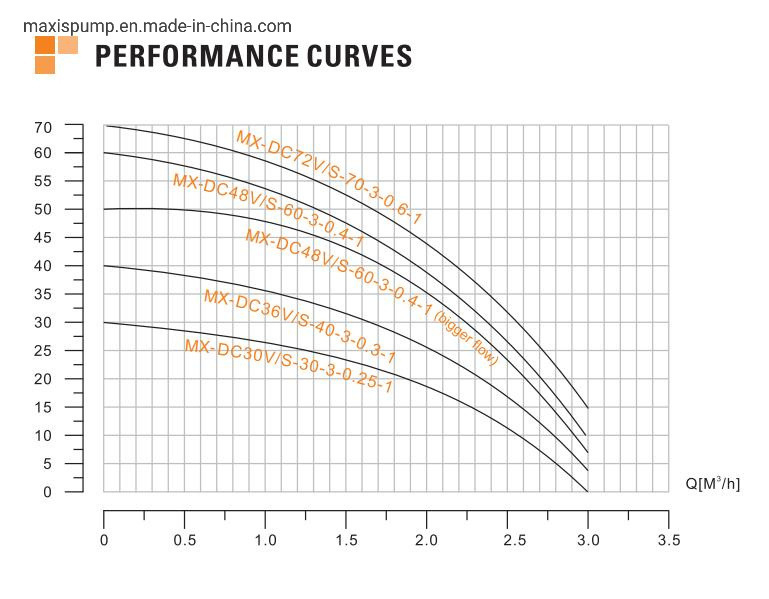

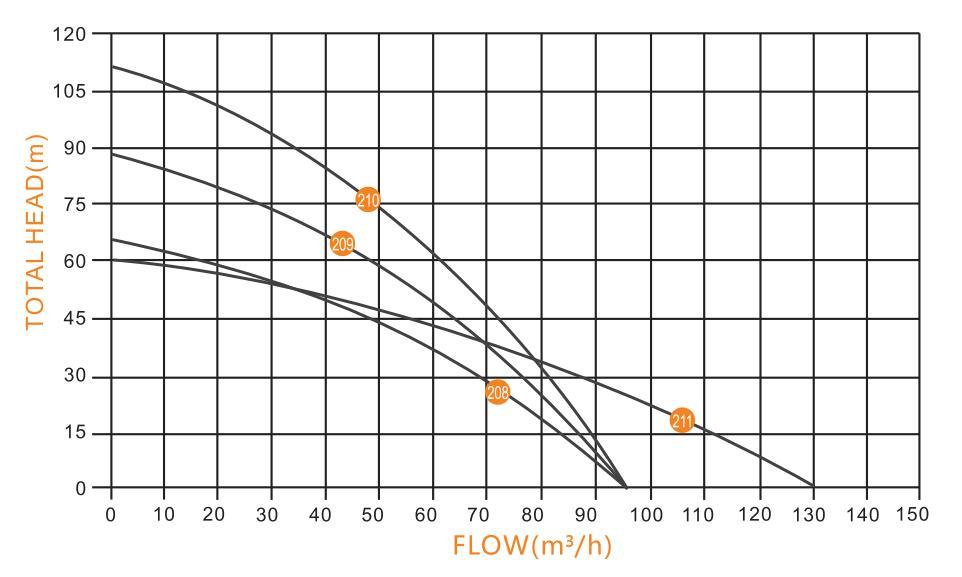

Performance Curve
