DC Solar Pump Submersible for Deep Well Water Pump

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
50-100 L/min
Driving Type:
Motor
Material:
Stainless Steel

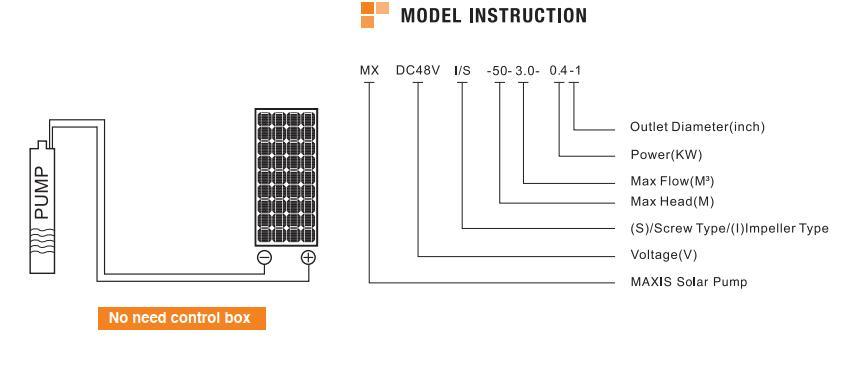

Model NO.:
MX-DC30V/S-30-3-0.3-1
Structure:
Multistage Pump
Assembly:
Liquid Pumps
Power:
Solar Energy
Start Up:
Electric Pump
Type:
Submersible Pump
Application:
Submersible Pump, Sewage Pump
Industry:
Agriculture
Media:
Water
Performance:
Screw Pump
Theory:
Rotary Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Carton
Specification:
13kg
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 40/Piece 1 Piece(Min.Order) | Request Sample

Product Description

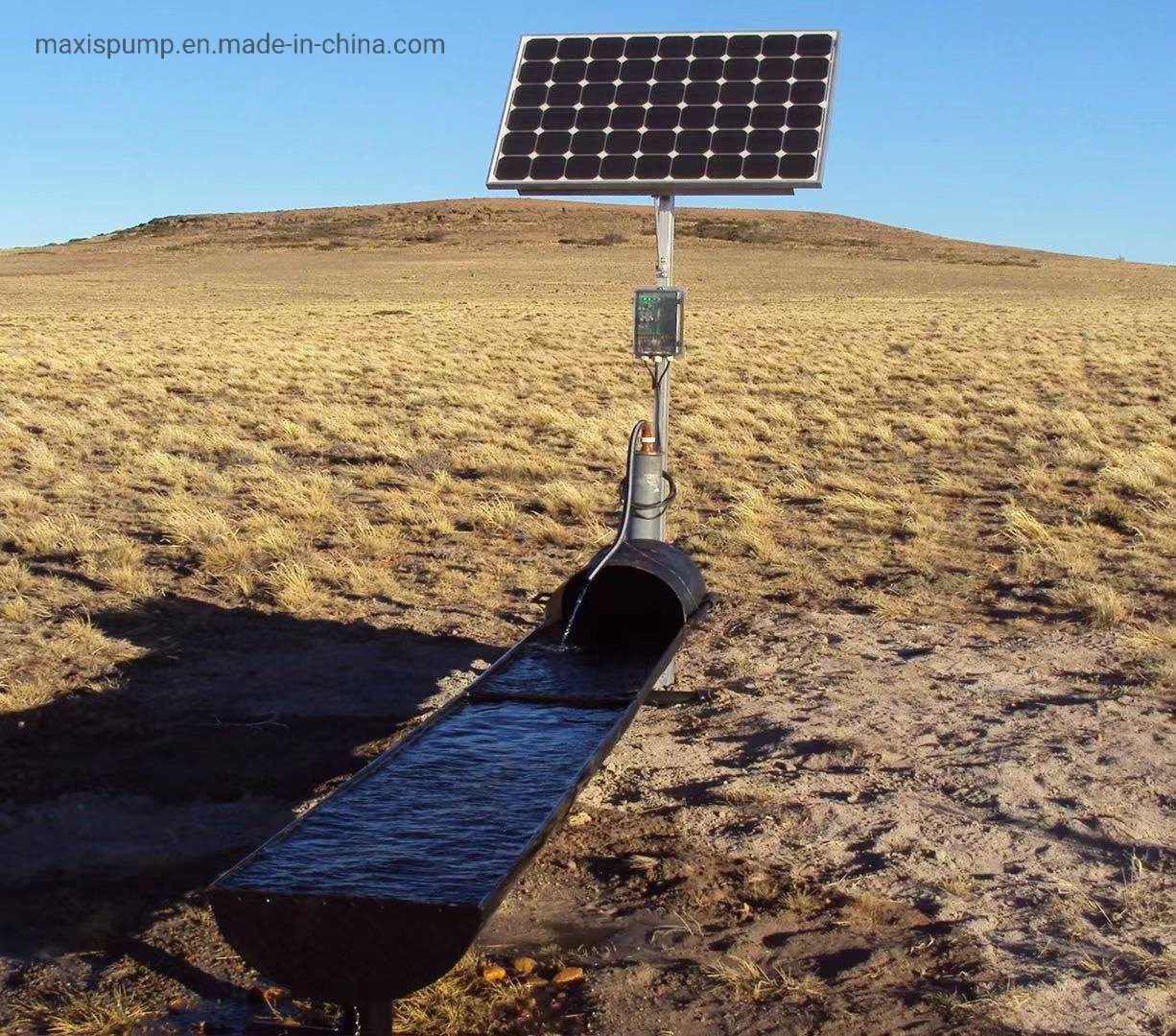

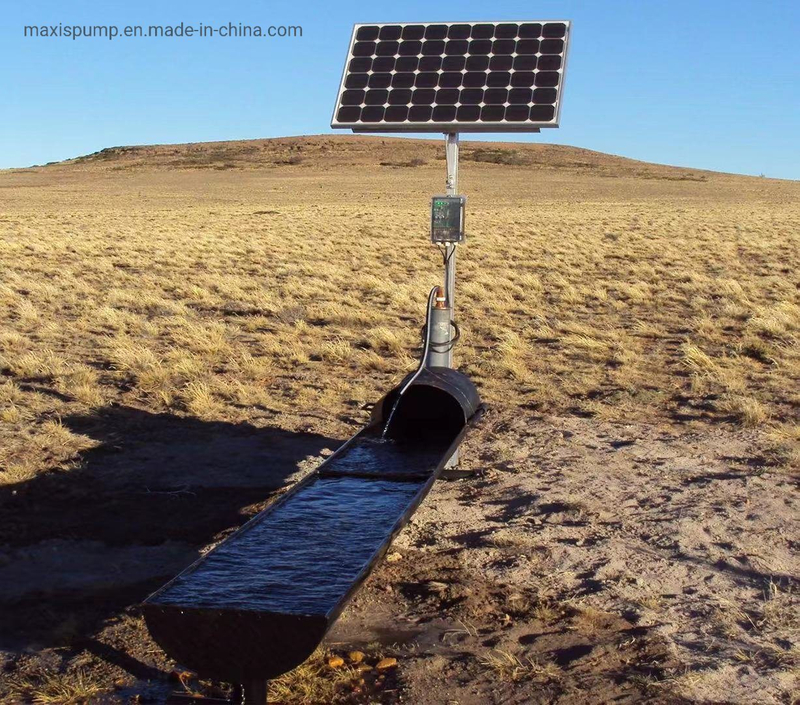

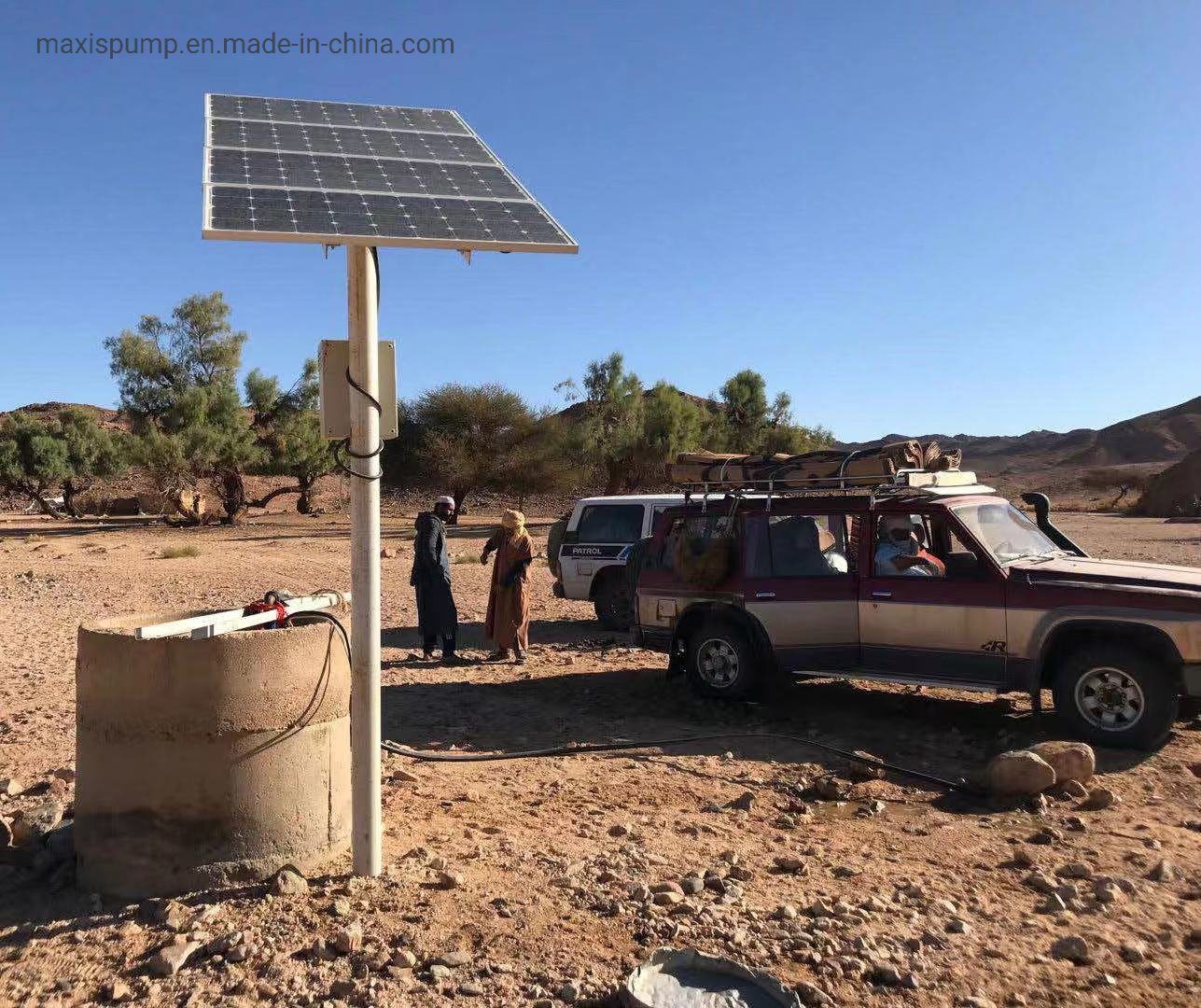

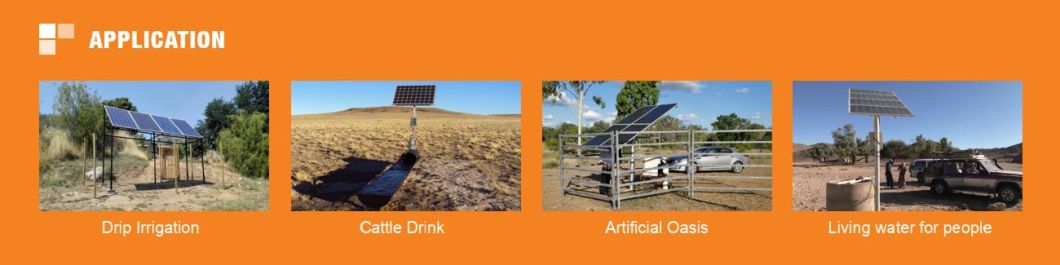

Application

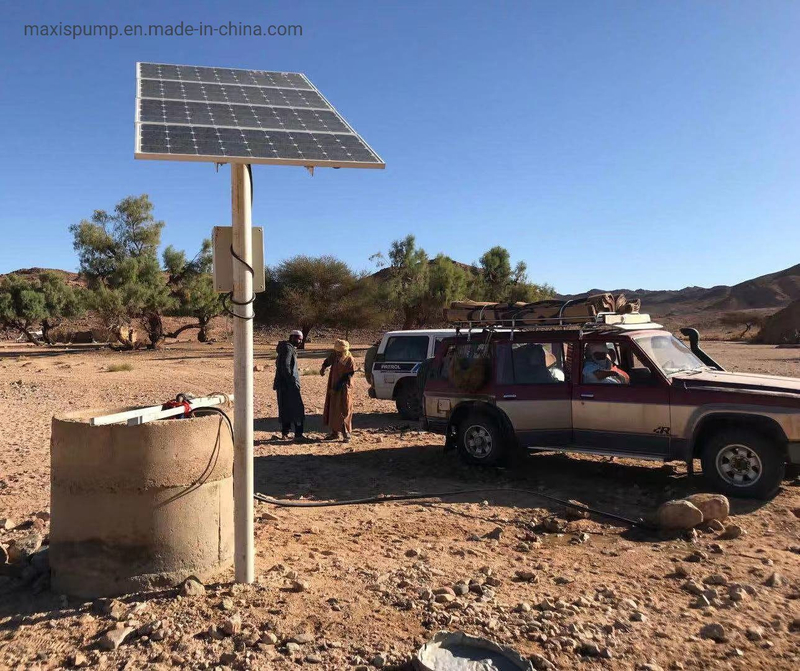

1.For water supply from wells or reservoris in irrigation of agriculture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation

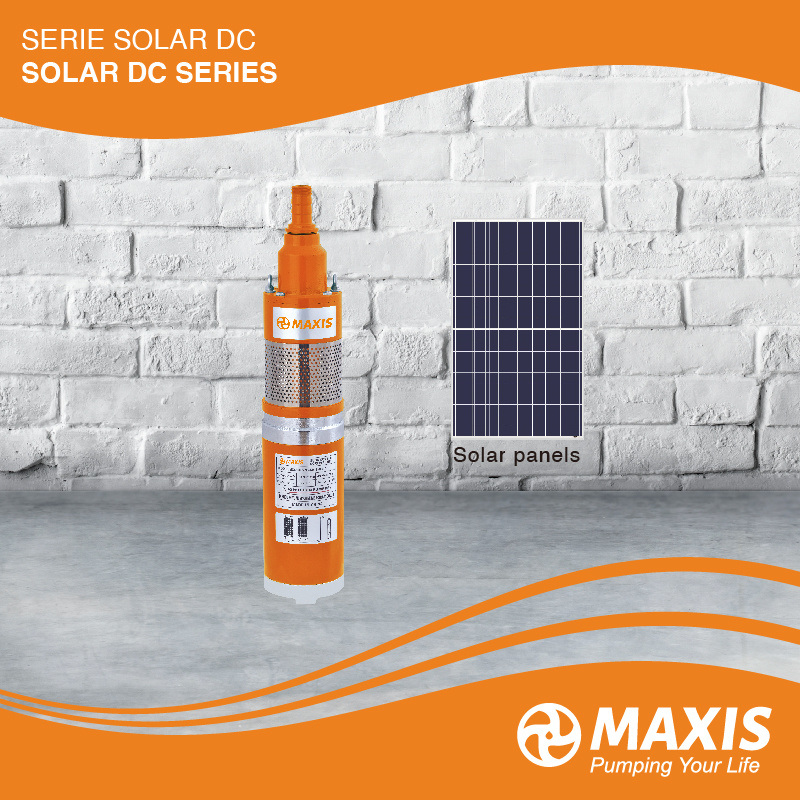

DC Solar Pump Submersible for Deep Well Water Pump
Product Advantage
1. Solar Pump with high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
4. Much longer life than the nomal AC water pump.

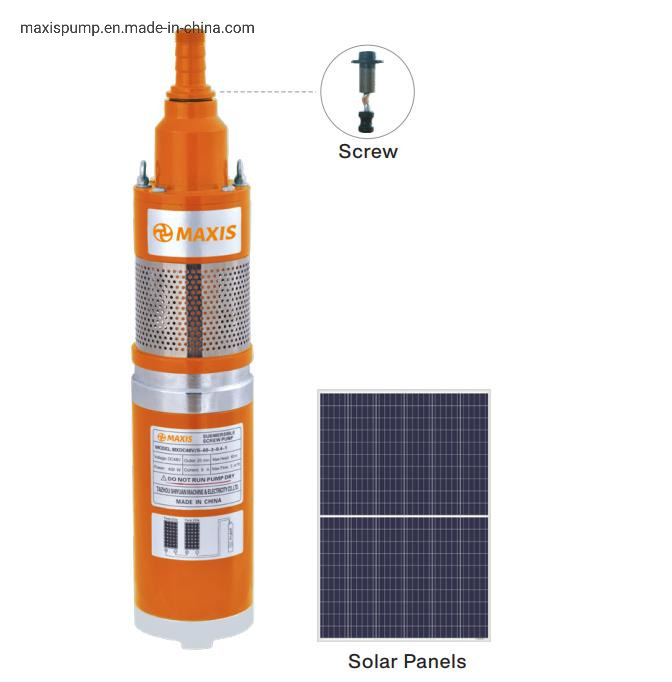

Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC

DC Solar Pump Submersible for Deep Well Water Pump

Techenical Data

Nr	Model	Voltage	Current	Power	Outlet	Max Flow	Max Head	Cable	Connection Mode
Nr	Model	Voltage	Current	Power	Outlet	Max Flow	Max Head	Cable	Connection Mode
262	MX-DC30V/S-30-3-0.3-1	30V	8.3A	250 W	25 MM	3000 L/H	30 M	20	Series Connection
263	MX-DC36V/S-40-3-0.3-1	36V	7A	300 W	25 MM	3000 L/H	40 M	20
264	MX-DC48V/S-40-3-0.4-1	48V	8A	400 W	25 MM	3000 L/H	60 M	20
265	MX-DC48V/S-40-3-0.4-1	48V	8A	400 W	25 MM	3000 L/H	60 M	20
266	MX-DC72V/S-70-3-0.6-1	72V	8.3A	600 W	25 MM	3000 L/H	70 M	20

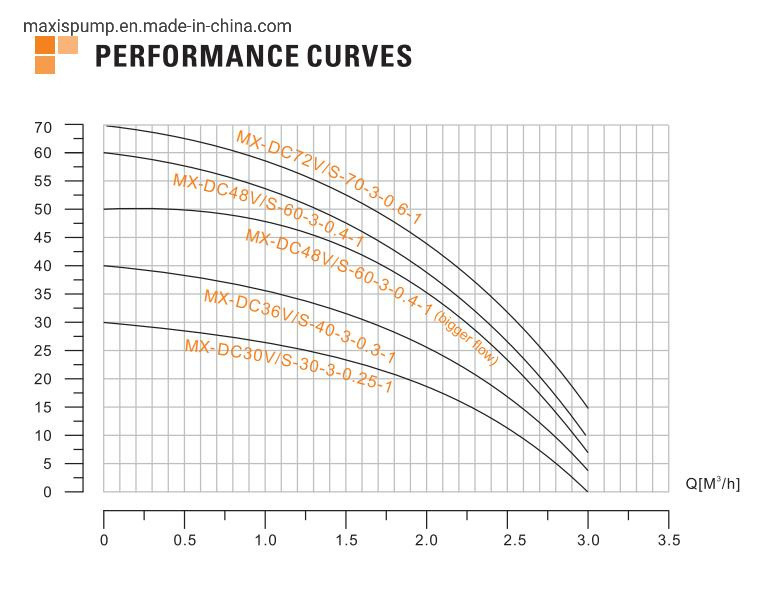

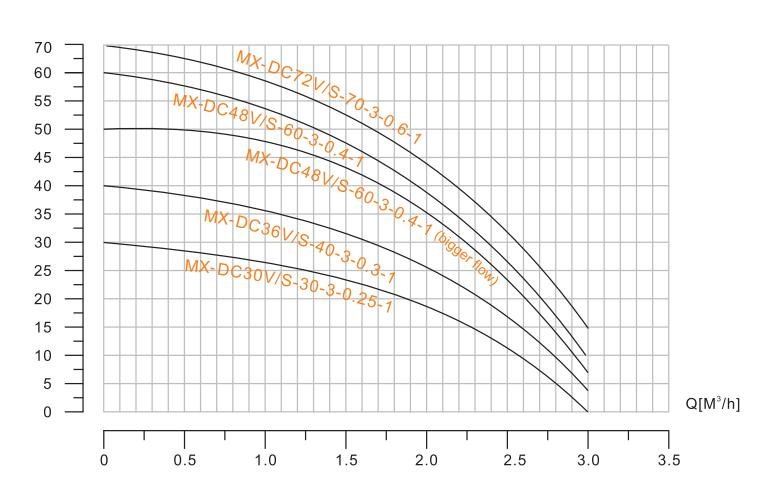

Performance Curve
Company View

RFQ
Q: What is your MOQ of this item?
A: Regular MOQ is 500pcs, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year

Q:How about your service?
A:We have pre-sale, in-sale and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
DC Solar Pump Submersible for Deep Well Water Pump
