Solar Panel Deep Well Borehole DC Water Pump for Farm Irrigation

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
100-200 L/min
Driving Type:
Motor
Material:
Stainless Steel
Model NO.:
MX-4SC6-42-48-600
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Solar Energy
Start Up:
Magnetic Pump
Type:
Submersible Pump
Application:
Submersible Pump, Sewage Pump
Industry:
Agriculture
Media:
Clean Water
Performance:
Wear Pump
Theory:
Rotary Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Carton
Specification:
13kg
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Customization:
Available | Customized Request

Product Description

Application

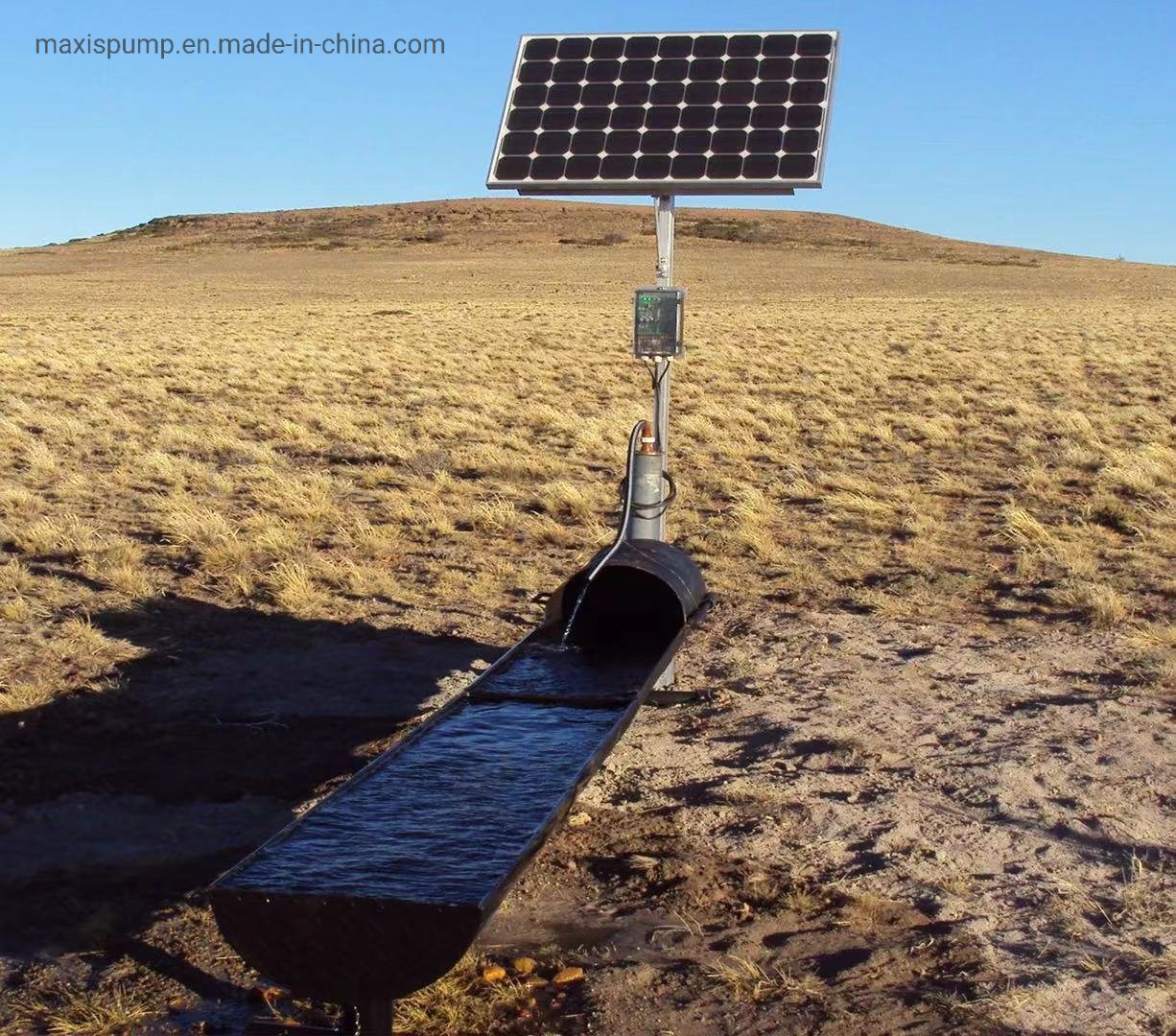

1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation

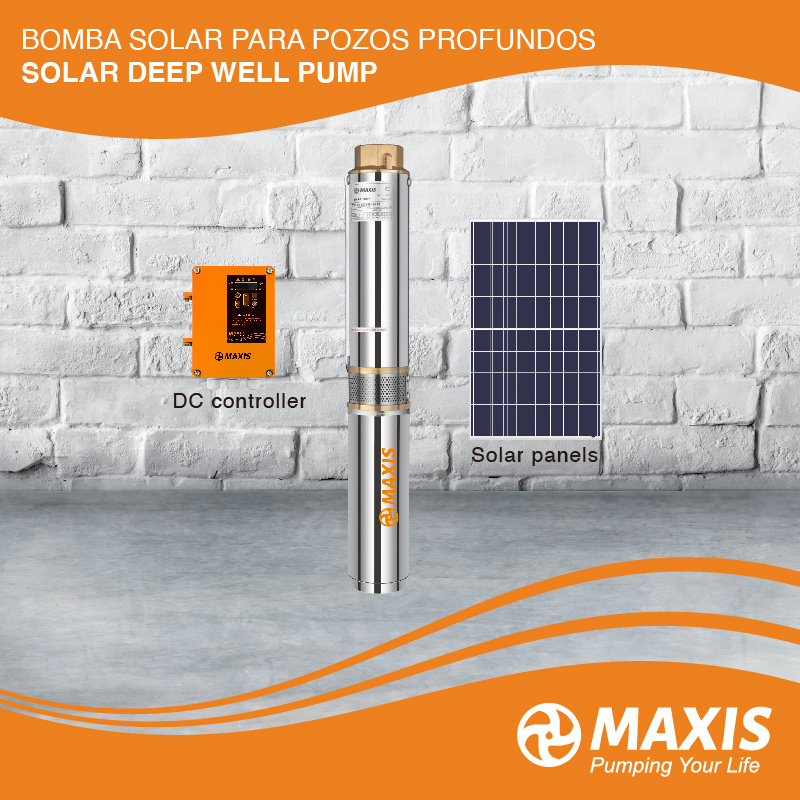

Solar Panel Deep Well Borehole DC Water Pump for Farm Irrigation
Product Advantage
1. With high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel and battery
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
With MPPT function
4. Much longer life than the nomal AC water pump.

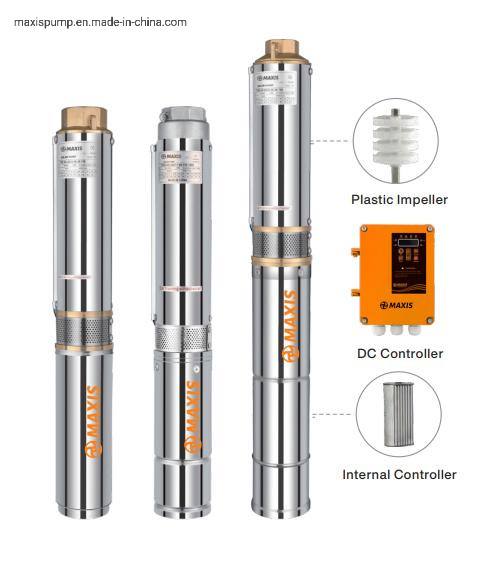

Solar Water Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"

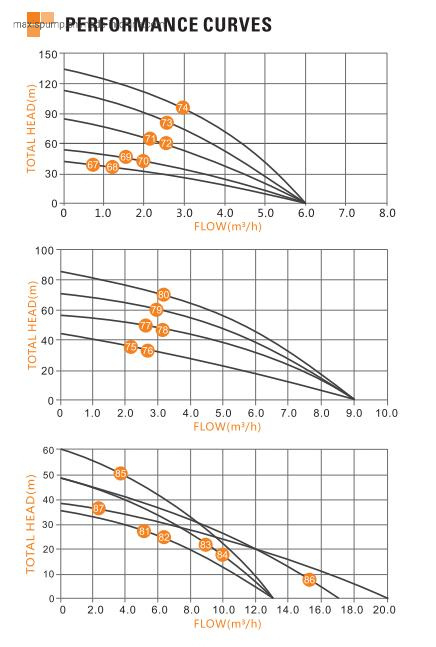

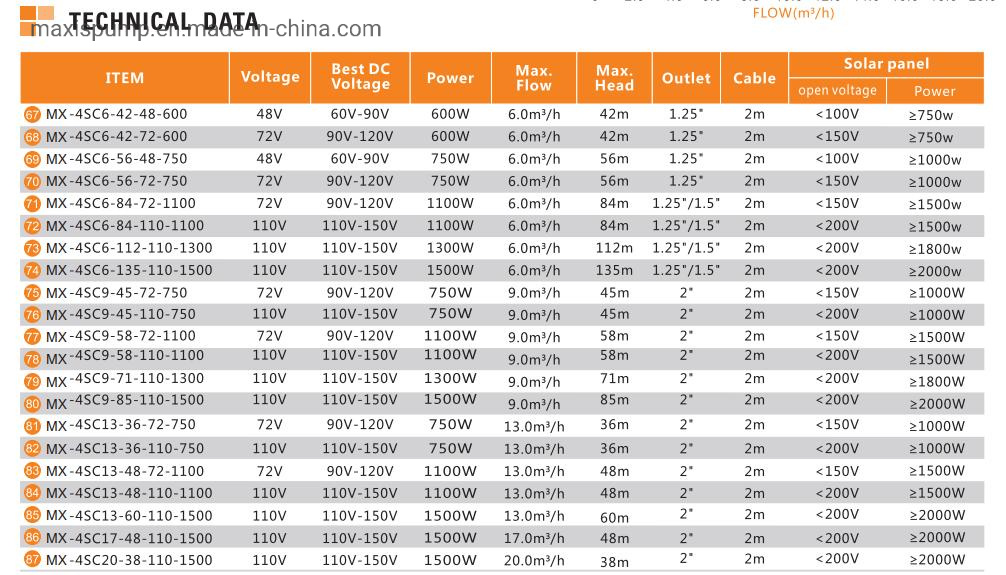

Techenical Data

Nr	Model	Voltage	Best DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Solar Panel
Nr	Model	Voltage	Best DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Open Voltage	Power
67	MX-4SC6-42-48-600	48V	60V-90V	600 W	6000 L/H	42 M	1,1/4"	2 M	<100V	≥750W
68	MX-4SC6-42-72-600	72V	90V-120V	600 W	6000 L/H	42 M	1,1/4"	2 M	<150V	≥750W
69	MX-4SC6-56-48-750	48V	60V-90V	750 W	6000 L/H	56 M	1,1/4"	2 M	<100V	≥1000W
70	MX-4SC6-56-72-750	72V	90V-120V	750 W	6000 L/H	56 M	1,1/4"	2 M	<150V	≥1000W
71	MX-4SC6-84-72-1100	72V	90V-120V	1100 W	6000 L/H	84 M	1,1/4"/1,1/2"	2 M	<150V	≥1500W
72	MX-4SC6-84-110-1100	110V	110V-150V	1100 W	6000 L/H	84 M	1,1/4"/1,1/2"	2 M	<200V	≥1500W
73	MX-4SC6-112-110-1300	110V	110V-150V	1300 W	6000 L/H	112 M	1,1/4"/1,1/2"	2 M	<200V	≥1800W
74	MX-4SC6-135-110-1500	110V	110V-150V	1500W	6000 L/H	135 M	1,1/4"/1,1/2"	2 M	<200V	≥2000W
75	MX-4SC9-45-72-750	72V	90V-120V	750 W	9000 L/H	45 M	2"	2 M	<150V	≥1000W
76	MX-4SC9-45-110-750	110V	110V-150V	750 W	9000 L/H	45 M	2"	2 M	<200V	≥1000W
77	MX-4SC9-58-72-1100	72V	90V-120V	1100 W	9000 L/H	58 M	2"	2 M	<150V	≥1500W
78	MX-4SC9-58-110-1100	110V	110V-150V	1100 W	9000 L/H	58 M	2"	2 M	<200V	≥1500W
79	MX-4SC9-71-110-1300	110V	110V-150V	1300 W	9000 L/H	71 M	2"	2 M	<200V	≥1800W
80	MX-4SC9-85-110-1500	110V	110V-150V	1500W	9000 L/H	85 M	2"	2 M	<200V	≥2000W
81	MX-4SC13-36-72-750	72V	90V-120V	750 W	13000 L/H	36 M	2"	2 M	<150V	≥1000W
82	MX-4SC13-36-110-750	110V	110V-150V	750 W	13000 L/H	36 M	2"	2 M	<200V	≥1000W
83	MX-4SC13-48-72-1100	72V	90V-120V	1100 W	13000 L/H	48 M	2"	2 M	<150V	≥1500W
84	MX-4SC13-48-110-1100	110V	110V-150V	1100 W	13000 L/H	48 M	2"	2 M	<200V	≥1500W
85	MX-4SC13-60-110-1500	110V	110V-150V	1500W	13000 L/H	60 M	2"	2 M	<200V	≥2000W
86	MX-4SC17-48-110-1500	110V	110V-150V	1500W	17000 L/H	48 M	2"	2 M	<200V	≥2000W
87	MX-4SC20-38-110-1500	110V	110V-150V	1500W	20000 L/H	38 M	2"	2 M	<200V	≥2000W
