| Quantity: | |
|---|---|
Free Spare Parts
1 Year
30-50m
<50 L/min
Motor
Stainless Steel
MX-4SSC5-45-48-500
Single-stage Pump
Liquid Pumps
Solar Energy
Electric Pump
Submersible Pump
Submersible Pump, Sewage Pump
Agriculture
Clean Water
Wear Pump
Centrifugal Pump
CE GS RoHS PAHs
Carton
10kg
MAXIS
China
8413709990
500000PCS/Year
US$ 100/Piece 1 Piece(Min.Order) | Request Sample

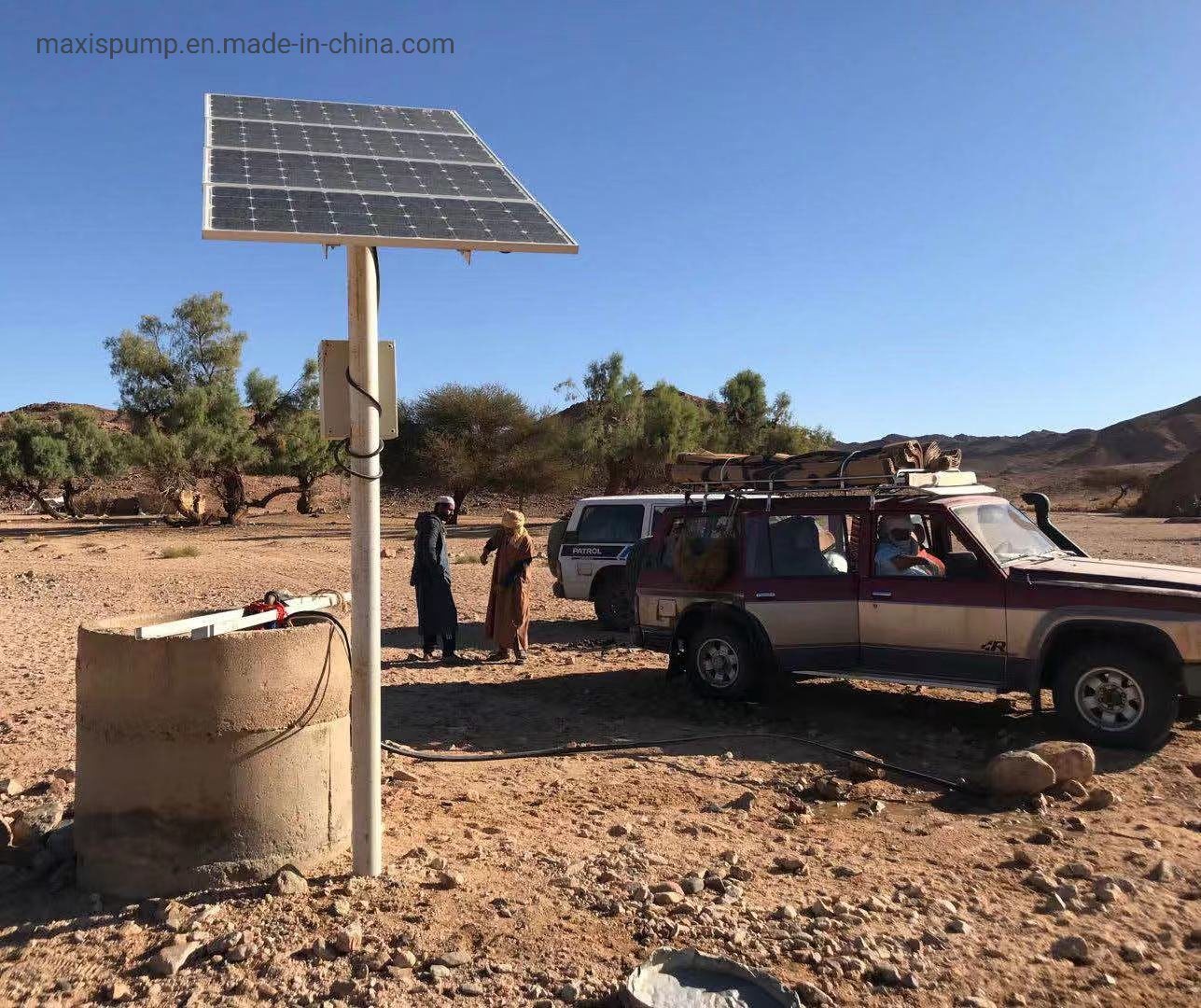

Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Product Advantage
1. With high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel and battery
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
With MPPT function
4. Much longer life than the nomal AC water pump.

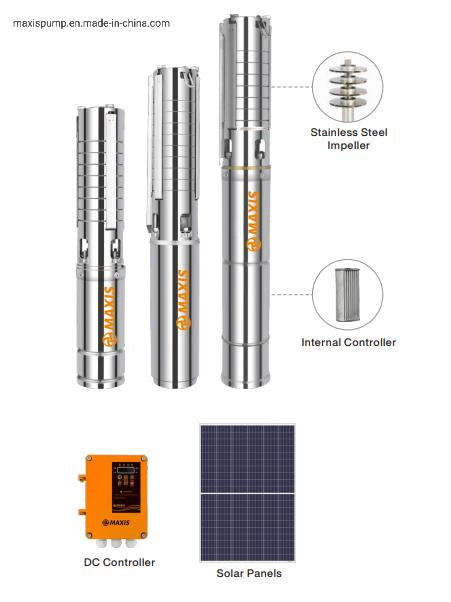

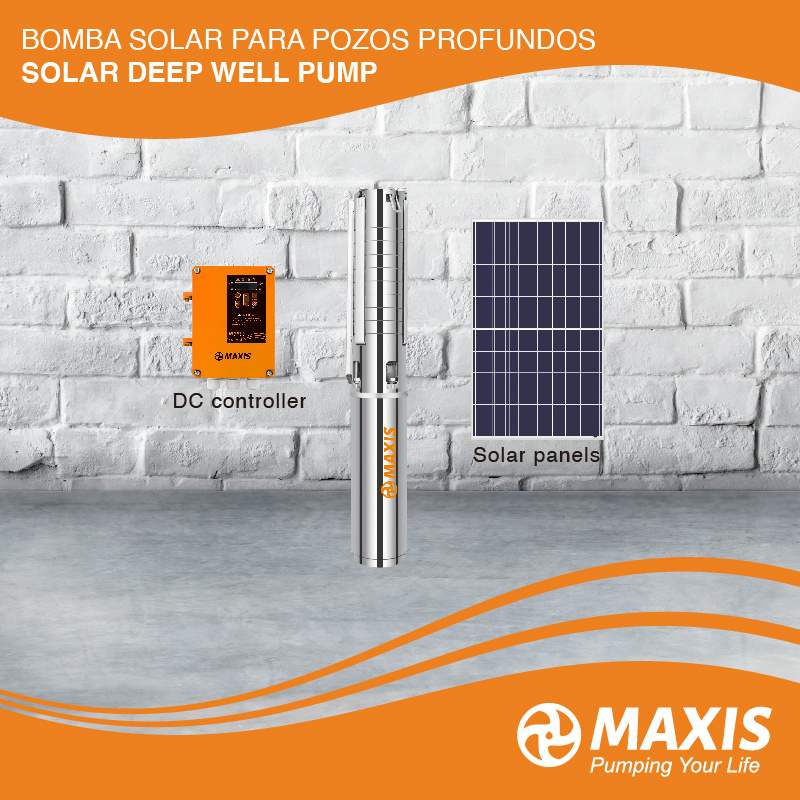

Solar Water Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"

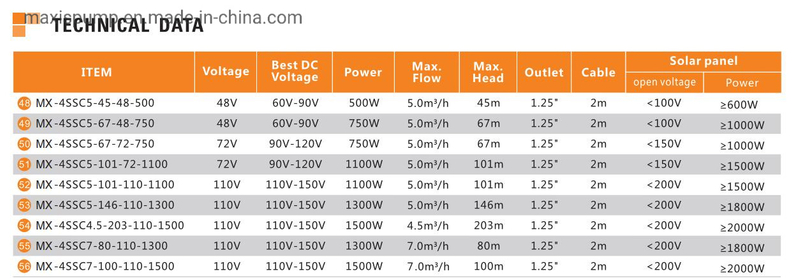

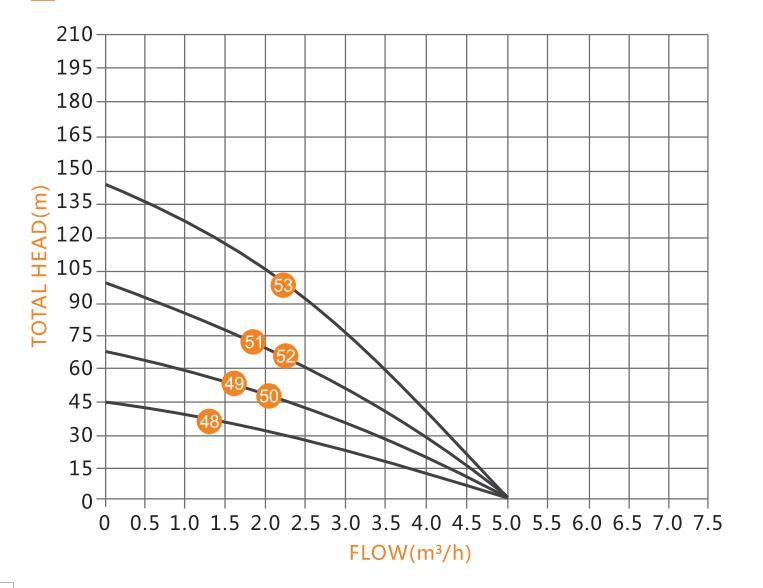

Techenical Data
| Nr | Model | Voltage | Best DC Voltage | Power | Max.Flow | Max.Head | Outlet | Cable | Solar Panel | |
| Open Voltage | Power | |||||||||
| 48 | MX-4SSC5-45-48-500 | 48V | 60V-90V | 500 W | 5000 L/H | 45 M | 1,1/4" | 2 M | <100V | ≥600W |
| 49 | MX-4SSC5-67-48-750 | 48V | 60V-90V | 750 W | 5000 L/H | 67 M | 1,1/4" | 2 M | <100V | ≥1000W |
| 50 | MX-4SSC5-67-72-750 | 72V | 90V-120V | 750 W | 5000 L/H | 67 M | 1,1/4" | 2 M | <150V | ≥1000W |
| 51 | MX-4SSC5-101-72-1100 | 72V | 90V-120V | 1100 W | 5000 L/H | 101 M | 1,1/4" | 2 M | <150V | ≥1500W |
| 52 | MX-4SSC5-101-110-1100 | 110V | 110-150V | 1100 W | 5000 L/H | 101 M | 1,1/4" | 2 M | <200V | ≥1500W |
| 53 | MX-4SSC5-146-110-1300 | 110V | 110-150V | 1300 W | 5000 L/H | 146 M | 1,1/4" | 2 M | <200V | ≥1800W |
| 54 | MX-4SSC4.5-203-110-1500 | 110V | 110-150V | 1500 W | 4500 L/H | 203 M | 1,1/4" | 2 M | <200V | ≥2000W |
| 55 | MX-4SSC7-80-110-1300 | 110V | 110-150V | 1300 W | 7000 L/H | 80 M | 1,1/4" | 2 M | <200V | ≥1800W |
| 56 | MX-4SSC7-100-110-1500 | 110V | 110-150V | 1500 W | 7000 L/H | 100 M | 1,1/4" | 2 M | <200V | ≥2000W |
Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Product Advantage
1. With high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel and battery
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
With MPPT function
4. Much longer life than the nomal AC water pump.
Solar Water Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"

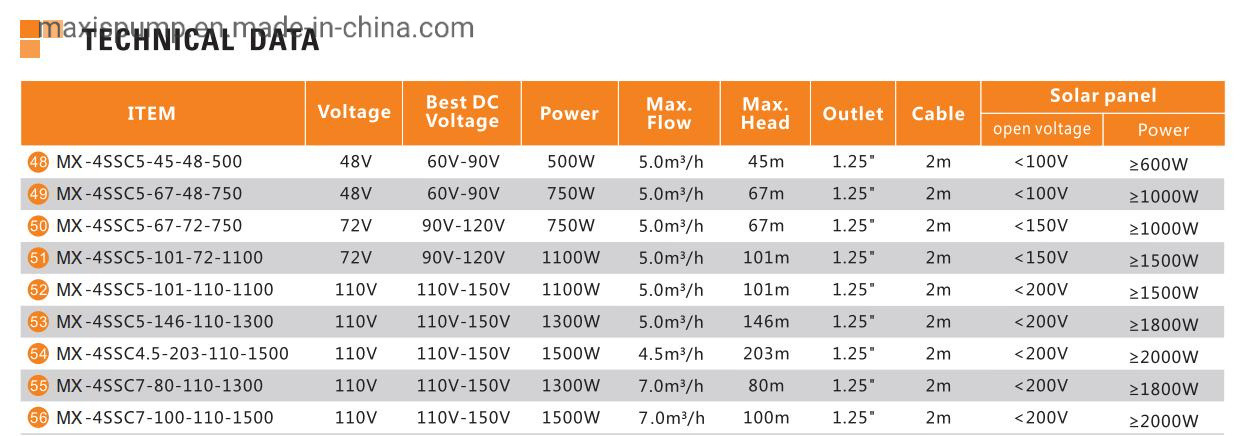

Techenical Data
| Nr | Model | Voltage | Best DC Voltage | Power | Max.Flow | Max.Head | Outlet | Cable | Solar Panel | |
| Open Voltage | Power | |||||||||
| 48 | MX-4SSC5-45-48-500 | 48V | 60V-90V | 500 W | 5000 L/H | 45 M | 1,1/4" | 2 M | <100V | ≥600W |
| 49 | MX-4SSC5-67-48-750 | 48V | 60V-90V | 750 W | 5000 L/H | 67 M | 1,1/4" | 2 M | <100V | ≥1000W |
| 50 | MX-4SSC5-67-72-750 | 72V | 90V-120V | 750 W | 5000 L/H | 67 M | 1,1/4" | 2 M | <150V | ≥1000W |
| 51 | MX-4SSC5-101-72-1100 | 72V | 90V-120V | 1100 W | 5000 L/H | 101 M | 1,1/4" | 2 M | <150V | ≥1500W |
| 52 | MX-4SSC5-101-110-1100 | 110V | 110-150V | 1100 W | 5000 L/H | 101 M | 1,1/4" | 2 M | <200V | ≥1500W |
| 53 | MX-4SSC5-146-110-1300 | 110V | 110-150V | 1300 W | 5000 L/H | 146 M | 1,1/4" | 2 M | <200V | ≥1800W |
| 54 | MX-4SSC4.5-203-110-1500 | 110V | 110-150V | 1500 W | 4500 L/H | 203 M | 1,1/4" | 2 M | <200V | ≥2000W |
| 55 | MX-4SSC7-80-110-1300 | 110V | 110-150V | 1300 W | 7000 L/H | 80 M | 1,1/4" | 2 M | <200V | ≥1800W |
| 56 | MX-4SSC7-100-110-1500 | 110V | 110-150V | 1500 W | 7000 L/H | 100 M | 1,1/4" | 2 M | <200V | ≥2000W |
