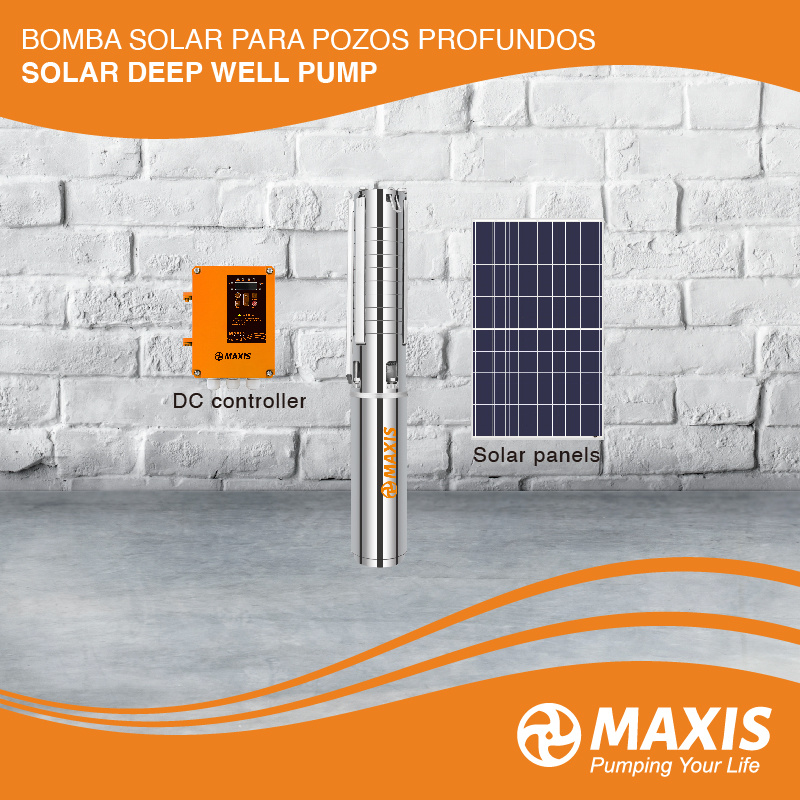

Deep Well Solar Water Pumps with AC/DC Controller for Living Water Transfer

Quantity:



Inquire Add to Basket

Model NO.:
MX-4SSC5-67-220-750-A/D
Max.Capacity:
50-100 L/min
Driving Type:
Motor
Material:
Stainless Steel
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Solar Energy
Start Up:
Magnetic Pump
Type:
Submersible Pump
Application:
Submersible Pump, Sewage Pump
Industry:
Agriculture
Media:
Clean Water
Performance:
Wear Pump
Theory:
Centrifugal Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Carton
Specification:
10kg
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Package size per unit product:
10.00cm * 10.00cm * 40.00cm
Gross weight per unit product:
8.500kg
After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
80-110m

Product Description

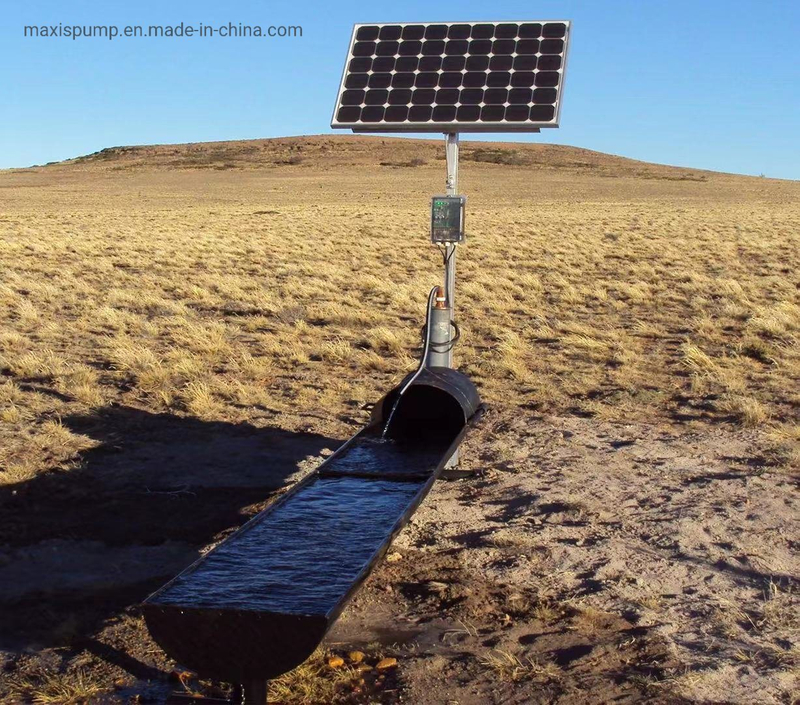

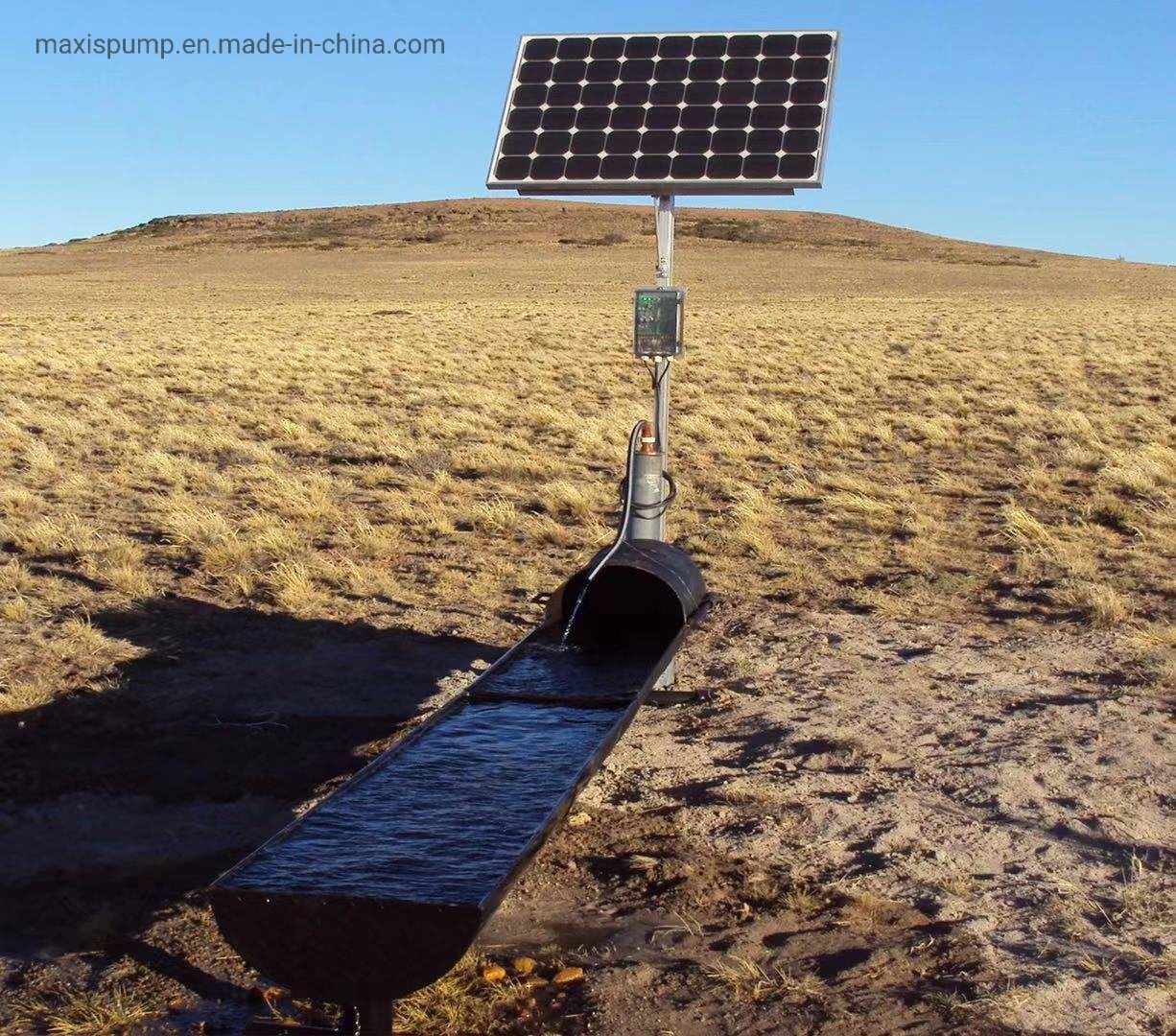

Application

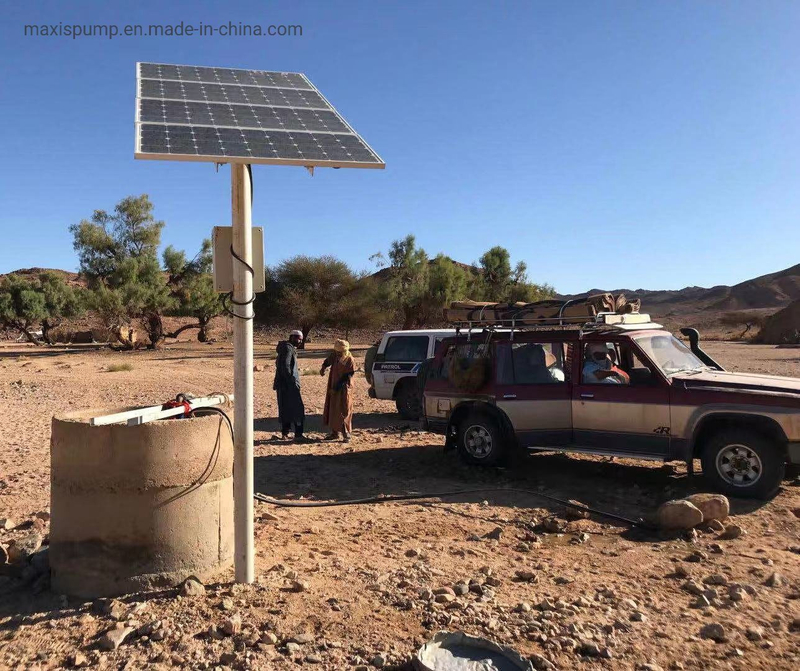

1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Deep Well Solar Water Pumps with AC/DC Controller for Living Water Transfer
Product Advantage
1. With high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
With MPPT function
4. Much longer life than the nomal AC water pump.

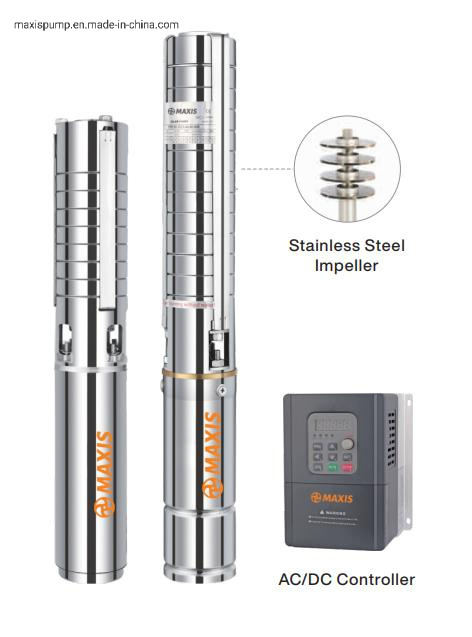

Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"

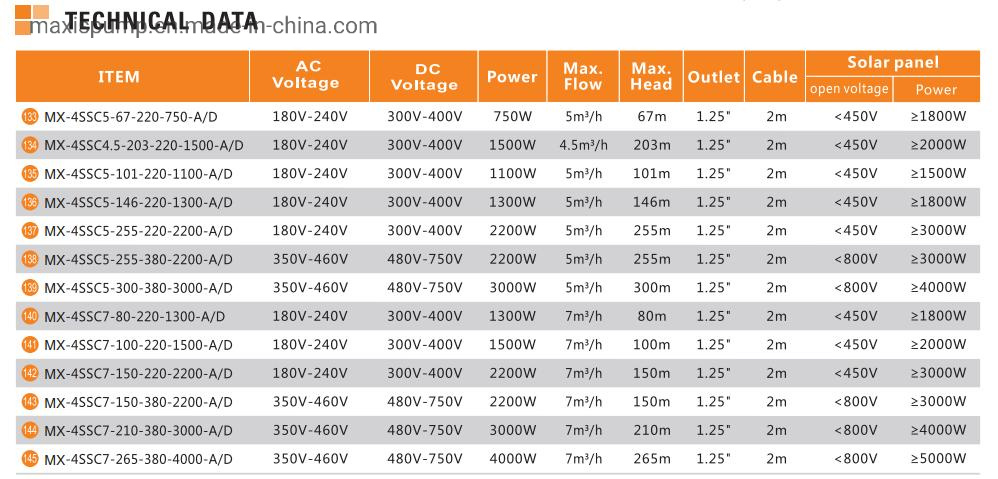

Techenical Data

Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Solar Panel
Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Open Voltage	Power
133	MX-4SSC5-67-220-750-A/D	180V-240V	300-400V	750 W	5000 L/H	67 M	1,1/4"	2 M	<450V	≥1800W
134	MX-4SSC4.5-203-220-1500-A/D	180V-240V	300-400V	1500 W	4500 L/H	103 M	1,1/4"	2 M	<450V	≥2000W
135	MX-4SSC5-101-220-1100-A/D	180V-240V	300-400V	1100 W	5000 L/H	101 M	1,1/4"	2 M	<450V	≥1500W
136	MX-4SSC5-146-220-1300-A/D	180V-240V	300-400V	1300 W	5000 L/H	146 M	1,1/4"	2 M	<450V	≥1800W
137	MX-4SSC5-255-220-2200-A/D	180V-240V	300-400V	2200 W	5000 L/H	255 M	1,1/4"	2 M	<450V	≥3000W
138	MX-4SSC5-255-380-2200-A/D	350V-460V	480V-750V	2200 W	5000 L/H	255 M	1,1/4"	2 M	<800V	≥3000W
139	MX-4SSC5-300-380-2200-A/D	350V-460V	480V-750V	3000 W	5000 L/H	300 M	1,1/4"	2 M	<800V	≥4000W
140	MX-4SSC7-80-220-1300-A/D	180V-240V	300-400V	1300 W	7000 L/H	80 M	1,1/4"	2 M	<450V	≥1800W
141	MX-4SSC7-100-220-1500-A/D	180V-240V	300-400V	1500 W	7000 L/H	100 M	1,1/4"	2 M	<450V	≥2000W
142	MX-4SSC7-150-220-2200-A/D	180V-240V	300-400V	2200 W	7000 L/H	150 M	1,1/4"	2 M	<450V	≥3000W
143	MX-4SSC7-150-380-2200-A/D	350V-460V	480V-750V	2200 W	7000 L/H	150 M	1,1/4"	2 M	<800V	≥3000W
144	MX-4SSC7-210-380-2200-A/D	350V-460V	480V-750V	3000 W	7000 L/H	210 M	1,1/4"	2 M	<800V	≥4000W
145	MX-4SSC7-265-380-2200-A/D	350V-460V	480V-750V	4000 W	7000 L/H	265 M	1,1/4"	2 M	<800V	≥5000W

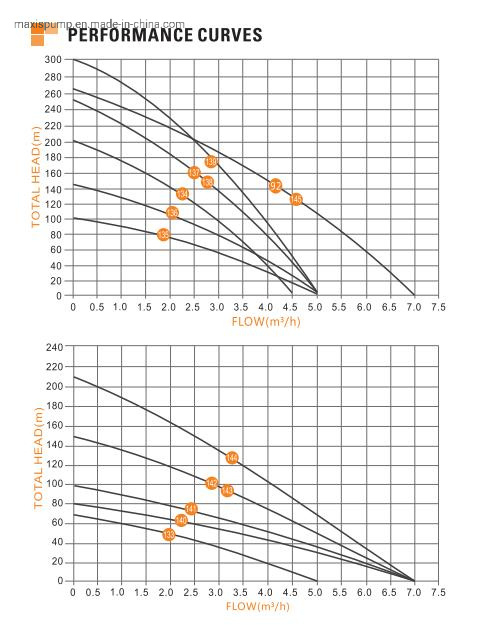

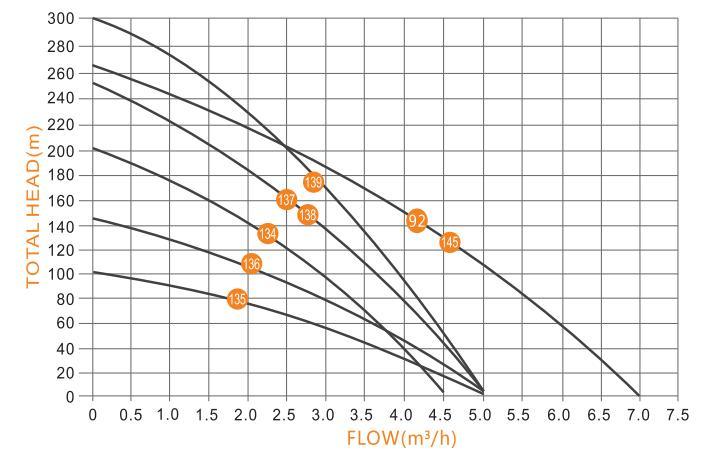

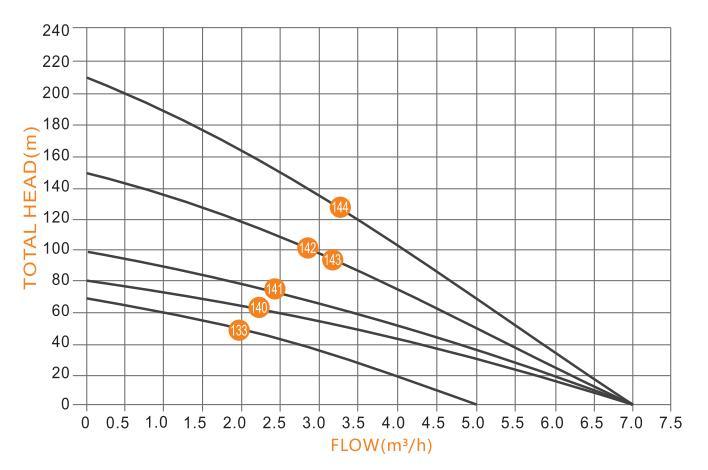

Performance Curve
Company View

RFQ
Q: What is your MOQ of this item?
A: Regular MOQ is 500pcs, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year

Q:How about your service?
A:We have pre-sale, in-sale and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
