DC Battery AC Electric Borehole Deep Well Solar Pump for Drinking Water

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
50-80m
Max.Capacity:
50-100 L/min
Driving Type:
Motor
Material:
Stainless Steel
Model NO.:
MX-4SC6-56-72-750-A/D
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Solar Energy
Start Up:
Electric Pump
Type:
Submersible Pump
Application:
Submersible Pump, Sewage Pump
Industry:
Agriculture
Media:
Clean Water
Performance:
Wear Pump
Theory:
Rotary Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Carton
Specification:
8kg
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Customization:
Available | Customized Request

Product Description

Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
DC Battery AC Electric Borehole Deep Well Solar Pump for Drinking Water
Product Advantage
1. With high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
With MPPT function
4. Much longer life than the nomal AC water pump.

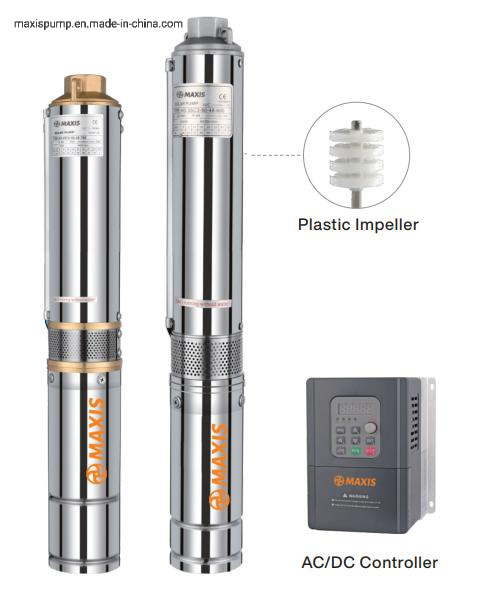

Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"

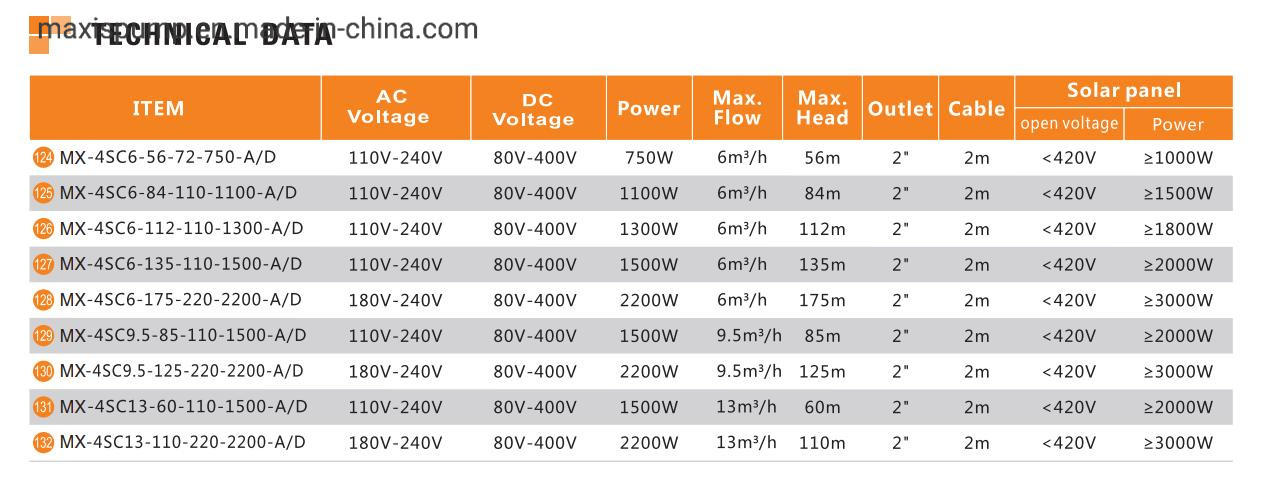

Techenical Data

Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Solar Panel
Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Open Voltage	Power
124	MX-4SC6-56-72-750-A/D	110V-240V	80V-400V	750 W	6000 L/H	56 M	2"	2 M	<420V	≥1000W
125	MX-4SC6-84-110-1100-A/D	110V-240V	80V-400V	1100 W	6000 L/H	84 M	2"	2 M	<420V	≥1500W
126	MX-4SC6-112-110-1300-A/D	110V-240V	80V-400V	1300 W	6000 L/H	112 M	2"	2 M	<420V	≥1800W
127	MX-4SC6-135-110-1500-A/D	110V-240V	80V-400V	1500 W	6000 L/H	135 M	2"	2 M	<420V	≥2000W
128	MX-4SC6-175-220-2200-A/D	180V-240V	80V-400V	2200 W	6000 L/H	175 M	2"	2 M	<420V	≥3000W
129	MX-4SC9.5-85-110-1500-A/D	110V-240V	80V-400V	1500 W	9500 L/H	85 M	2"	2 M	<420V	≥2000W
130	MX-4SC9.5-125-220-2200-A/D	180V-240V	80V-400V	2200 W	9500 L/H	125 M	2"	2 M	<420V	≥3000W
131	MX-4SC13-60-110-1500-A/D	110V-240V	80V-400V	1500 W	13000 L/H	60 M	2"	2 M	<420V	≥2000W
132	MX-4SC13-110-220-2200-A/D	180V-240V	80V-400V	2200 W	13000 L/H	110 M	2"	2 M	<420V	≥3000W
