| Quantity: | |
|---|---|
Free Spare Parts
1 Year
50-80m
50-100 L/min
Motor
Cast Iron
MX-SQB3-50-48-550
Single-stage Pump
Liquid Pumps
Solar Energy
Electric Pump
Submersible Pump
Submersible Pump, Sewage Pump
Agriculture
Clean Water
No Leakage Pump
Centrifugal Pump
CE GS RoHS PAHs
Carton
6kg
MAXIS
China
8413709990
500000PCS/Year
US$ 30/Piece 1 Piece(Min.Order) | Request Sample
Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Product Advantage
1. Solar pump with high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection

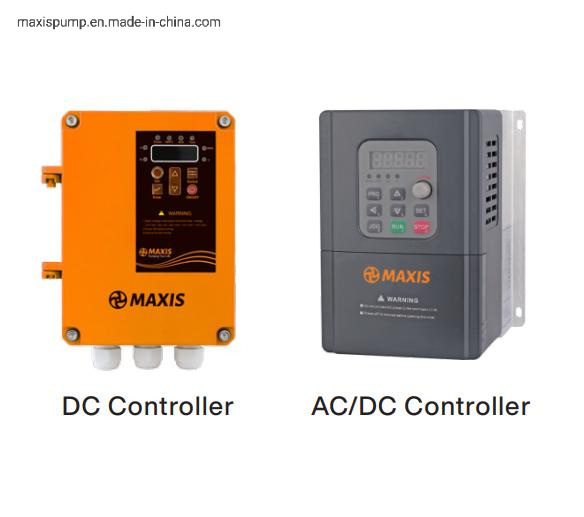

With MPPT function
4. Much longer life than the nomal AC water pump.

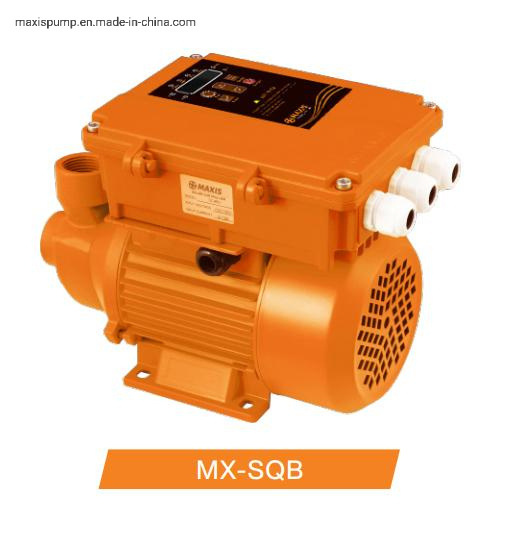

Pump

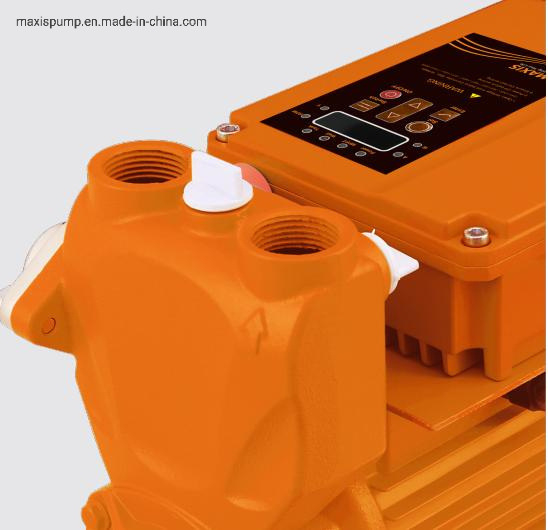

Casting Iron pump body
Motor with cooper winding
Built-in thermal protector
Max.liquid temperature: +40ºC

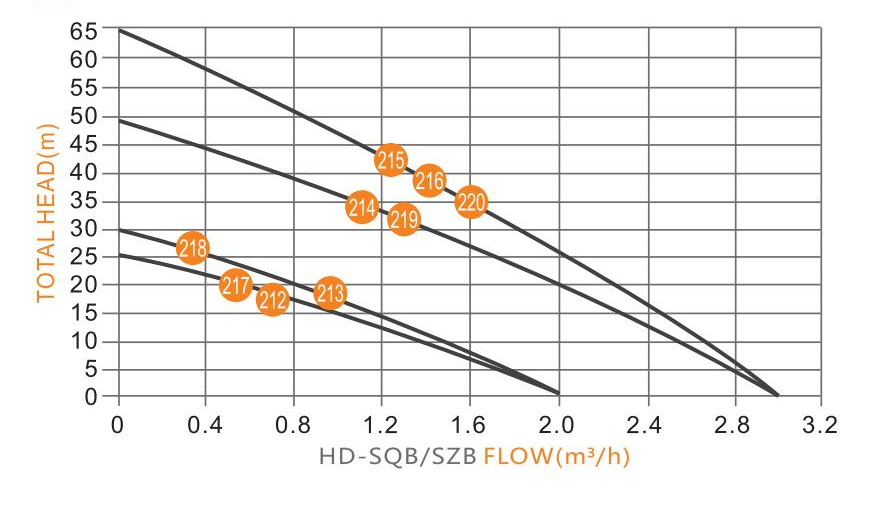

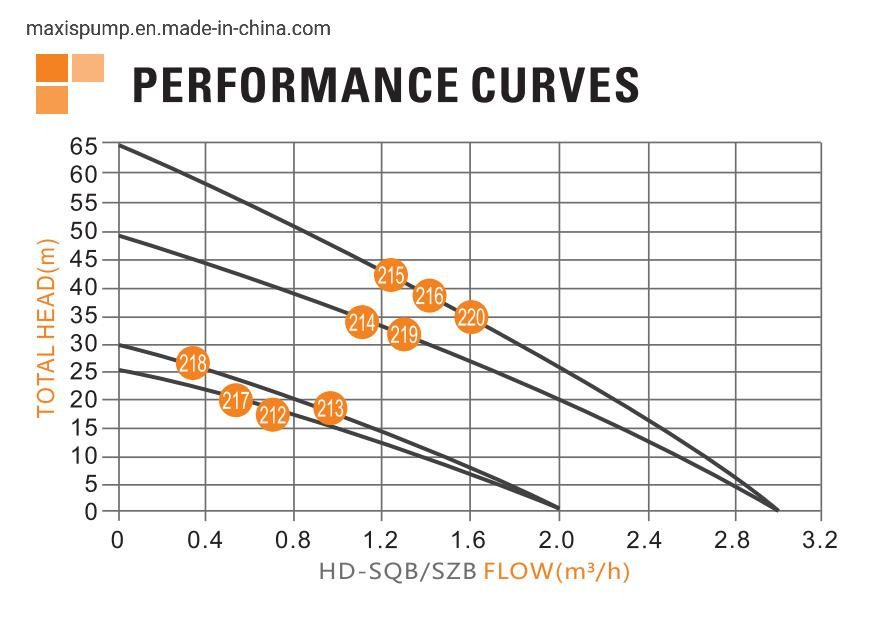

Techenical Data
| Nr | Model | AC Voltage | DC Voltage | Power | Max.Flow | Max.Head | Outlet | Cable | Solar Panel | |
| Open Voltage | Power | |||||||||
| 212 | MX-SQB2-25-24-210 | 24V | 30-48V | 210 W | 2000 L/H | 25 M | 1"X1" | 2 M | <50V | 300W |
| 213 | MX-SQB2-30-24-280 | 24V | 30-80V | 280 W | 2000 L/H | 30 M | 1"X1" | 2 M | <50V | 400W |
| 214 | MX-SQB3-50-48-550 | 48V | 60-90V | 500 W | 3000 L/H | 50 M | 1"X1" | 2 M | <100V | 750W |
| 215 | MX-SQB3-65-72-750 | 72V | 90-120V | 750 W | 3000 L/H | 65 M | 1"X1" | 2 M | <150V | ≥1000W |
| 216 | MX-3QB3-65-72-750-A/D | 110-240V | 80-400V | 750 W | 3000 L/H | 65 M | 1"X1" | 2 M | <420V | ≥1000W |
Company View
Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Product Advantage
1. Solar pump with high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
With MPPT function
4. Much longer life than the nomal AC water pump.
Pump
Casting Iron pump body
Motor with cooper winding
Built-in thermal protector
Max.liquid temperature: +40ºC
Techenical Data
| Nr | Model | AC Voltage | DC Voltage | Power | Max.Flow | Max.Head | Outlet | Cable | Solar Panel | |
| Open Voltage | Power | |||||||||
| 212 | MX-SQB2-25-24-210 | 24V | 30-48V | 210 W | 2000 L/H | 25 M | 1"X1" | 2 M | <50V | 300W |
| 213 | MX-SQB2-30-24-280 | 24V | 30-80V | 280 W | 2000 L/H | 30 M | 1"X1" | 2 M | <50V | 400W |
| 214 | MX-SQB3-50-48-550 | 48V | 60-90V | 500 W | 3000 L/H | 50 M | 1"X1" | 2 M | <100V | 750W |
| 215 | MX-SQB3-65-72-750 | 72V | 90-120V | 750 W | 3000 L/H | 65 M | 1"X1" | 2 M | <150V | ≥1000W |
| 216 | MX-3QB3-65-72-750-A/D | 110-240V | 80-400V | 750 W | 3000 L/H | 65 M | 1"X1" | 2 M | <420V | ≥1000W |
