| Quantity: | |
|---|---|
MX-SCPM18-14-72-550-A/D
300-400 L/min
Motor
Cast Iron
Single-stage Pump
Liquid Pumps
Solar Energy
Magnetic Pump
Submersible Pump
Submersible Pump, Sewage Pump
Agriculture
Clean Water
Wear Pump
Rotary Pump
CE GS RoHS PAHs
Carton
12kg
MAXIS
China
8413709990
500000PCS/Year
30.00cm * 50.00cm * 50.00cm
12.000kg
Free Spare Parts
1 Year
10-30m
Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Product Advantage
1. With high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection

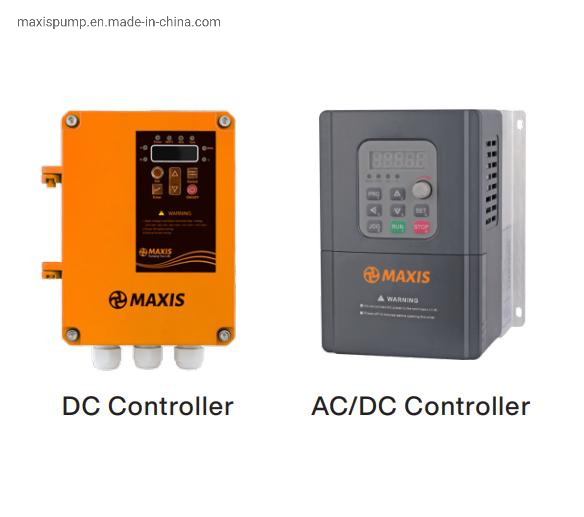

With MPPT function
4. Much longer life than the nomal AC water pump.

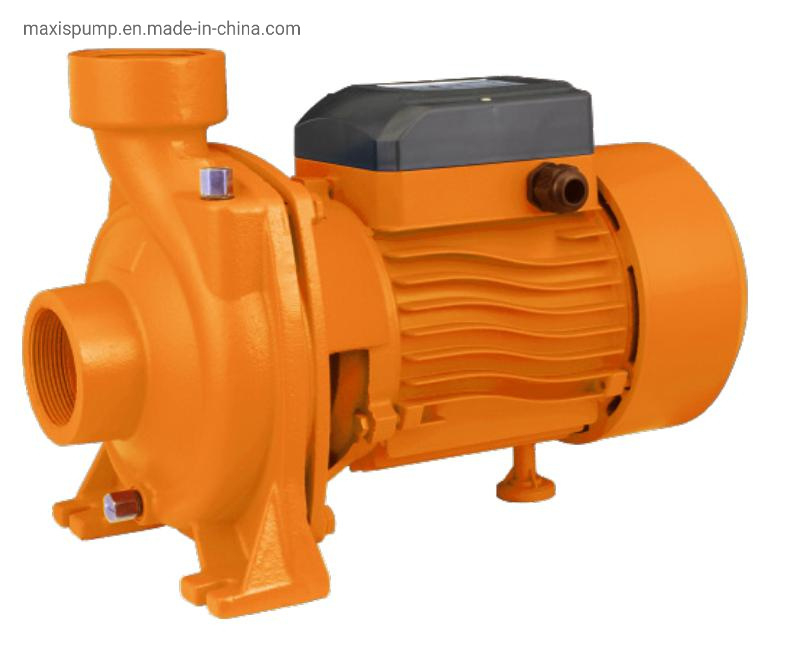

Pump
Casting Iron pump body
Motor with cooper winding
Built-in thermal protector
Max.liquid temperature: +40ºC

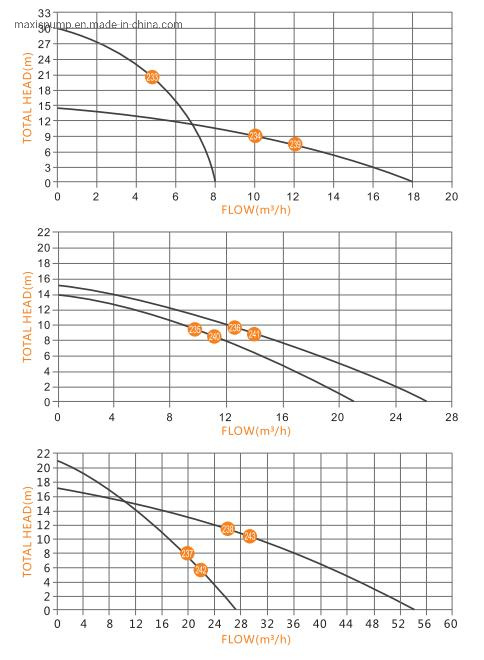

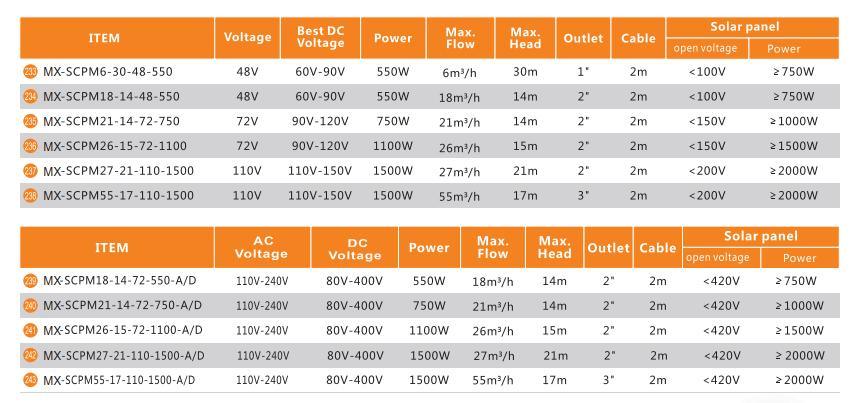

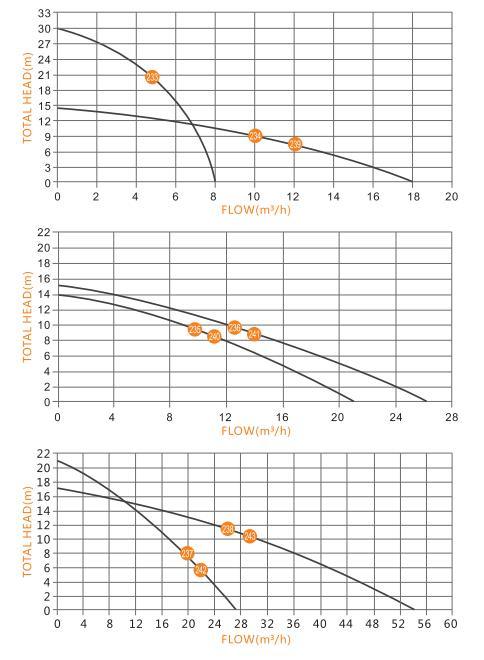

Techenical Data
| Nr | Model | AC Voltage | DC Voltage | Power | Max.Flow | Max.Head | Outlet | Cable | Solar Panel | |
| Open Voltage | Power | |||||||||
| 239 | MX-SCPM18-14-72-550-A/D | 110V-240V | 80V-400V | 550 W | 18000 L/H | 14 M | 2" | 2 M | <420V | ≥750W |
| 240 | MX-SCPM21-14-72-750-A/D | 110V-240V | 80V-400V | 750 W | 21000 L/H | 14 M | 2" | 2 M | <420V | ≥1000W |
| 241 | MX-SCPM26-15-72-1100-A/D | 110V-240V | 80V-400V | 1100 W | 26000 L/H | 15 M | 2" | 2 M | <420V | ≥1500W |
| 242 | MX-SCPM27-21-110-1500-A/D | 110V-240V | 80V-400V | 1500 W | 27000 L/H | 21 M | 2" | 2 M | <420V | ≥2000W |
| 243 | MX-SCPM55-17-110-1500-A/D | 110V-240V | 80V-400V | 1500 W | 55000 L/H | 17 M | 3" | 2 M | <420V | ≥2000W |
Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Product Advantage
1. With high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
With MPPT function
4. Much longer life than the nomal AC water pump.
Pump
Casting Iron pump body
Motor with cooper winding
Built-in thermal protector
Max.liquid temperature: +40ºC
Techenical Data
| Nr | Model | AC Voltage | DC Voltage | Power | Max.Flow | Max.Head | Outlet | Cable | Solar Panel | |
| Open Voltage | Power | |||||||||
| 239 | MX-SCPM18-14-72-550-A/D | 110V-240V | 80V-400V | 550 W | 18000 L/H | 14 M | 2" | 2 M | <420V | ≥750W |
| 240 | MX-SCPM21-14-72-750-A/D | 110V-240V | 80V-400V | 750 W | 21000 L/H | 14 M | 2" | 2 M | <420V | ≥1000W |
| 241 | MX-SCPM26-15-72-1100-A/D | 110V-240V | 80V-400V | 1100 W | 26000 L/H | 15 M | 2" | 2 M | <420V | ≥1500W |
| 242 | MX-SCPM27-21-110-1500-A/D | 110V-240V | 80V-400V | 1500 W | 27000 L/H | 21 M | 2" | 2 M | <420V | ≥2000W |
| 243 | MX-SCPM55-17-110-1500-A/D | 110V-240V | 80V-400V | 1500 W | 55000 L/H | 17 M | 3" | 2 M | <420V | ≥2000W |
