AC Electric DC Battery Solar Panel Deep Well Pump with Controller Full Kits

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
50-80m
Max.Capacity:
<50 L/min
Driving Type:
Motor
Material:
Stainless Steel
Model NO.:
MX-4SSC5-67-72-750-A/D
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Solar Energy
Start Up:
Magnetic Pump
Type:
Submersible Pump
Application:
Submersible Pump, Sewage Pump
Industry:
Agriculture
Media:
Clean Water
Performance:
Wear Pump
Theory:
Rotary Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Carton
Specification:
13kg
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Customization:
Available | Customized Request

Product Description

Application

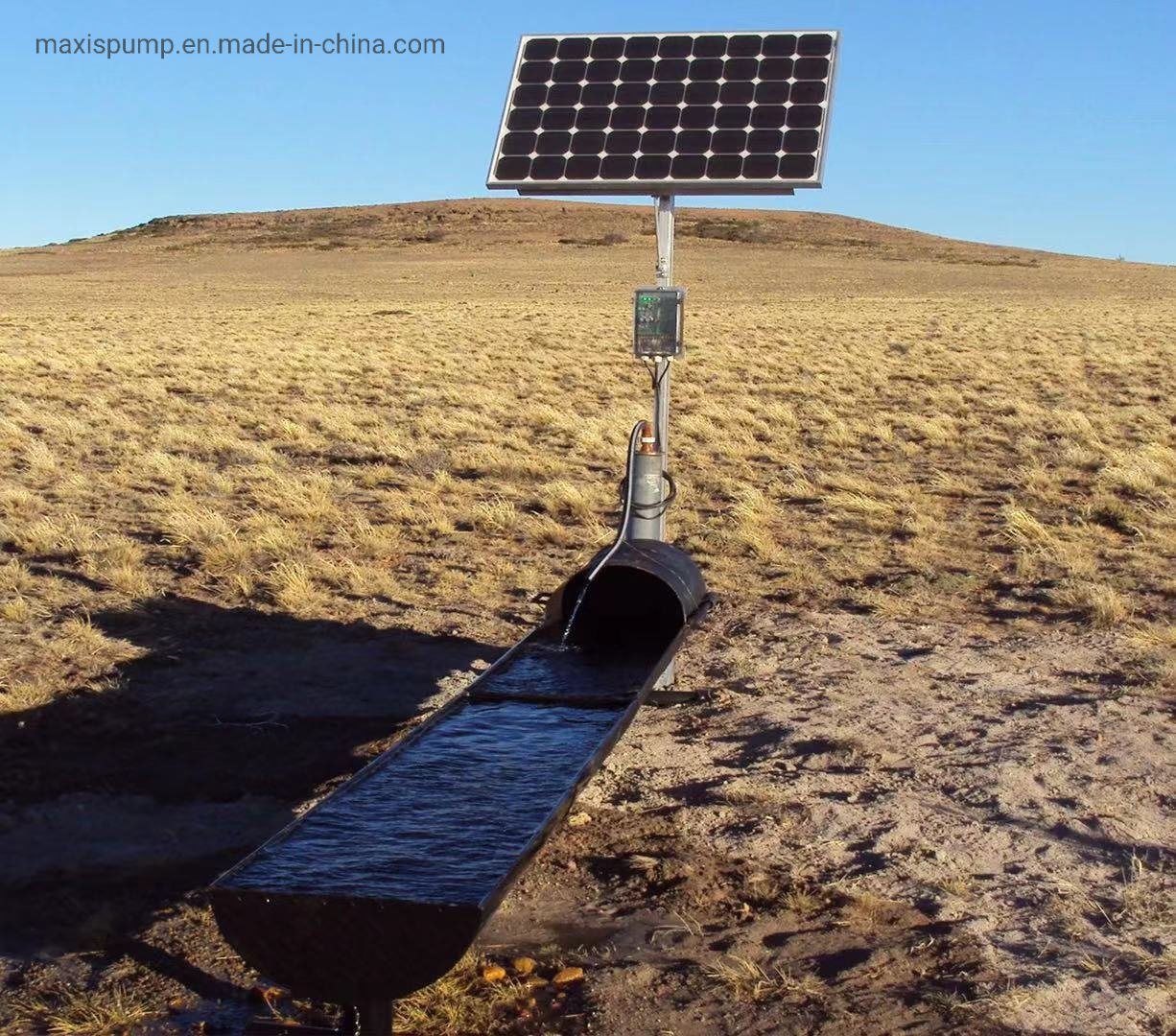

1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
AC Electric DC Battery Solar Panel Deep Well Pump with Controller Full Kits
Product Advantage
1. With high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
With MPPT function
4. Much longer life than the nomal AC water pump.

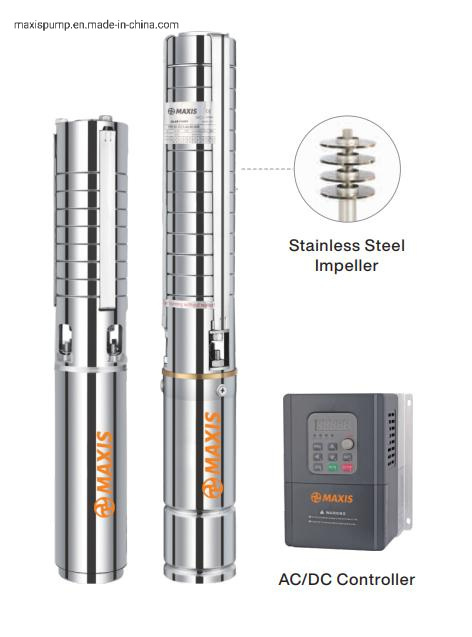

Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"

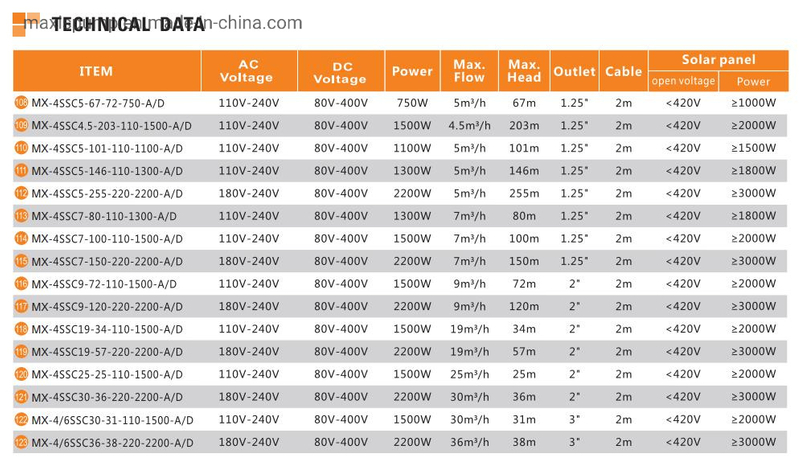

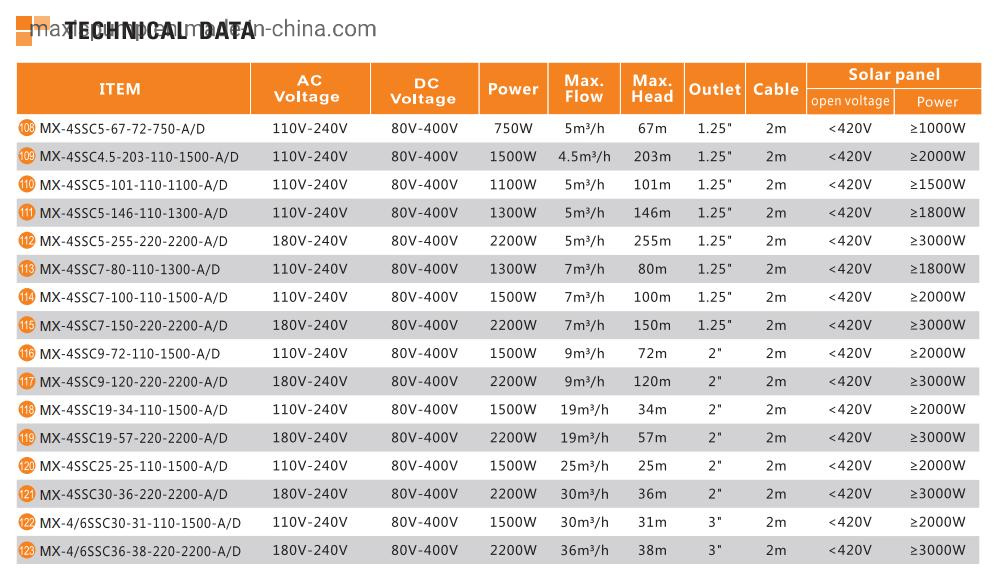

Techenical Data

Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Solar Panel
Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Open Voltage	Power
108	MX-4SSC5-67-72-750-A/D	110V-240V	80V-400V	750 W	5000 L/H	67 M	1,1/4"	2 M	<420V	≥1000W
109	MX-4SSC4.5-203-110-1500-A/D	110V-240V	80V-400V	1500 W	4500 L/H	203 M	1,1/4"	2 M	<420V	≥2000W
110	MX-4SSC5-101-110-1100-A/D	110V-240V	80V-400V	1100 W	5000 L/H	101 M	1,1/4"	2 M	<420V	≥1500W
111	MX-4SSC5-146-110-1300-A/D	110V-240V	80V-400V	1300 W	5000 L/H	146 M	1,1/4"	2 M	<420V	≥1800W
112	MX-4SSC5-255-220-2200-A/D	180V-240V	80V-400V	2200 W	5000 L/H	255 M	1,1/4"	2 M	<420V	≥3000W
113	MX-4SSC7-80-110-1300-A/D	110V-240V	80V-400V	1300 W	7000 L/H	80 M	1,1/4"	2 M	<420V	≥1800W
114	MX-4SSC7-110-110-1500-A/D	110V-240V	80V-400V	1500 W	7000 L/H	100 M	1,1/4"	2 M	<420V	≥2000W
115	MX-4SSC7-150-220-2200-A/D	180V-240V	80V-400V	2200 W	7000 L/H	150 M	1,1/4"	2 M	<420V	≥3000W
116	MX-4SSC9-72-110-1500-A/D	110V-240V	80V-400V	1500 W	9000 L/H	72 M	2"	2 M	<420V	≥2000W
117	MX-4SSC9-120-220-2200-A/D	180V-240V	80V-400V	2200 W	9000 L/H	120 M	2"	2 M	<420V	≥3000W
118	MX-4SSC19-34-110-1500-A/D	110V-240V	80V-400V	1500 W	19000 L/H	34 M	2"	2 M	<420V	≥2000W
119	MX-4SSC19-57-220-2200-A/D	180V-240V	80V-400V	2200 W	19000 L/H	57 M	2"	2 M	<420V	≥3000W
120	MX-4SSC25-25-110-1500-A/D	110V-240V	80V-400V	1500 W	25000 L/H	25 M	2"	2 M	<420V	≥2000W
121	MX-4SSC30-36-220-2200-A/D	180V-240V	80V-400V	2200 W	30000 L/H	36 M	2"	2 M	<420V	≥3000W
122	MX-4/6SSC30-31-110-1500-A/D	110V-240V	80V-400V	1500 W	30000 L/H	31 M	2"	2 M	<420V	≥2000W
123	MX-4/6SSC36-38-220-2200-A/D	180V-240V	80V-400V	2200 W	36000 L/H	38 M	2"	2 M	<420V	≥3000W
