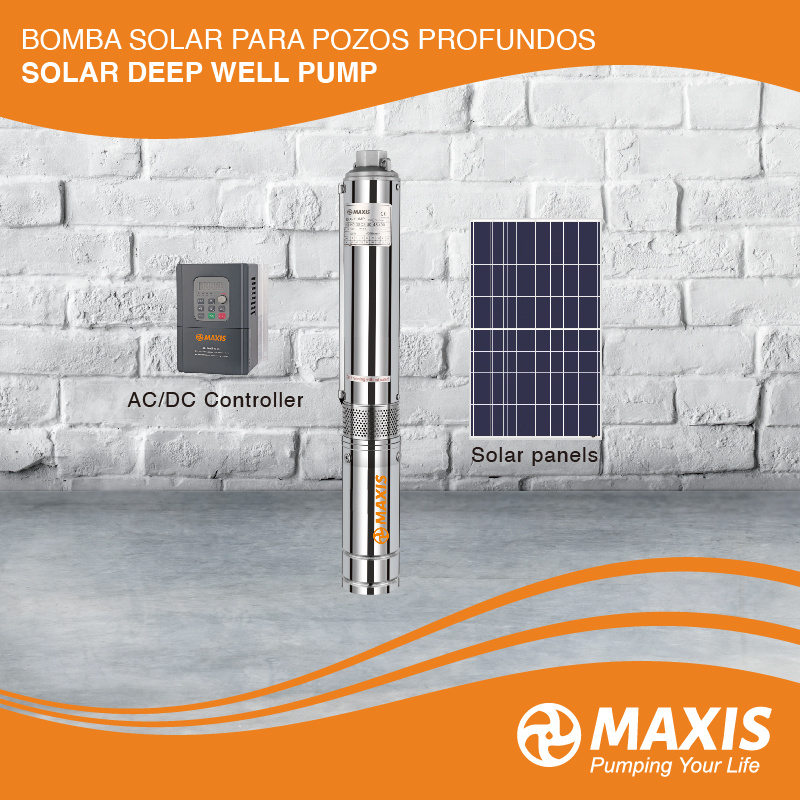

AC DC Solar Borehole Pump Deep Well with Controller for Drinking Water

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
80-110m
Max.Capacity:
50-100 L/min
Driving Type:
Motor
Material:
Stainless Steel
Model NO.:
MX-3SC3.8-80-72-600-A/D
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Solar Energy
Start Up:
Electric Pump
Type:
Submersible Pump
Application:
Submersible Pump, Sewage Pump
Industry:
Agriculture
Media:
Clean Water
Performance:
Wear Pump
Theory:
Centrifugal Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Carton
Specification:
9kg
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Customization:
Available | Customized Request

Product Description

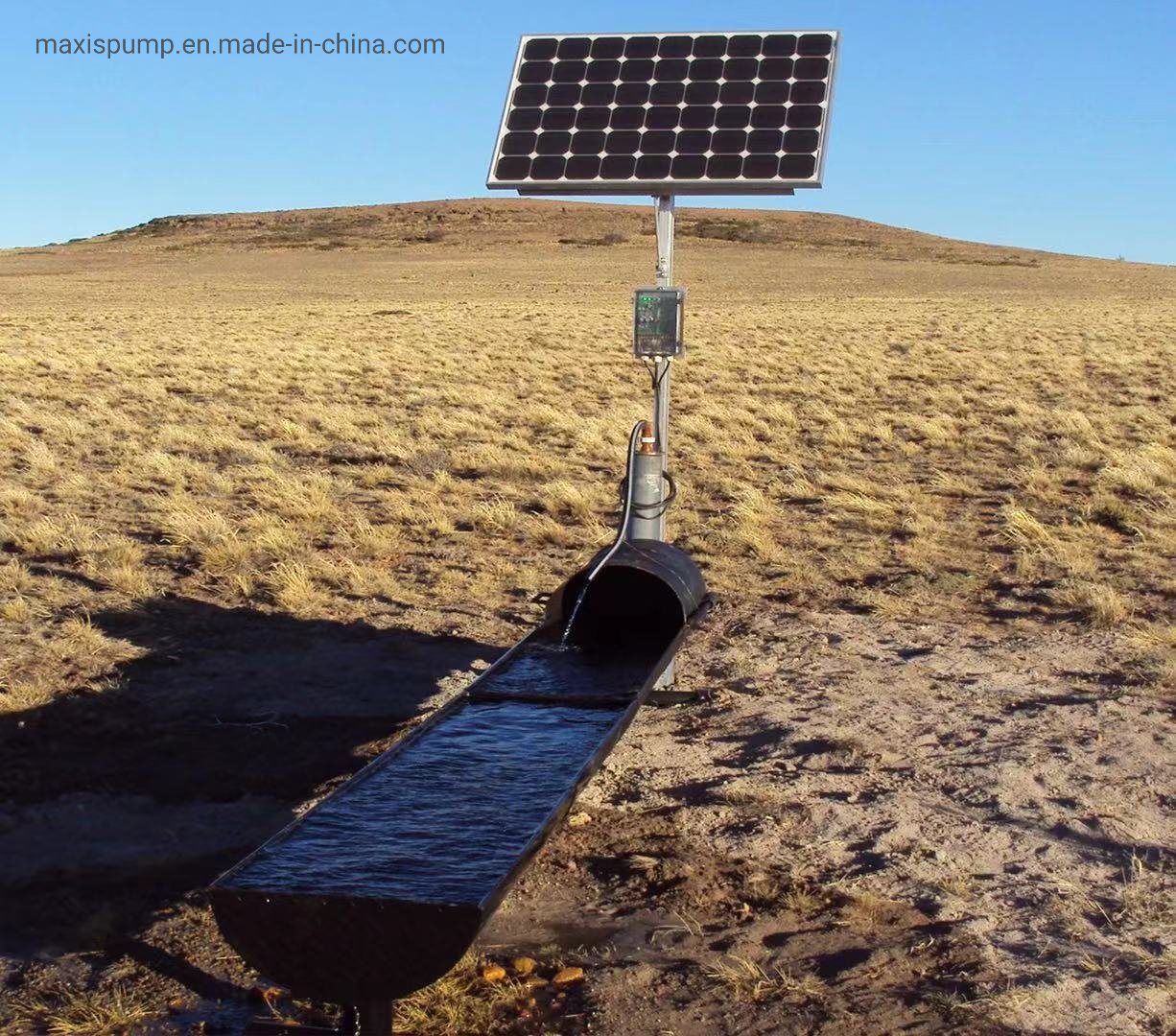

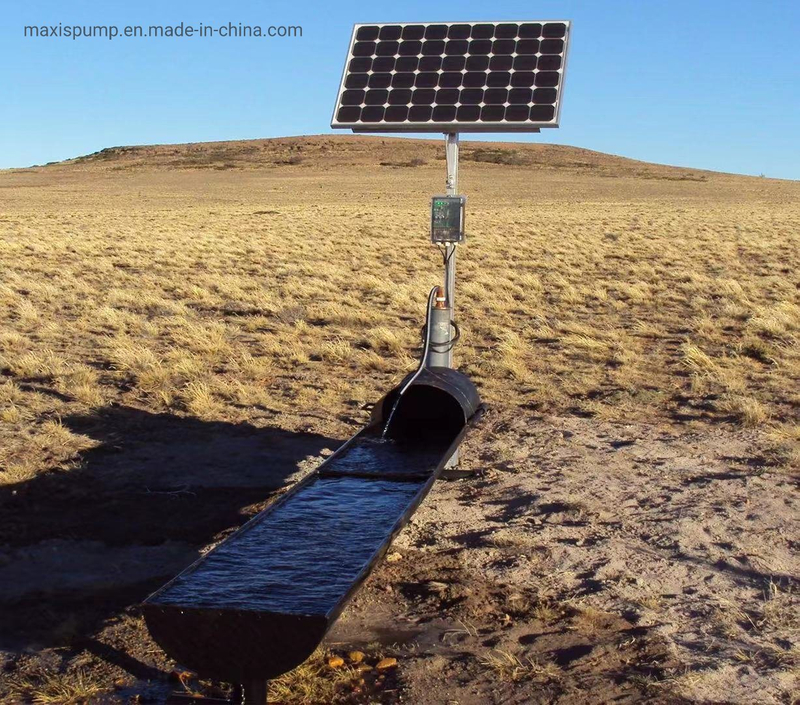

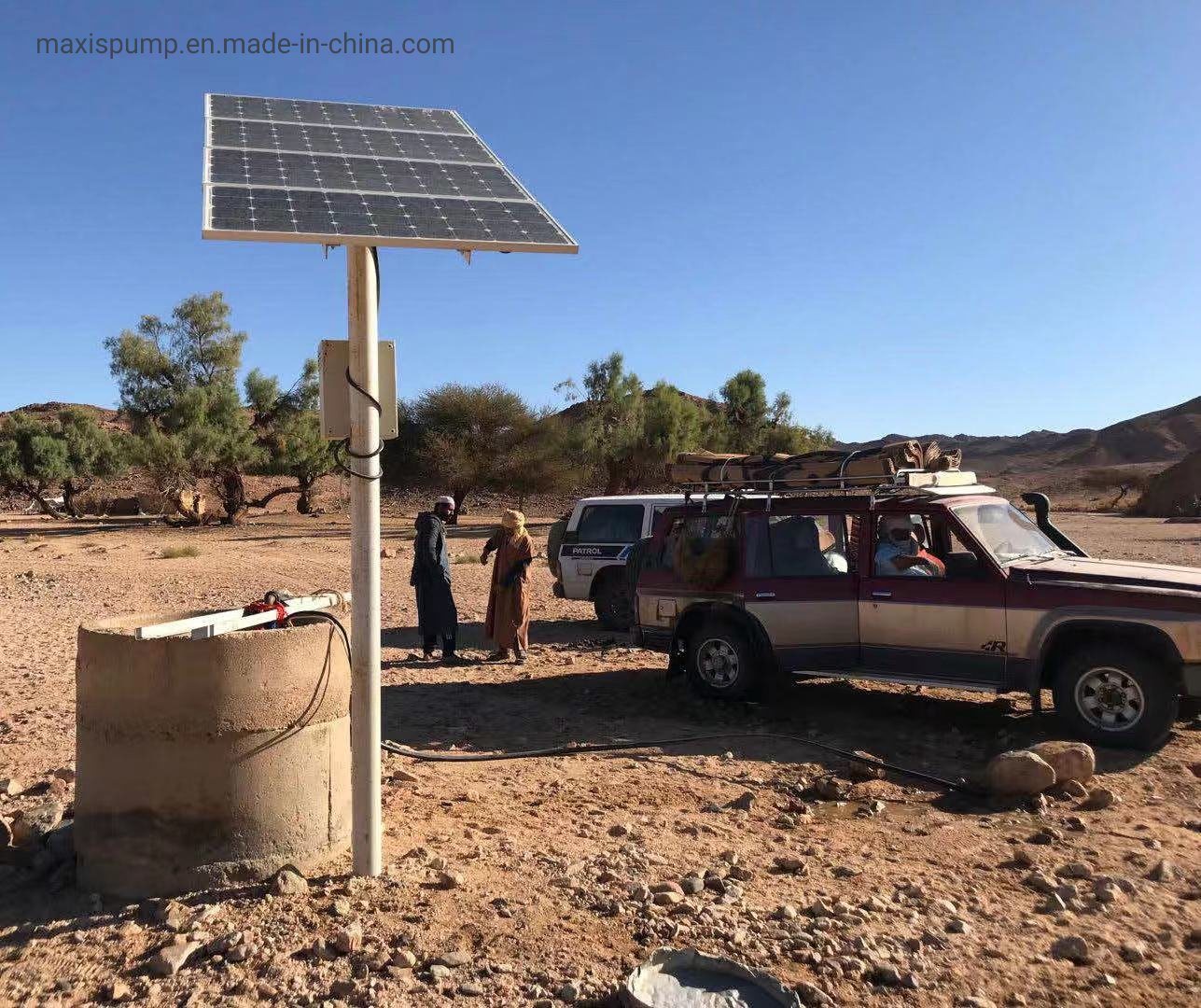

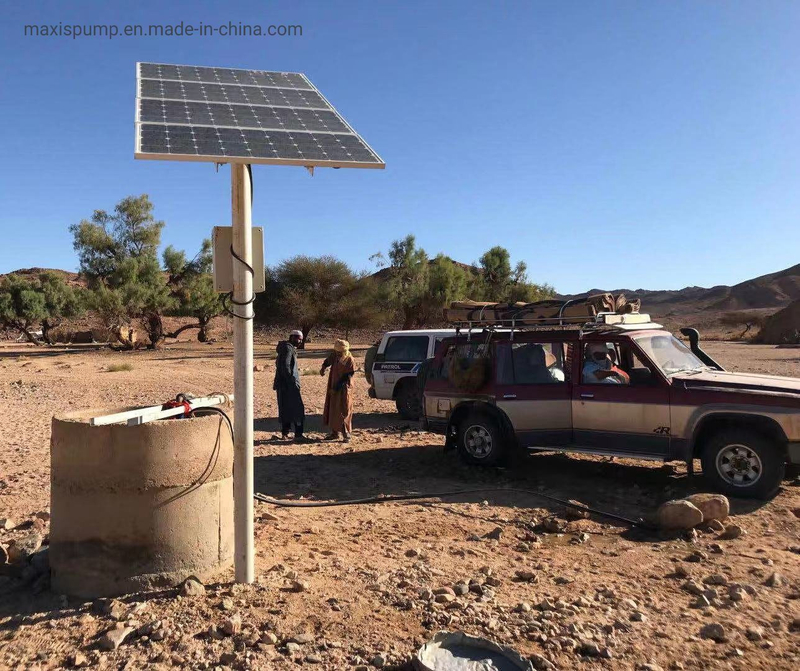

Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
AC DC Solar Borehole Pump Deep Well with Controller for Drinking Water
Product Advantage
1. With high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
With MPPT function
4. Much longer life than the nomal AC water pump.

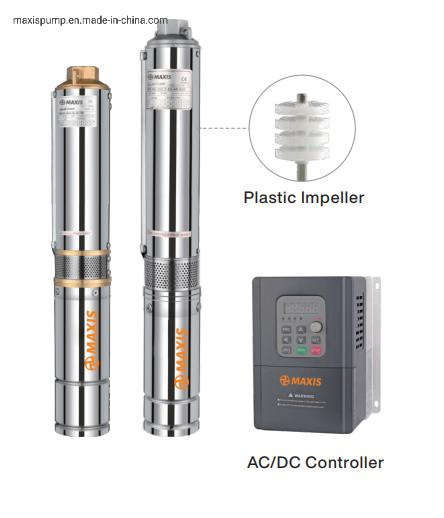

Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"

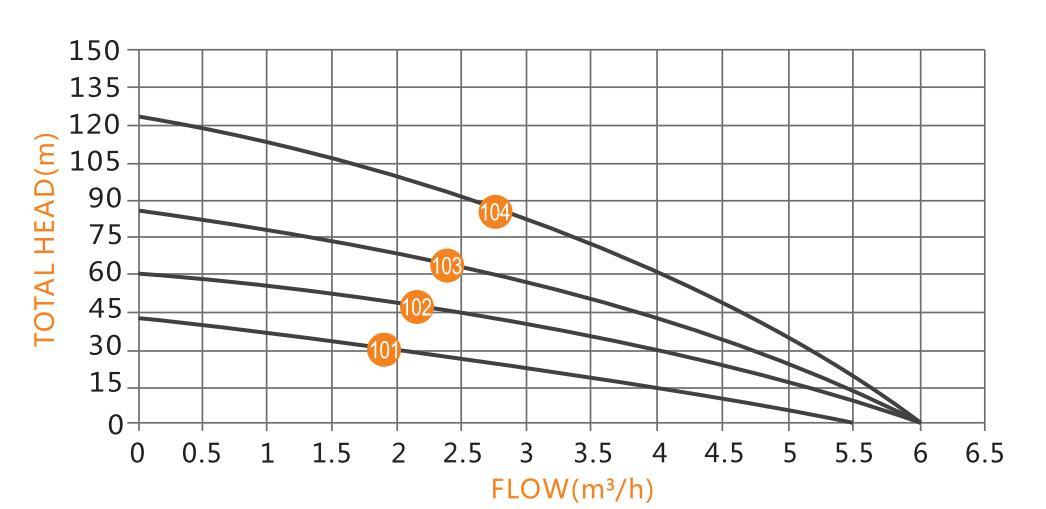

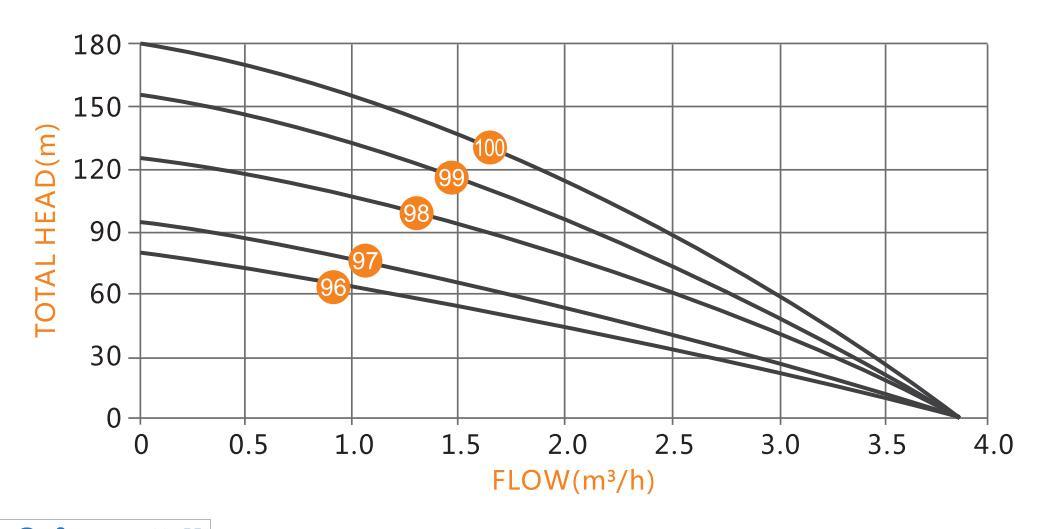

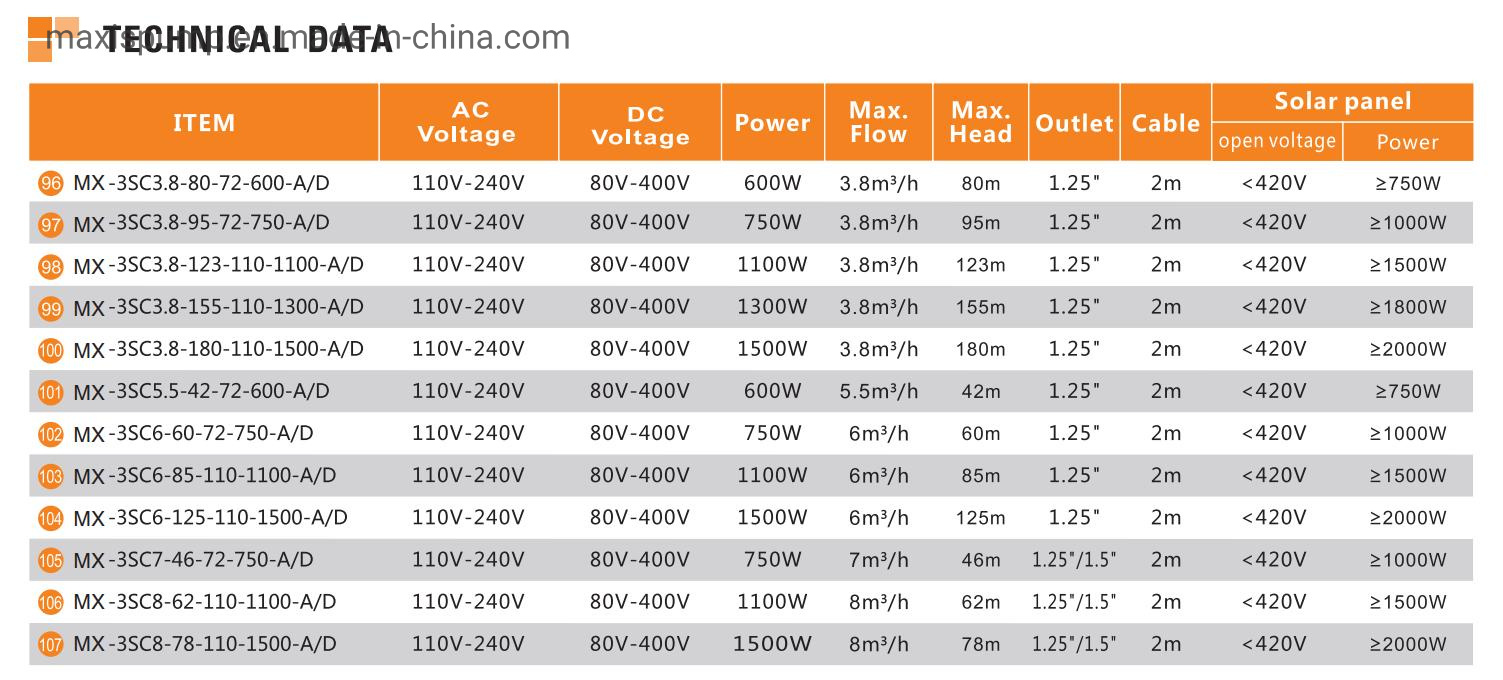

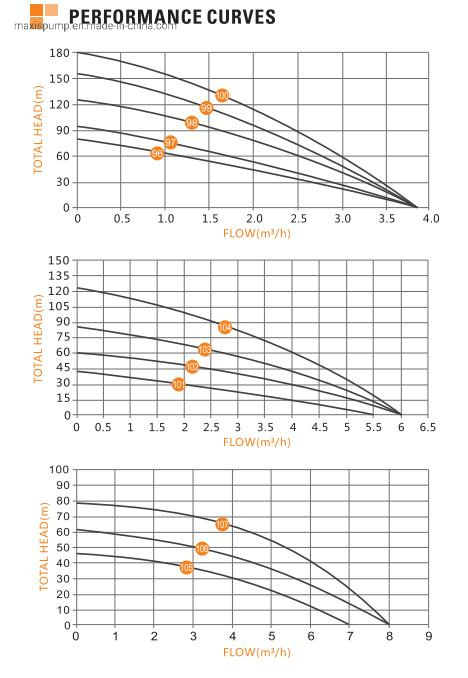

Techenical Data

Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Solar Panel
Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Open Voltage	Power
96	MX-3SC3.8-80-72-600-A/D	110V-240V	80V-400V	600 W	3800 L/H	80 M	1,1/4"	2 M	<420V	≥750W
97	MX-3SC3.8-95-72-750-A/D	110V-240V	80V-400V	750 W	3800 L/H	95 M	1,1/4"	2 M	<420V	≥1000W
98	MX-3SC3.8-123-110-1100-A/D	110V-240V	80V-400V	1100 W	3800 L/H	123 M	1,1/4"	2 M	<420V	≥1500W
99	MX-3SC3.8-155-110-1300-A/D	110V-240V	80V-400V	1300 W	3800 L/H	155 M	1,1/4"	2 M	<420V	≥1800W
100	MX-3SC3.8-180-110-1500-A/D	110V-240V	80V-400V	1500 W	3800 L/H	180 M	1,1/4"	2 M	<420V	≥2000W
101	MX-3SC5.5-42-72-600-A/D	110V-240V	80V-400V	600 W	5500 L/H	42 M	1,1/4"	2 M	<420V	≥750W
102	MX-3SC6-60-72-750-A/D	110V-240V	80V-400V	750 W	6000 L/H	60 M	1,1/4"	2 M	<420V	≥1000W
103	MX-3SC6-85-110-1100-A/D	110V-240V	80V-400V	1100 W	6000 L/H	85 M	1,1/4"	2 M	<420V	≥1500W
104	MX-3SC6-125-110-1500-A/D	110V-240V	80V-400V	1500 W	6000 L/H	125 M	1,1/4"	2 M	<420V	≥2000W

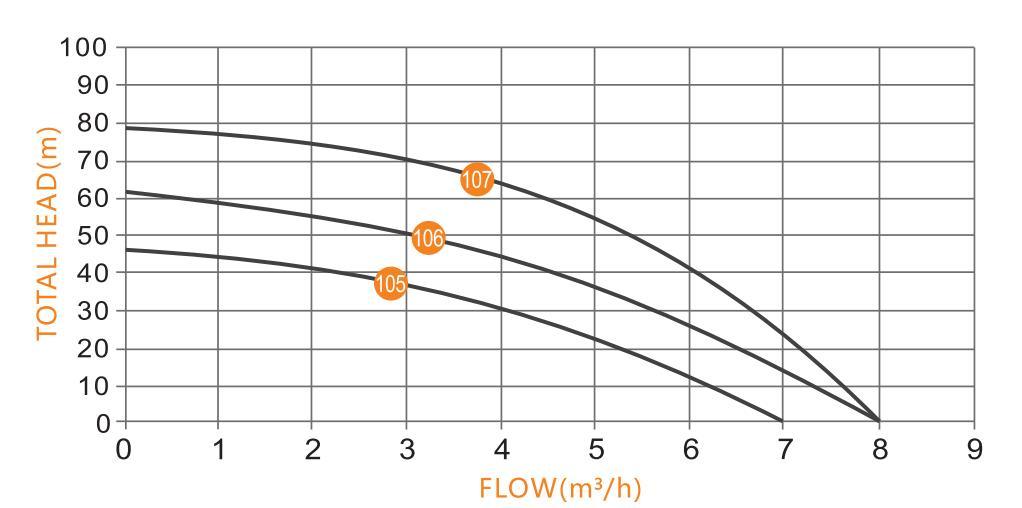

105	MX-3SC7-46-72-750-A/D	110V-240V	80V-400V	750 W	7000 L/H	46 M	1,1/4"/1,1/2"	2 M	<420V	≥1000W
106	MX-3SC7-62-110-1100-A/D	110V-240V	80V-400V	1100 W	8000 L/H	62 M	1,1/4"/1,1/2"	2 M	<420V	≥1500W
107	MX-3SC7-78-110-1500-A/D	110V-240V	80V-400V	1500 W	8000 L/H	78 M	1,1/4"/1,1/2"	2 M	<420V	≥2000W
