AC DC Battery Solar Energy Saving Deep Well Borehole Water Pump for Living Water

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
50-80m
Max.Capacity:
100-200 L/min
Driving Type:
Motor
Material:
Stainless Steel
Model NO.:
MX-4SSC9-72-220-1500-A/D
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Solar Energy
Start Up:
Magnetic Pump
Type:
Submersible Pump
Application:
Submersible Pump, Sewage Pump
Industry:
Agriculture
Media:
Clean Water
Performance:
Wear Pump
Theory:
Rotary Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Carton
Specification:
10kg
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Customization:
Available | Customized Request

Product Description

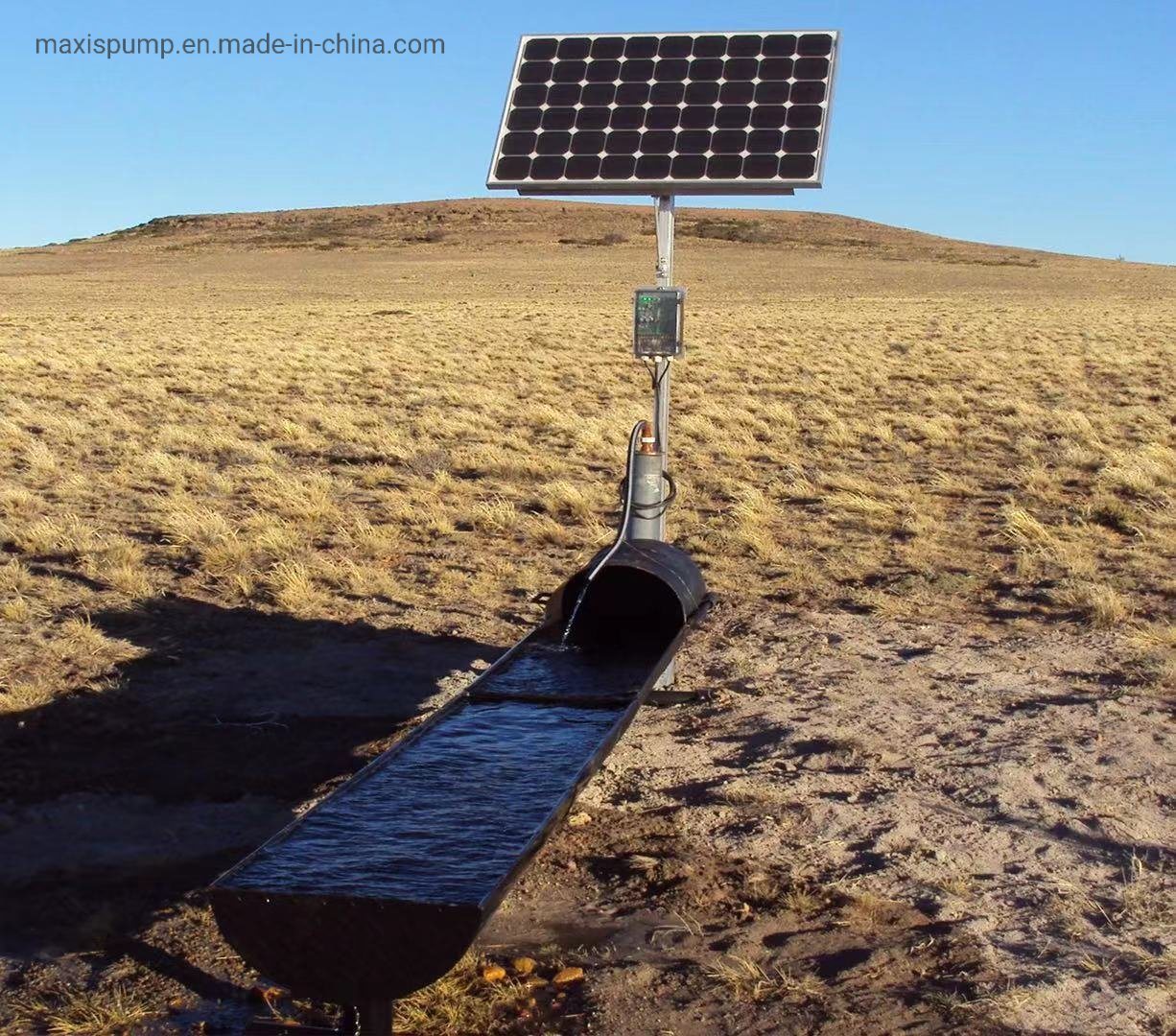

Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
AC DC Battery Solar Energy Saving Deep Well Borehole Water Pump for Living Water
Product Advantage
1. With high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection
With MPPT function
4. Much longer life than the nomal AC water pump.

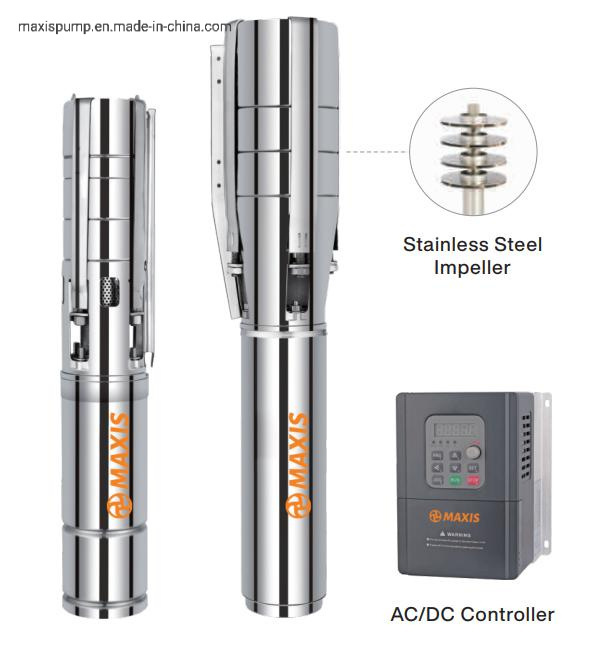

Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"

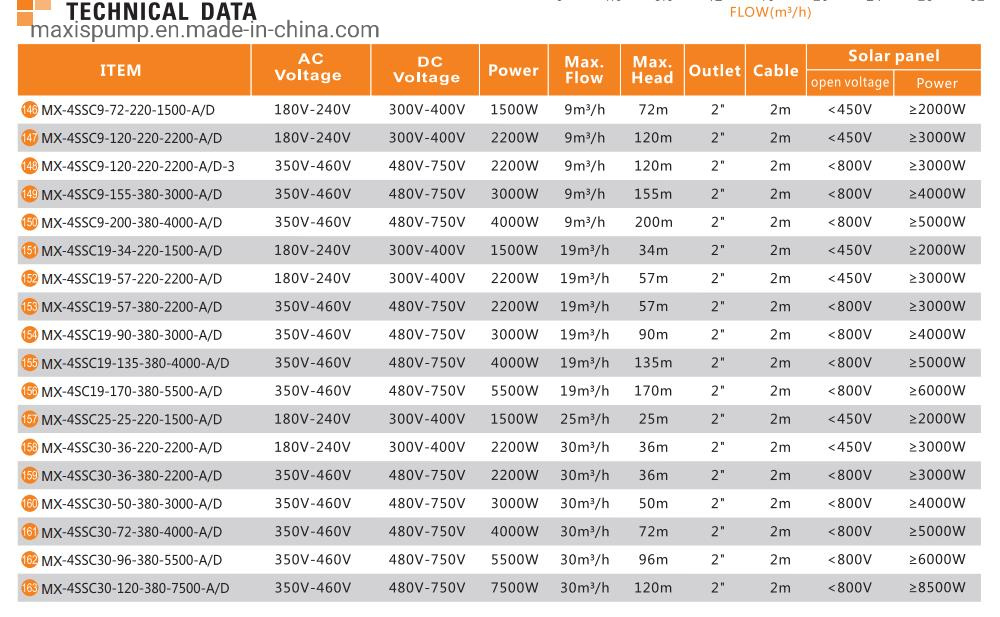

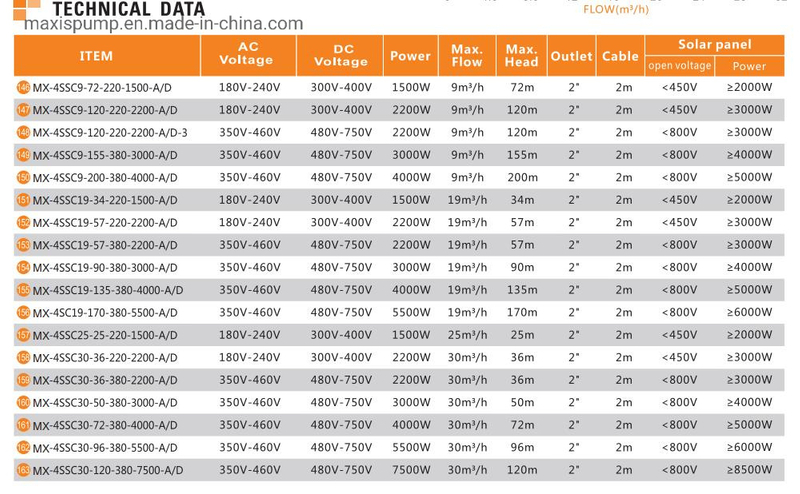

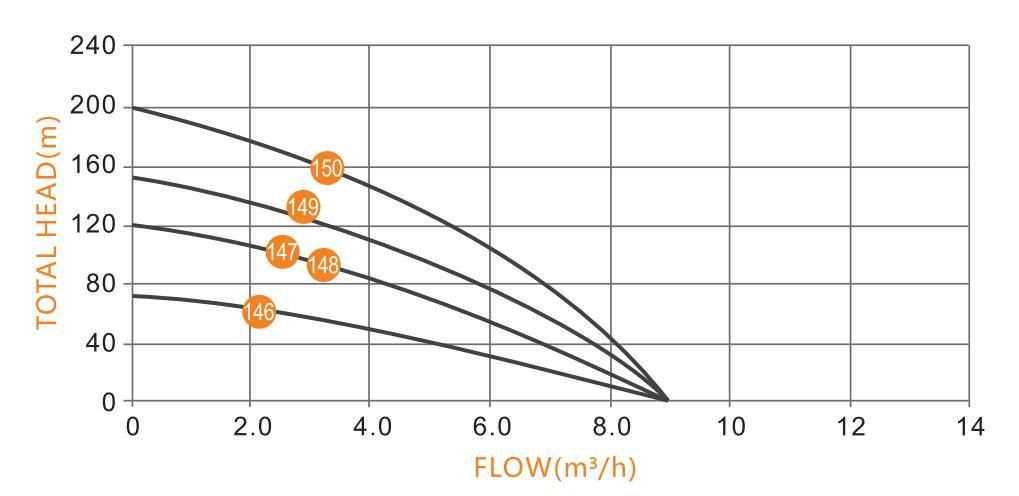

Techenical Data

Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Solar Panel
Nr	Model	AC Voltage	DC Voltage	Power	Max.Flow	Max.Head	Outlet	Cable	Open Voltage	Power
146	MX-4SSC9-72-220-1500-A/D	180V-240V	300-400V	1500 W	9000 L/H	72 M	2"	2 M	<450V	≥2000W
147	MX-4SSC9-120-220-2200-A/D	180V-240V	300-400V	2200 W	9000 L/H	120 M	2"	2 M	<450V	≥3000W
148	MX-4SSC9-120-220-2200-A/D-3	350V-460V	480V-750V	2200 W	9000 L/H	120 M	2"	2 M	<800V	≥3000W
149	MX-4SSC9-155-380-3000-A/D	350V-460V	480V-750V	3000 W	9000 L/H	155 M	2"	2 M	<800V	≥4000W
150	MX-4SSC9-200-380-4000-A/D	350V-460V	480V-750V	4000 W	9000 L/H	200 M	2"	2 M	<800V	≥5000W
151	MX-4SSC19-34-220-1500-A/D	180V-240V	300-400V	1500 W	19000 L/H	34 M	2"	2 M	<450V	≥2000W
152	MX-4SSC19-57-220-2200-A/D	180V-240V	300-400V	2200 W	19000 L/H	57 M	2"	2 M	<450V	≥3000W
153	MX-4SSC19-57-380-3000-A/D	350V-460V	480V-750V	2200 W	19000 L/H	57 M	2"	2 M	<800V	≥3000W
154	MX-4SSC19-90-380-3000-A/D	350V-460V	480V-750V	3000 W	19000 L/H	90 M	2"	2 M	<800V	≥4000W
155	MX-4SSC19-135-380-4000-A/D	350V-460V	480V-750V	4000 W	19000 L/H	135 M	2"	2 M	<800V	≥5000W
156	MX-4SSC19-170-380-5500-A/D	350V-460V	480V-750V	5500 W	19000 L/H	170 M	2"	2 M	<800V	6000W
157	MX-4SSC25-25-220-1500-A/D	180V-240V	300-400V	1500 W	25000 L/H	25 M	2"	2 M	<450V	≥2000W
158	MX-4SSC30-36-220-2200-A/D	180V-240V	300-400V	2200 W	30000 L/H	36 M	2"	2 M	<450V	≥3000W
159	MX-4SSC30-36-380-2200-A/D	350V-460V	480V-750V	2200 W	30000 L/H	36 M	2"	2 M	<800V	≥3000W
160	MX-4SSC30-50-380-3000-A/D	350V-460V	480V-750V	3000 W	30000 L/H	50 M	2"	2 M	<800V	≥4000W
161	MX-4SSC30-72-380-4000-A/D	350V-460V	480V-750V	4000 W	30000 L/H	72 M	2"	2 M	<800V	≥5000W
162	MX-4SSC30-96-380-5500-A/D	350V-460V	480V-750V	5500 W	30000 L/H	96 M	2"	2 M	<800V	6000W
163	MX-4SSC30-120-380-7500-A/D	350V-460V	480V-750V	7500 W	30000 L/H	120 M	2"	2 M	<800V	8500W
