| Quantity: | |
|---|---|
Free Spare Parts
1 Year
10-30m
200-300 L/min
Motor
Plastic
MX-SSP27-19-72-1200
Single-stage Pump
Liquid Pumps
Solar Energy
Electric Pump
Submersible Pump
Submersible Pump, Sewage Pump
Swimming Pool
Clean Water
No Leakage Pump
Jet Pump
CE GS RoHS PAHs
Carton
8kg
MAXIS
China
8413709990
500000PCS/Year
US$ 50/Piece 1 Piece(Min.Order) | Request Sample

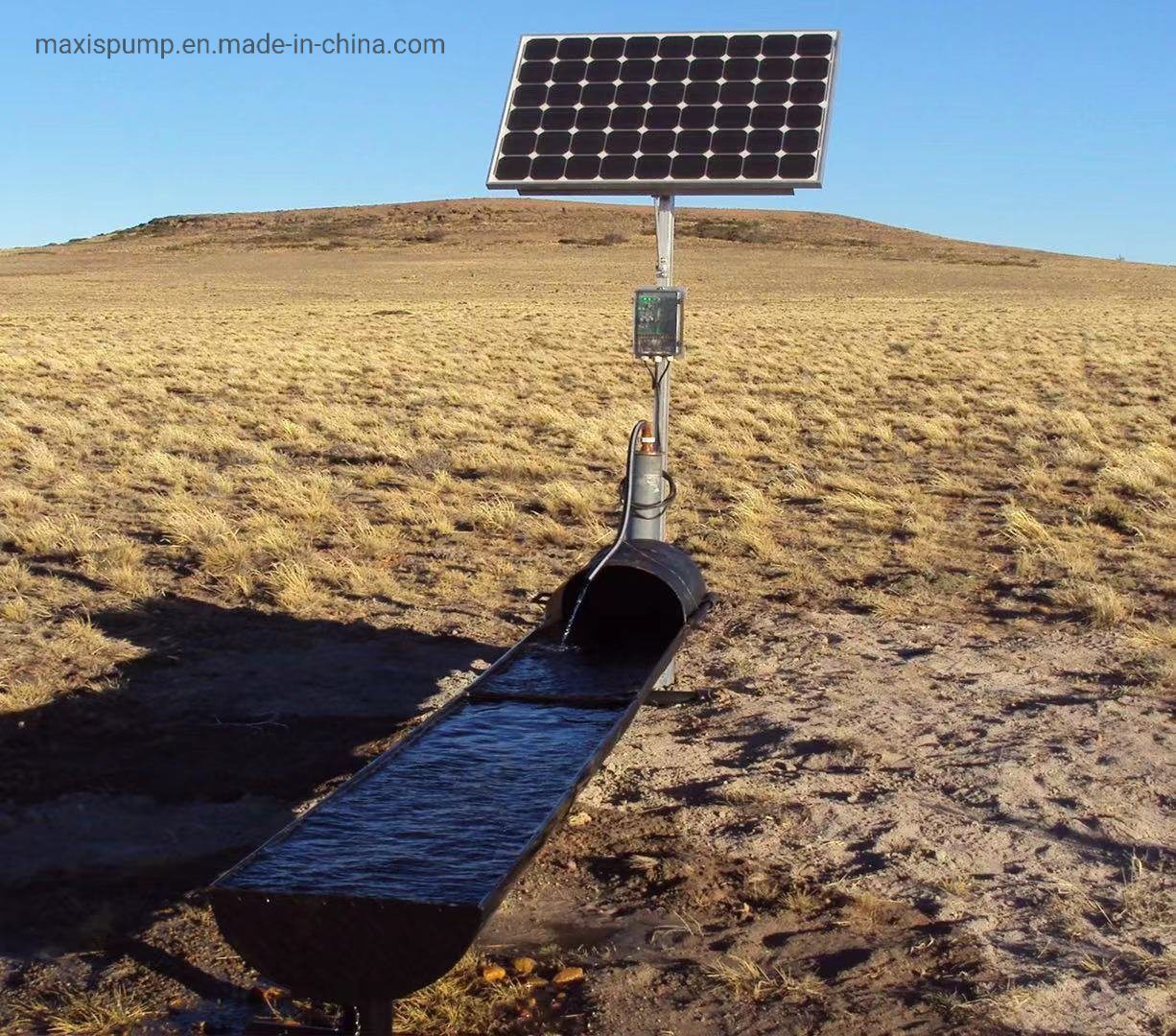

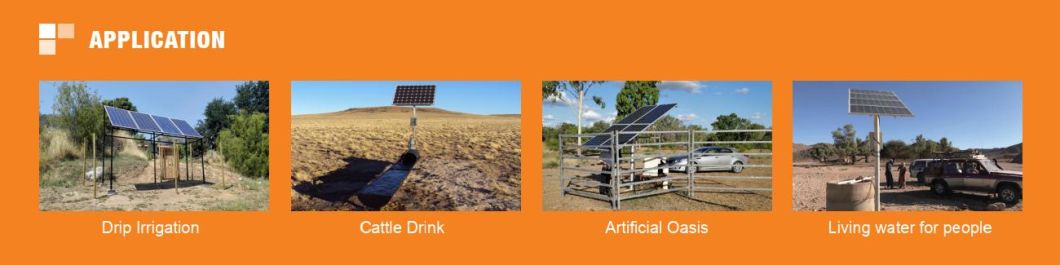

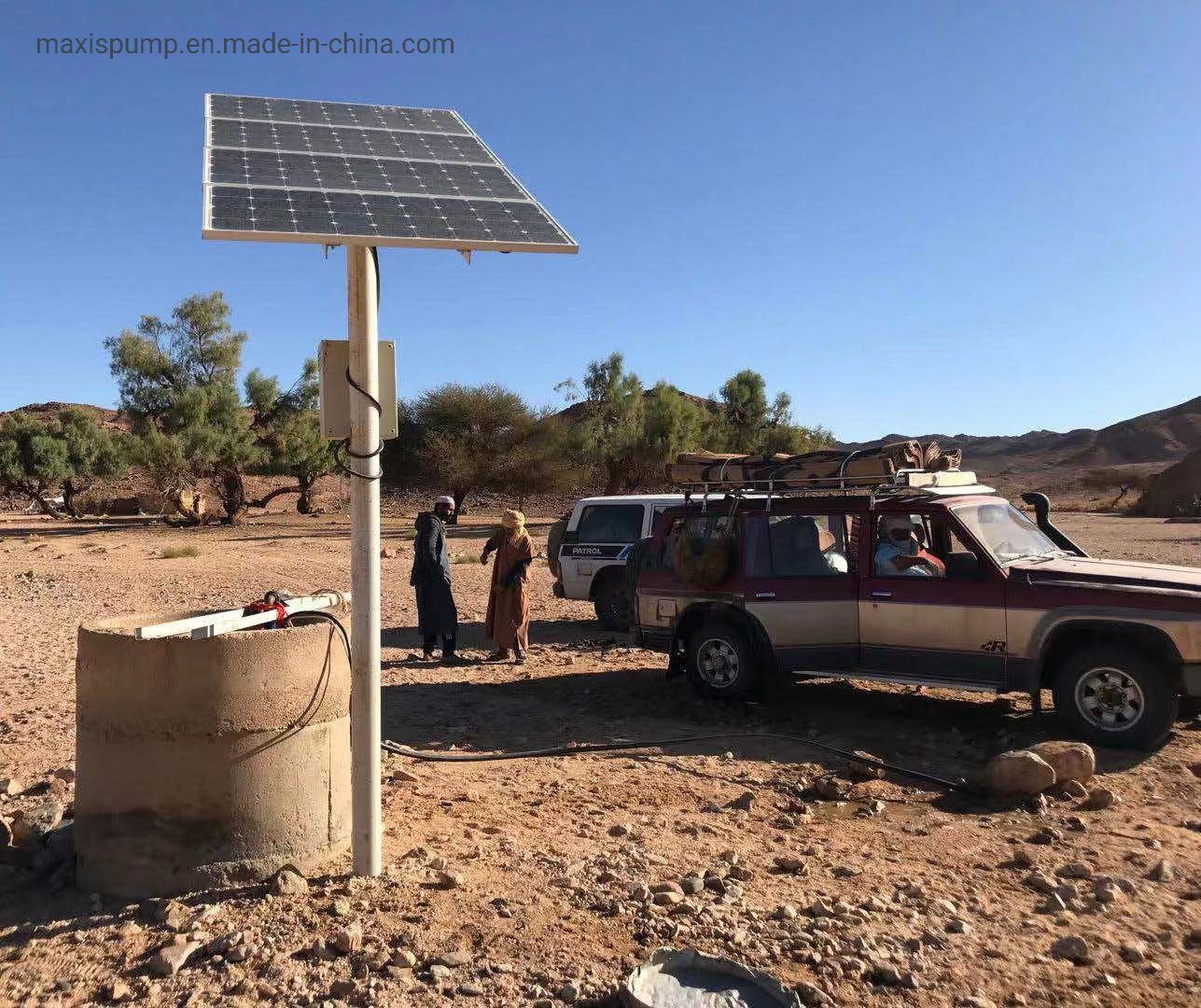

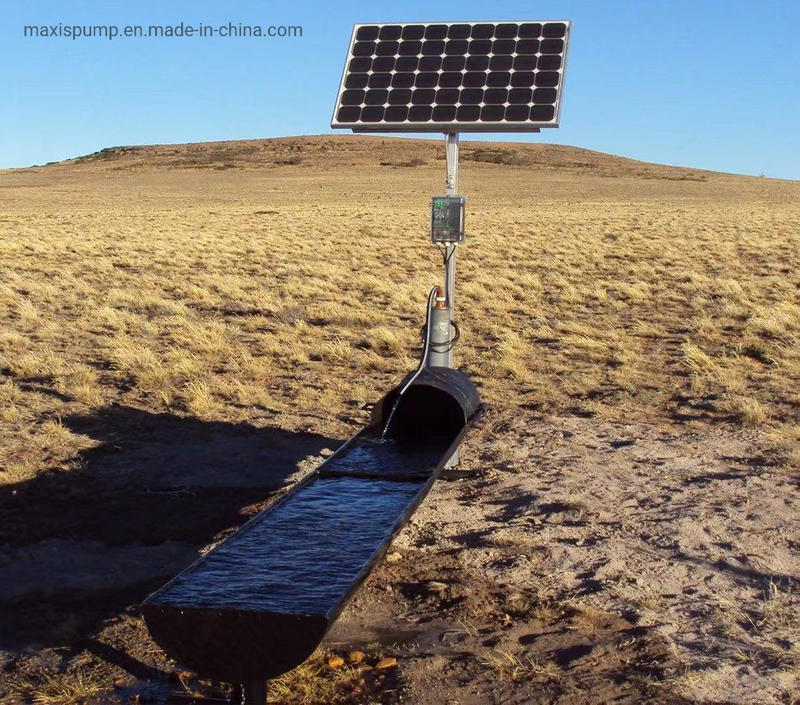

Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Product Advantage
1. Solar pump with high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection.
4. Much longer life than the nomal AC water pump.

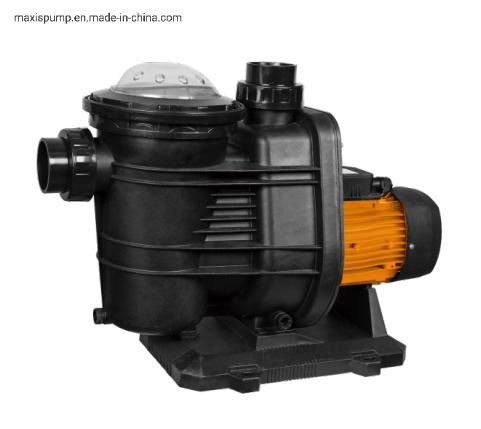

Pump
Plastic pump body
Motor with cooper winding
Built-in thermal protector
Max.liquid temperature: +40ºC

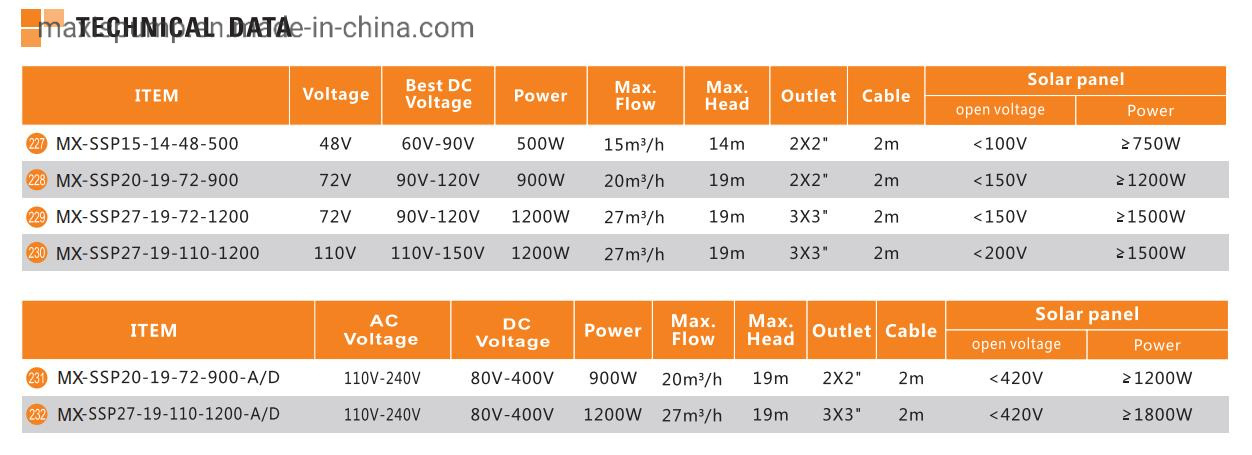

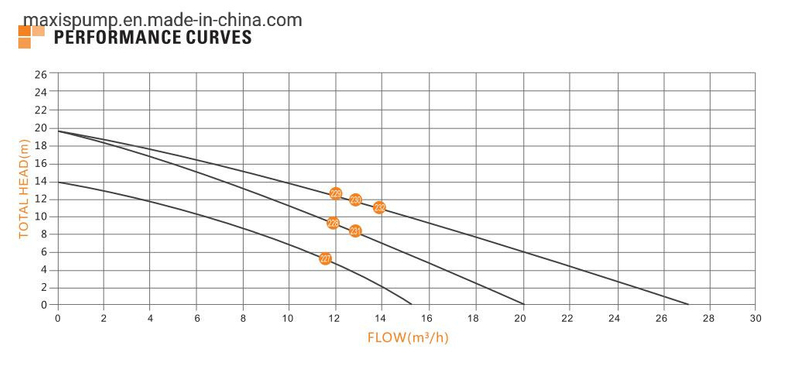

Techenical Data
| Nr | Model | AC Voltage | DC Voltage | Power | Max.Flow | Max.Head | Outlet | Cable | Solar Panel | |
| Open Voltage | Power | |||||||||
| 227 | MX-SSP15-14-48-500 | 48V | 60V-90V | 500 W | 15000 L/H | 14 M | 2"X2" | 2 M | <100V | ≥750W |
| 228 | MX-SSP20-19-72-900 | 72V | 90V-120V | 900 W | 20000 L/H | 19 M | 2"X2" | 2 M | <150V | ≥1200W |
| 229 | MX-SSP27-19-72-1200 | 72V | 90V-120V | 1200 W | 27000 L/H | 19 M | 3'X3" | 2 M | <150V | ≥1500W |
| 230 | MX-SSP27-19-110-1200 | 110V | 110V-150V | 1200 W | 27000 L/H | 19 M | 3'X3" | 2 M | <200V | ≥1500W |
Company View

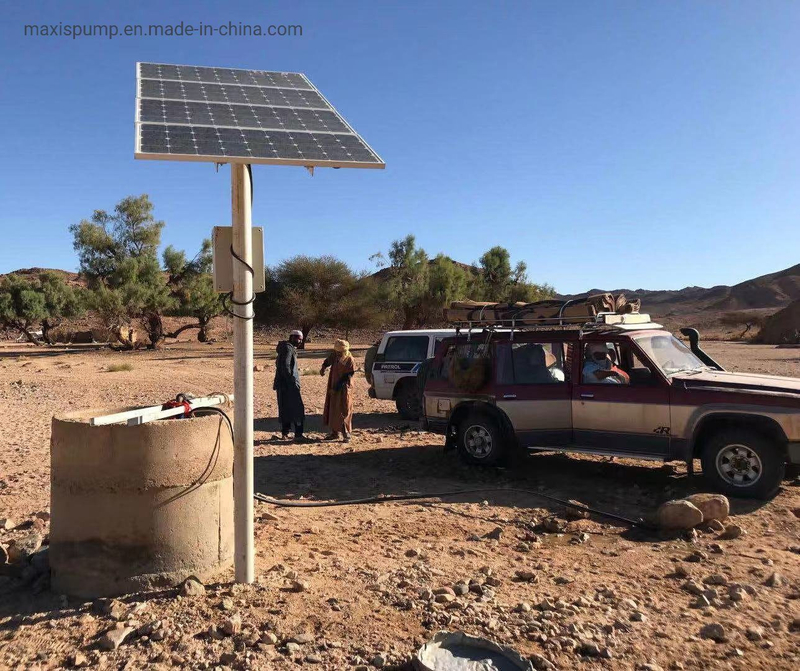

Application
1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation
Product Advantage
1. Solar pump with high efficiency permanent magnetic motor efficiency improved 15%-30%
2. Environmental protection, clean energy, can be powered by both solar panel, battery as well as AC electric.
3. Over-load protection, under-load protection, lock-rotor portection, thermal protection.
4. Much longer life than the nomal AC water pump.
Pump
Plastic pump body
Motor with cooper winding
Built-in thermal protector
Max.liquid temperature: +40ºC

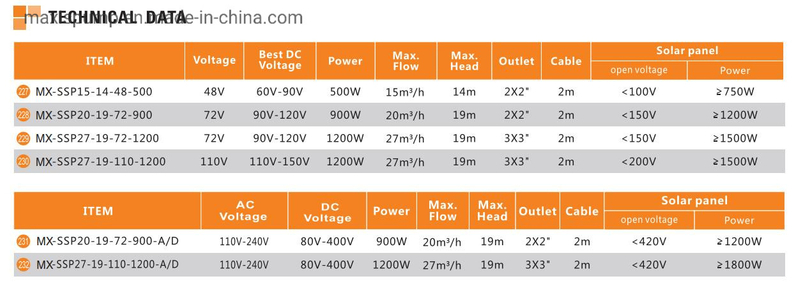

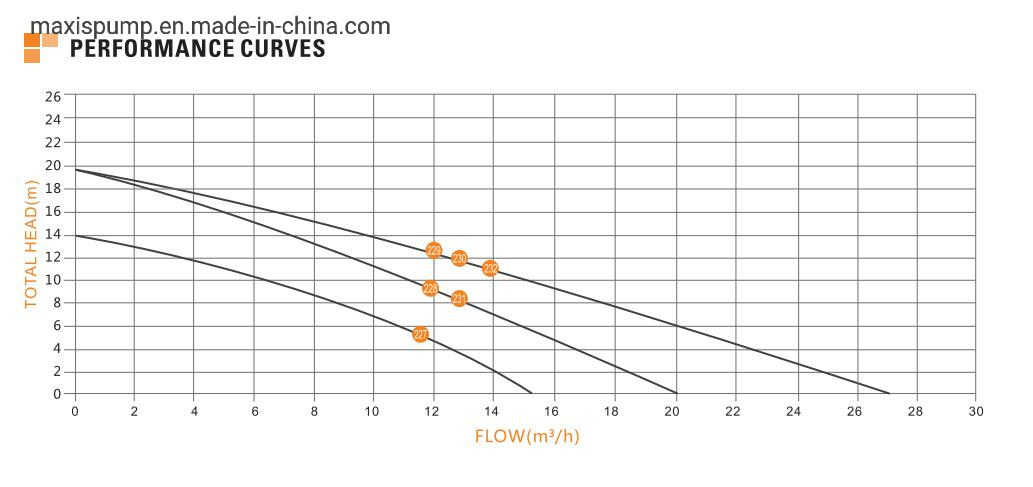

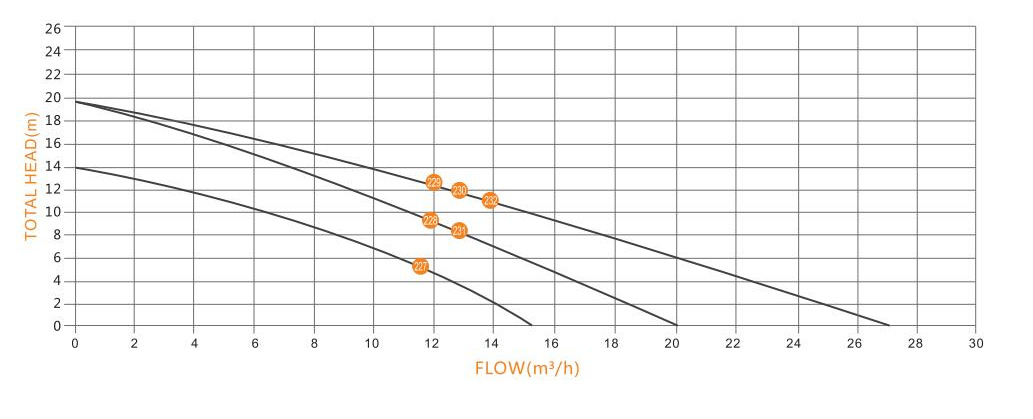

Techenical Data
| Nr | Model | AC Voltage | DC Voltage | Power | Max.Flow | Max.Head | Outlet | Cable | Solar Panel | |
| Open Voltage | Power | |||||||||
| 227 | MX-SSP15-14-48-500 | 48V | 60V-90V | 500 W | 15000 L/H | 14 M | 2"X2" | 2 M | <100V | ≥750W |
| 228 | MX-SSP20-19-72-900 | 72V | 90V-120V | 900 W | 20000 L/H | 19 M | 2"X2" | 2 M | <150V | ≥1200W |
| 229 | MX-SSP27-19-72-1200 | 72V | 90V-120V | 1200 W | 27000 L/H | 19 M | 3'X3" | 2 M | <150V | ≥1500W |
| 230 | MX-SSP27-19-110-1200 | 110V | 110V-150V | 1200 W | 27000 L/H | 19 M | 3'X3" | 2 M | <200V | ≥1500W |
