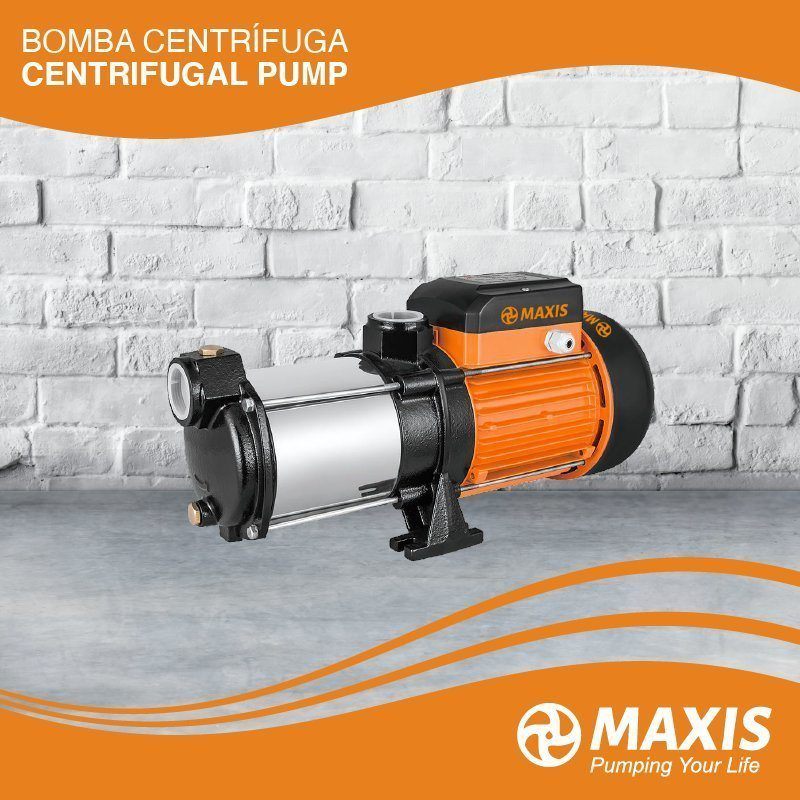

Stainless Steel Horizontal Centrifugal Multistage High Pressure Pump

Quantity:



Inquire Add to Basket

Certificate:
CE GS RoHS PAHs
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
Model NO.:
MHI 1100B
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 50/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

Suitable for use with clean water even where air is present and with liquids that are not chemically aggressive towards the materials from which the pumps is made.

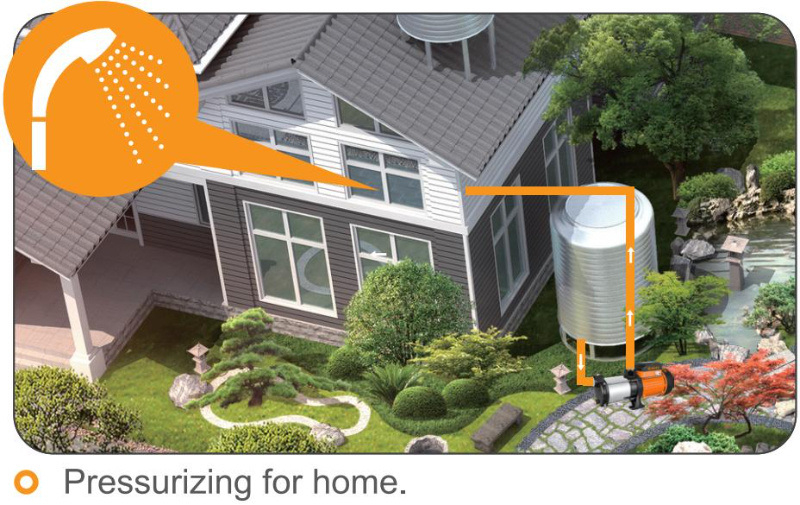

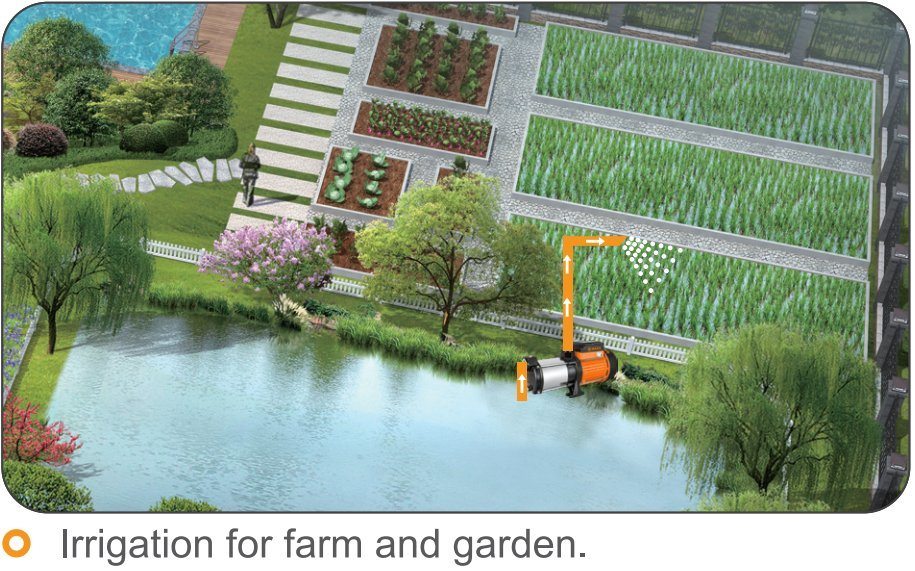

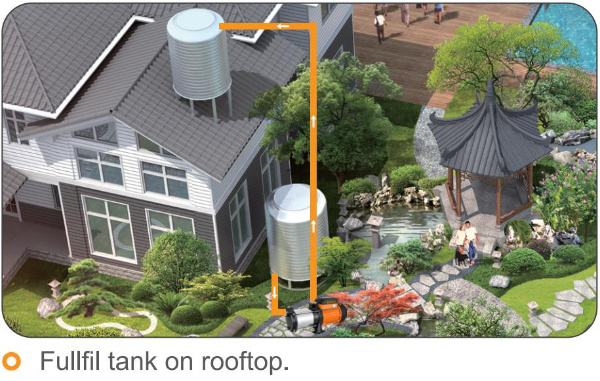

The pumps are designed to pump water even in cases where air is present. As a result of their quietness, reliablity and low energy consumption they are recommended for use in domestic and civil applications such as the pressurisation and distribution of water in combination with pressure sets and in rain water recovery and irrigation system, etc
Pumps should be installed in a covered area, protected against the weather

Pump
Max ambient temperature up to 40+40ºC
Max fluid temperature up to 60+40ºC
Suction lift up to 8 m
Pump Body: Cast/iron/stainless steel
Motor housing: aluminum
Shaft: 304 stainless steel/45# carbon steel
Impeller: brass/ppo/stainless steel
Motor: Closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuourly rated
Mechanical Seal: ceramic steatite/metalized carbon

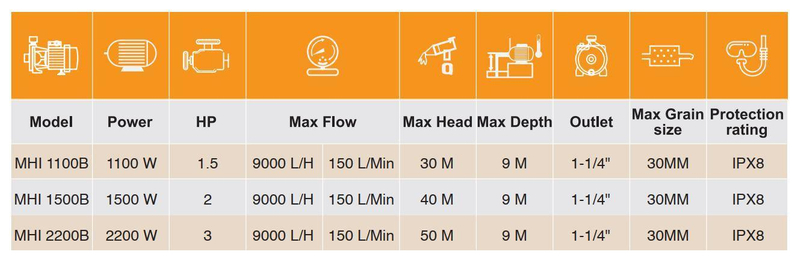

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
MHI 1100B	1100 W	1.5	9000 L/H	150 L/Min	30 M	9 M	1-1/4"	IPX8
MHI 1500B	1500 W	2	9000 L/H	150 L/Min	40 M	9 M	1-1/4"	IPX8
MHI 2200B	2200 W	3	9000 L/H	150 L/Min	50 M	9 M	1-1/4"	IPX8

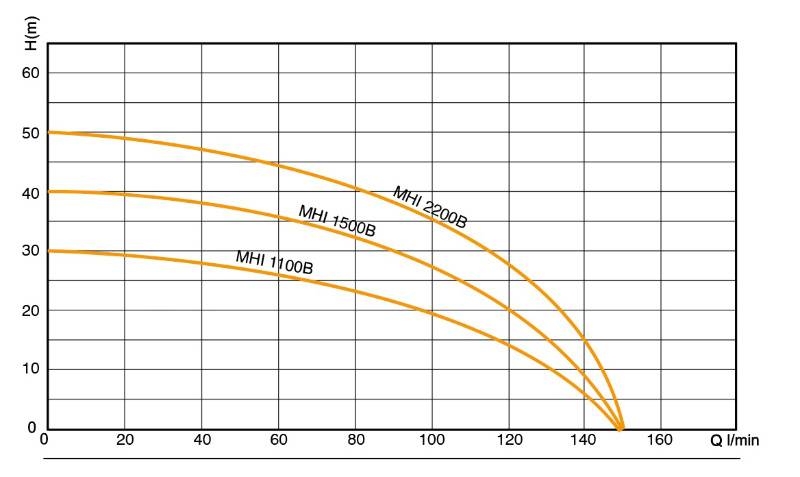

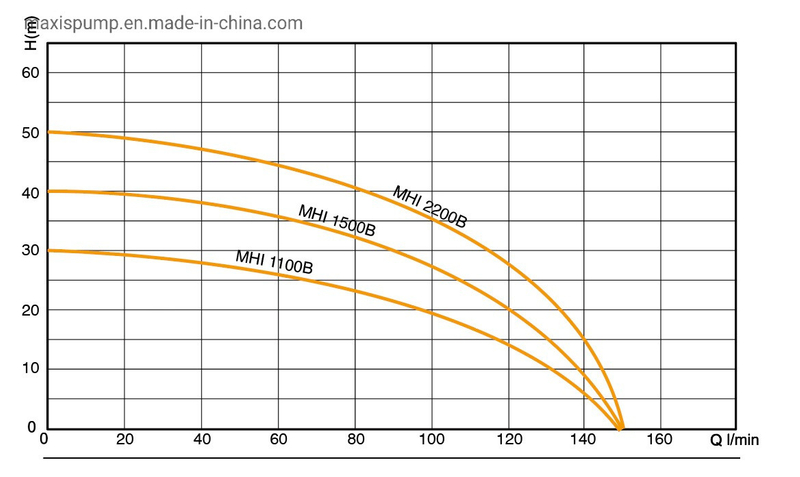

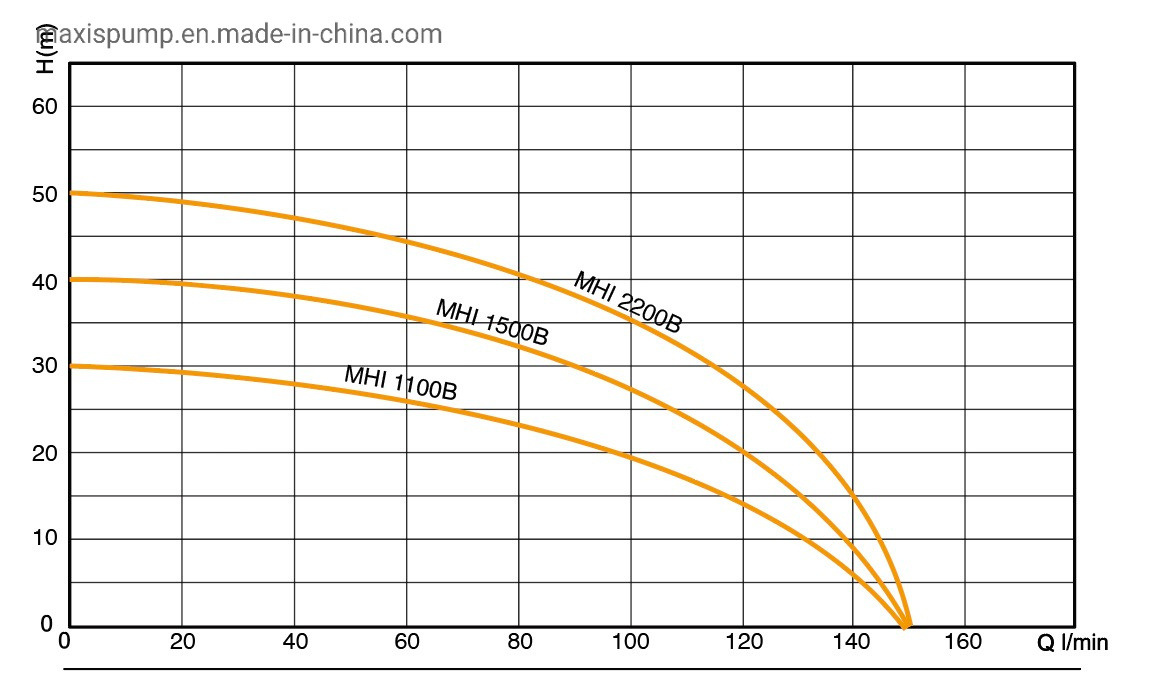

Peformance Curve

Company view
Stainless Steel Horizontal Centrifugal Multistage High Pressure Pump

RFQ
Q: What is your MOQ of this item?
A: Regular MOQ is 500pcs, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year

Q:How about your service?
A:We have pre-sale, in-sale and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
