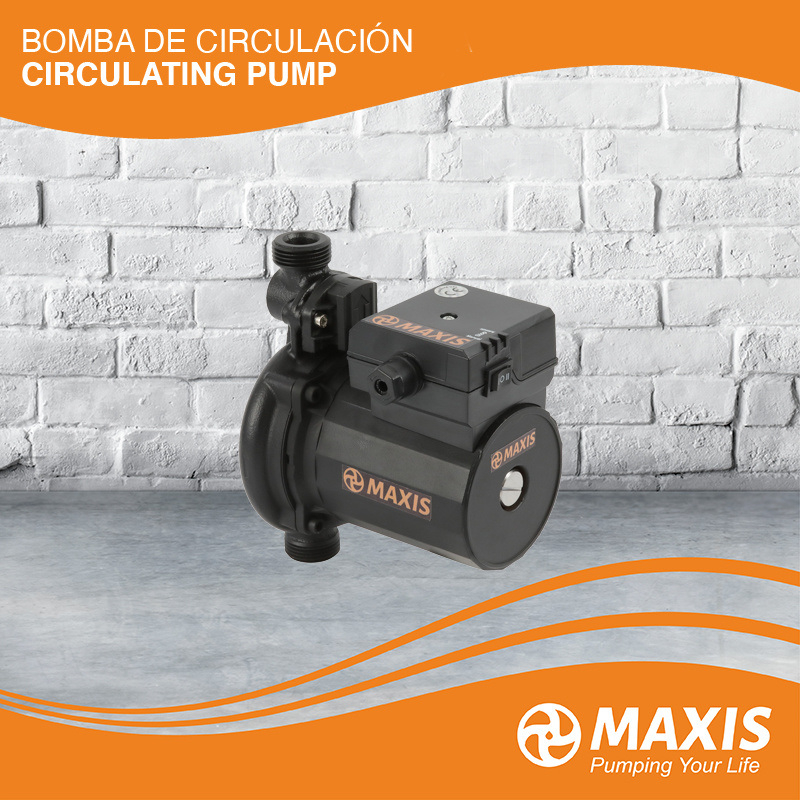

Small Central Heating Hot Water Pressure Boosting Circulating Water Pump

Quantity:



Inquire Add to Basket

Model NO.:
LPS15-9Z
Max.Capacity:
<50 L/min
Driving Type:
Motor
Material:
Cast Iron
Structure:
Single-stage Pump
Assembly:
Pipeline Pump
Power:
Electric
Start Up:
Electric Pump
Type:
Circulating Pump
Application:
Circulation Pump
Industry:
Heating System
Media:
Hot Water
Performance:
Wear Pump
Theory:
Mixed Flow Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Carton
Specification:
4.5kg
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Package size per unit product:
15.00cm * 10.00cm * 15.00cm
Gross weight per unit product:
3.000kg
After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
<10m

Product Description

Application
Circulation for the underfloor heating system or equipment

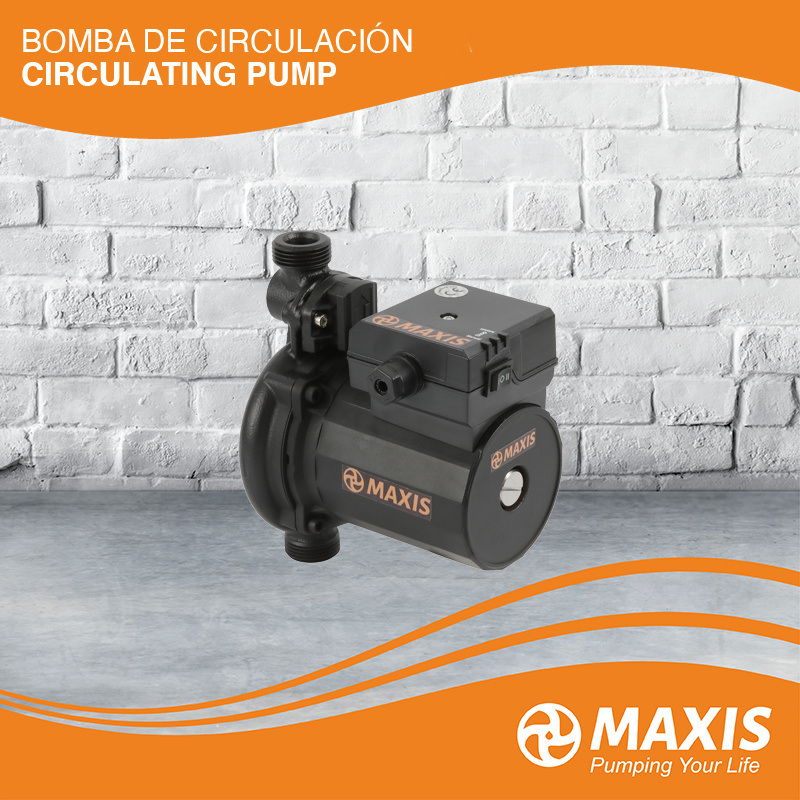

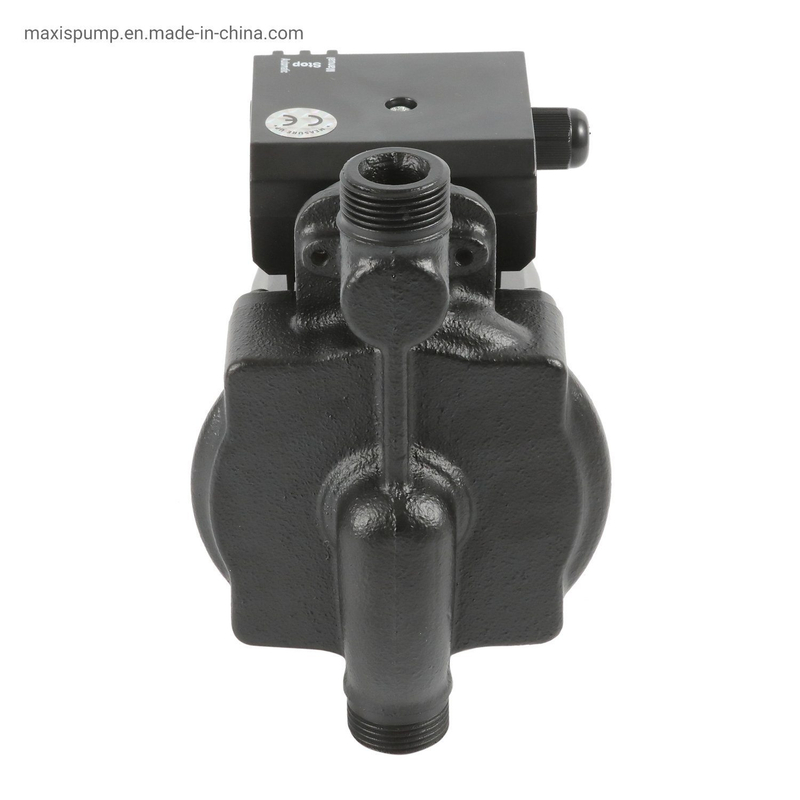

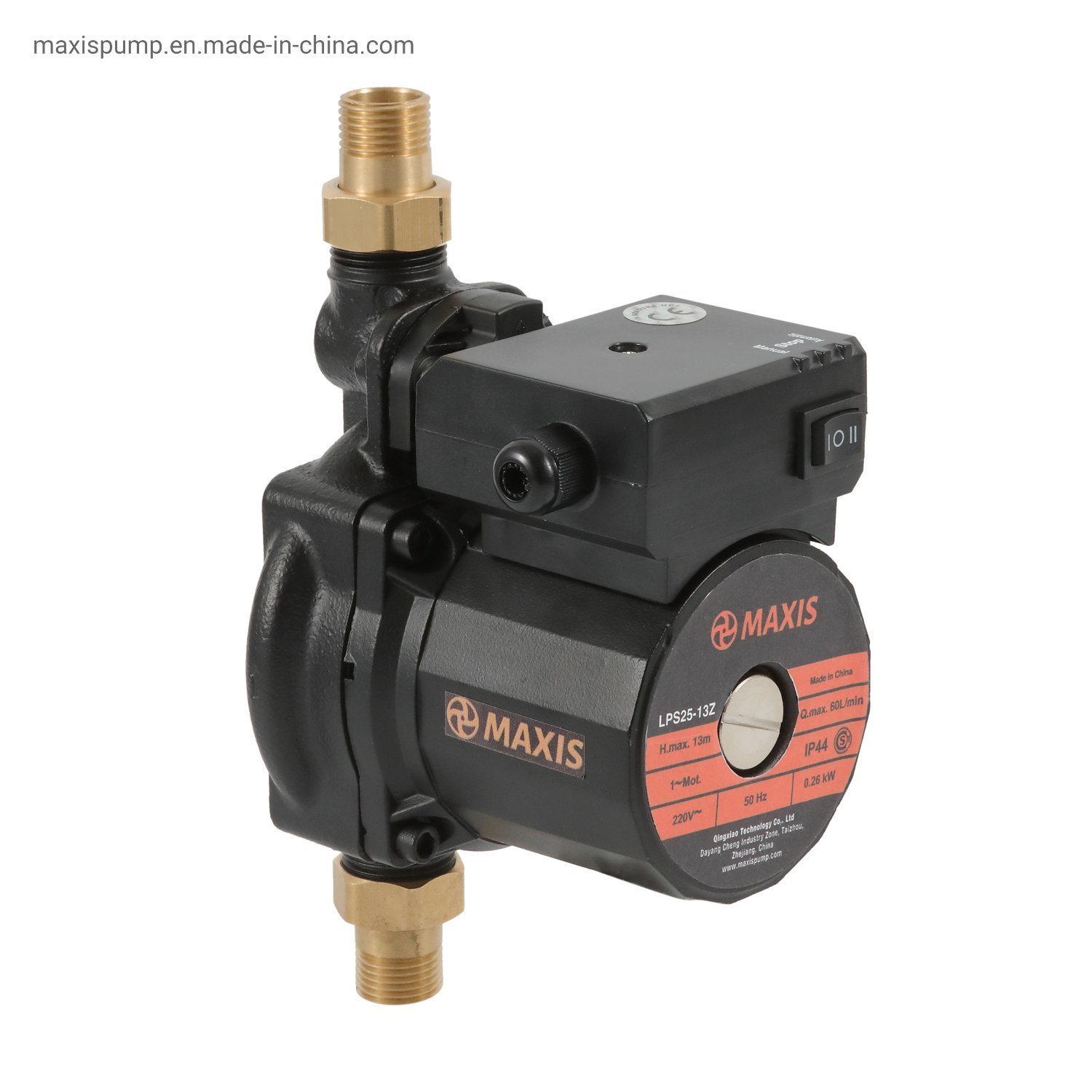

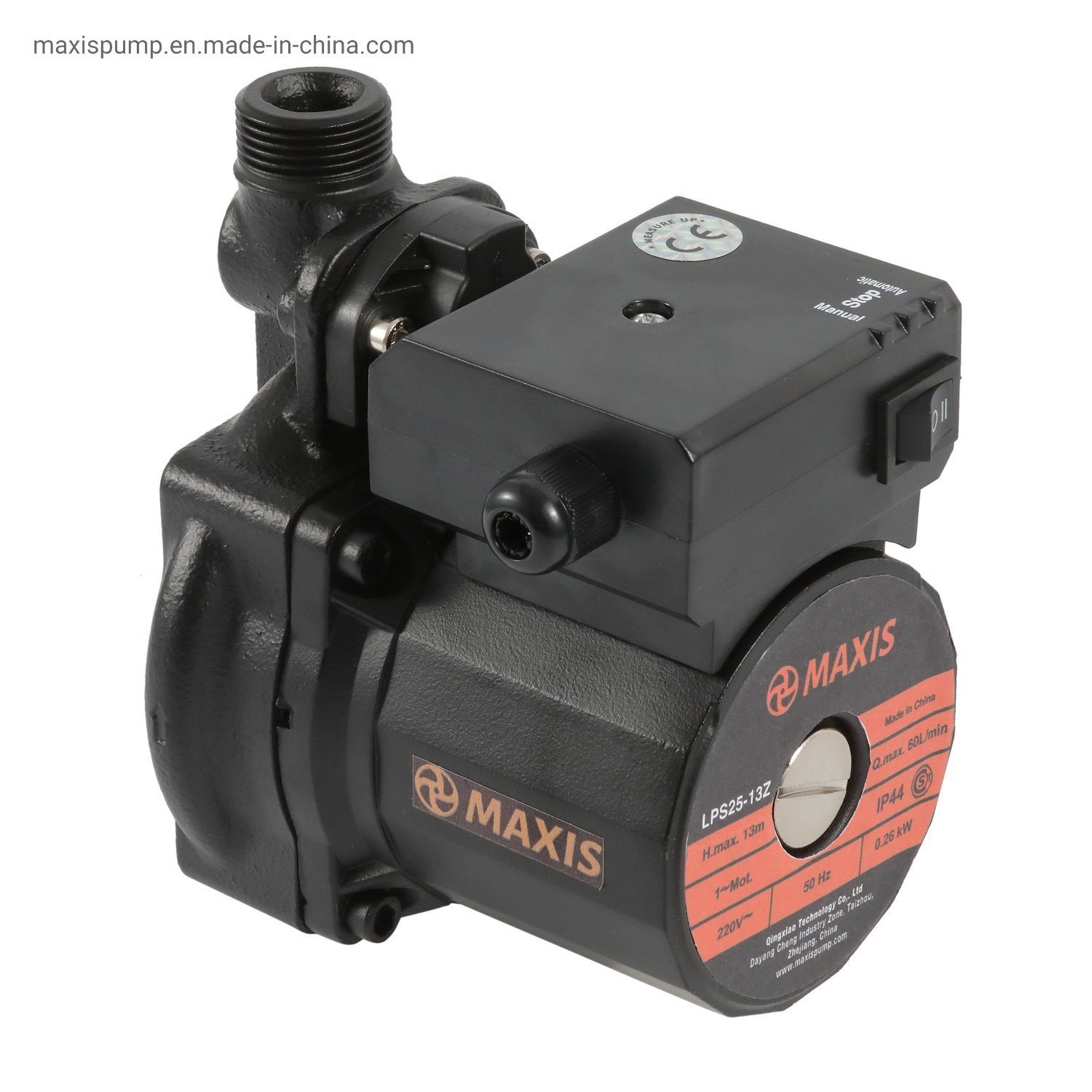

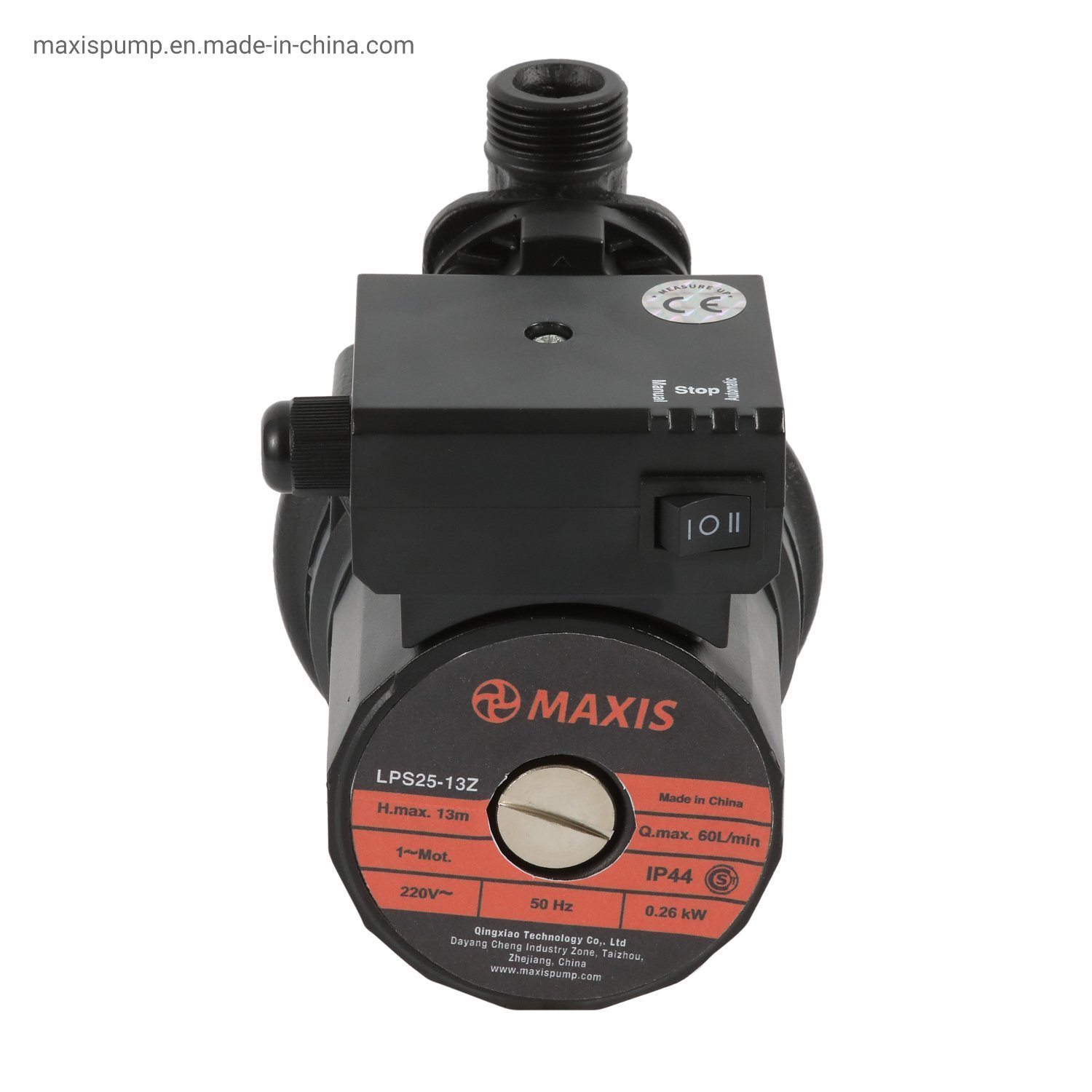

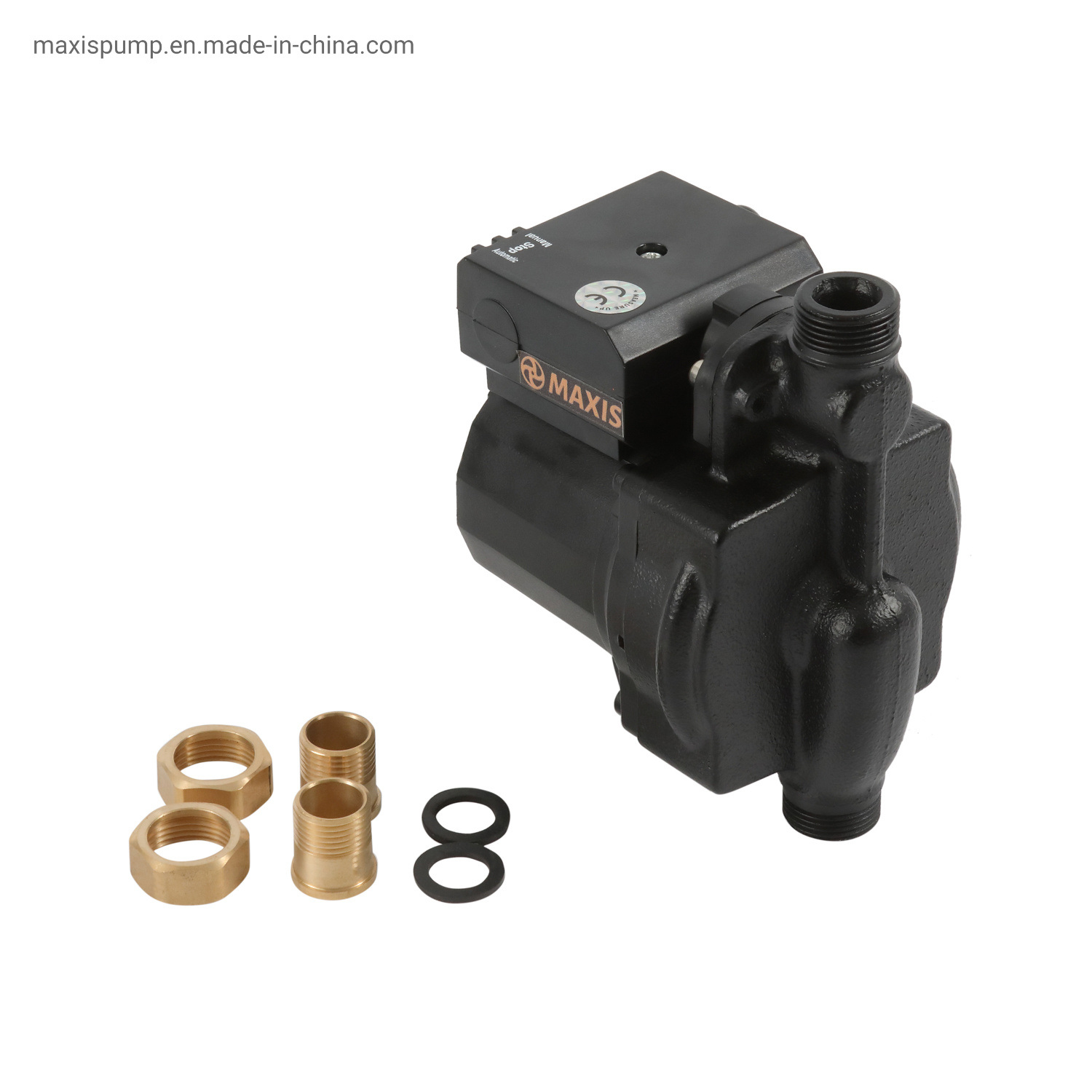

Small Central Heating Hot Water Pressure Boosting Circulating Water Pump
Pump
Casting Iron pump body
Motor with cooper winding both available
Built-in thermal protector for single phase motor
High quality bearing
Max.liquid temperature: +100ºC

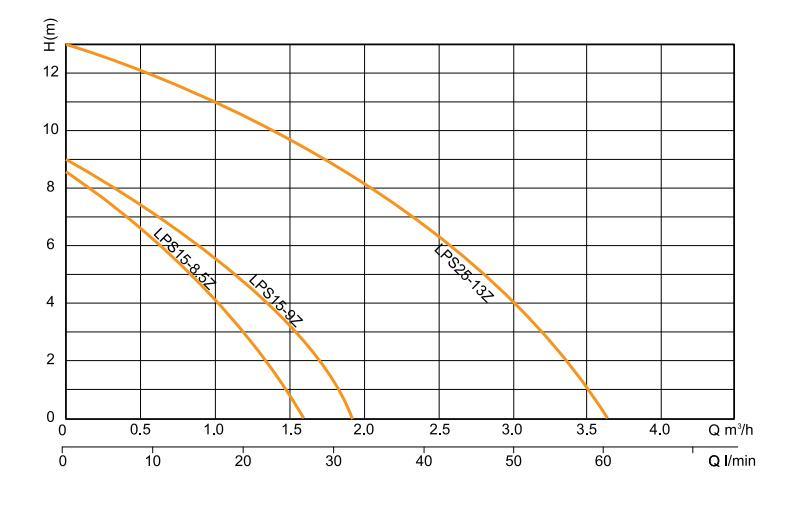

Performance Curve

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
LPS15-8.5Z	100W	1/8	1600 L/H	26 L/Min	8.5 M	8 M	3/4'' x 3/4''	IPX2
LPS15-9Z	120W	1/6	1800 L/H	30 L/Min	9 M	8 M	3/4'' x 3/4''	IPX2
LPS25-13Z	260W	1/3	3600 L/H	60 L/Min	13 M	8 M	1'' x 1''	IPX2

Company Information

FAQ
Q: What is your MOQ of this item?
A: Regular MOQ is 500pcs, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year

Q:How about your service?
A:We have pre-sale, in-sale and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
