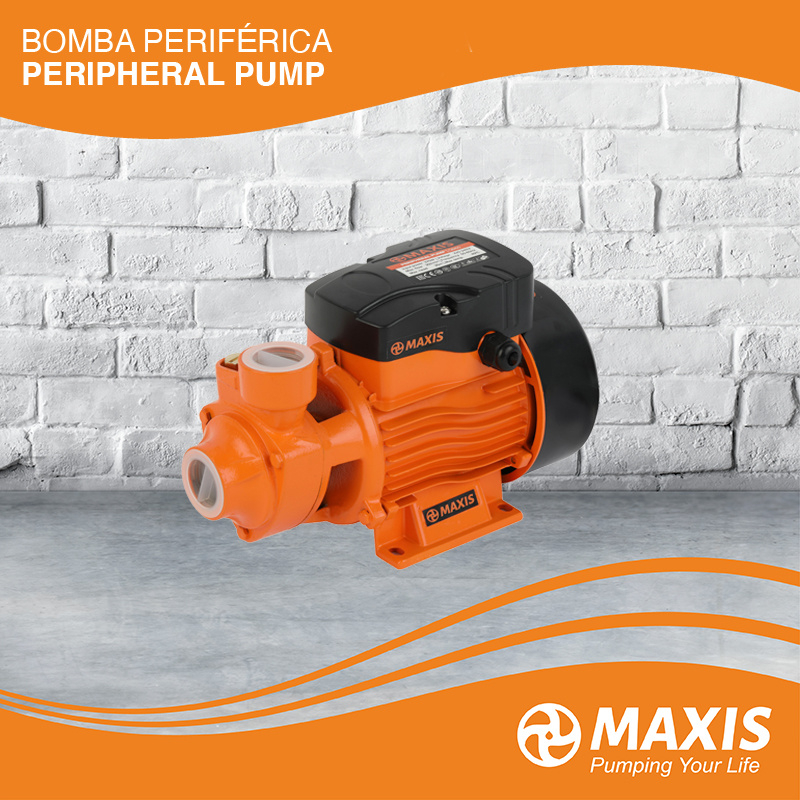

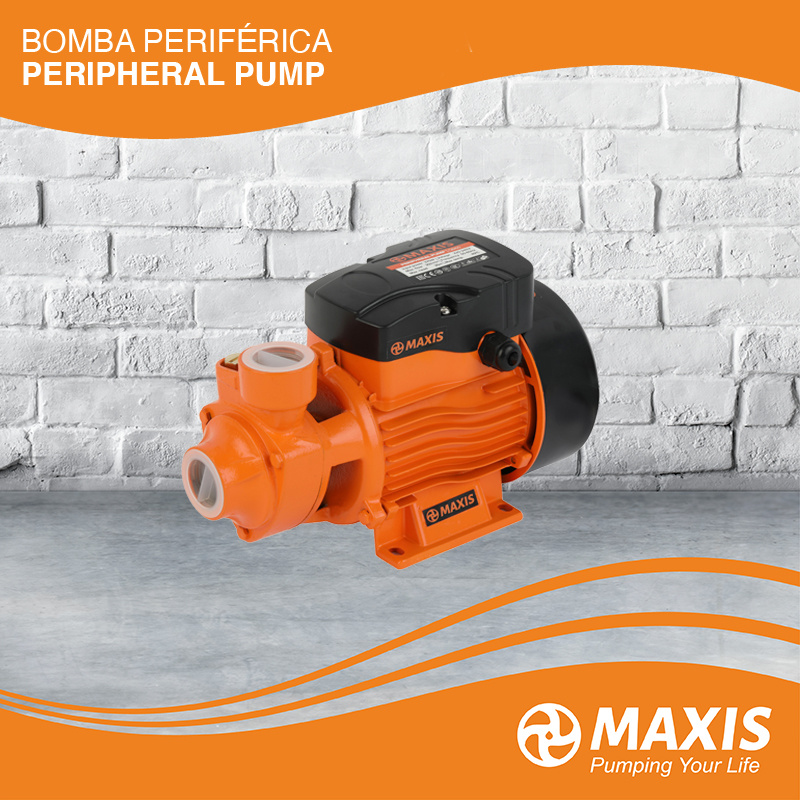

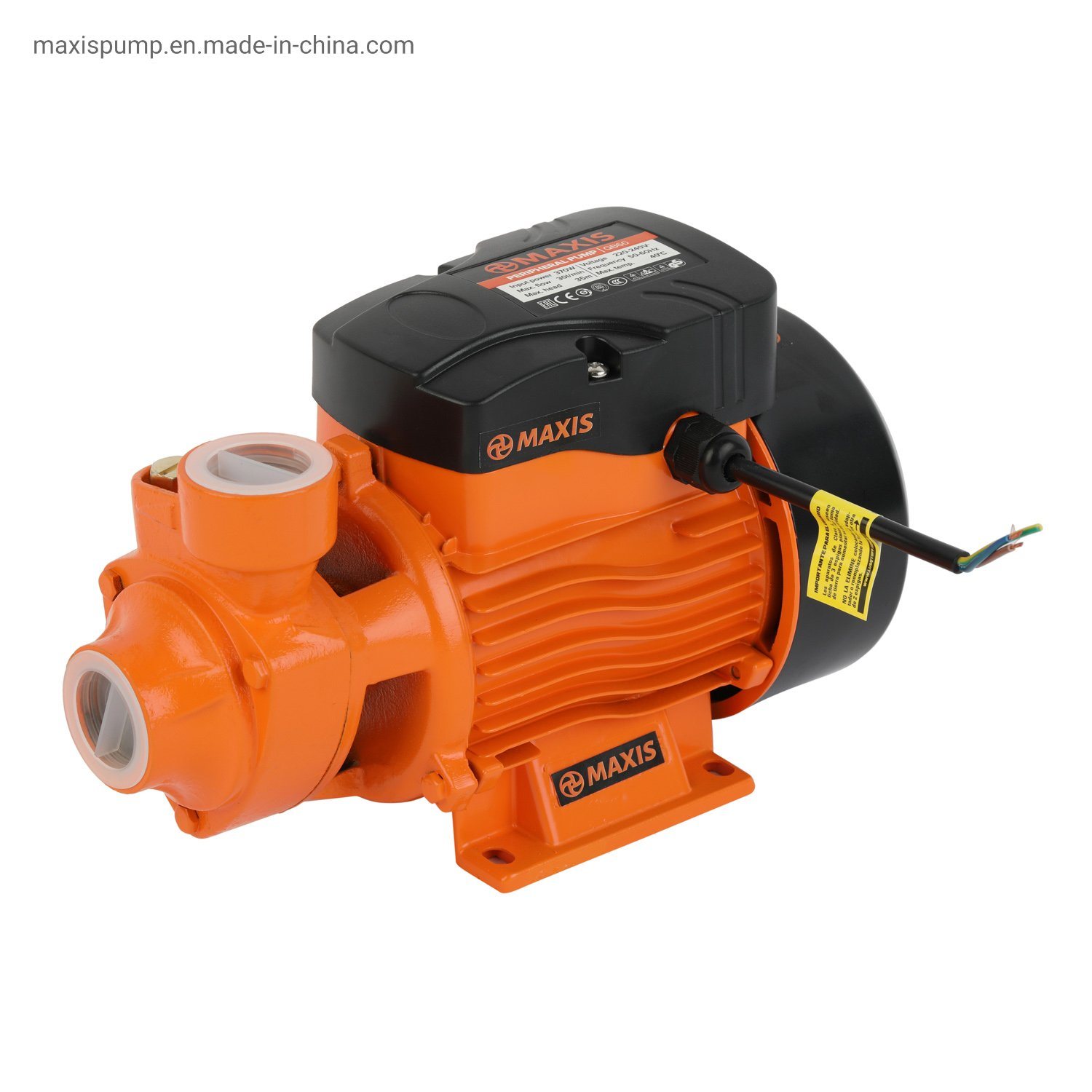

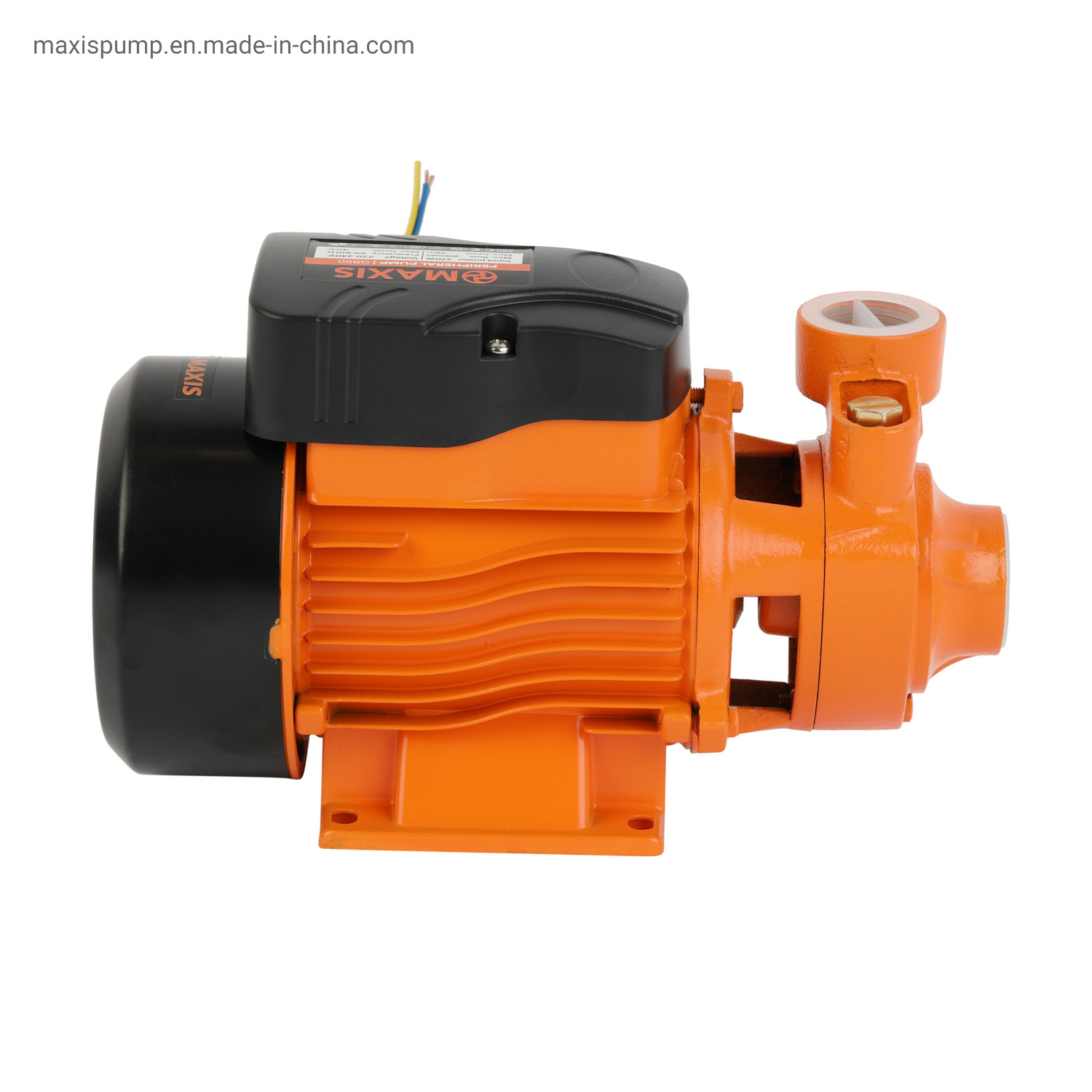

Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank

Quantity:
Inquire Add to Basket

Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank
Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank
Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank
Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank
Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank
Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank

  • QB60

  • 50-100 L/min

  • Motor

  • Cast Iron

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Peripheral Pump

  • Transfer Water Pump

  • Agriculture

  • Clean Water

  • No Leakage Pump

  • Vortex Pump

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • 15.00cm * 25.00cm * 12.00cm

  • 4.000kg

  • Free Spare Parts

  • 1 Year

  • 50-80m

Application
  1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

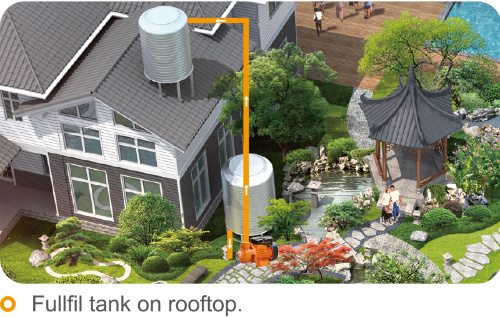

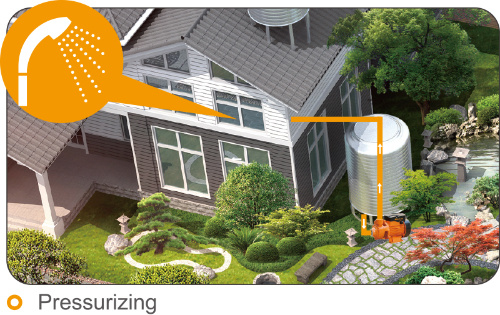

  2. Suitable for lifting water from the well, sprinkling irrigation in garden pressure boosting of running water, and supporting equipment etc
Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank

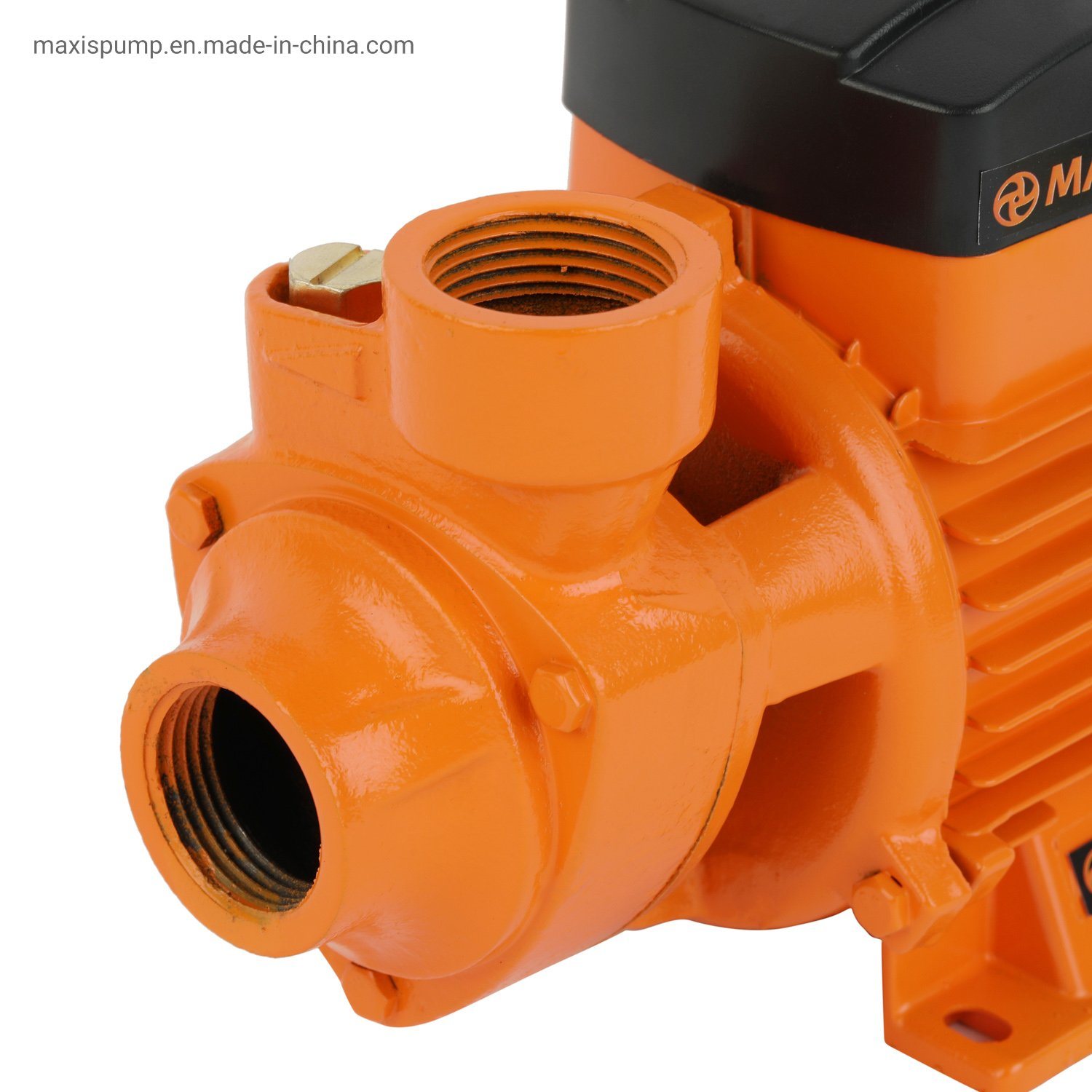

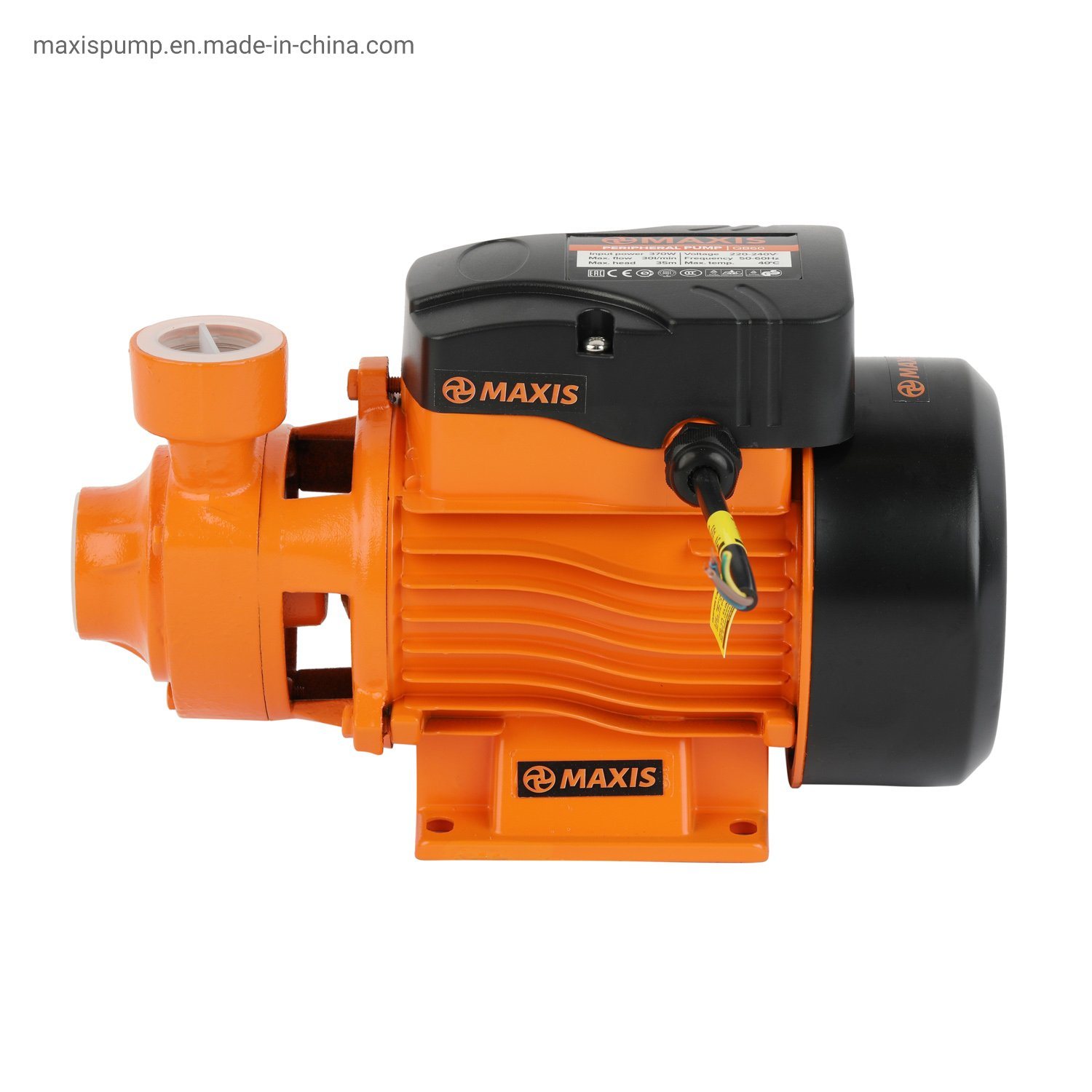

Pump
Special anti-rust treatment for cast iron pump body and support
Anti-block system for impeller
Bass impeller

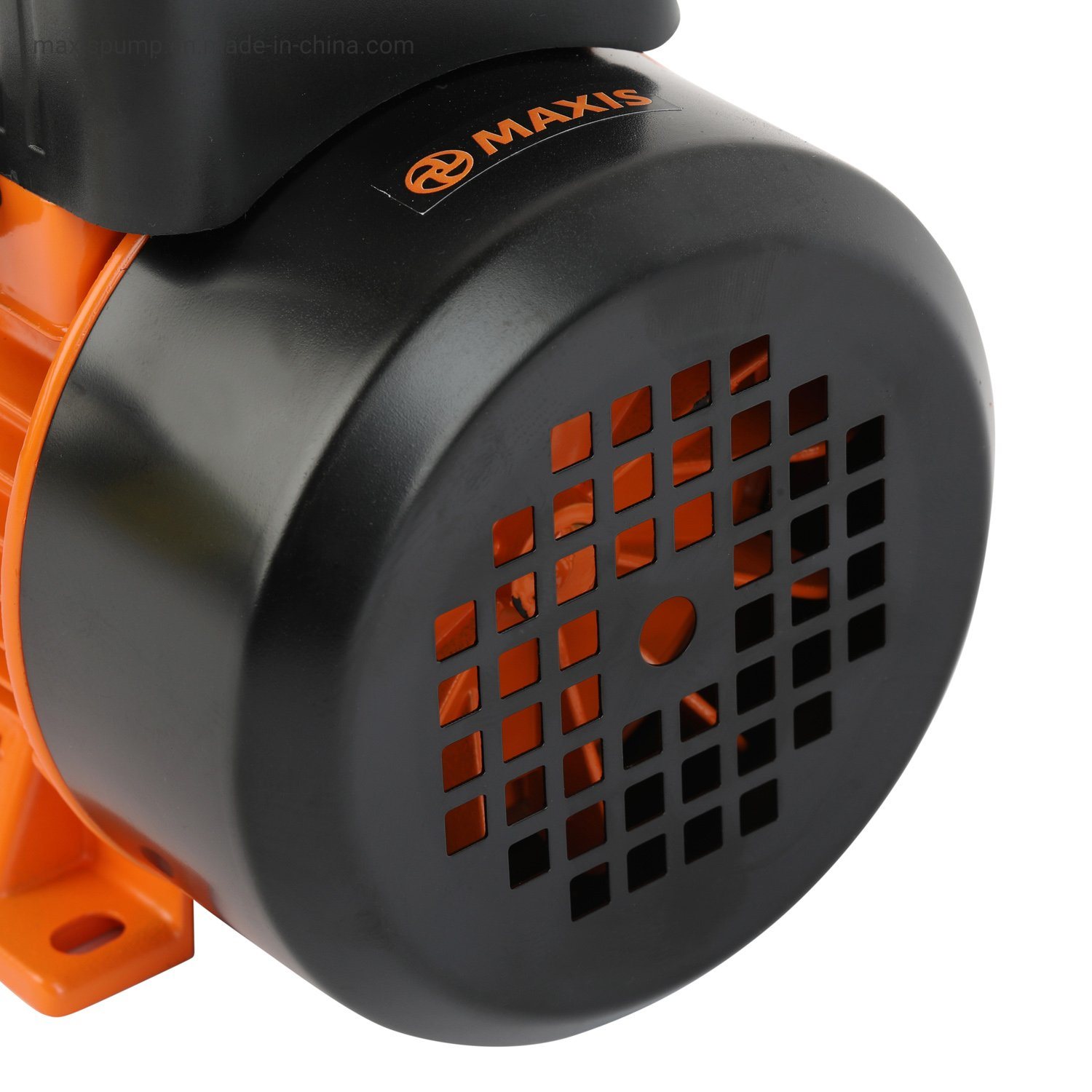

Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carbon steel shaft both available
Max.liquid temperature: +40ºC
Max. suction:+8m

Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
QB60 370W 1/2 2100 L/H 35 L/Min 35 M 8 M 1'' x 1'' IPX4
QB70 550W 3/4 2400 L/H 40 L/Min 50 M 8 M 1'' x 1'' IPX4
QB80 750W 1 3000 L/H 50 L/Min 60 M 8 M 1'' x 1'' IPX4

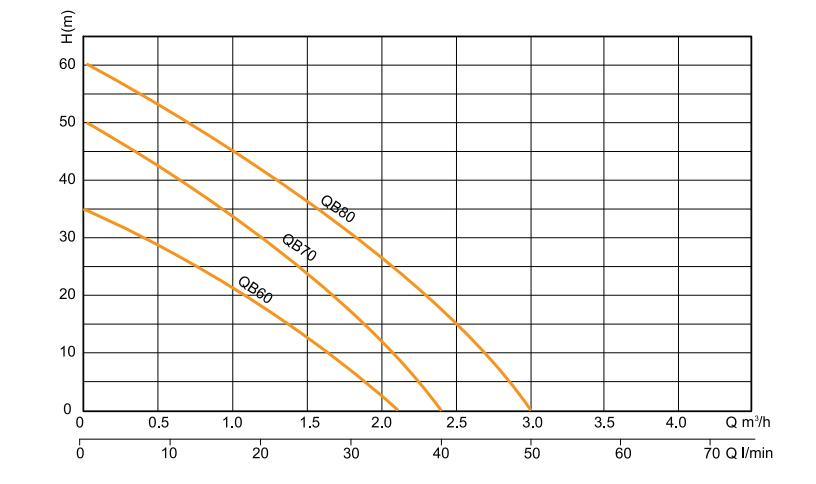

Performance Curve
Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank
Company view
Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank Qb60 Home Use Peripheral Electric Surface Water Pump Also Can Use with Pressure Tank
FAQ
Q: What is your MOQ of this item?
A: Regular MOQ is 500pcs, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year

Q:How about your service?
A:We have pre-sale, in-sale and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
