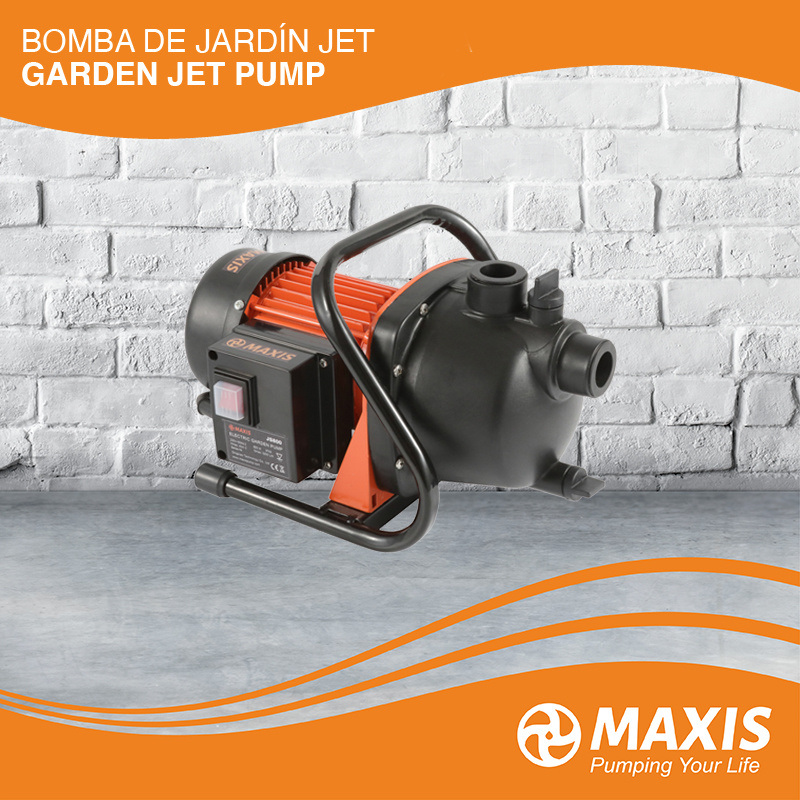

Plastic Garden Irrigation Electric High Pressure Pump

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
50-100 L/min
Driving Type:
Motor
Material:
Plastic
Model NO.:
JS800
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Jet Pump
Application:
Transfer Water Pump
Industry:
Garden Irrigation
Media:
Water
Performance:
Centrifugal Pump
Theory:
Jet Pump
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 25/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

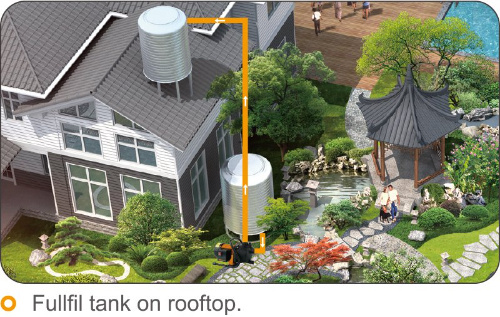

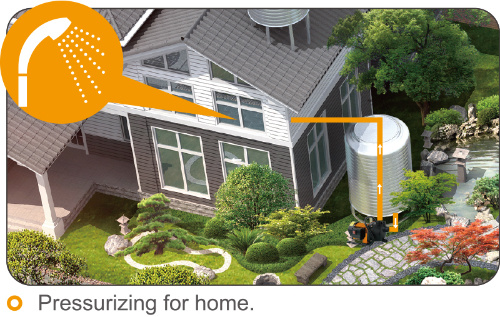

2. Suitable for water supply and drainage in garden irrigation greenhouses, fish breeding and poultry raising. The pump also can be used for domestic automatic water supply places, such as lifting water from a deep well, pressure boosting of running water ect.

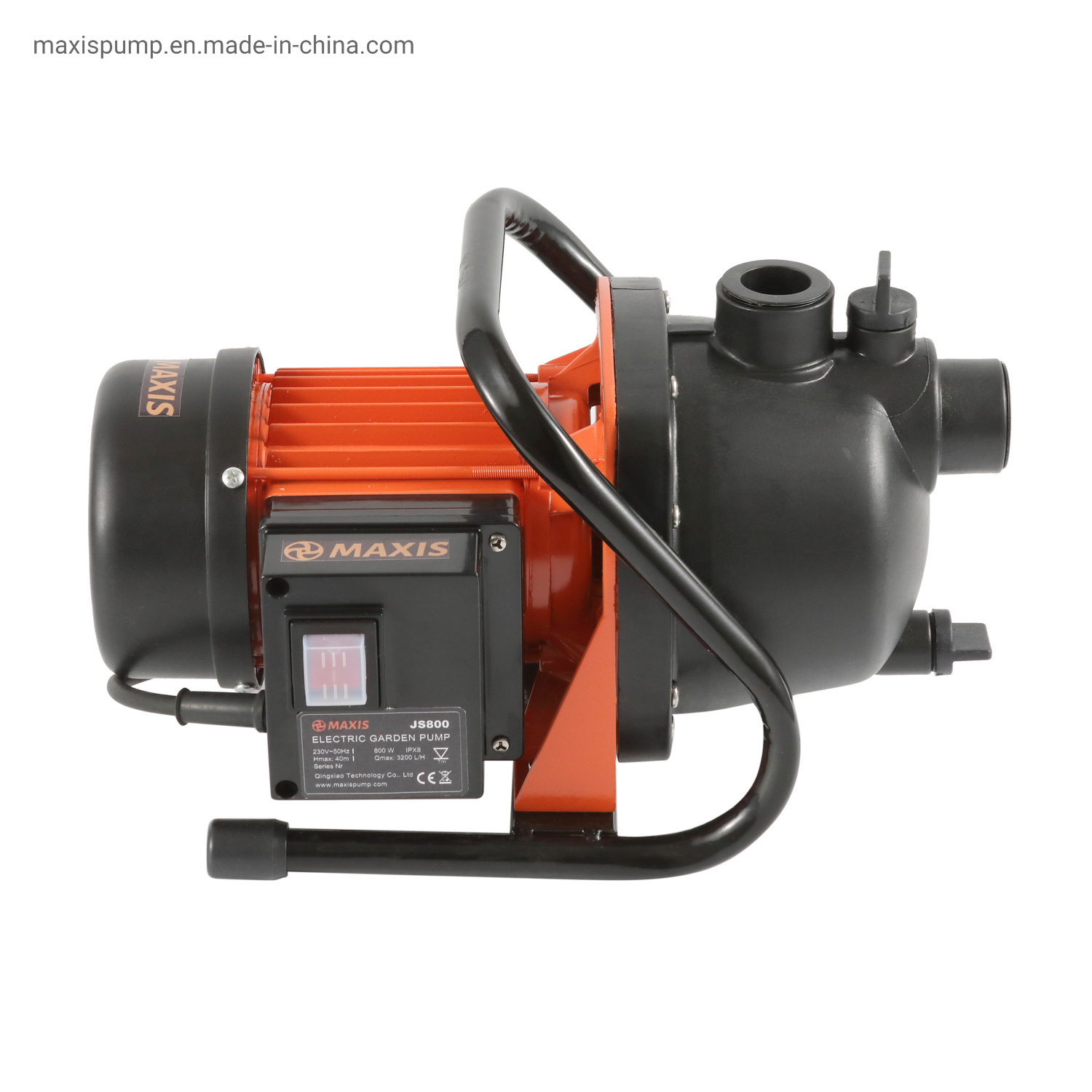

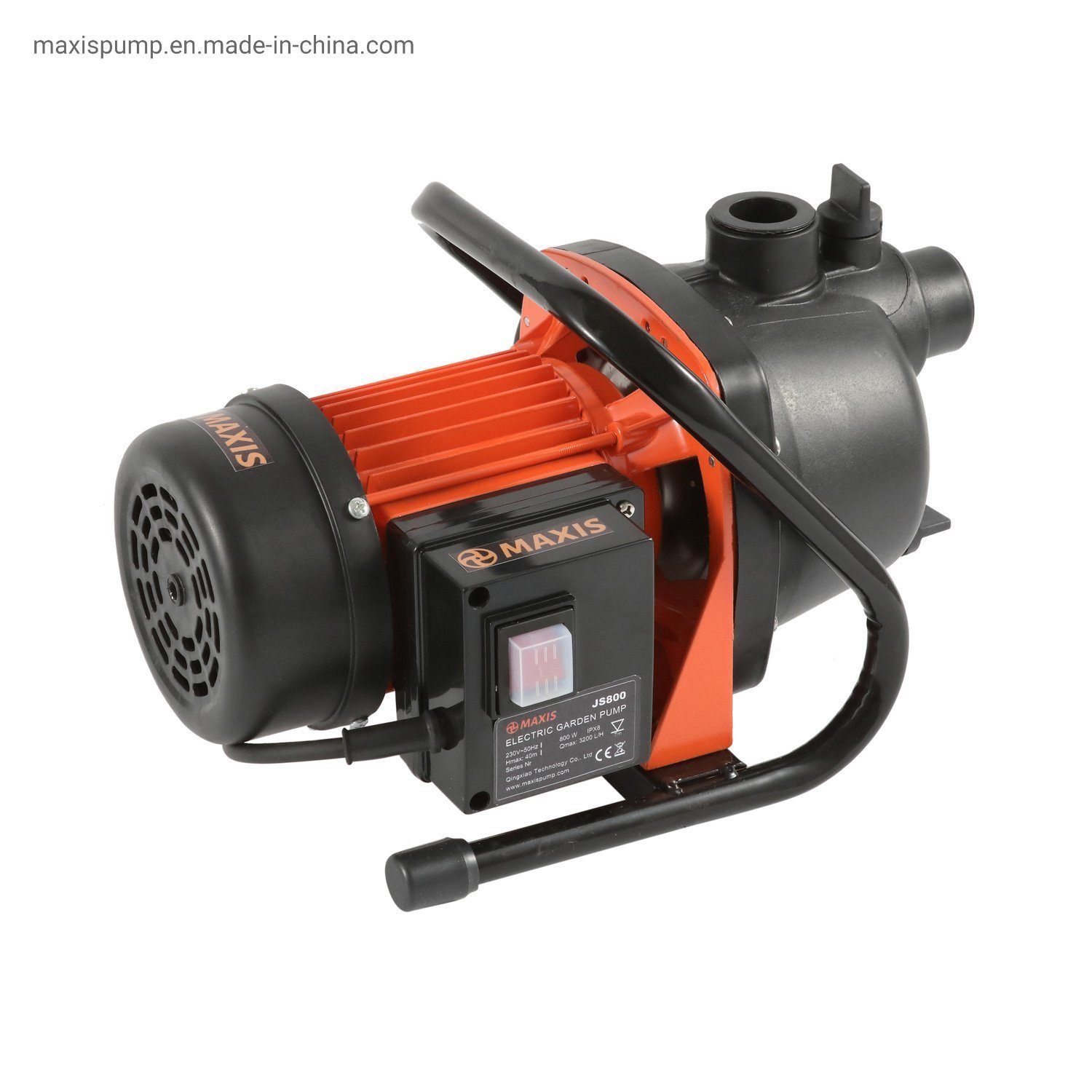

Plastic Garden Irrigation Electric High Pressure Pump

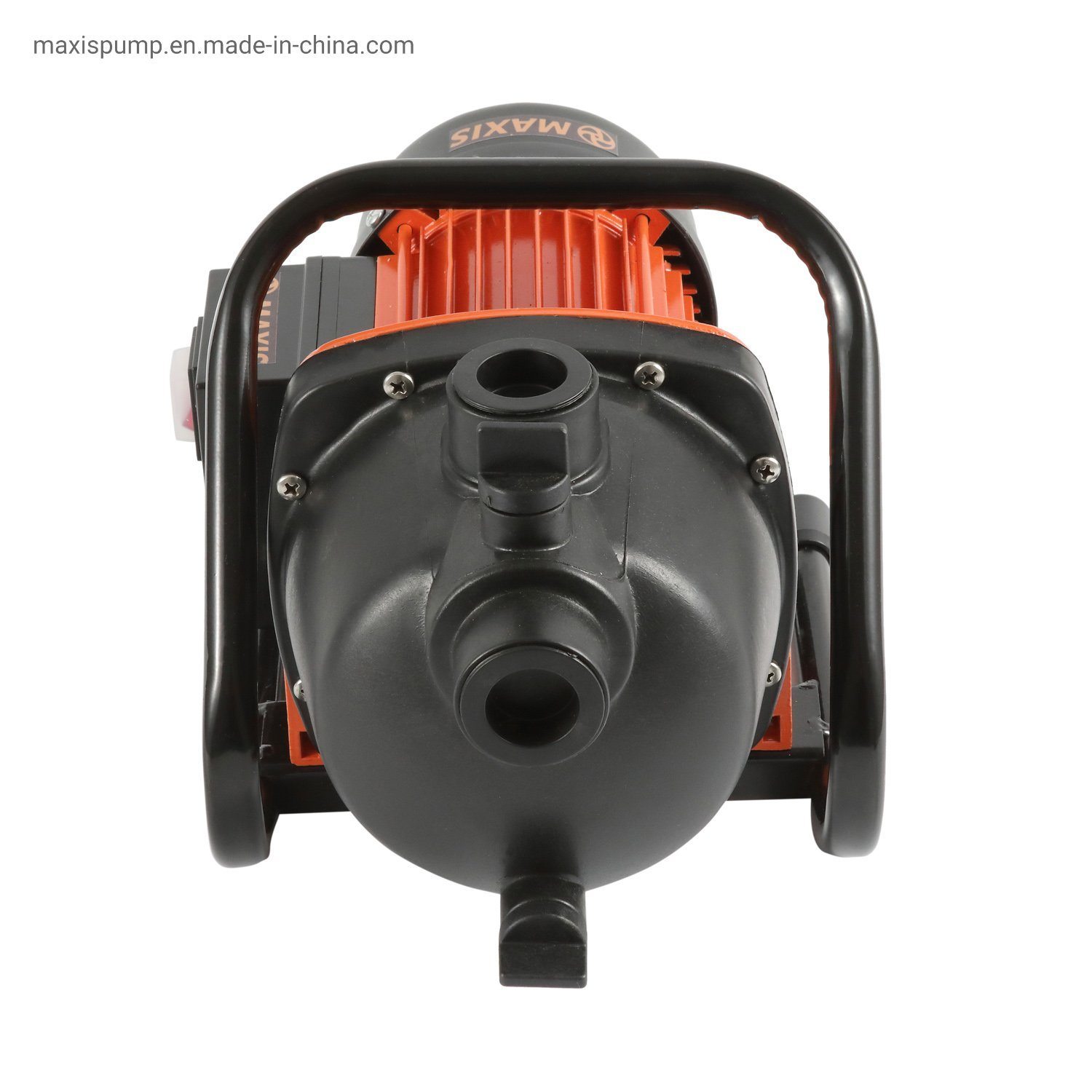

Pump
Plastic pump body
Plastic impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbo Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m

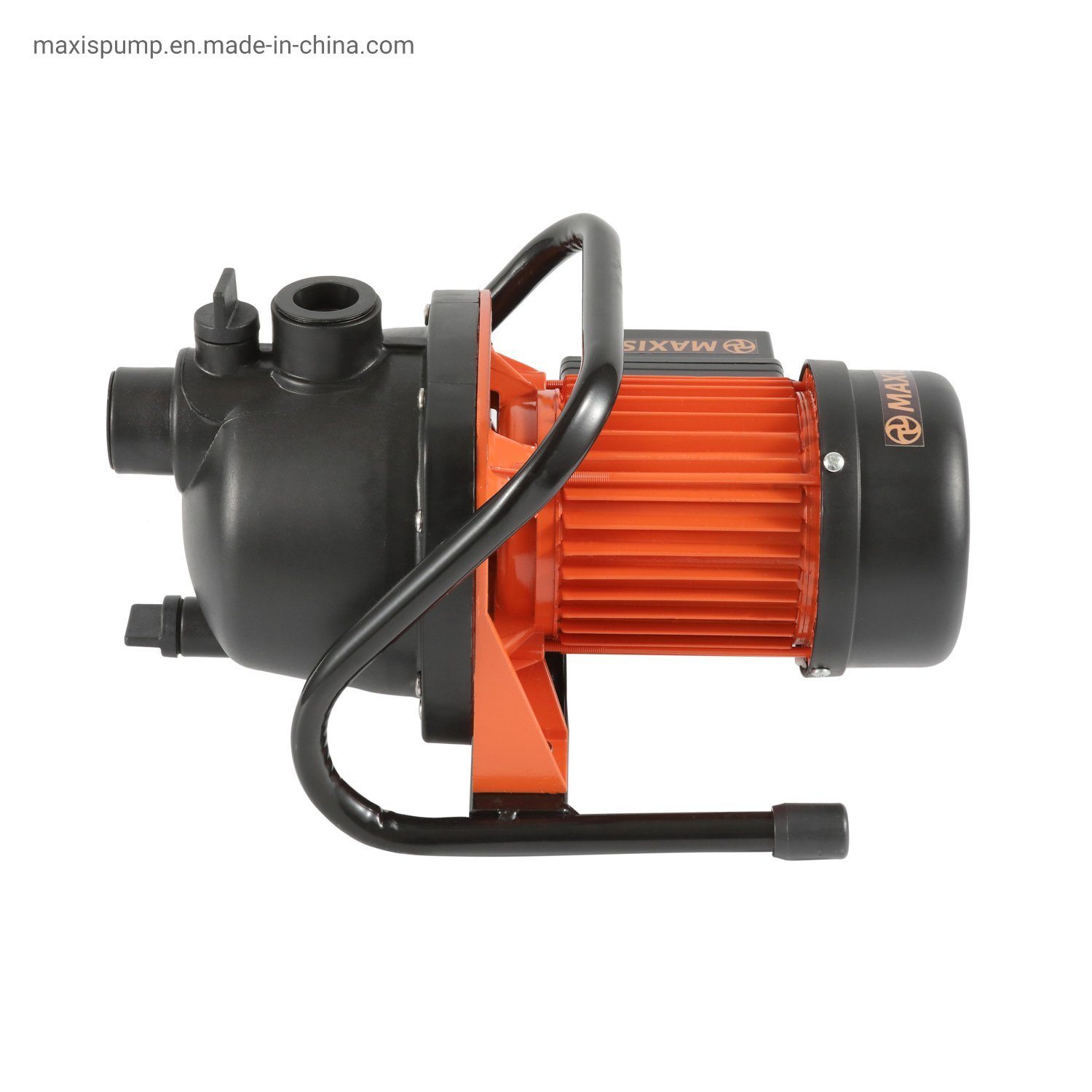

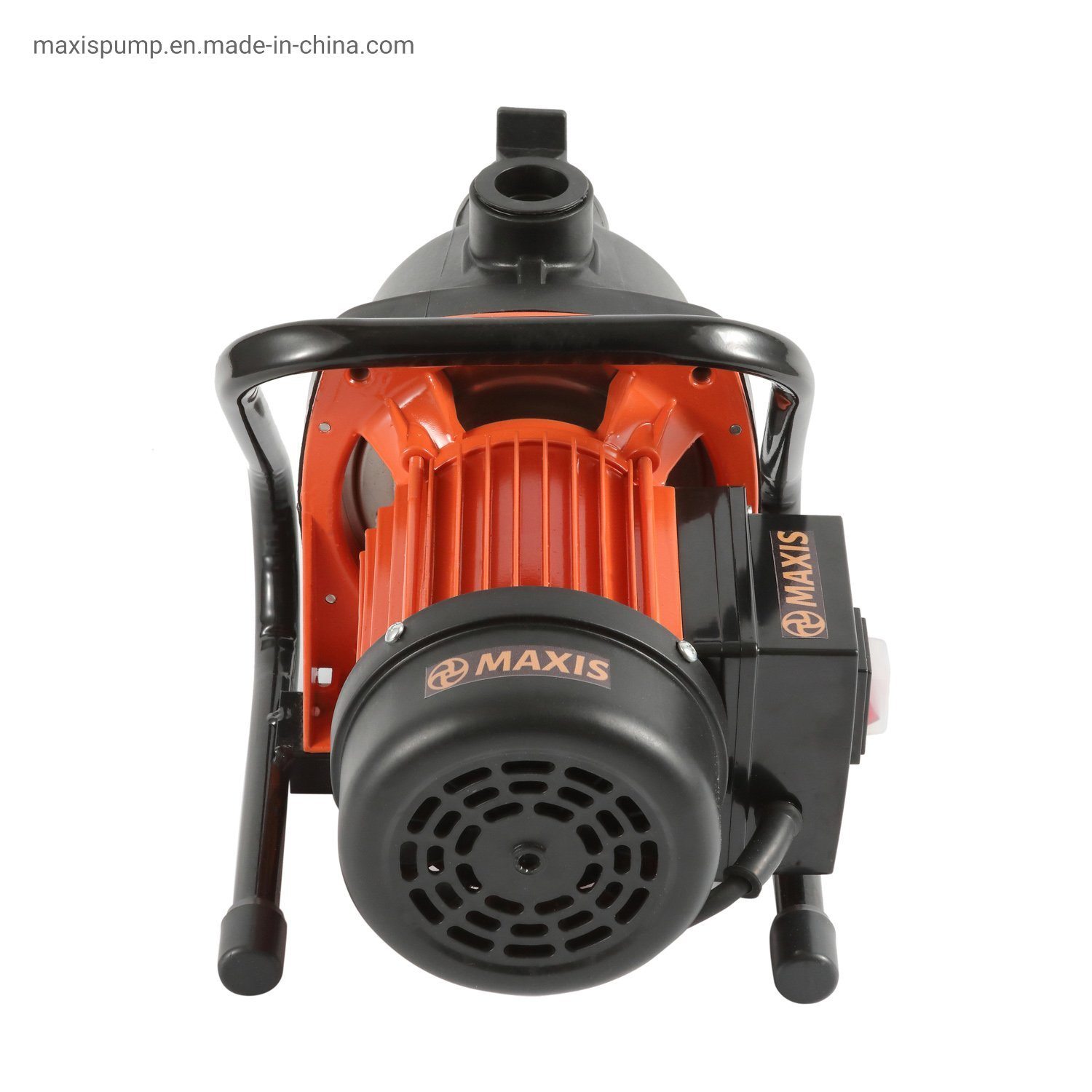

Plastic Garden Irrigation Electric High Pressure Pump

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
JS600	600W	3/4	3000 L/H	50 L/Min	35 M	8 M	1'' x 1''	IP44
JS800	800W	1	3200 L/H	53 L/Min	40 M	8 M	1'' x 1''	IP44
JS1000	1000W	1.3	3500 L/H	58 L/Min	44 M	8 M	1'' x 1''	IP44
JS1200	1200W	1.6	3800 L/H	63 L/Min	48 M	8 M	1'' x 1''	IP44

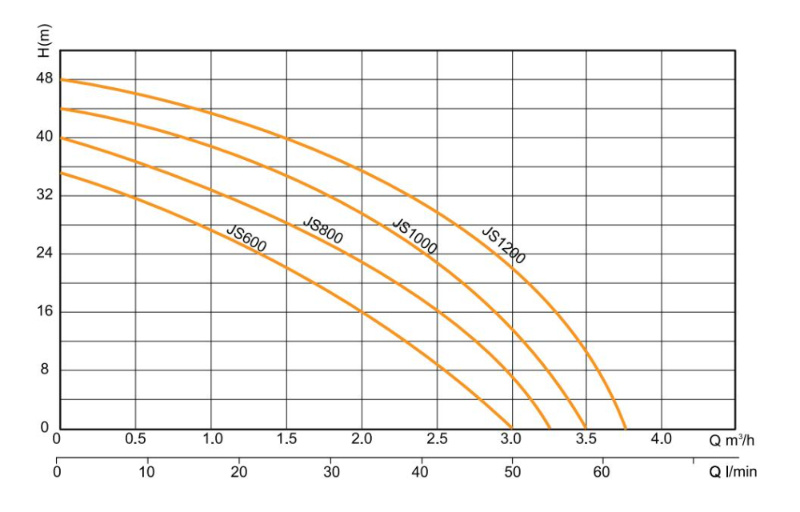

Performance Curve

Company view
Plastic Garden Irrigation Electric High Pressure Pump
