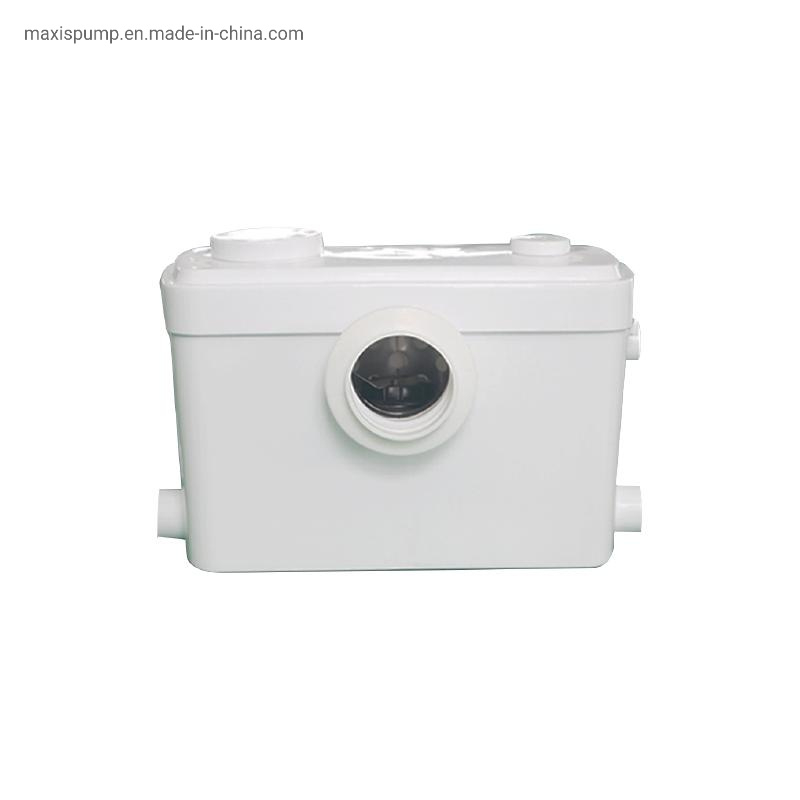

Micro Toilet Pump for Lifting Station

Quantity:
Micro Toilet Pump for Lifting Station
Micro Toilet Pump for Lifting Station
Micro Toilet Pump for Lifting Station
Micro Toilet Pump for Lifting Station
Micro Toilet Pump for Lifting Station
Micro Toilet Pump for Lifting Station
  • Free Spare Parts

  • 1 Year

  • <10m

  • 100-200 L/min

  • Motor

  • Plastic

  • WL600A

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Submersible Pump

  • Submersible Pump, Sewage Pump

  • Domestic

  • Water

  • Centrifugal Pump

  • Centrifugal Pump

  • CE GS RoHS PAHs

  • Carton

  • 5.2kg

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 15/Piece 1 Piece(Min.Order) | Request Sample

Application
1. Can be used to transfer clean or slightly dirty water or other liquids similar to water in physical and chemical properties

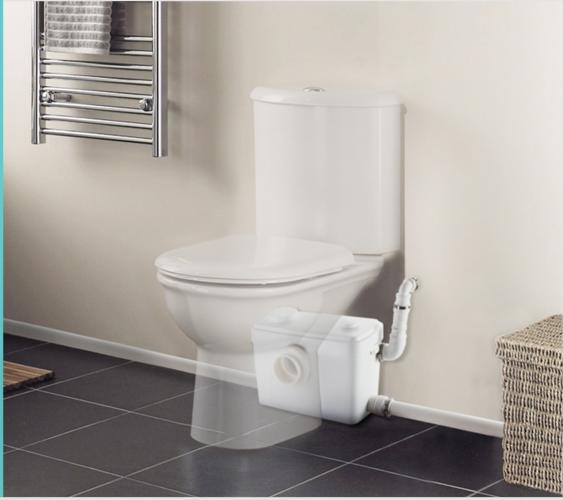

2. Suitable to be immersed in water for lifting water for the flush Toilet.
Micro Toilet Pump for Lifting Station

Pump
Plastic pump body
Plastic impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbo Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m

Micro Toilet Pump for Lifting Station Techenical Data
Model Power HP Max Flow Max Head Nosie Level Protection rating
WL600A 600W 4/5 HP 9000 L/H 150 L/Min 9.5 M <45 db(A) IP55
WL750A 750W 1 HP 9900 L/H 165 L/Min 11 M <45 db(A) IP55

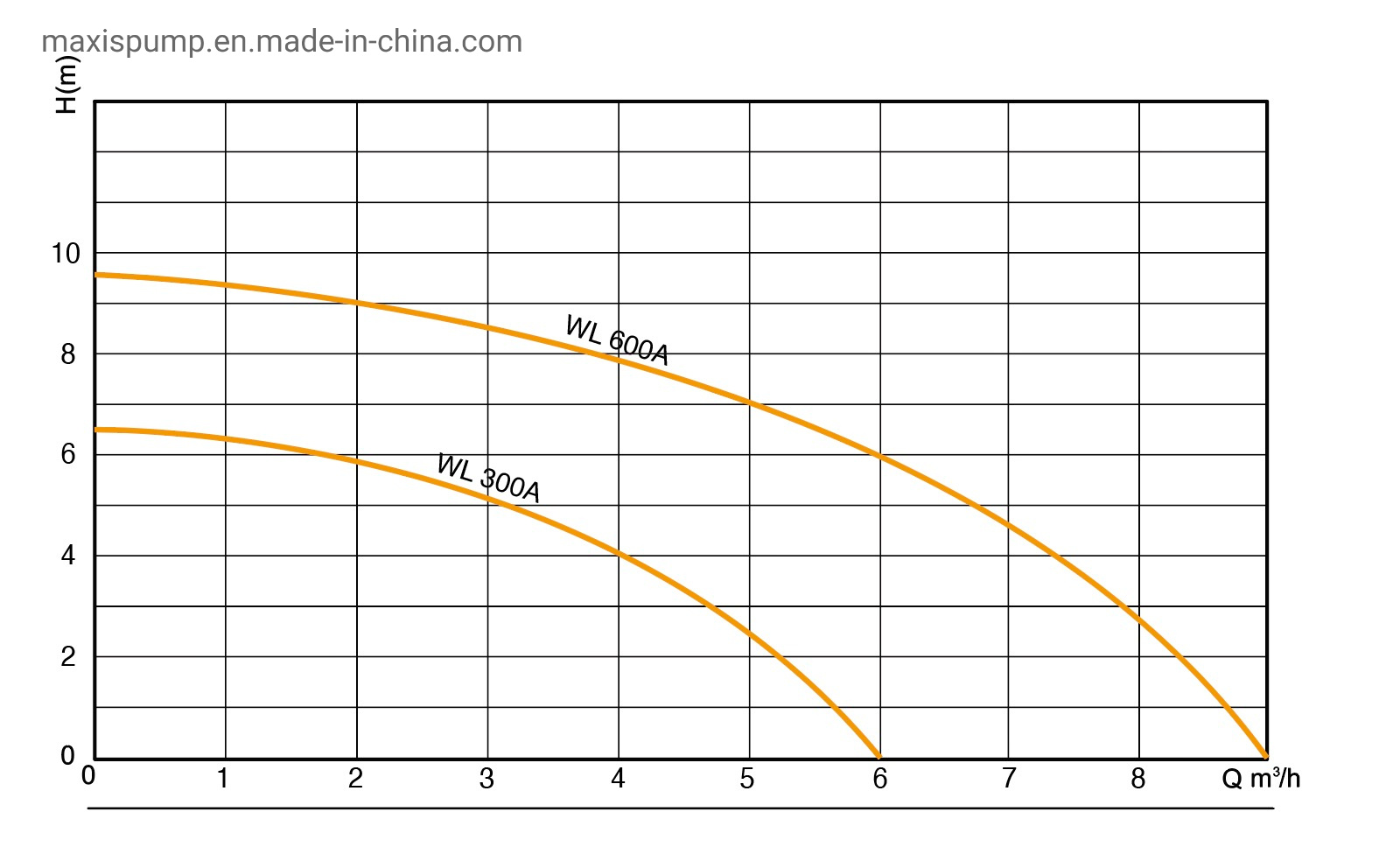

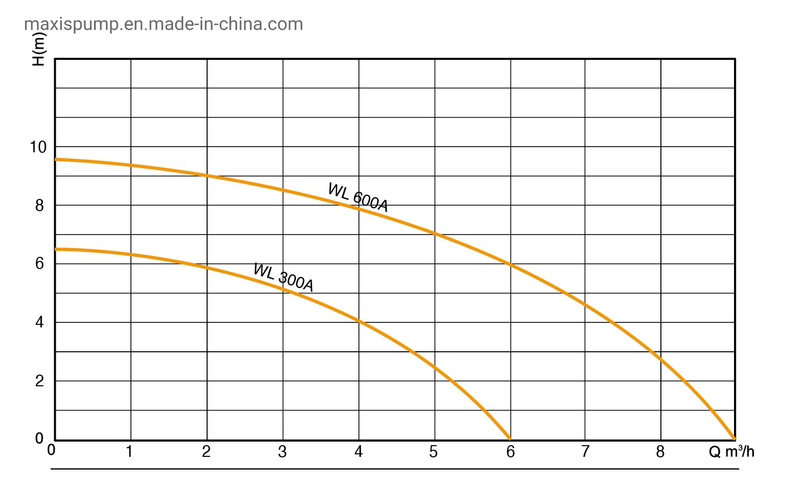

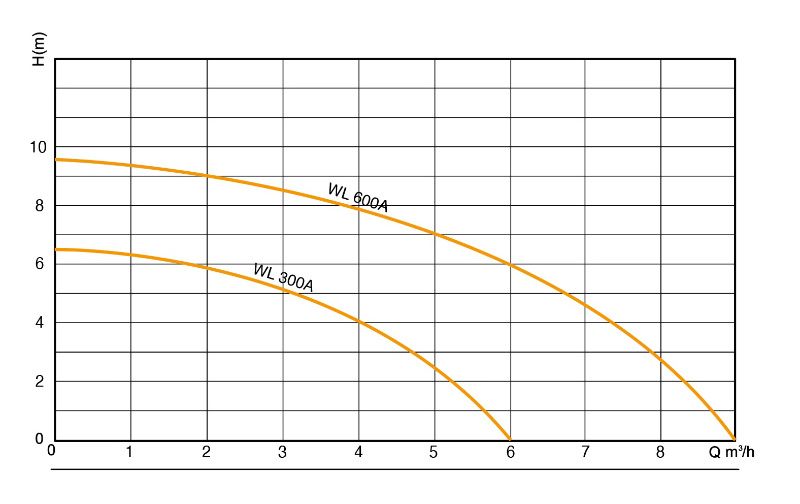

Performance Curve
Micro Toilet Pump for Lifting StationCompany ViewMicro Toilet Pump for Lifting StationMicro Toilet Pump for Lifting StationMicro Toilet Pump for Lifting StationMicro Toilet Pump for Lifting StationMicro Toilet Pump for Lifting Station
Micro Toilet Pump for Lifting Station
