| Quantity: | |
|---|---|
Free Spare Parts
1 Year
10-30m
50-100 L/min
Motor
Cast Iron

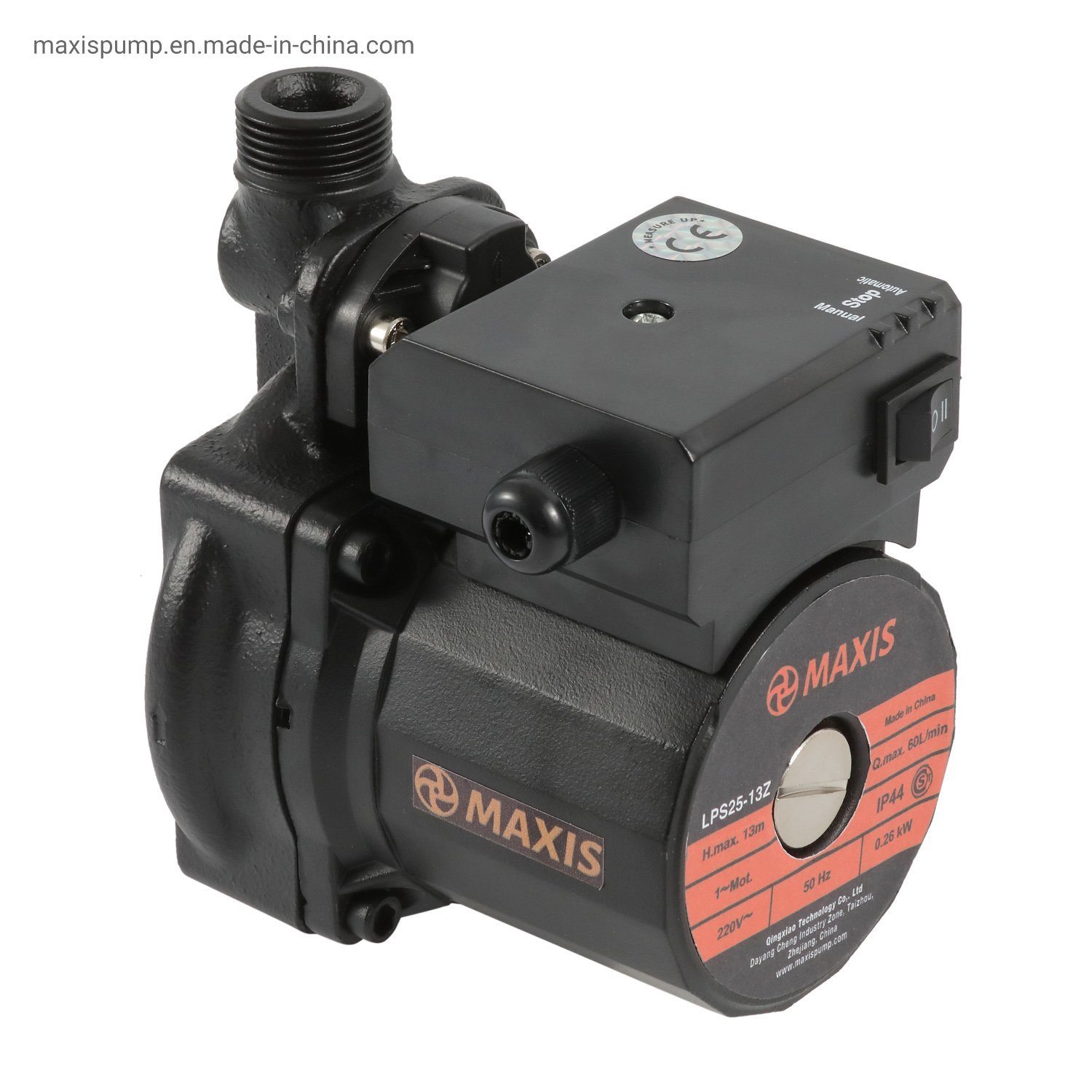

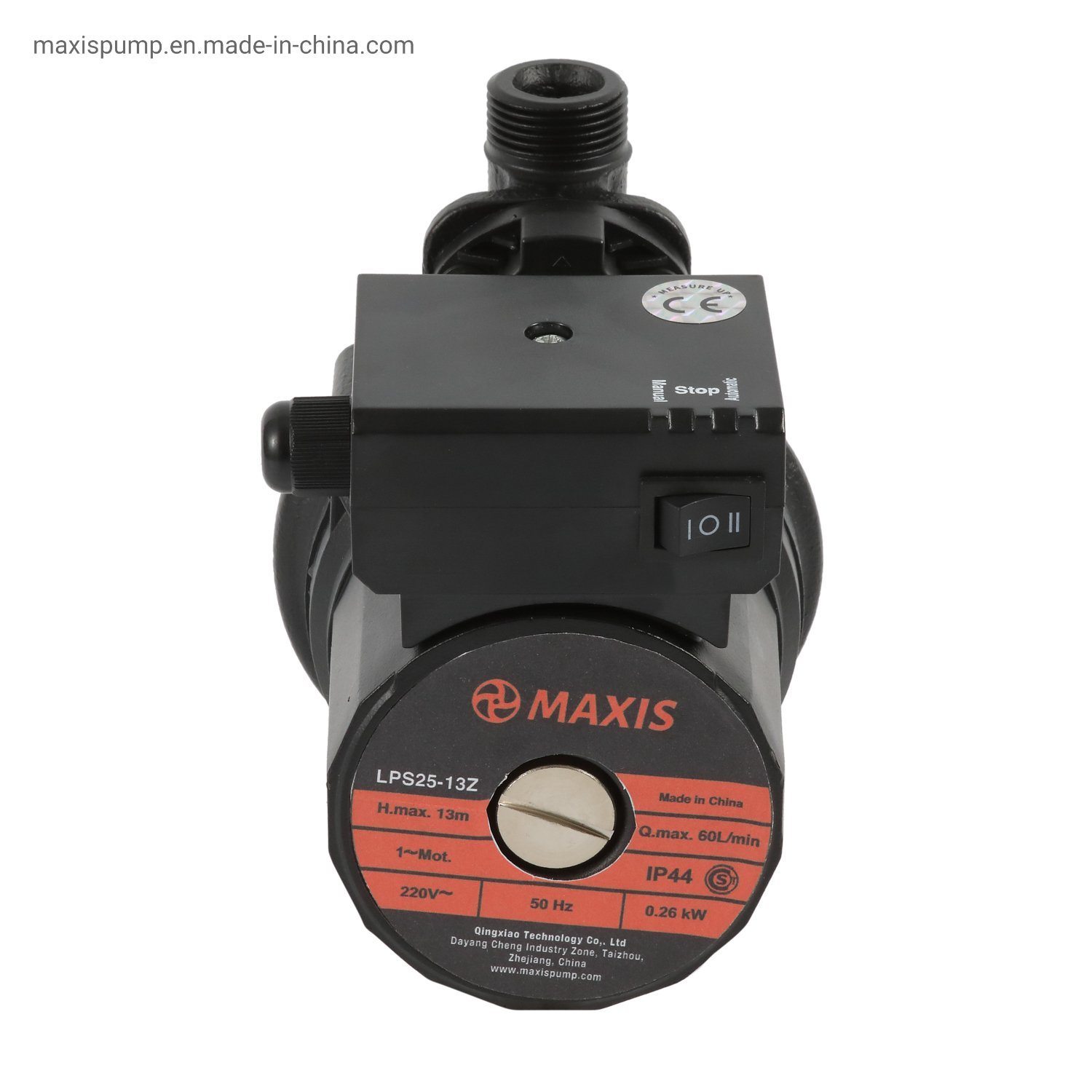

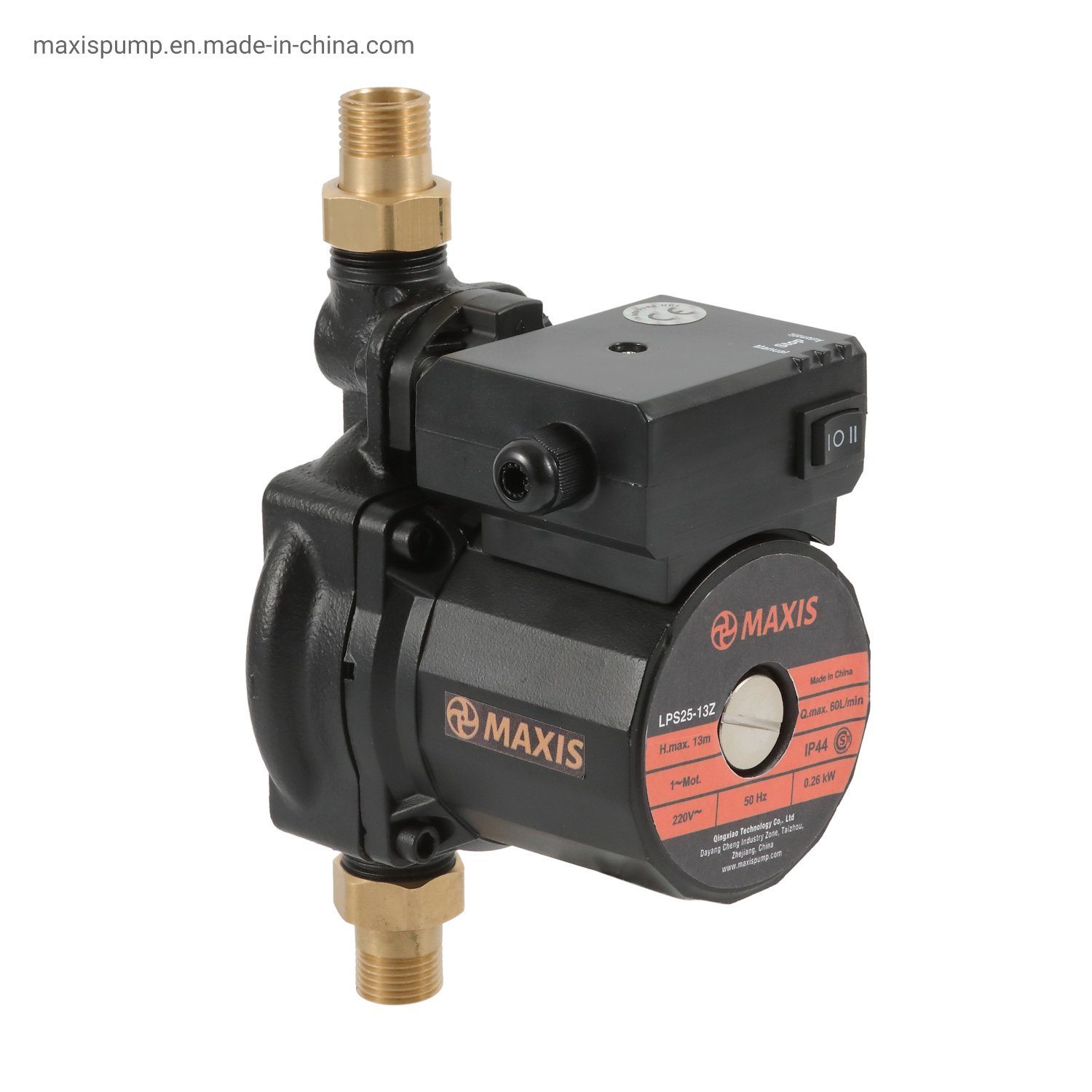

LPS25-13Z
Single-stage Pump
Pipeline Pump
Electric
Electric Pump
Circulating Pump
Circulation Pump
Heating System
Hot Water
Wear Pump
Mixed Flow Pump
CE GS RoHS PAHs
Carton
4.5kg
MAXIS
China
8413709990
500000PCS/Year
US$ 20/Piece 1 Piece(Min.Order) | Request Sample
Application
Circulation for the underfloor heating system or equipment
Pump
Casting Iron pump body
Motor with cooper winding both available
Built-in thermal protector for single phase motor
High quality bearing
Max.liquid temperature: +100ºC

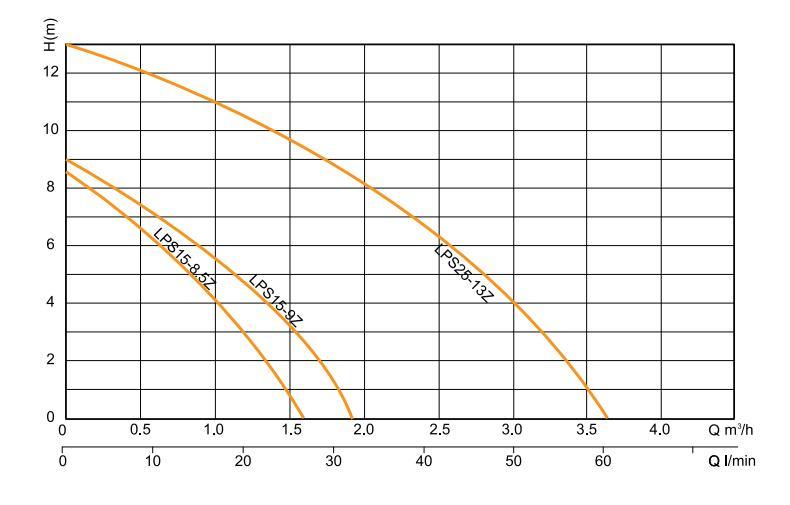

Performance Curve
Techenical Data
| Model | Power | HP | Max Flow | Max Head | Max Suction | Inlet / Outlet | Protection rating | |
| LPS15-8.5Z | 100W | 1/8 | 1600 L/H | 26 L/Min | 8.5 M | 8 M | 3/4'' x 3/4'' | IPX2 |
| LPS15-9Z | 120W | 1/6 | 1800 L/H | 30 L/Min | 9 M | 8 M | 3/4'' x 3/4'' | IPX2 |
| LPS25-13Z | 260W | 1/3 | 3600 L/H | 60 L/Min | 13 M | 8 M | 1'' x 1'' | IPX2 |
Application
Circulation for the underfloor heating system or equipment
Pump
Casting Iron pump body
Motor with cooper winding both available
Built-in thermal protector for single phase motor
High quality bearing
Max.liquid temperature: +100ºC
Performance Curve
Techenical Data
| Model | Power | HP | Max Flow | Max Head | Max Suction | Inlet / Outlet | Protection rating | |
| LPS15-8.5Z | 100W | 1/8 | 1600 L/H | 26 L/Min | 8.5 M | 8 M | 3/4'' x 3/4'' | IPX2 |
| LPS15-9Z | 120W | 1/6 | 1800 L/H | 30 L/Min | 9 M | 8 M | 3/4'' x 3/4'' | IPX2 |
| LPS25-13Z | 260W | 1/3 | 3600 L/H | 60 L/Min | 13 M | 8 M | 1'' x 1'' | IPX2 |
