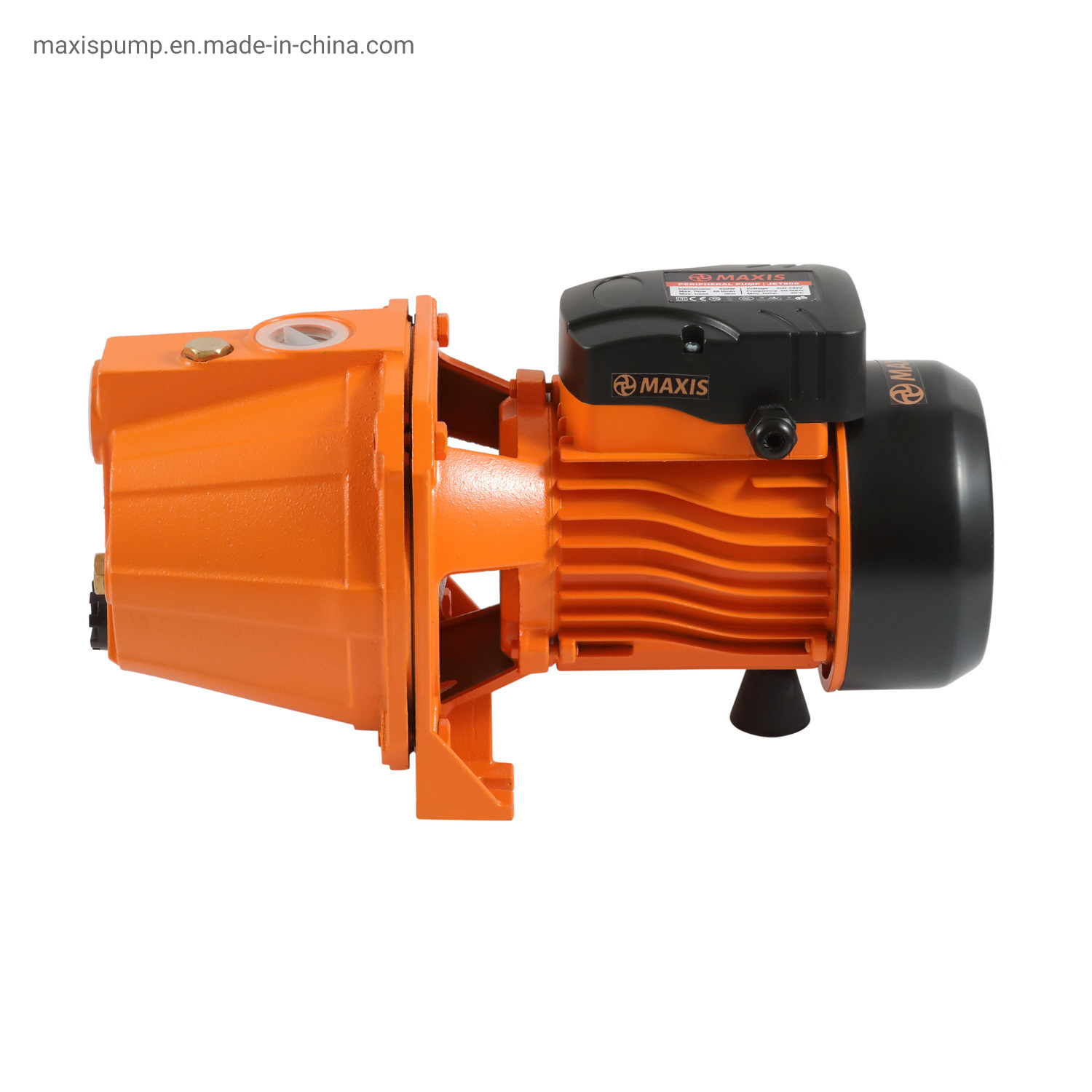

Maxis Electric Casting Iron Jet Self-Priming

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
<50 L/min
Driving Type:
Motor
Material:
Cast Iron
Model NO.:
JET80S
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Jet Pump
Application:
Casting Iron Pump
Industry:
Farm Irrigation
Media:
Water
Performance:
Centrifugal Pump
Theory:
Centrifugal Pump
Certificate:
CE GS RoHS
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

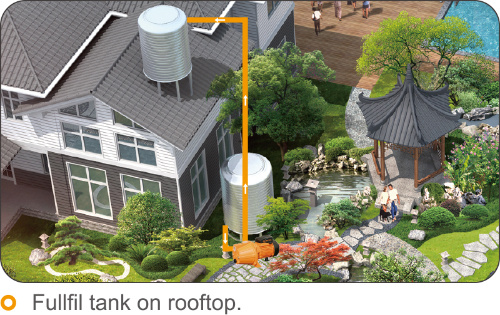

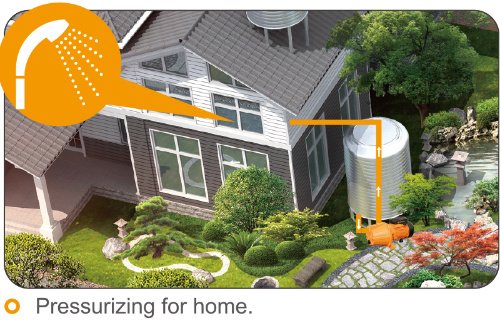

2. Suitable for water supply and drainage in garden irrigation greenhouses, fish breeding and poultry raising. The pump also can be used for domestic automatic water supply places, such as lifting water from a deep well, pressure boosting of running water ect.

Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
Maxis Electric Casting Iron Jet Self-Priming

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
JET60S	370W	1/2	2400 L/H	40 L/Min	30 M	8 M	1'' x 1''	IP44
JET80S	550W	3/4	2900 L/H	48 L/Min	38 M	8 M	1'' x 1''	IP44
JET100S	750W	1	3200 L/H	53 L/Min	45 M	8 M	1'' x 1''	IP44

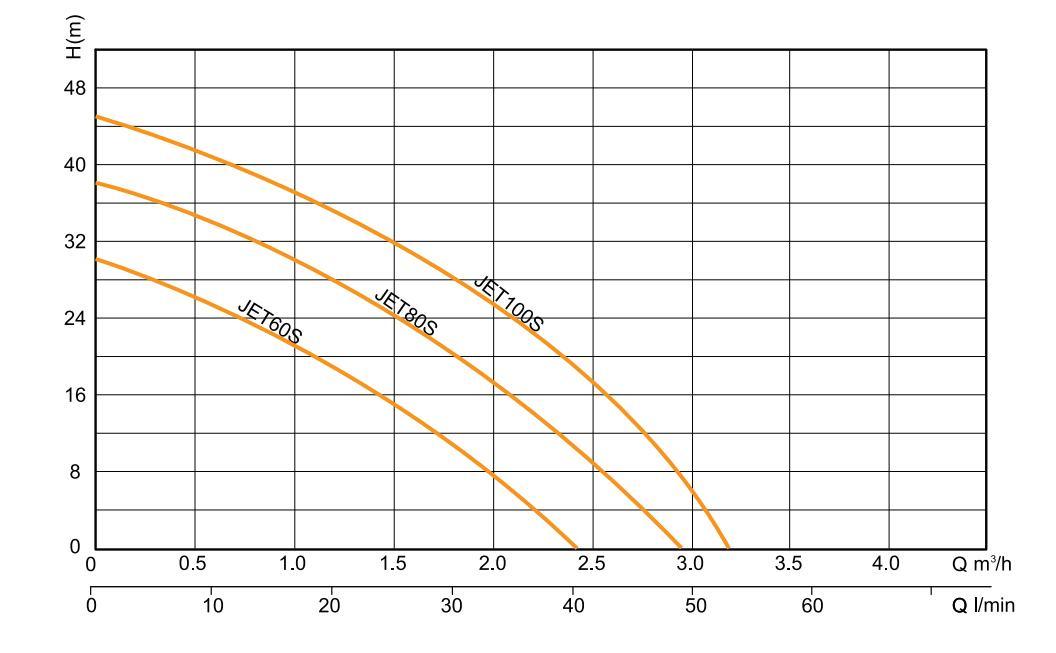

Performance Curve

Company view
Maxis Electric Casting Iron Jet Self-Priming
