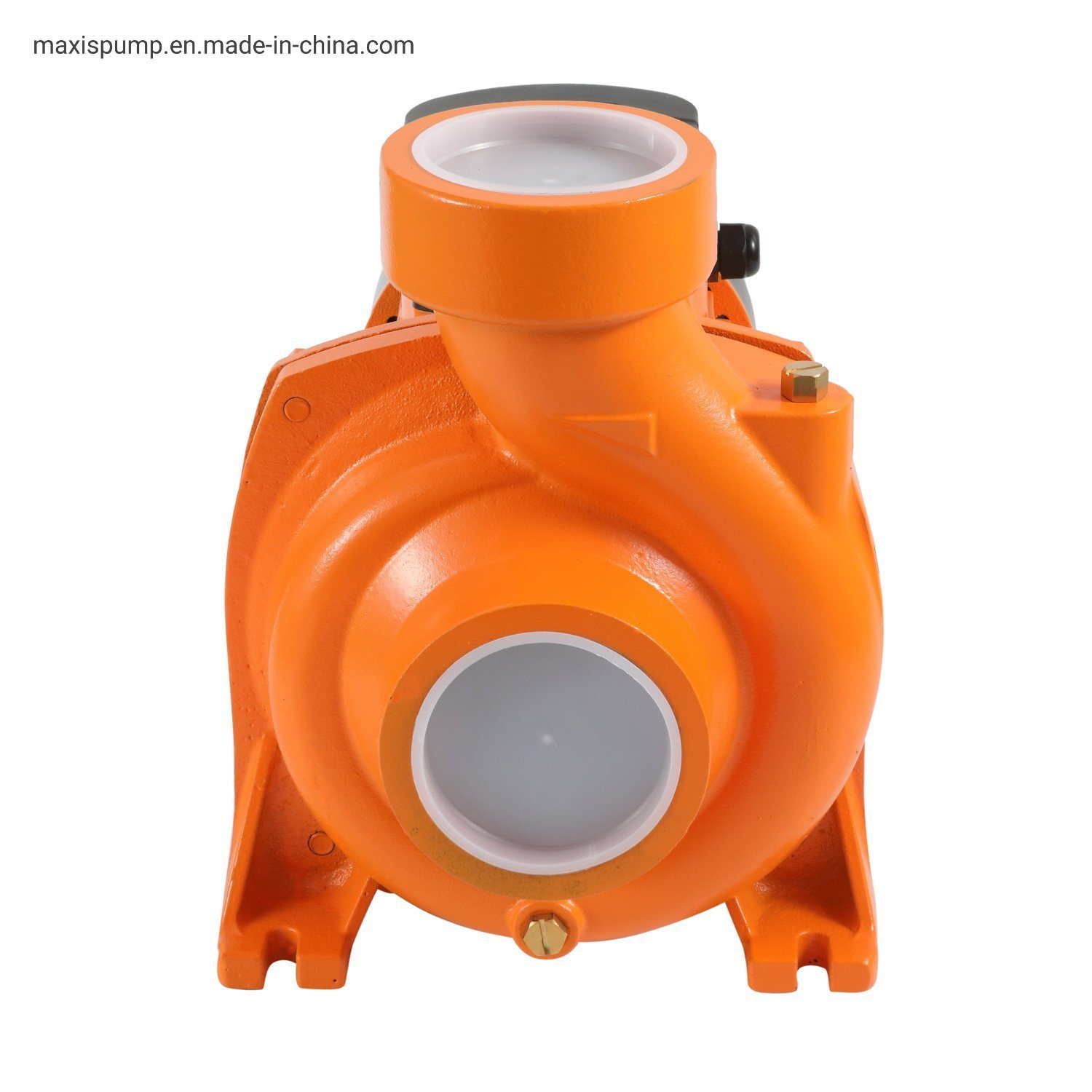

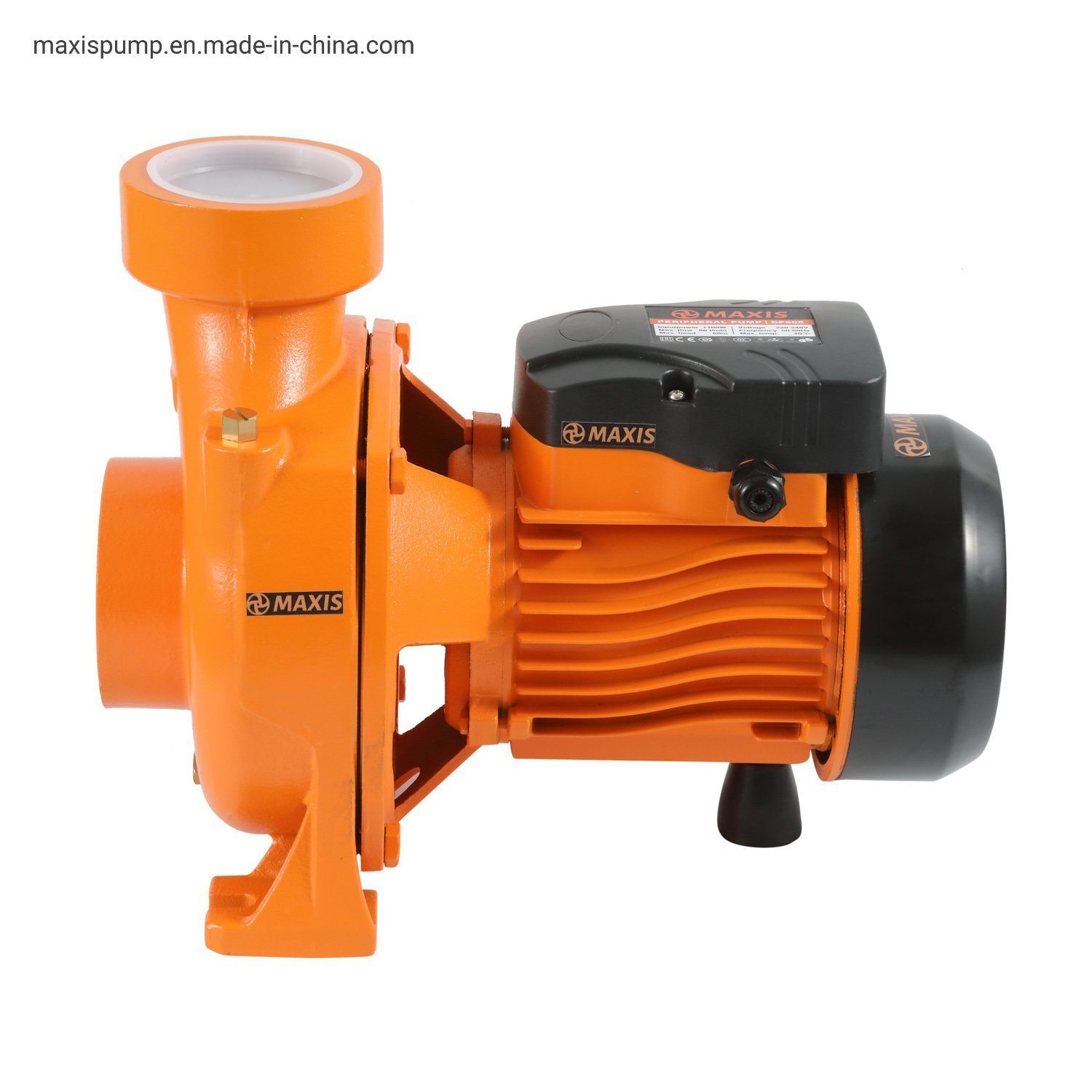

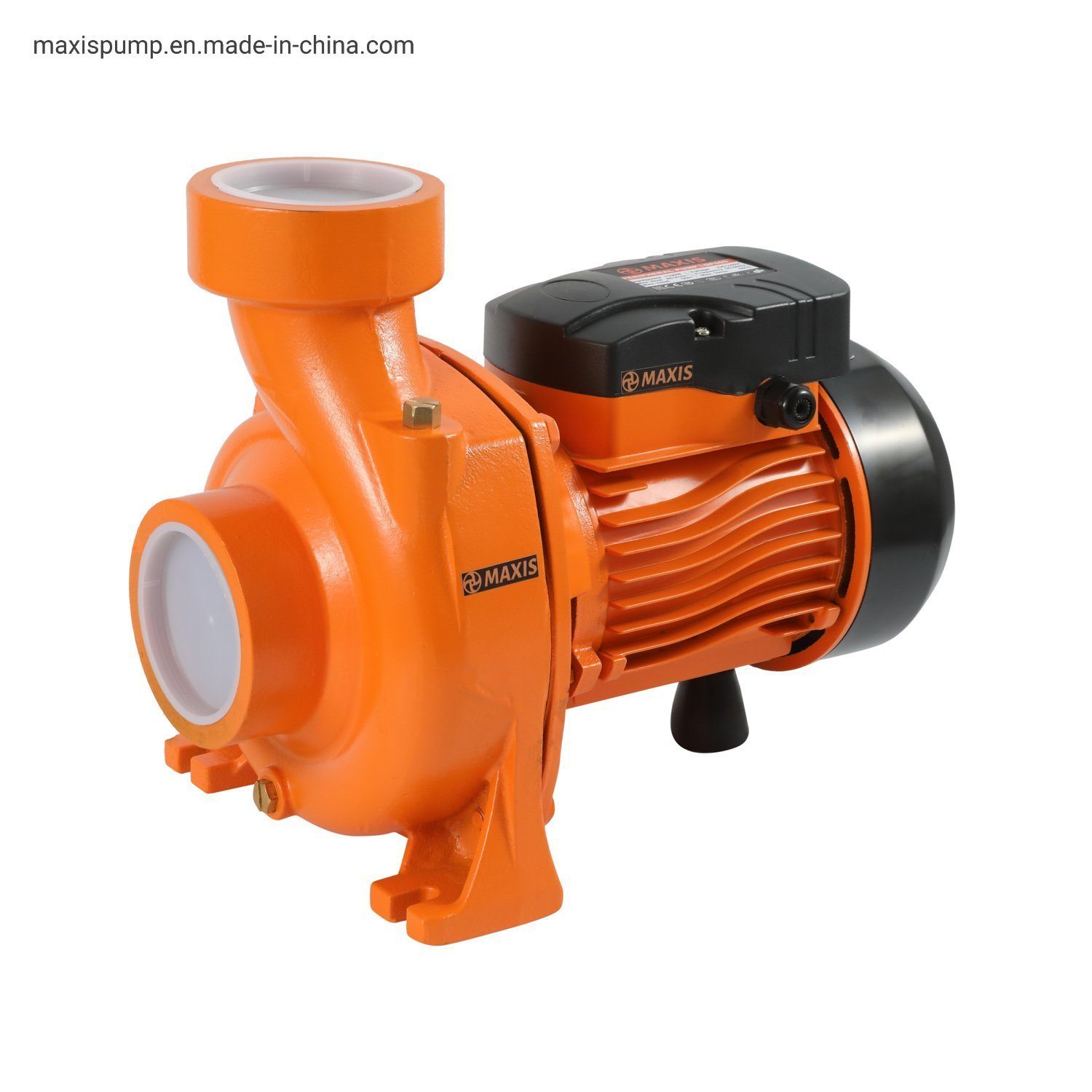

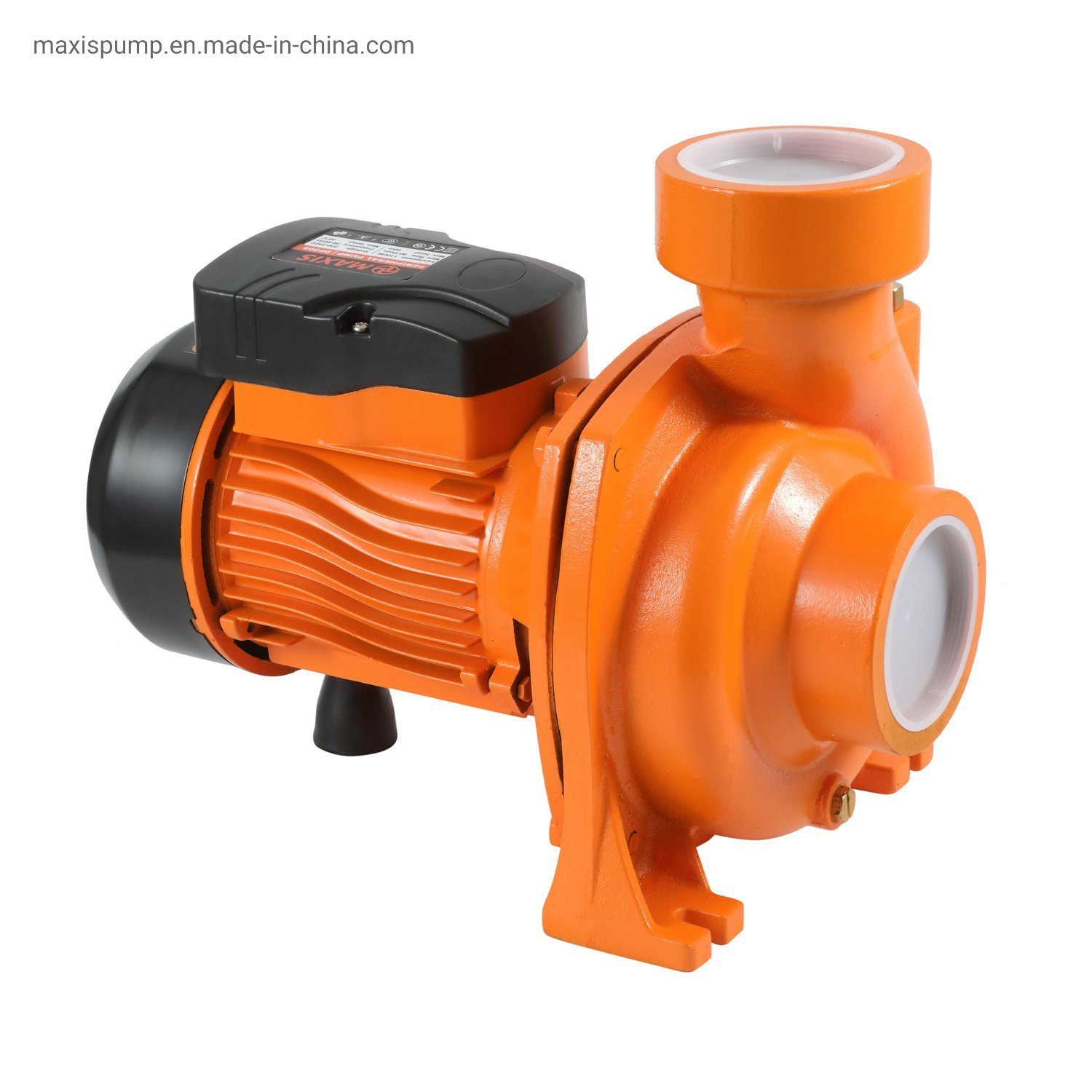

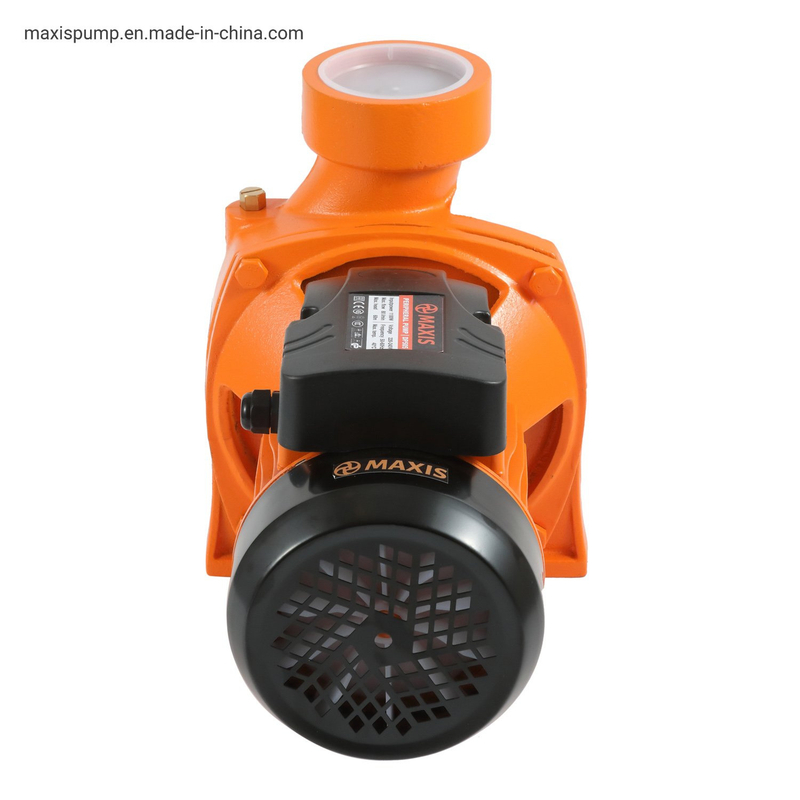

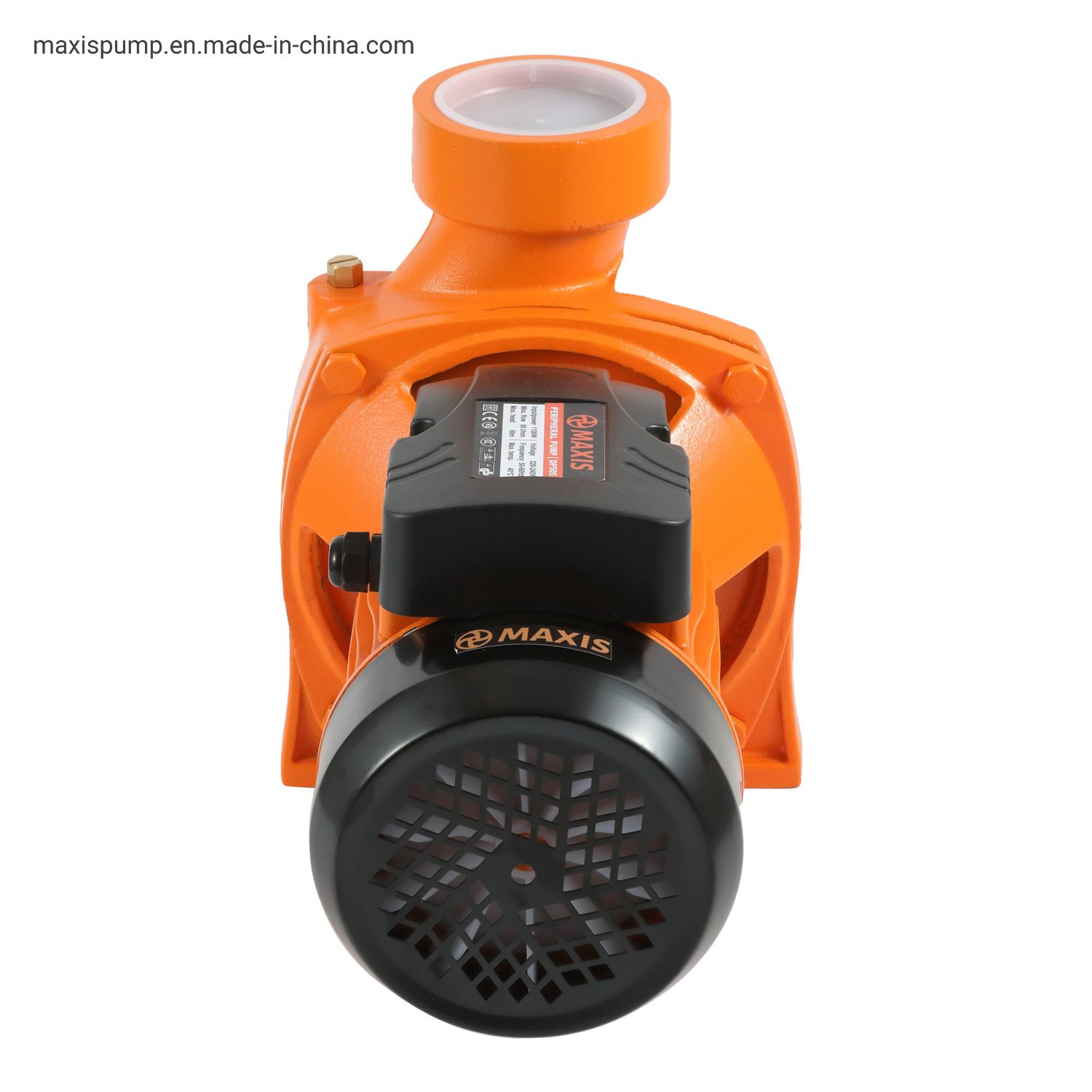

Maxis Big Pressure Casting Iron 2HP Centrifugal Pump for Water Transfer and Irrigation

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
10-30m
Max.Capacity:
300-400 L/min
Driving Type:
Motor
Material:
Cast Iron
Model NO.:
MHF6A
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Centrifugal Pump
Application:
Clarified Water Pump
Industry:
Farm Irrigation
Media:
Clear Water Pump
Performance:
Centrifugal Pump
Theory:
Centrifugal Pump
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
2. Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.
Maxis Big Pressure Casting Iron 2HP Centrifugal Pump for Water Transfer and Irrigation

Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
Maxis Big Pressure Casting Iron 2HP Centrifugal Pump for Water Transfer and Irrigation

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
MHF5A	1100W	1.5	15000 L/H	250 L/Min	15 M	8 M	1'' x 1''	IP44
MHF6A	1500W	2	18000 L/H	300 L/Min	20 M	8 M	1'' x 1''	IP44
MHF7A	2200W	3	50000 L/H	833 L/Min	17 M	8 M	1'' x 1''	IP44

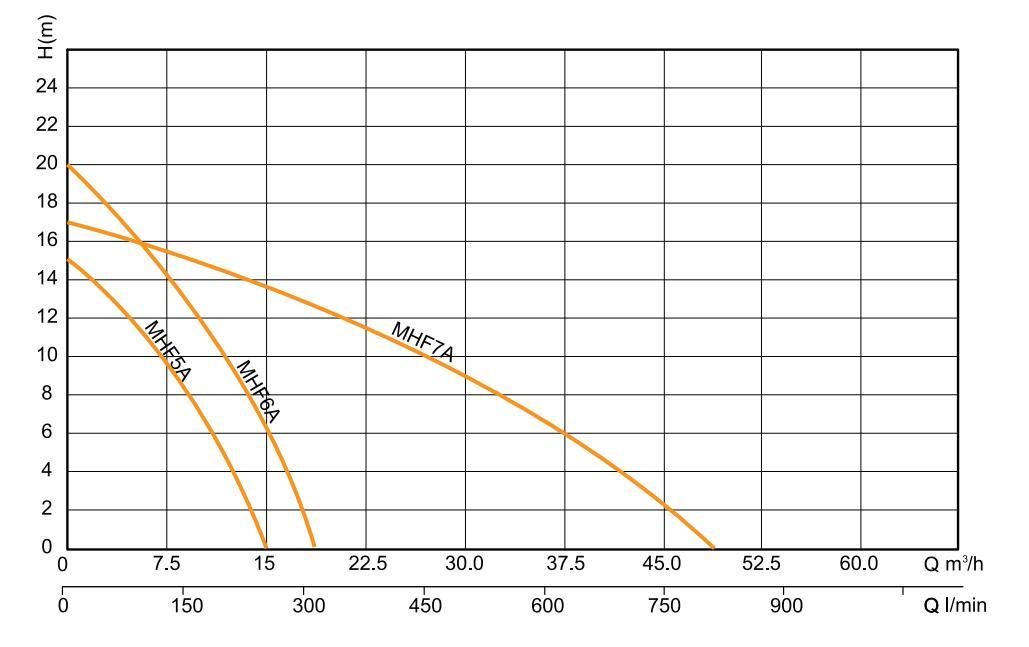

Performance Curve
