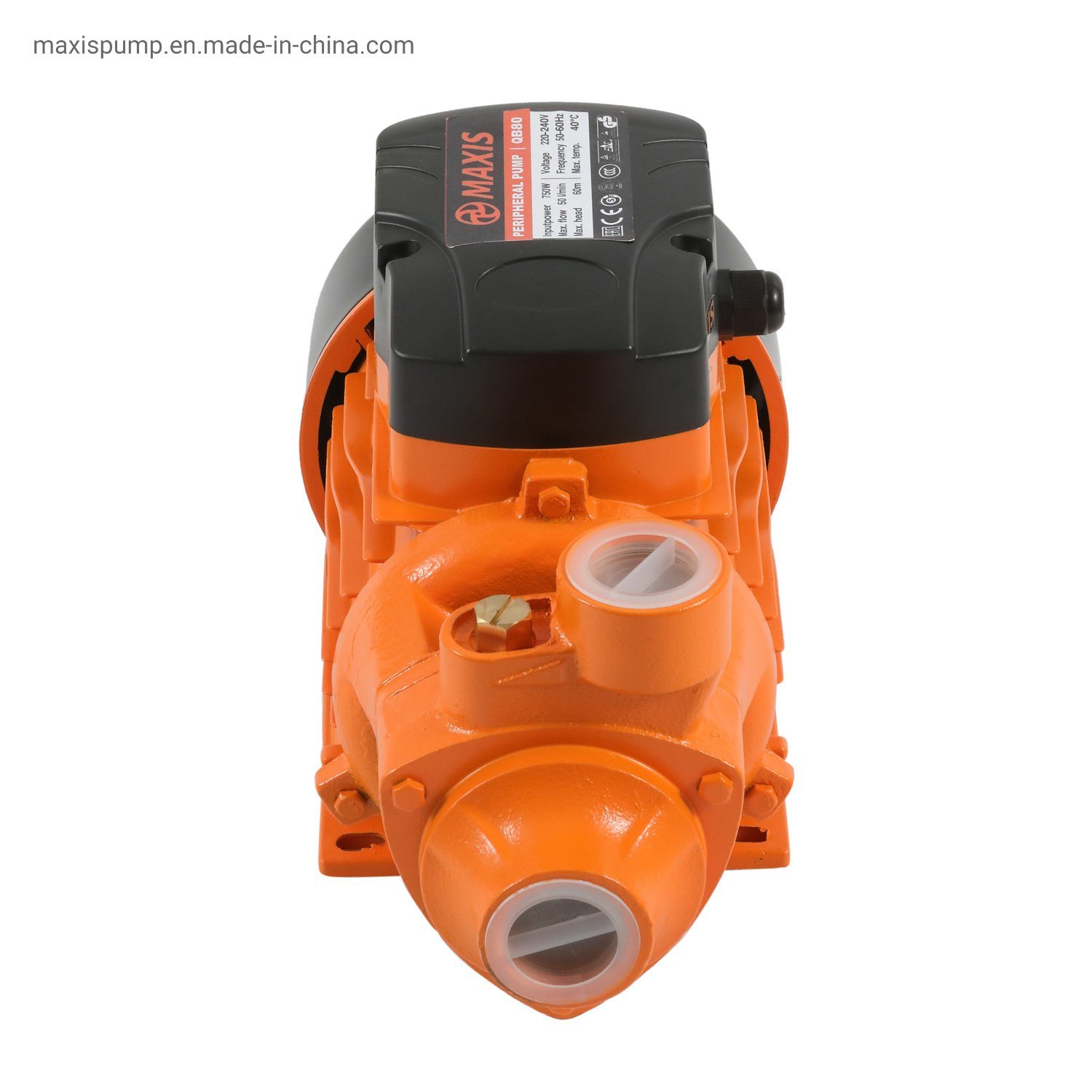

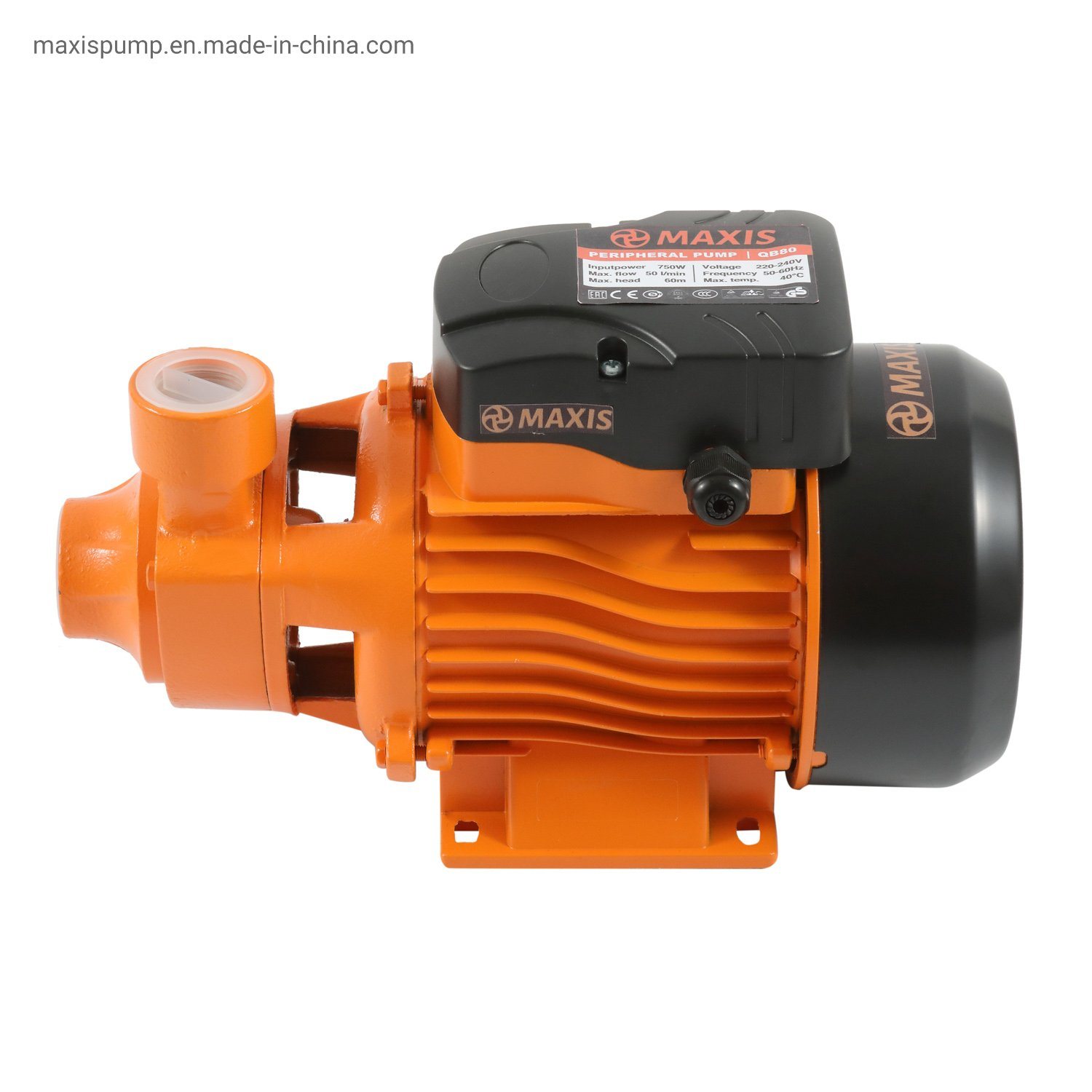

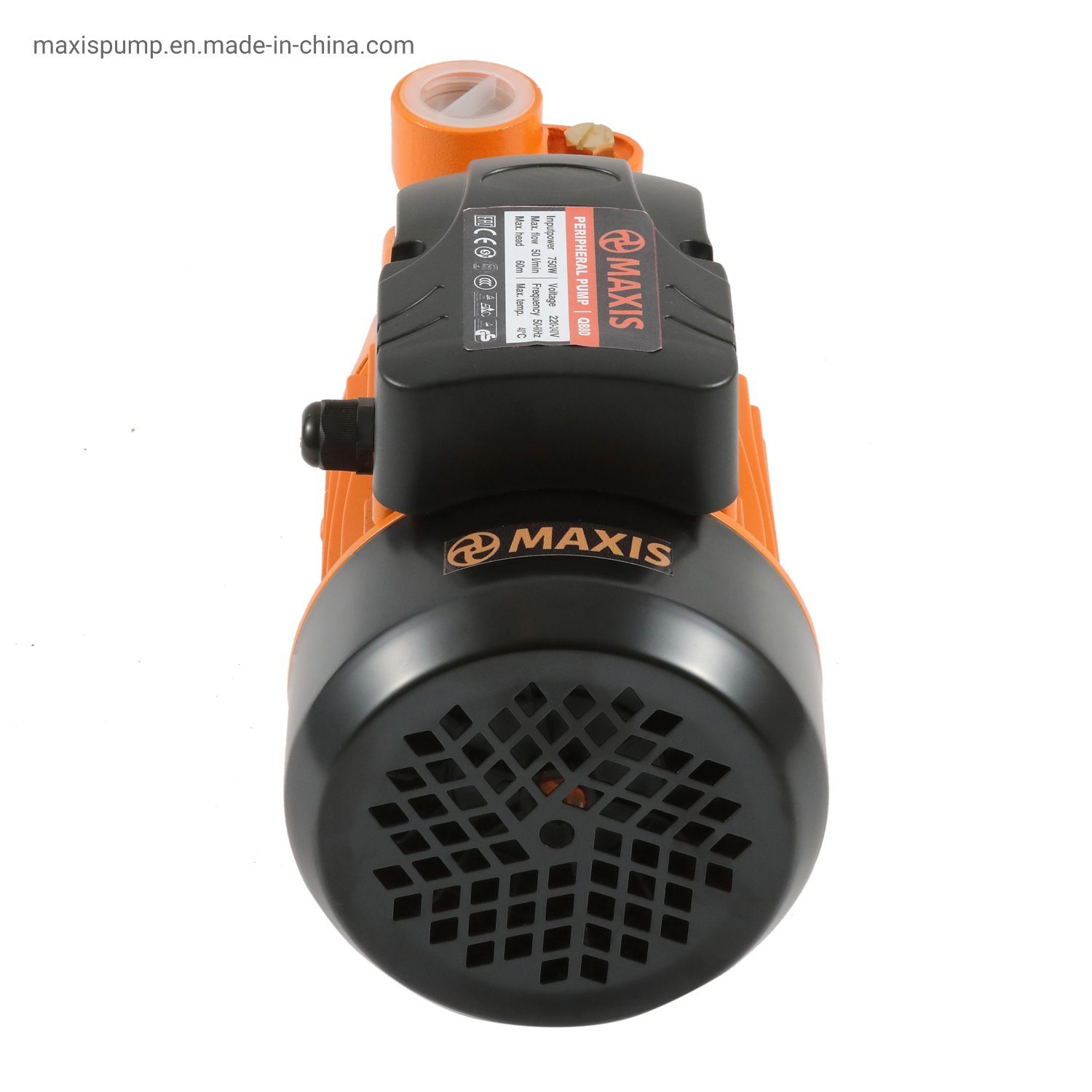

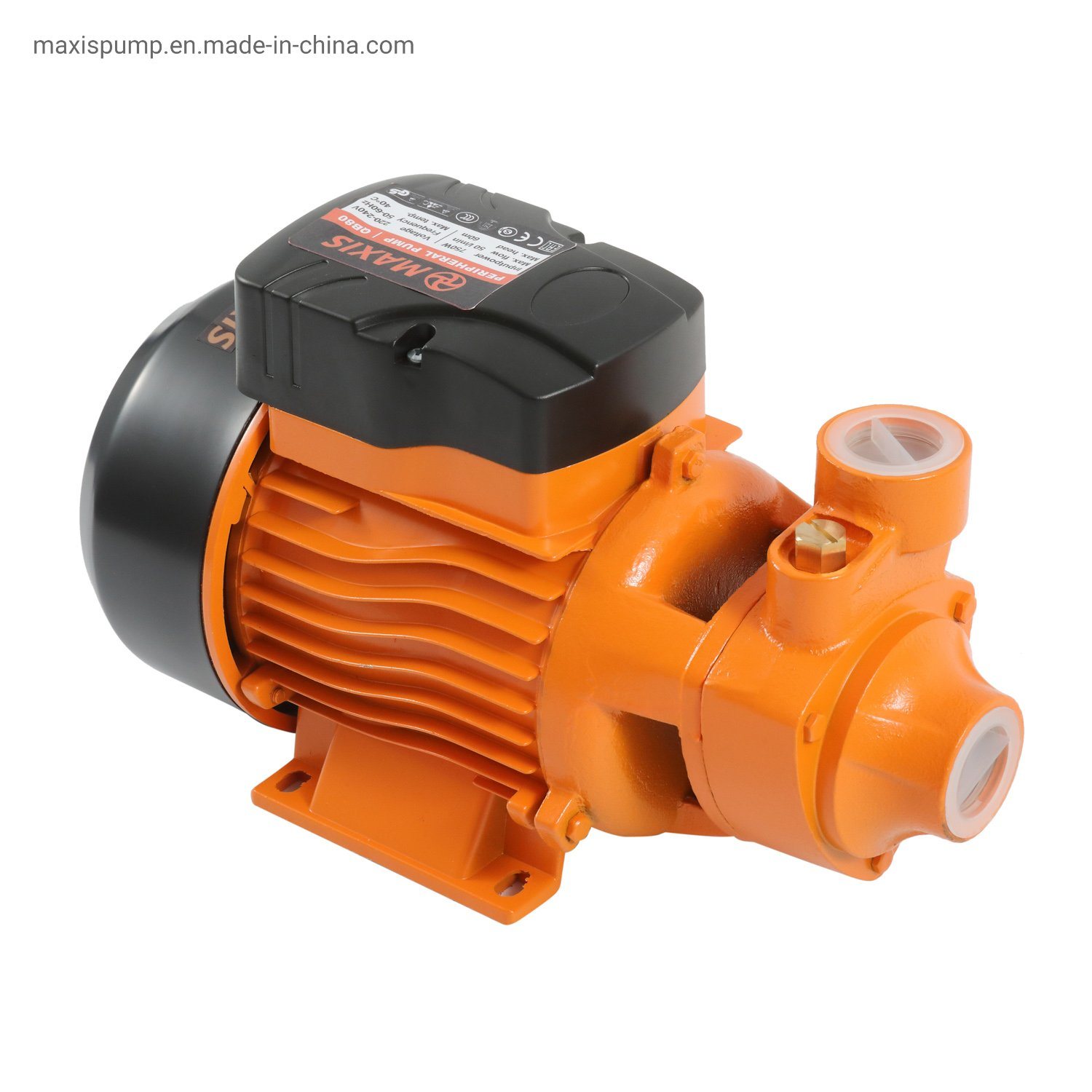

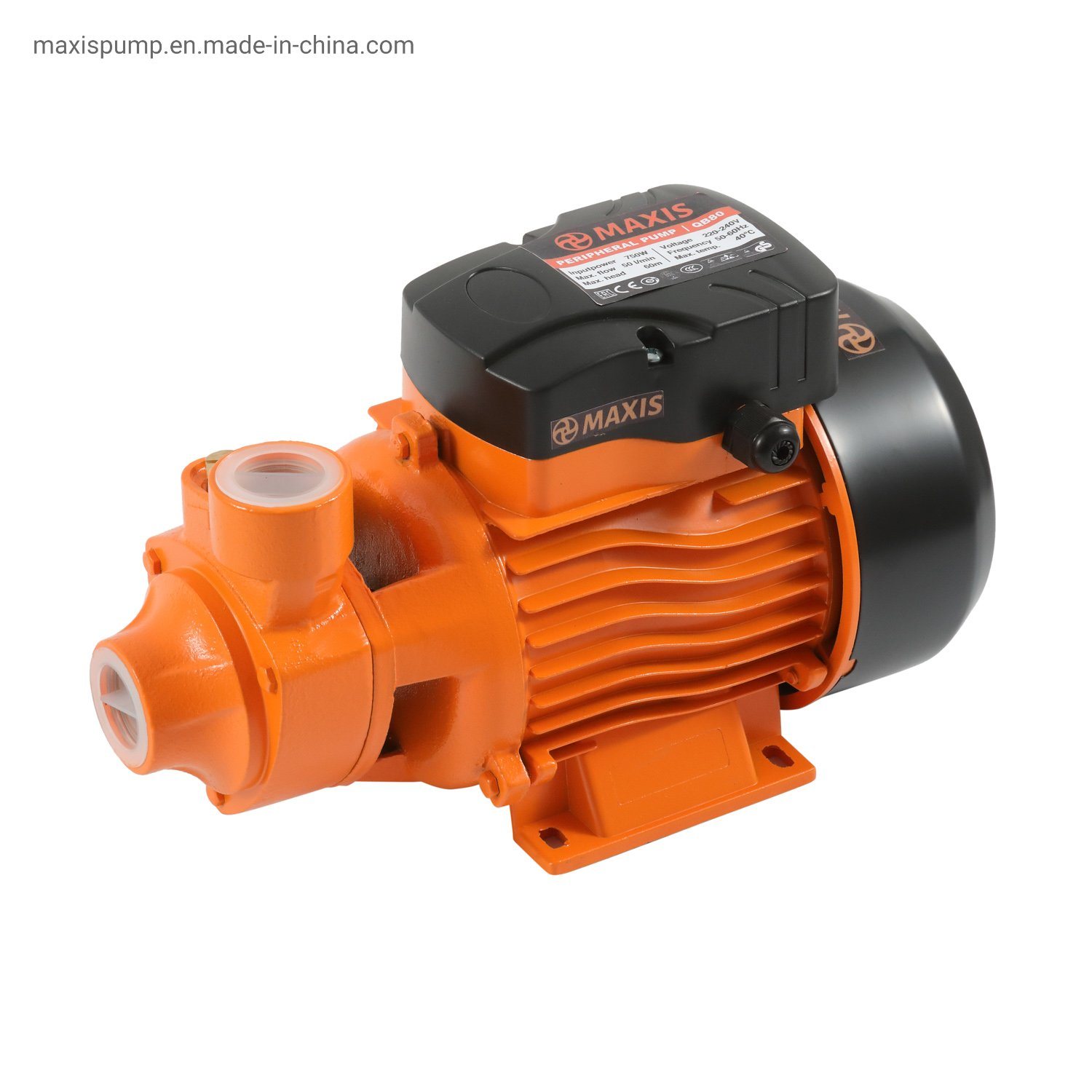

High Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and Lifting

Quantity:
Inquire Add to Basket

High Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and Lifting
High Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and Lifting
High Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and Lifting
High Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and Lifting
High Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and Lifting
High Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and Lifting

  • Free Spare Parts

  • 1 Year

  • 50-80m

  • <50 L/min

  • Motor

  • Cast Iron

  • QB80

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Casting Iron Pump

  • Peripheral Pump

  • Domestic

  • Clean Water

  • Wear Pump

  • Vortex Pump

  • CE GS RoHS

  • Color Box

  • Casting iron

  • MAXIS

  • China

  • 8413709990

  • 1000000PCS/Year

  • Available | Customized Request

Application

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

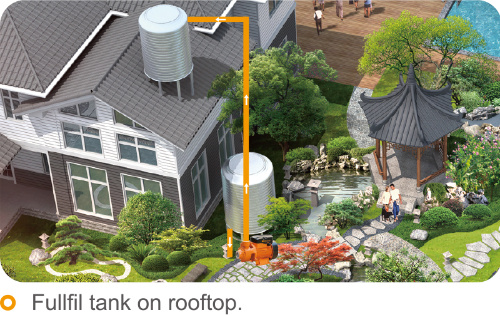

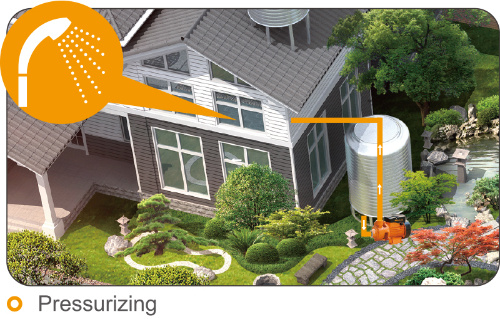

2. Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.
High Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and LiftingHigh Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and Lifting High Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and Lifting Pump
Special anti-rust treatment for cast iron pump body and support
Anti-block system for impeller
Bass impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carbon steel shaft both available
Max.liquid temperature: +40ºC
Max. suction:+8m
High Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and Lifting
Technical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
QB60 370W 1/2 2100 L/H 35 L/Min 35 M 8 M 1'' x 1'' IPX4
QB70 550W 3/4 2400 L/H 40 L/Min 50 M 8 M 1'' x 1'' IPX4
QB80 750W 1 3000 L/H 50 L/Min 60 M 8 M 1'' x 1'' IPX4

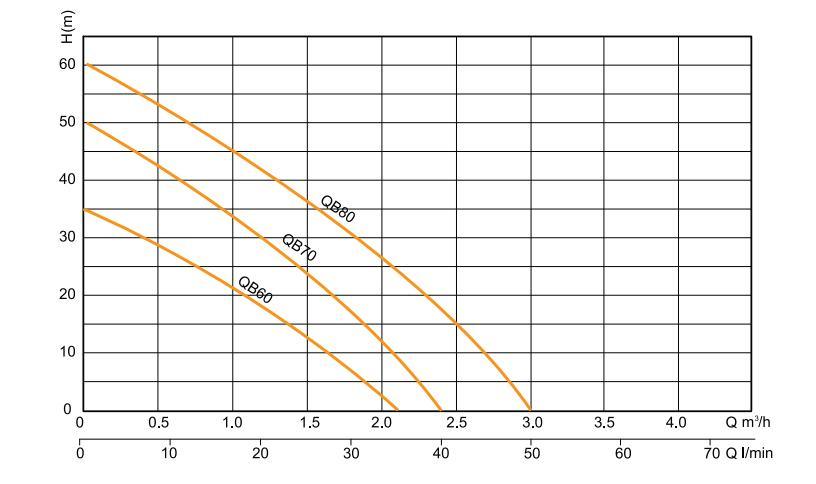

Performance Curve
High Performance 1 HP Electric Casting Iron Water Pump for Water Transfer and Lifting
