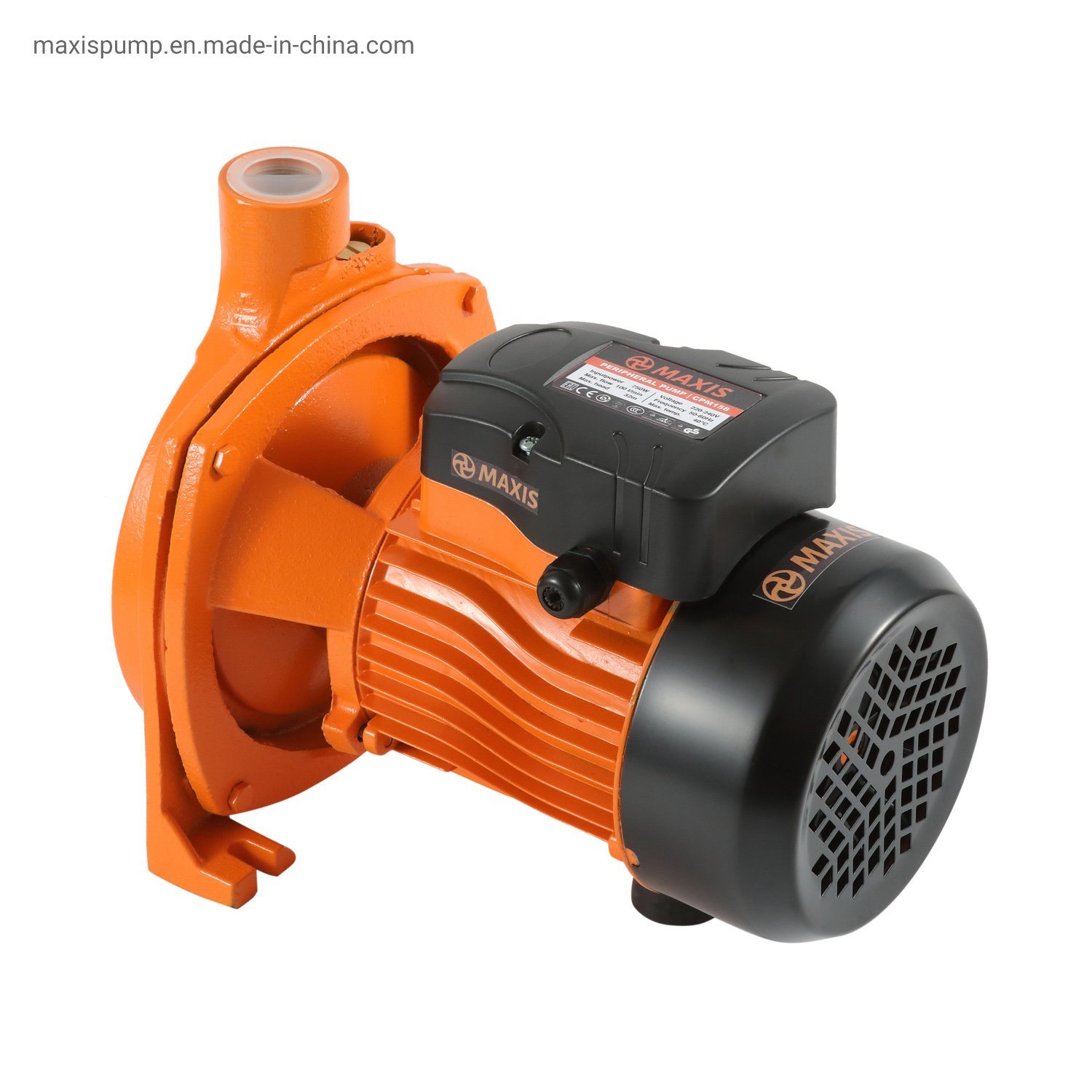

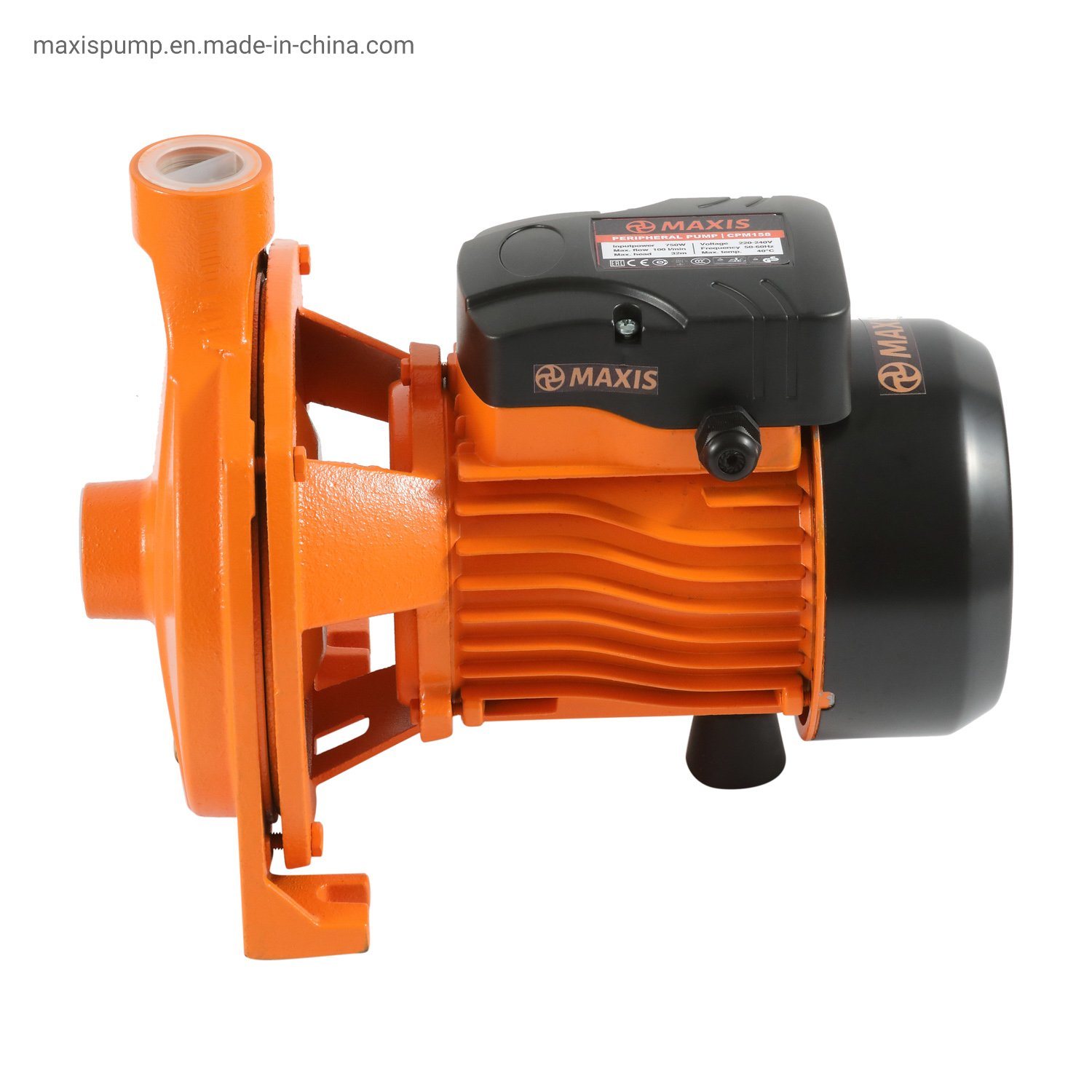

High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting

Quantity:
Inquire Add to Basket

High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting
High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting
High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting
High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting
High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting
High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting

  • CPM 146

  • 50-100 L/min

  • Motor

  • Cast Iron

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Peripheral Pump

  • Transfer Water Pump

  • Farm Irrigation Pump

  • Clean Water

  • Centrifugal Pump

  • Centrifugal Pump

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • 30.00cm * 15.00cm * 20.00cm

  • 5.000kg

  • Free Spare Parts

  • 1 Year

  • 10-30m

Application
  1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

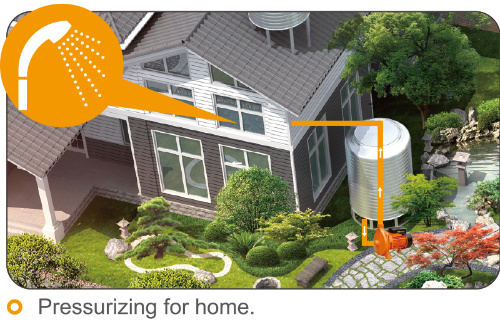

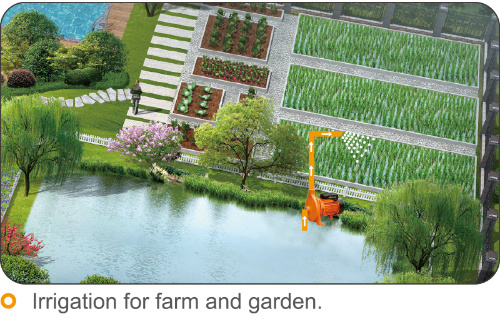

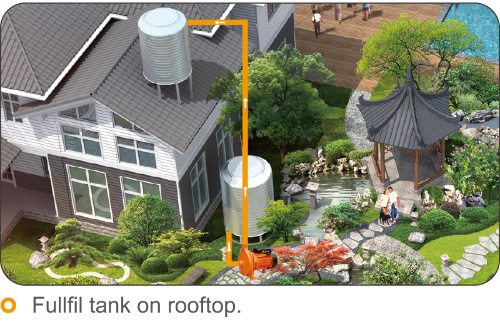

  2. Suitable for lifting water from the well, sprinkling irrigation in garden pressure boosting of running water, and supporting equipment etc
High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting

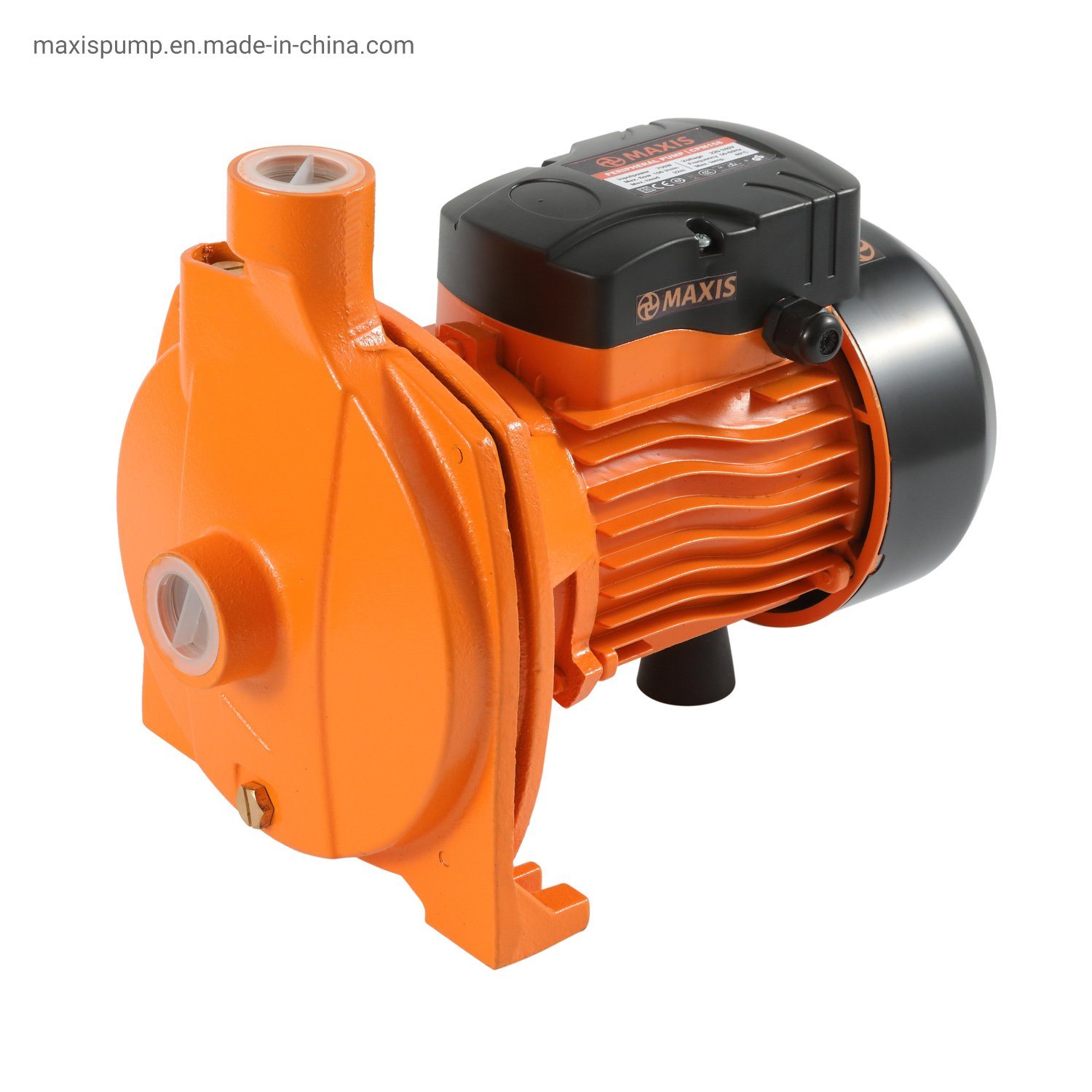

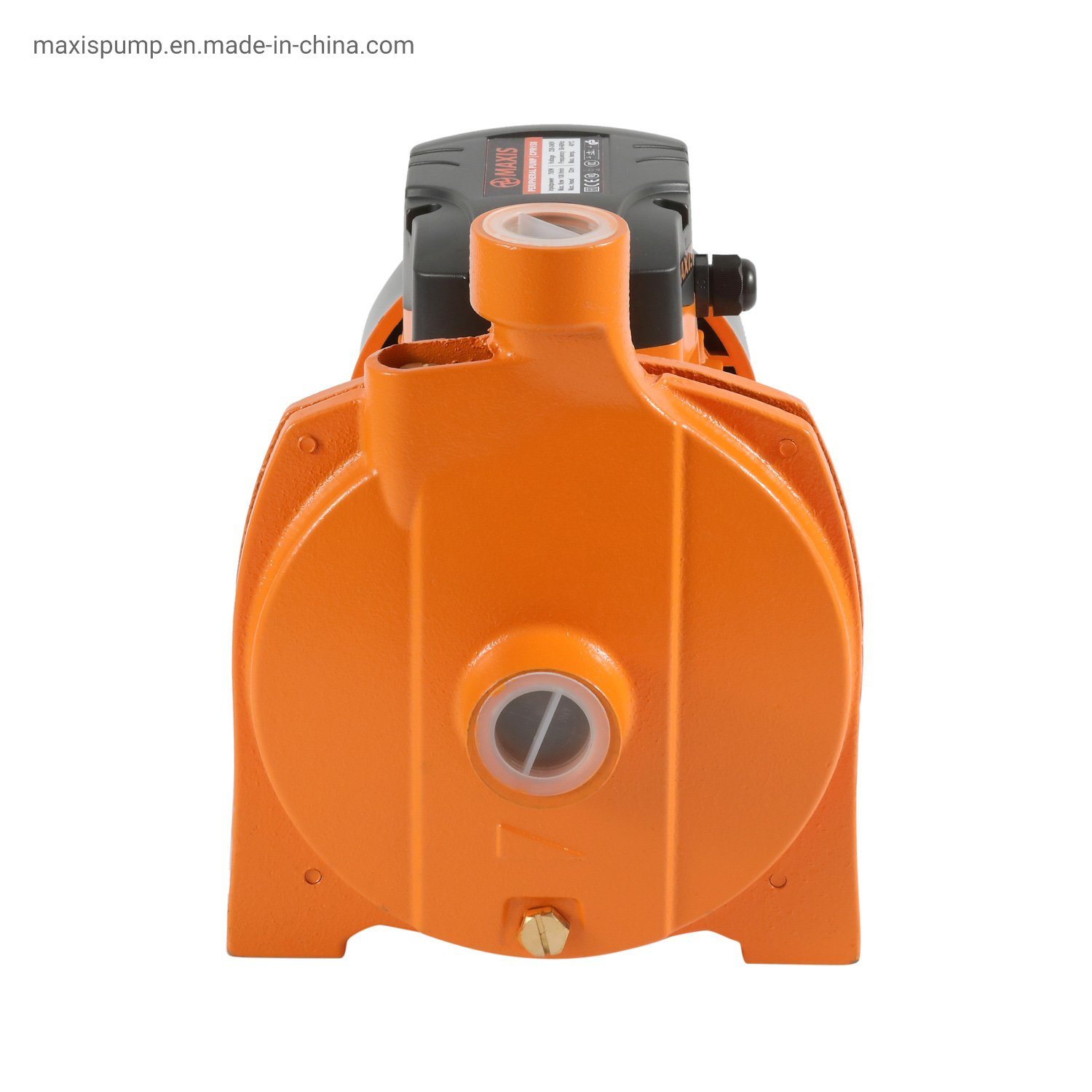

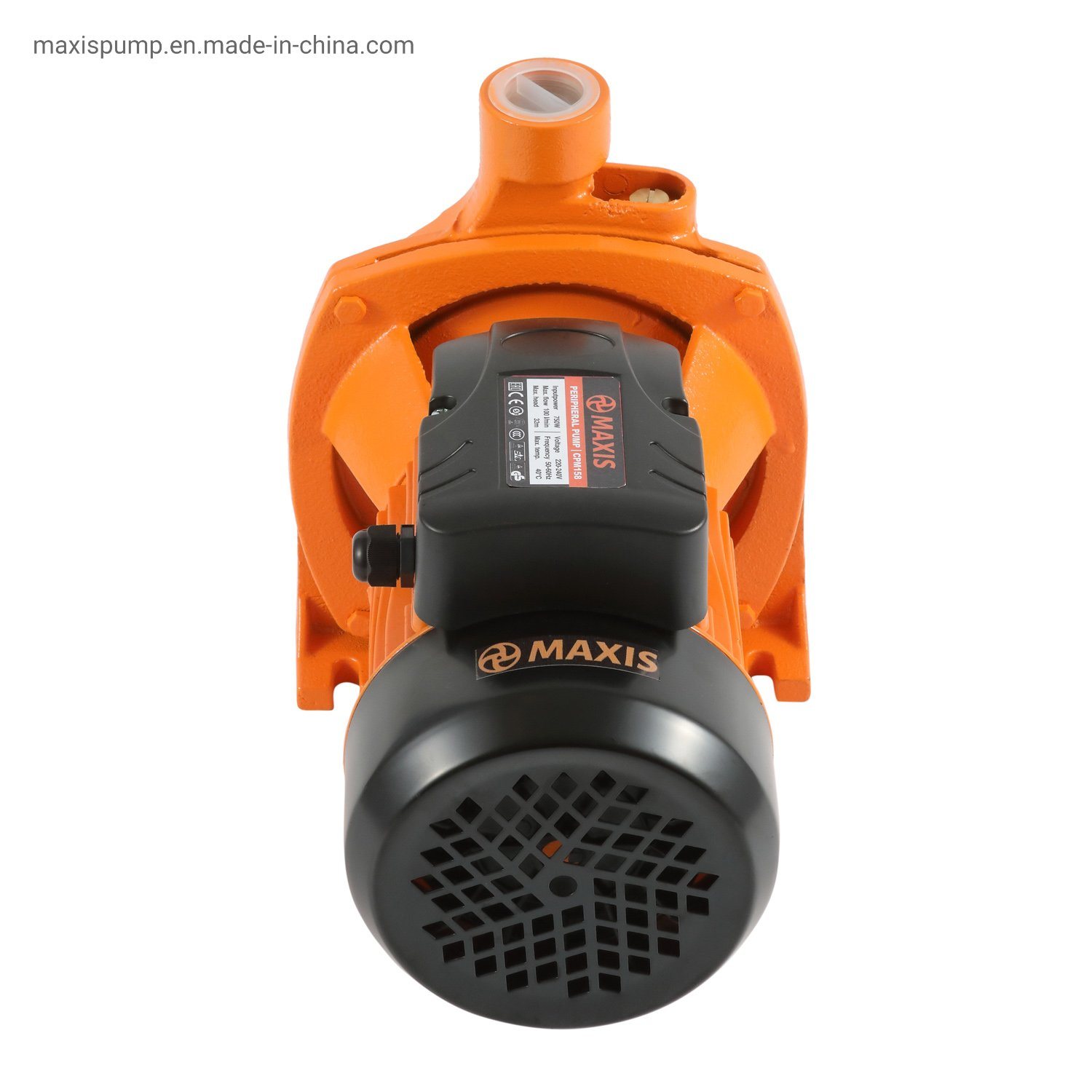

Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carton steel shaft
Max.liquid temperature: +40ºC
Max. suction:+8
High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
CPM 130 370W 1/2 4800 L/H 80 L/Min 18 M 8 M 1'' x 1'' IP44
CPM 146 550W 3/4 5800 L/H 96 L/Min 26 M 8 M 1'' x 1'' IP44
CPM 158 750W 1 6000 L/H 100 L/Min 32 M 8 M 1'' x 1'' IP44
CPM 180 1100W 1.5 6500 L/H 108 L/Min 32 M 8 M 1'' x 1'' IP44
CPM 200 1500W 2 6600 L/H 110 L/Min 38 M 8 M 1'' x 1'' IP44

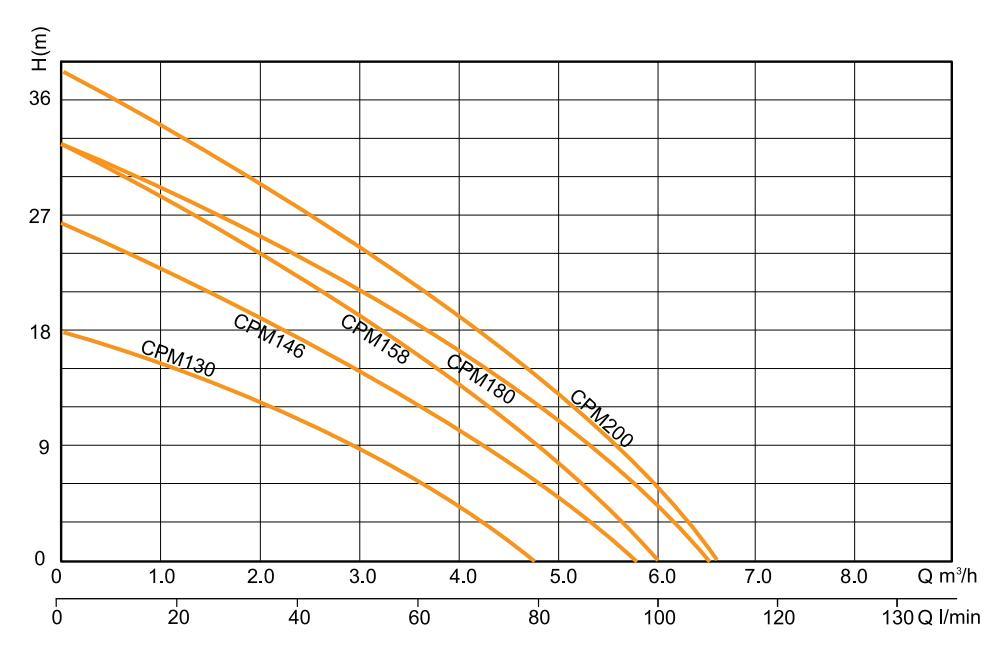

Peformance Curve
High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting
Company view
High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting High Efficiency 2/3 HP Powerful Casting Iron Cpm Centrifugal Water Pump for Water Transfer and Lifting
