| Quantity: | |
|---|---|
Free Spare Parts
1 Year
<10m
100-200 L/min
Motor
Stainless Steel
MWP750
Single-stage Pump
Liquid Pumps
Electric
Electric Pump
Submersible Pump
Submersible Pump, Sewage Pump
Domestic
Dirty Water
No Leakage Pump
Centrifugal Pump
CE GS RoHS PAHs
Carton
5.0kg
MAXIS
China
8413709990
500000PCS/Year
US$ 24/Piece 1 Piece(Min.Order) | Request Sample
Application
1. Can be used to transfer clean or slightly dirty water or other liquids similar to water in physical and chemical properties

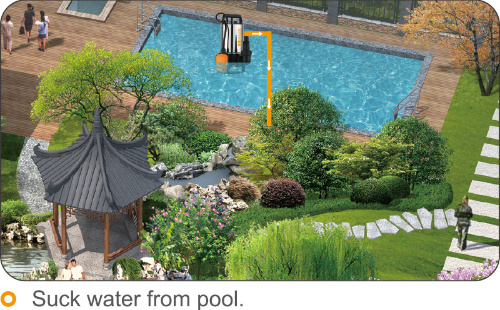

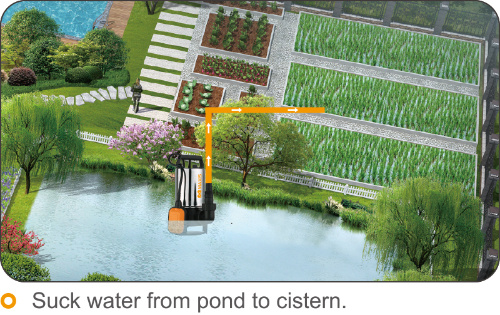

2. Suitable to be immersed in water for lifting water from the well or the pool, and draining water from the basement.

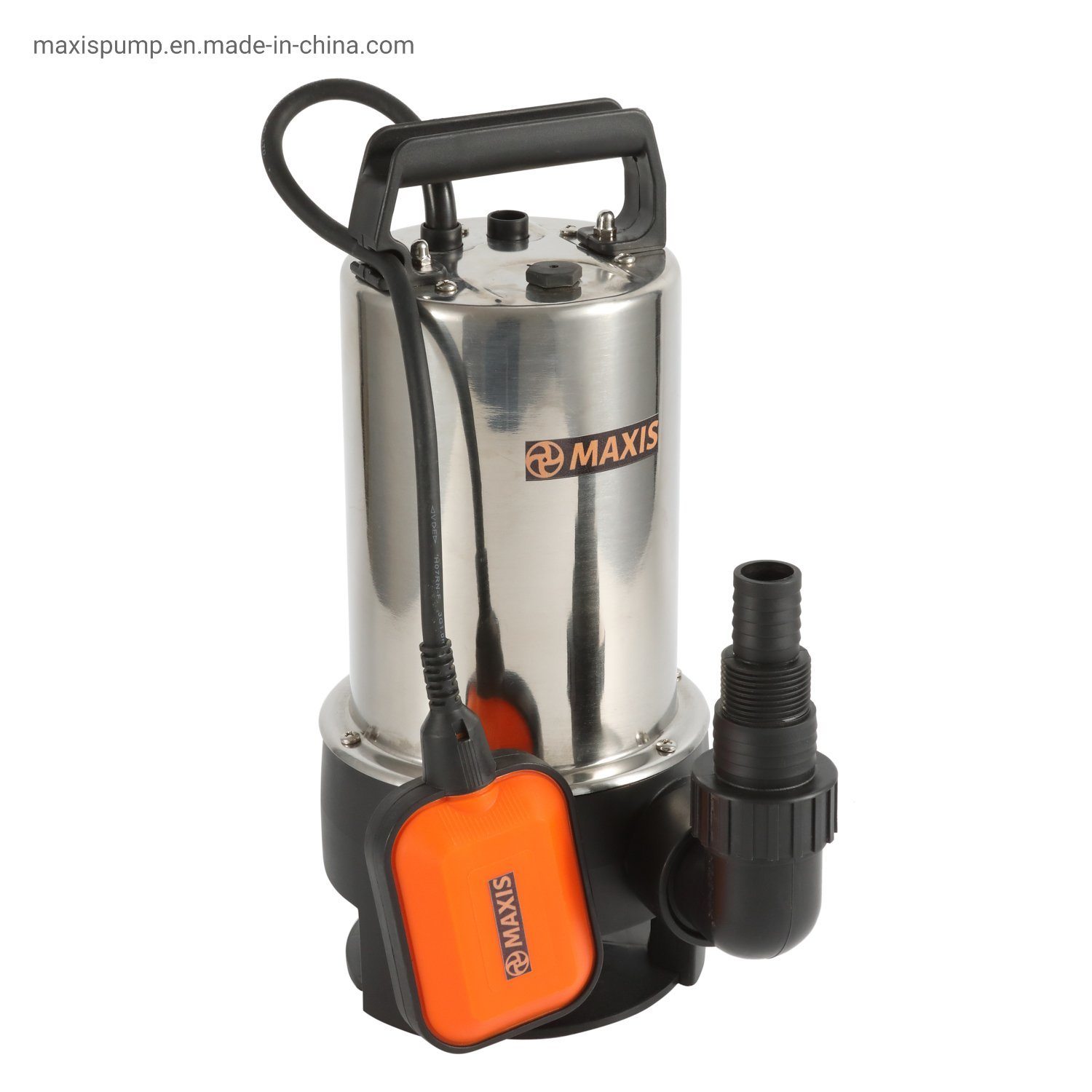

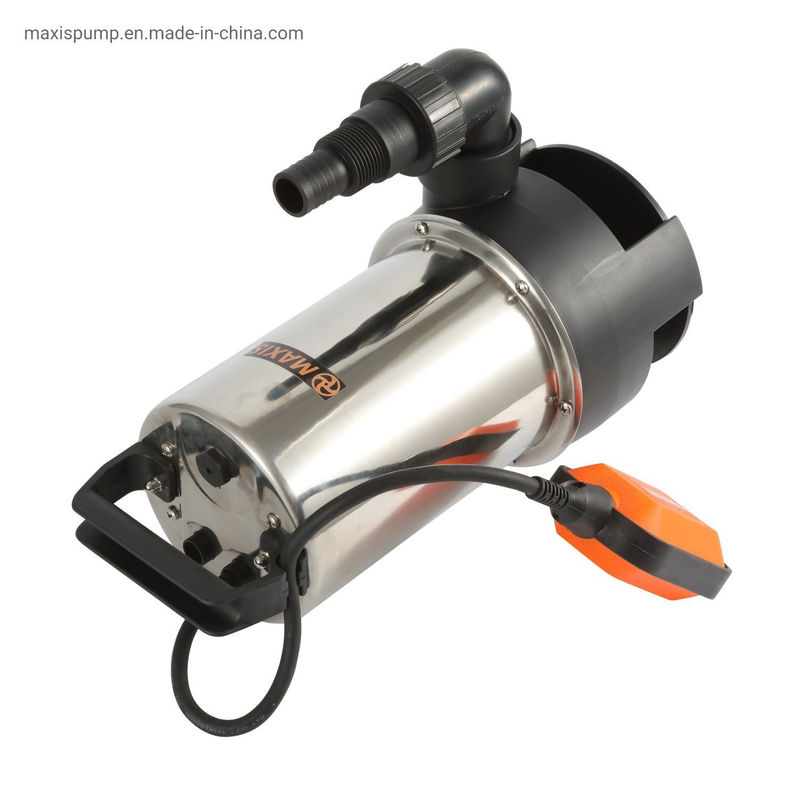

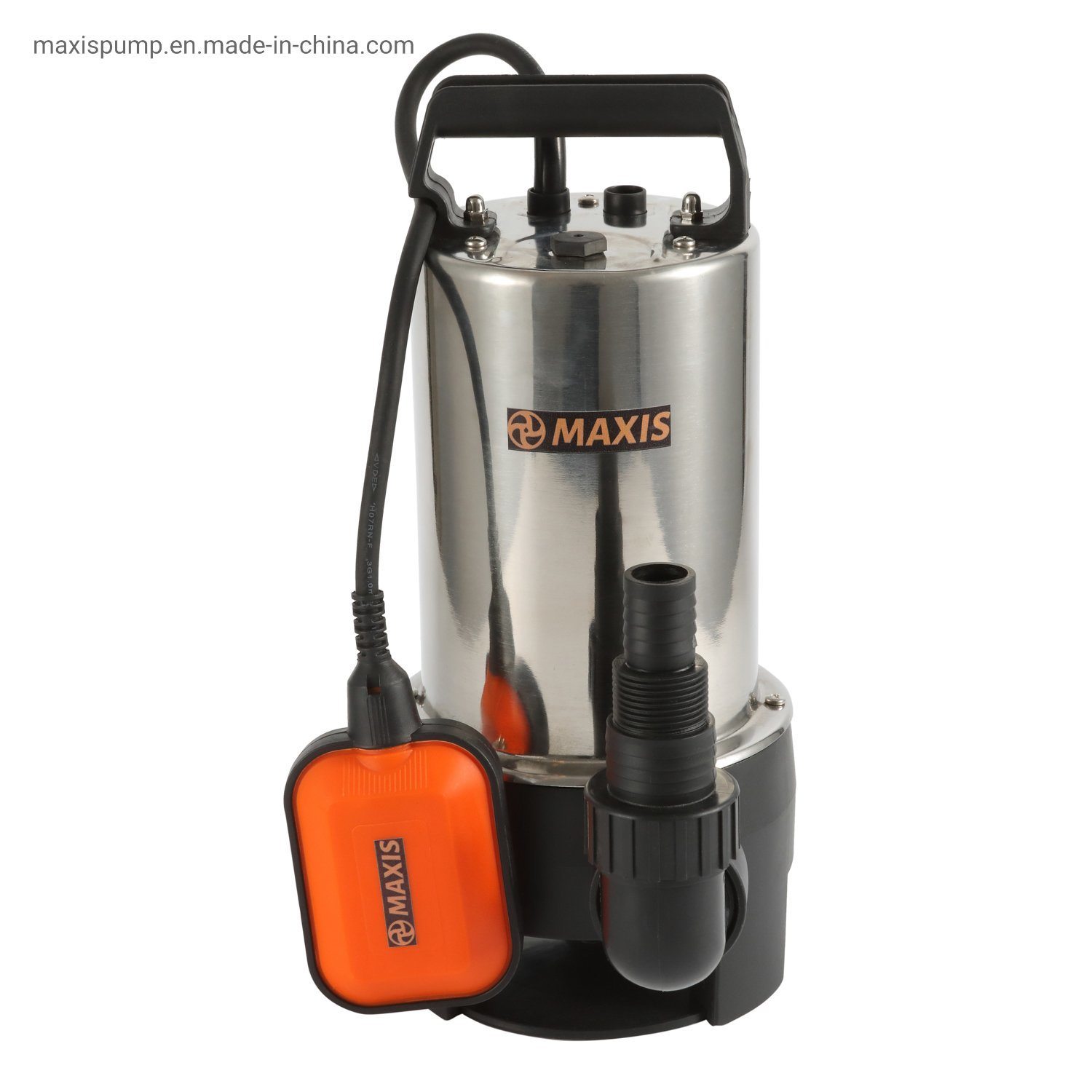

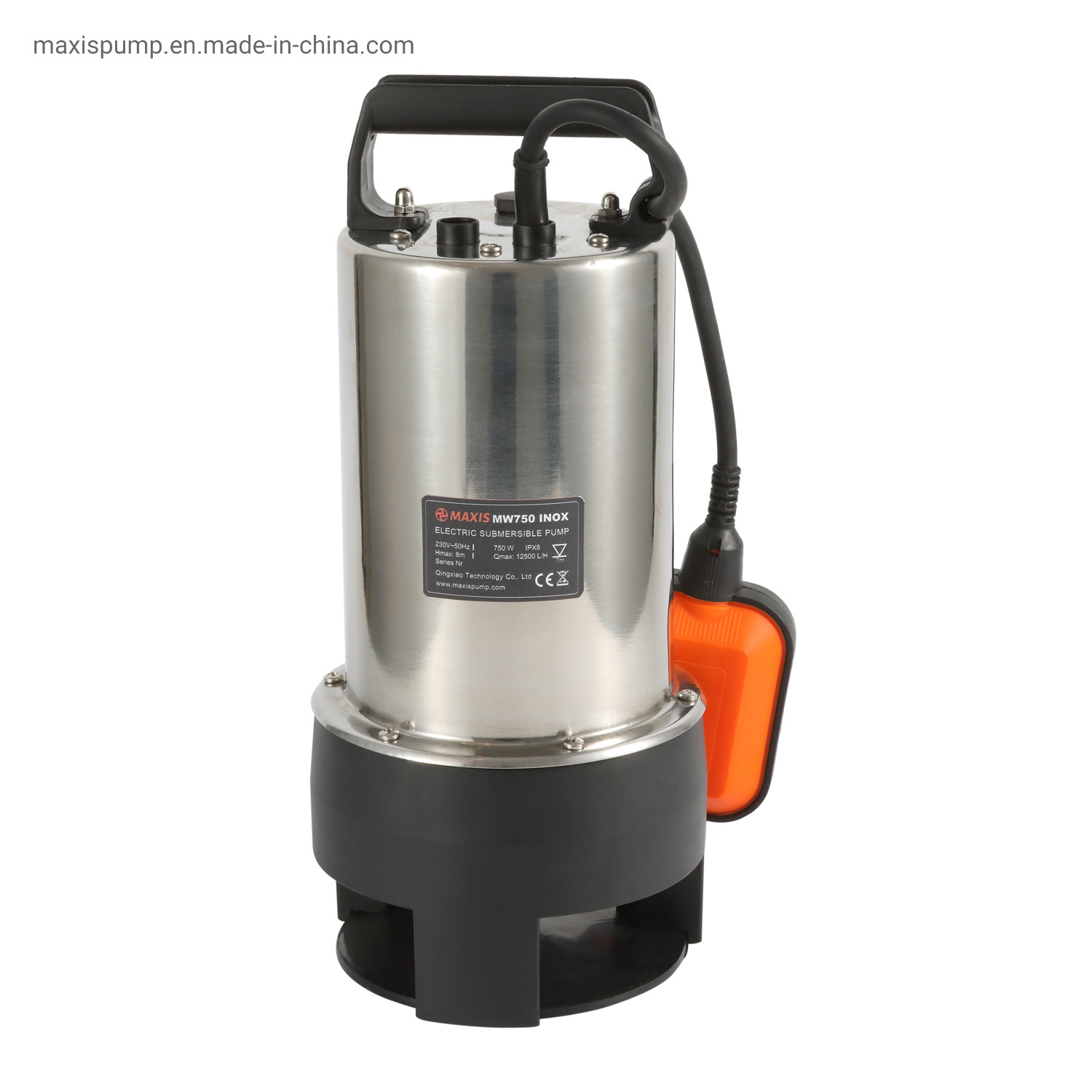

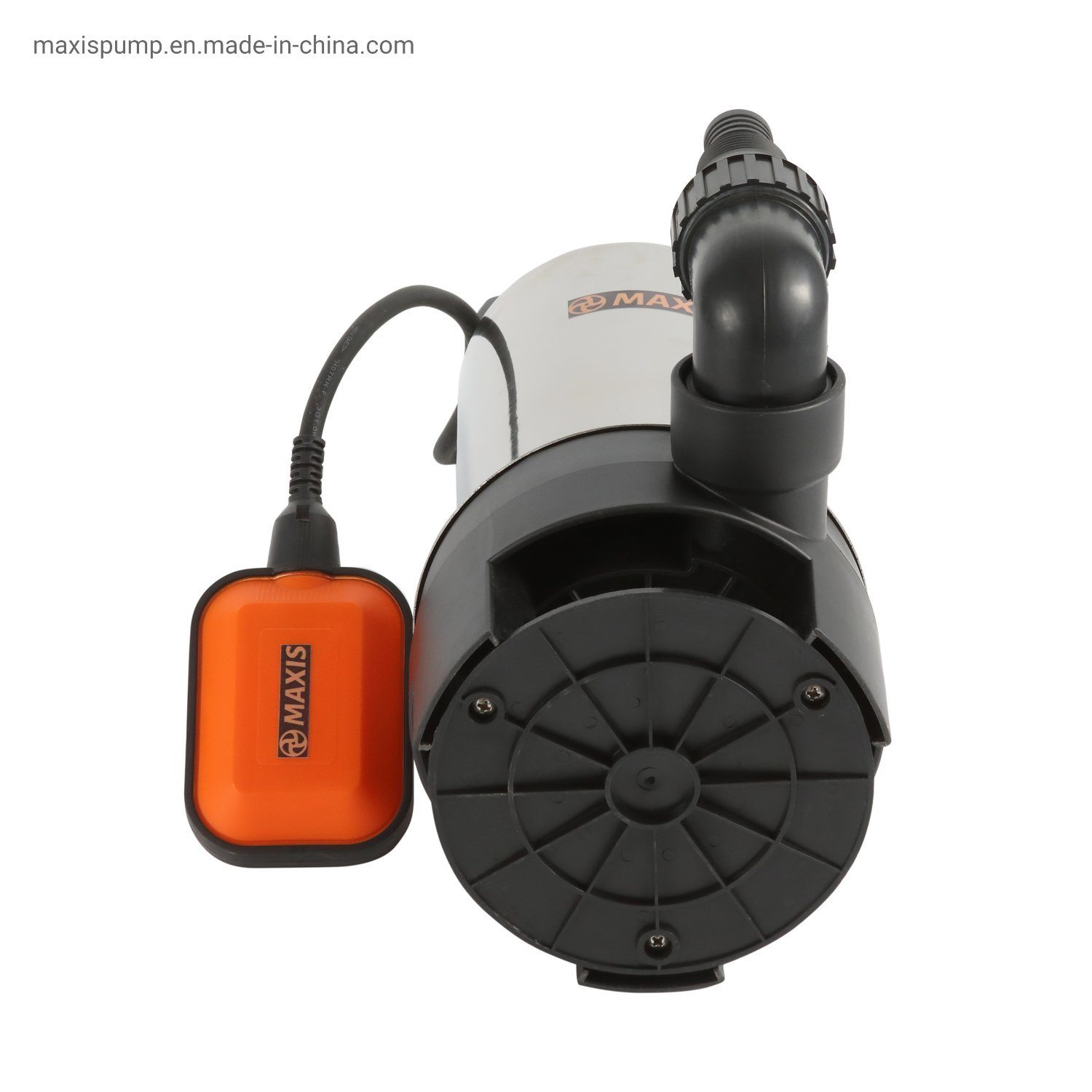

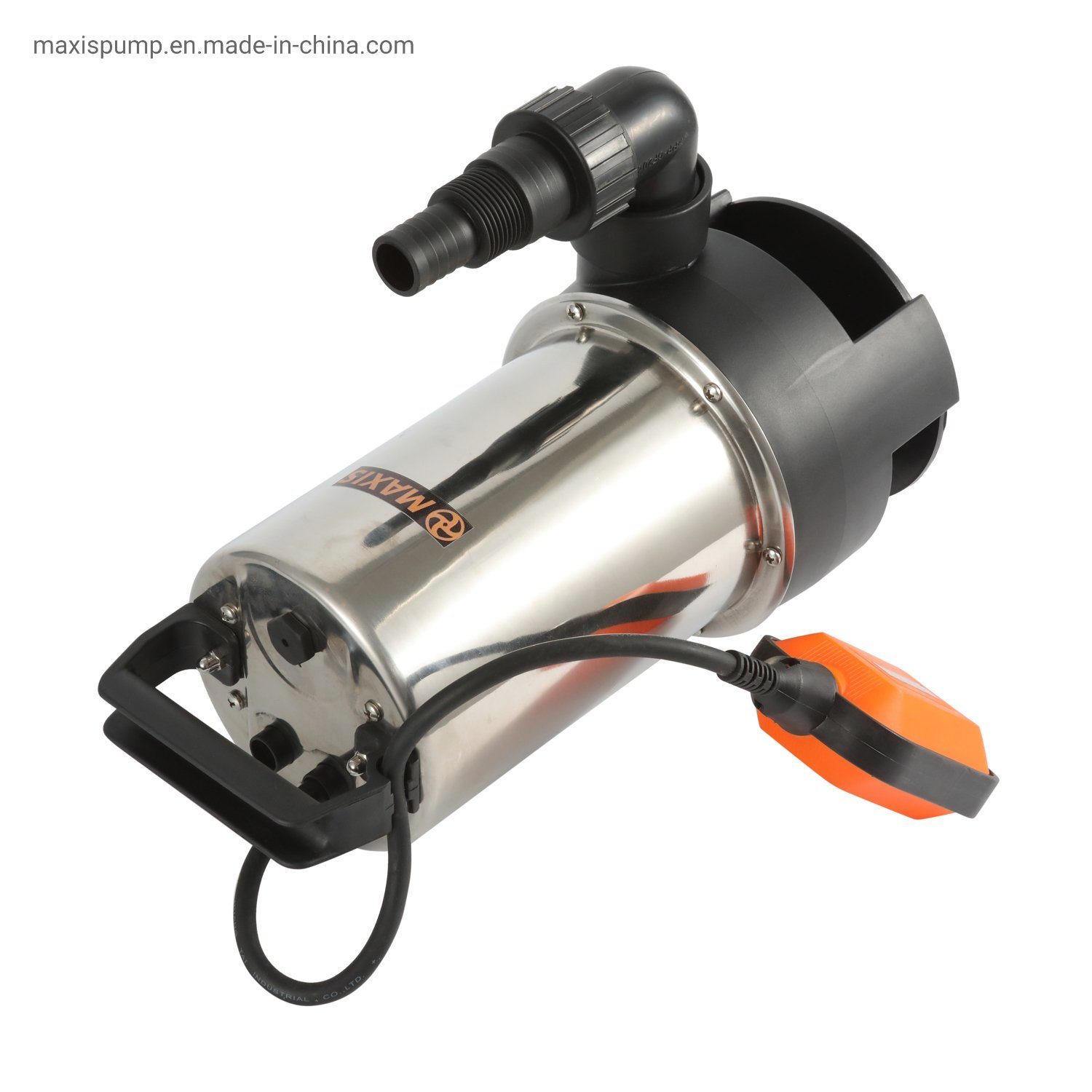

Pump
Stainelss steel pump body
Plastic impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbo Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m

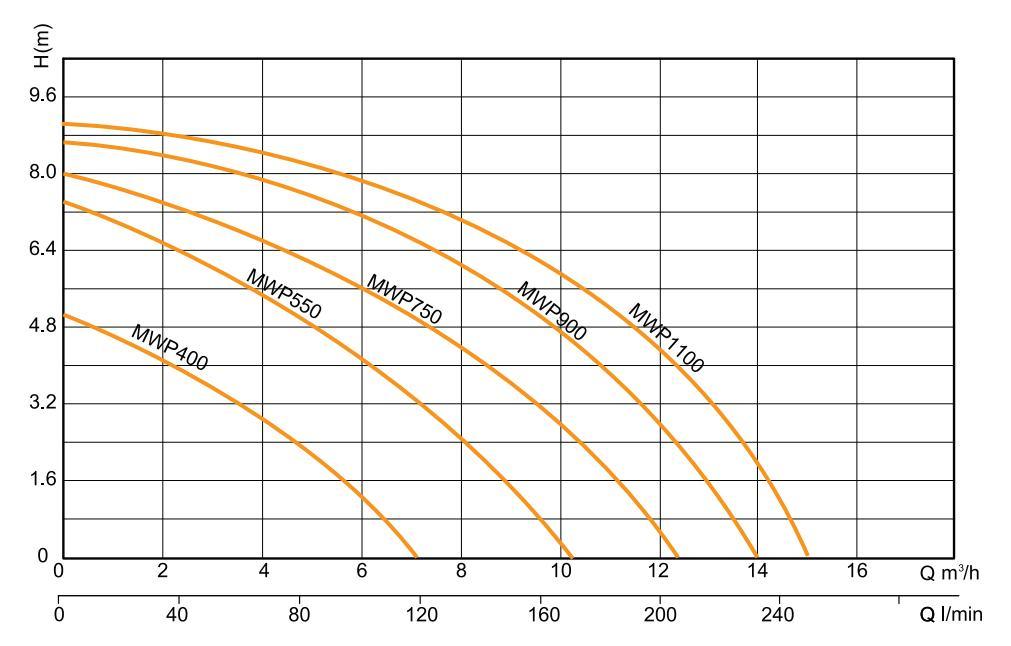

Techenical Data | Model | Power | HP | Max Flow | Max Head | Max Depth | Outlet | Max Grain size | Protection rating | |
| MWP400 | 400W | 1/2 | 7500 L/H | 125 L/Min | 5 M | 7 M | 1-1/2'' | 35MM | IPX8 |
| MWP550 | 550W | 3/4 | 10500 L/H | 175 L/Min | 7 M | 7 M | 1-1/2'' | 35MM | IPX8 |
| MWP750 | 750W | 1 | 12500 L/H | 208 L/Min | 8 M | 7 M | 1-1/2'' | 35MM | IPX8 |
| MWP900 | 900W | 1.2 | 14000 L/H | 233 L/Min | 8.5 M | 7 M | 1-1/2'' | 35MM | IPX8 |
| MWP1100 | 1100W | 1.5 | 15000 L/H | 250 L/Min | 9 M | 7 M | 1-1/2'' | 35MM | IPX8 |
Application
1. Can be used to transfer clean or slightly dirty water or other liquids similar to water in physical and chemical properties
2. Suitable to be immersed in water for lifting water from the well or the pool, and draining water from the basement.
Pump
Stainelss steel pump body
Plastic impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbo Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
Techenical Data | Model | Power | HP | Max Flow | Max Head | Max Depth | Outlet | Max Grain size | Protection rating | |
| MWP400 | 400W | 1/2 | 7500 L/H | 125 L/Min | 5 M | 7 M | 1-1/2'' | 35MM | IPX8 |
| MWP550 | 550W | 3/4 | 10500 L/H | 175 L/Min | 7 M | 7 M | 1-1/2'' | 35MM | IPX8 |
| MWP750 | 750W | 1 | 12500 L/H | 208 L/Min | 8 M | 7 M | 1-1/2'' | 35MM | IPX8 |
| MWP900 | 900W | 1.2 | 14000 L/H | 233 L/Min | 8.5 M | 7 M | 1-1/2'' | 35MM | IPX8 |
| MWP1100 | 1100W | 1.5 | 15000 L/H | 250 L/Min | 9 M | 7 M | 1-1/2'' | 35MM | IPX8 |
