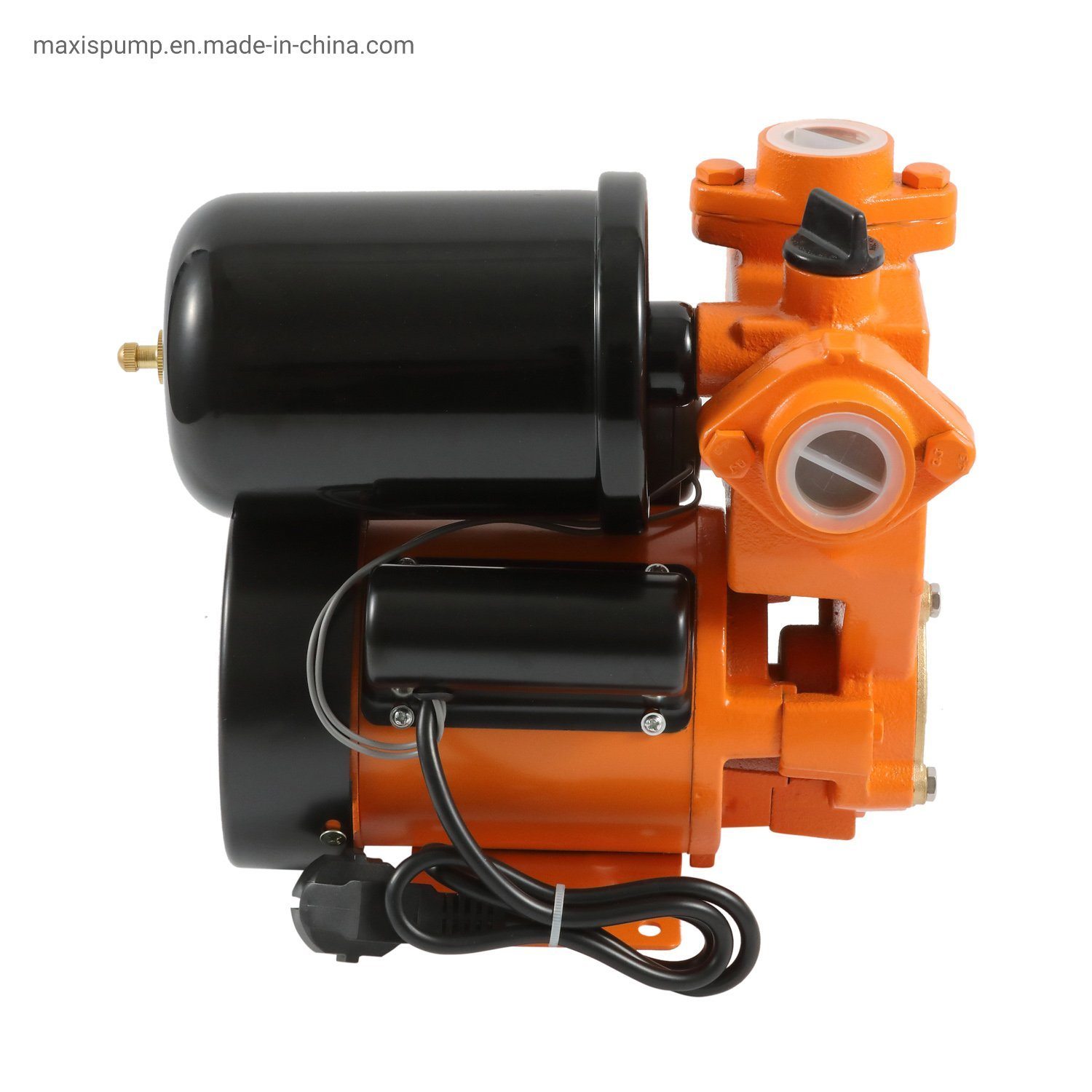

Electric Series Vortex Surface Water Booster Irrigation Pump

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
10-30m
Max.Capacity:
<50 L/min
Driving Type:
Motor
Material:
Cast Iron
Model NO.:
Auto126
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Casting Iron Pump
Application:
Transfer Water Pump
Industry:
Farm Irrigation
Media:
Sewage Pumps
Performance:
Centrifugal Pump
Theory:
Vortex Pump
Certificate:
CE GS RoHS
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Product Description

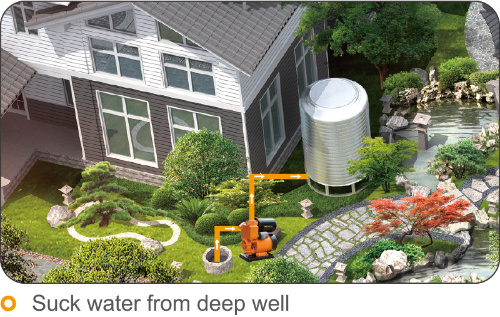

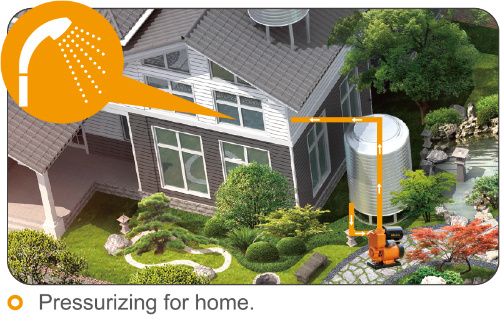

Application

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
2. Suitable for small living water supply ,automatic water sprinkler system small air conditioner system or supporting equipment etc.

Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
Electric Series Vortex Surface Water Booster Irrigation Pump

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
Auto126	180W	1/4	1600 L/H	26 L/Min	22 M	8 M	1'' x 1''	IPX4
Auto250	250W	1/3	1980 L/H	33 L/Min	25 M	8 M	1'' x 1''	IPX4
Auto370	370W	1/2	1880 L/H	31 L/Min	27 M	8 M	1'' x 1''	IPX4

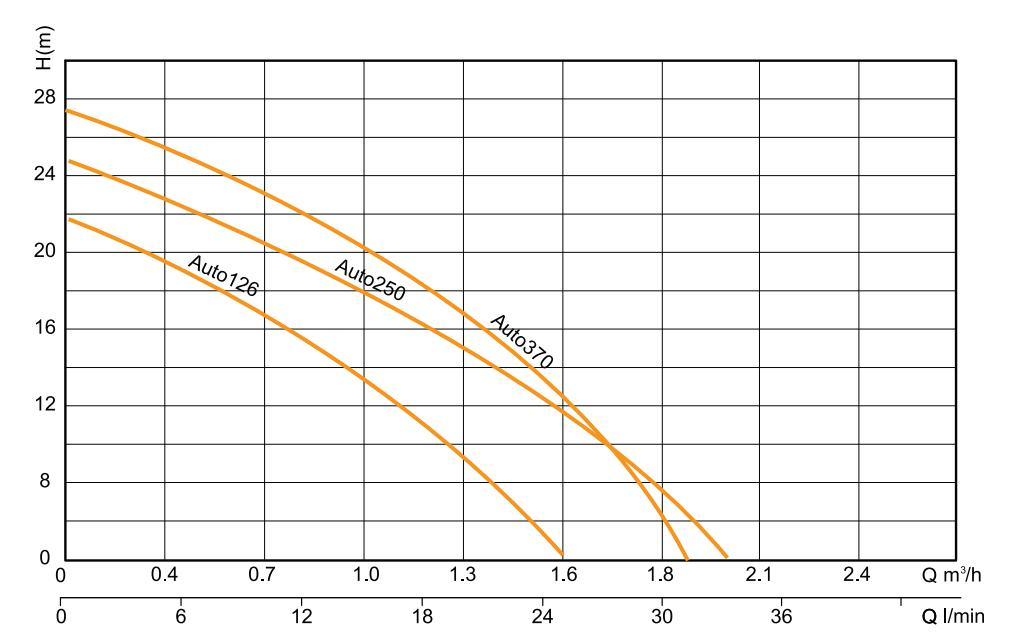

Performance Curve

Company view
Electric Series Vortex Surface Water Booster Irrigation Pump
