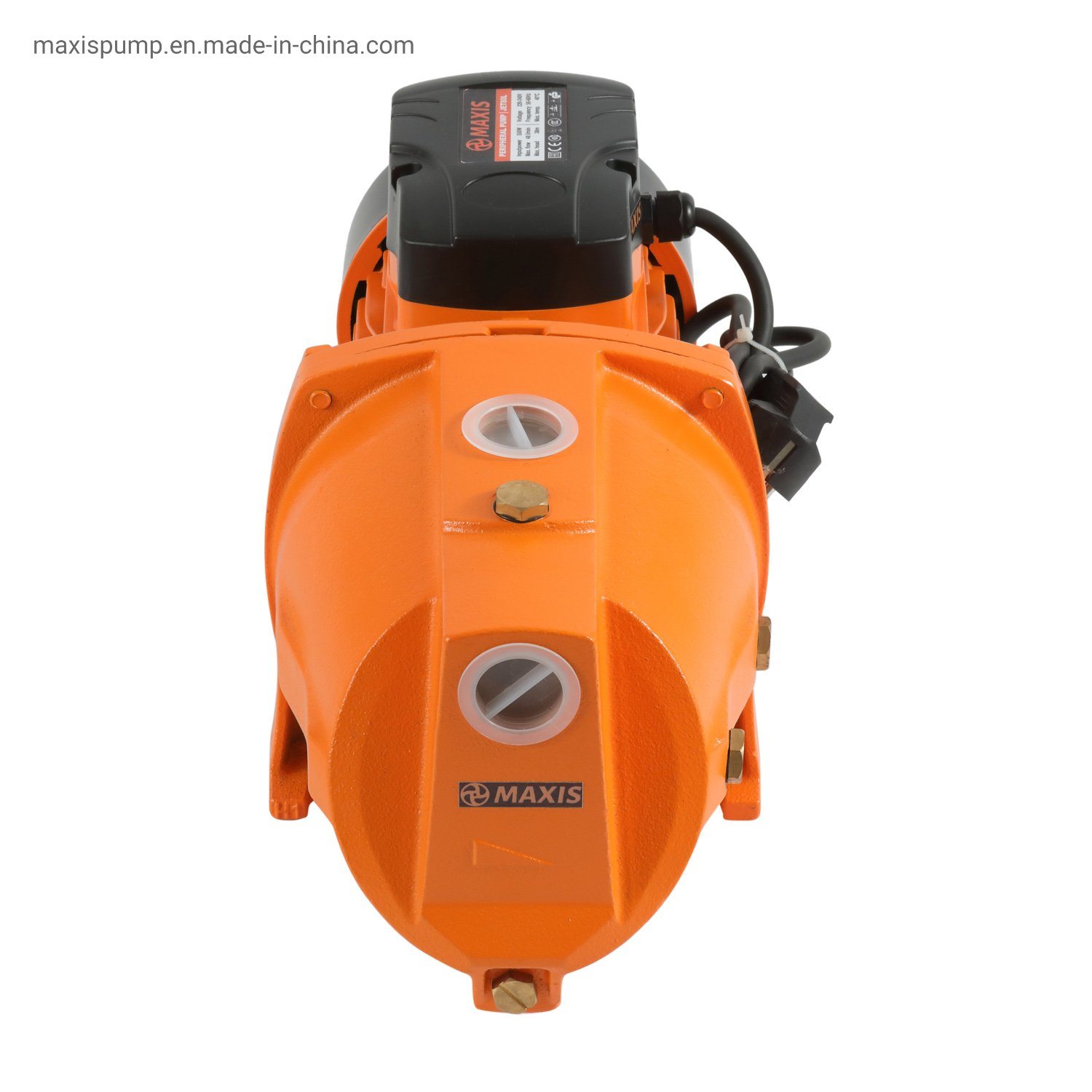

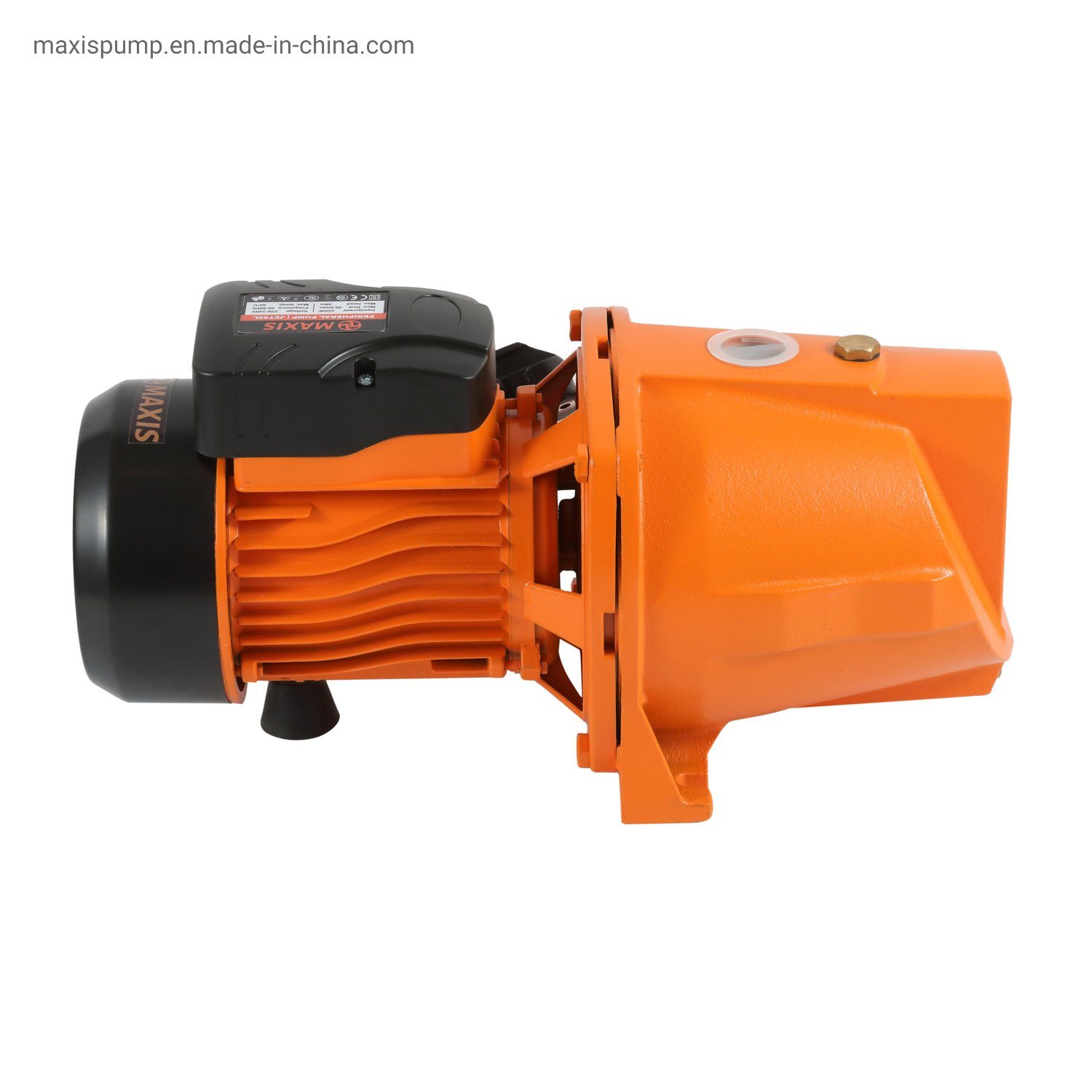

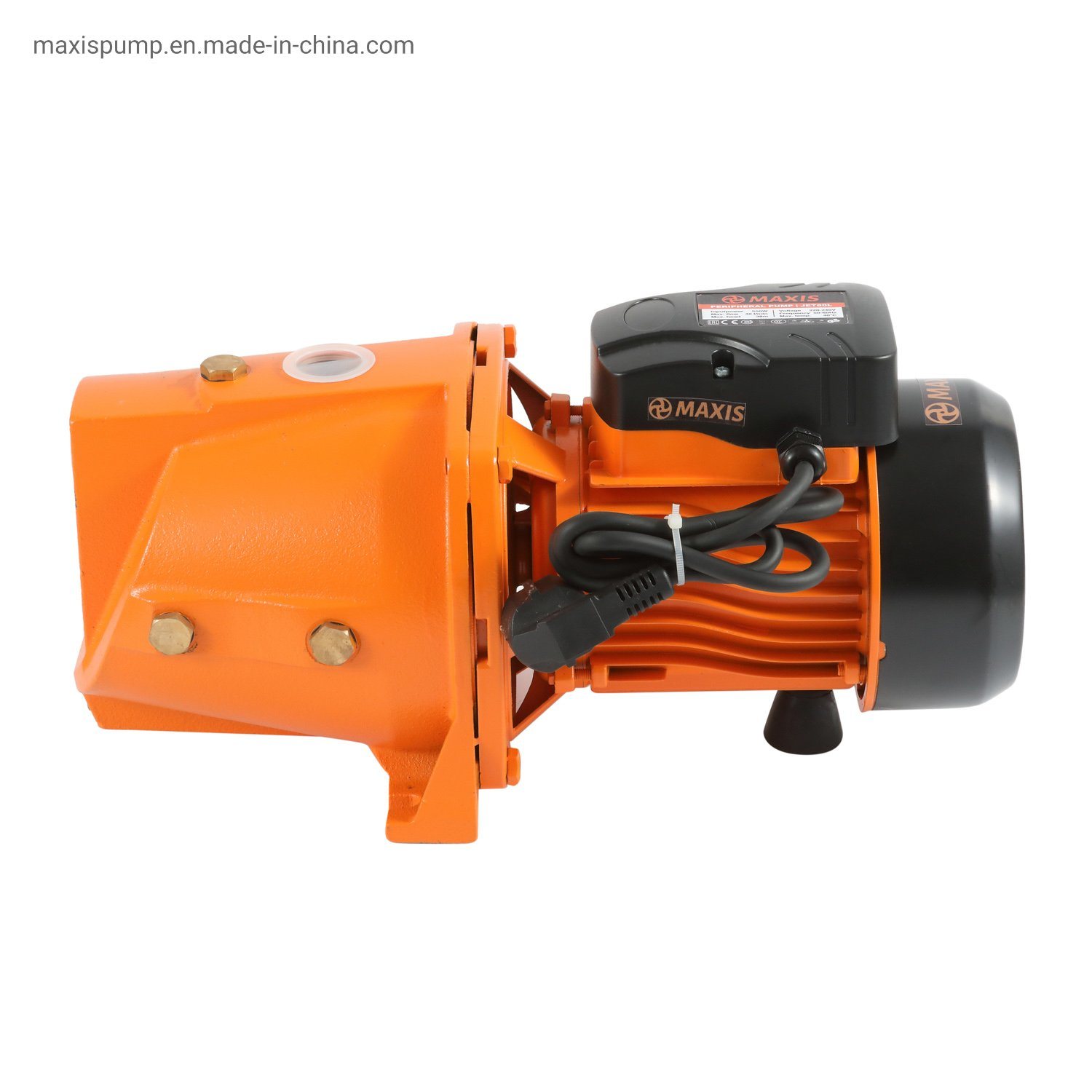

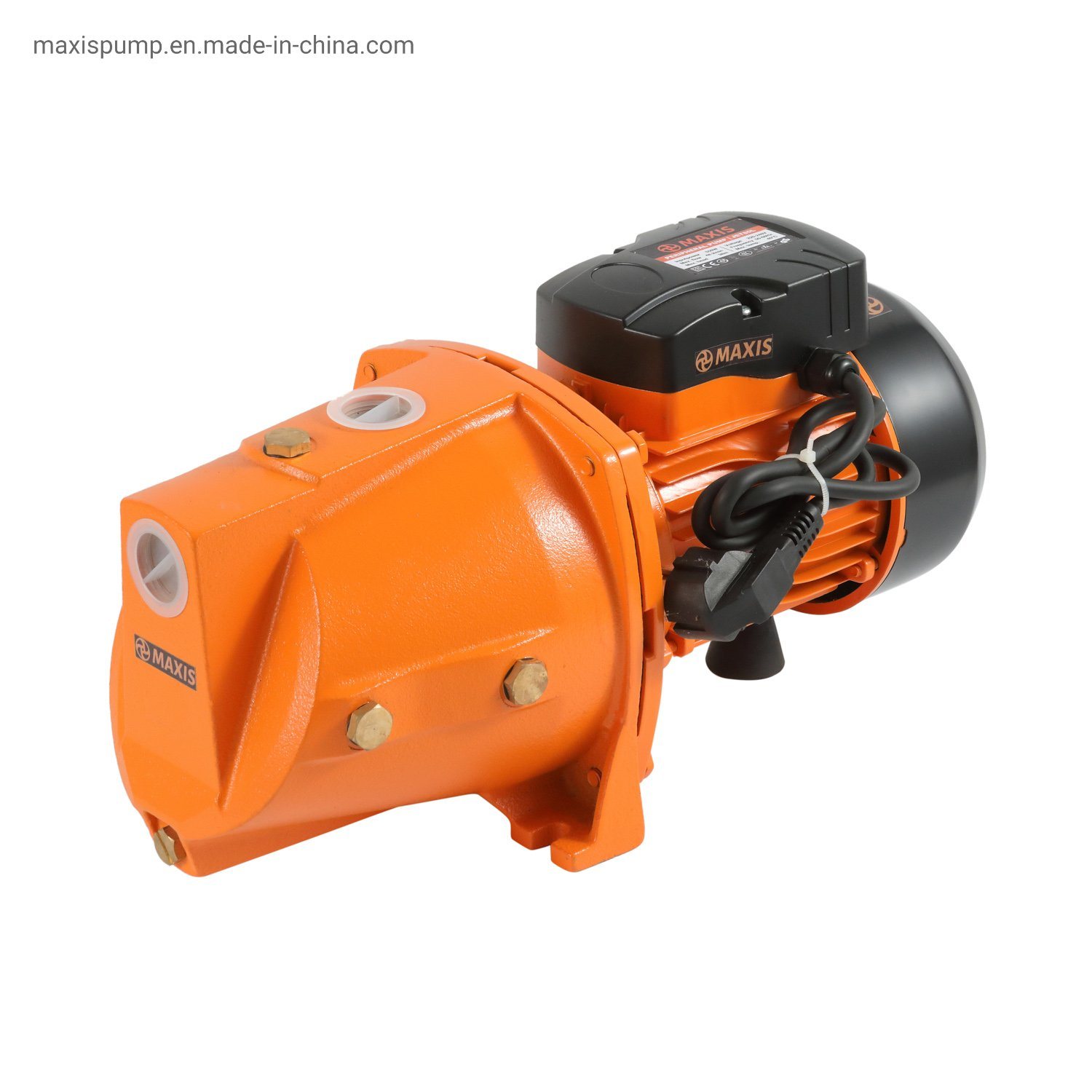

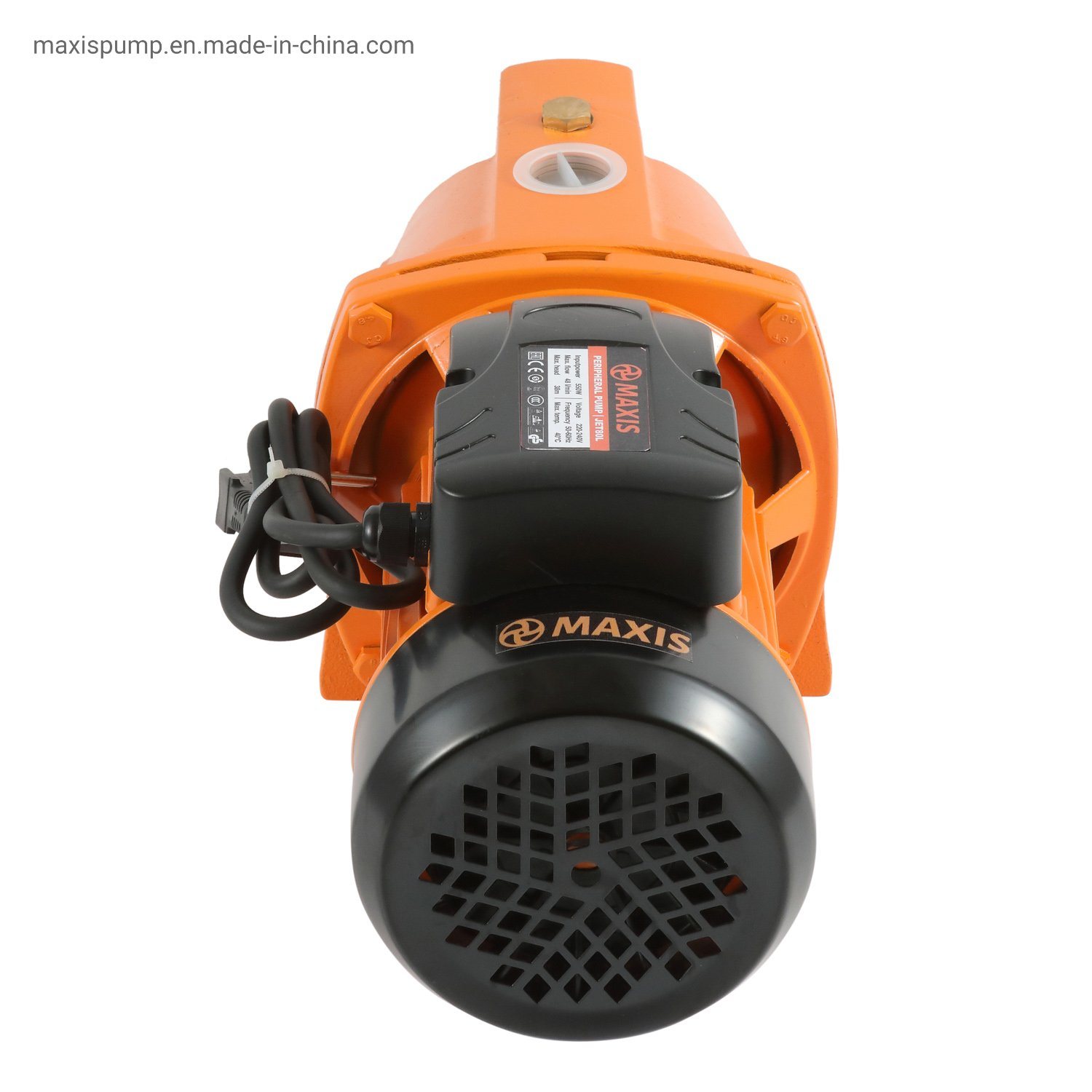

Electric Jet Pumps for Agriculture Irrigation

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
<50 L/min
Driving Type:
Motor
Material:
Cast Iron
Model NO.:
JET60L
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Jet Pump
Application:
Casting Iron Pump
Industry:
Farm Irrigation
Media:
Clear Water Pump
Performance:
Centrifugal Pump
Theory:
Jet Pump
Certificate:
CE GS RoHS
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

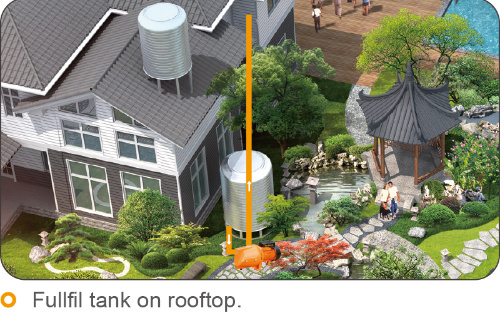

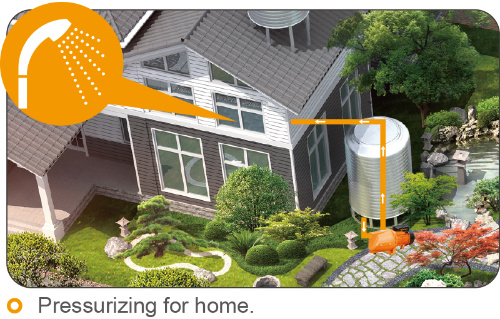

2. Suitable for water supply and drainage in garden irrigation greenhouses, fish breeding and poultry raising. The pump also can be used for domestic automatic water supply places, such as lifting water from a deep well, pressure boosting of running water ect.

Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbo Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
Electric Jet Pumps for Agriculture Irrigation

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
JET60L	370W	1/2	2400 L/H	40 L/Min	30 M	8 M	1'' x 1''	IP44
JET80L	550W	3/4	2900 L/H	48 L/Min	38 M	8 M	1'' x 1''	IP44
JET100L	750W	1	3200 L/H	53 L/Min	45 M	8 M	1'' x 1''	IP44
JET100L	1100W	1.5	4000 L/H	66 L/Min	46 M	8 M	1'' x 1''	IP44
JET100L	1500W	2	4500 L/H	75 L/Min	50 M	8 M	1'' x 1''	IP44

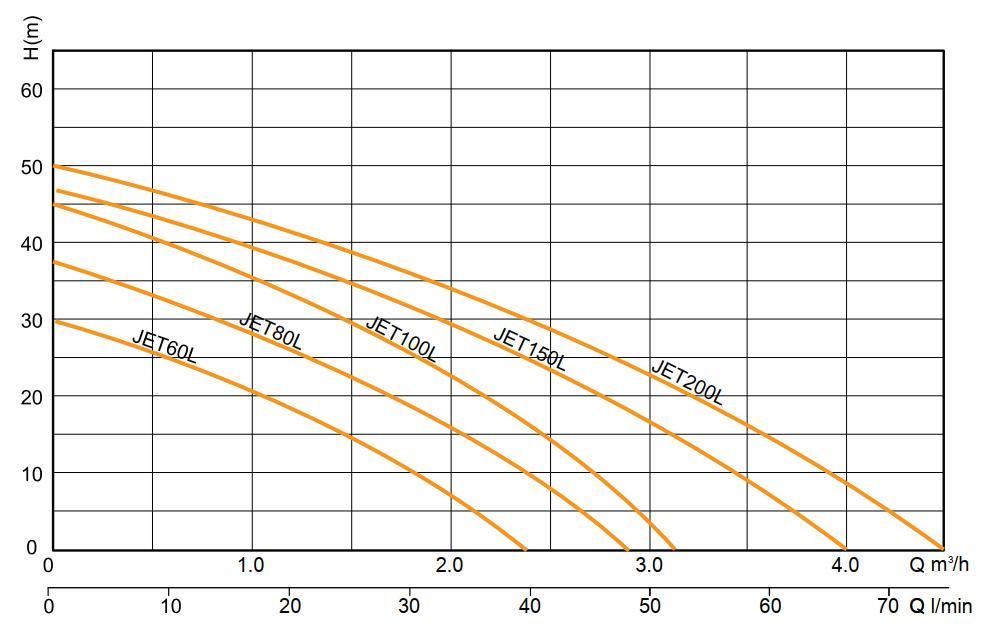

Performance Curve

Company view
Electric Jet Pumps for Agriculture Irrigation
