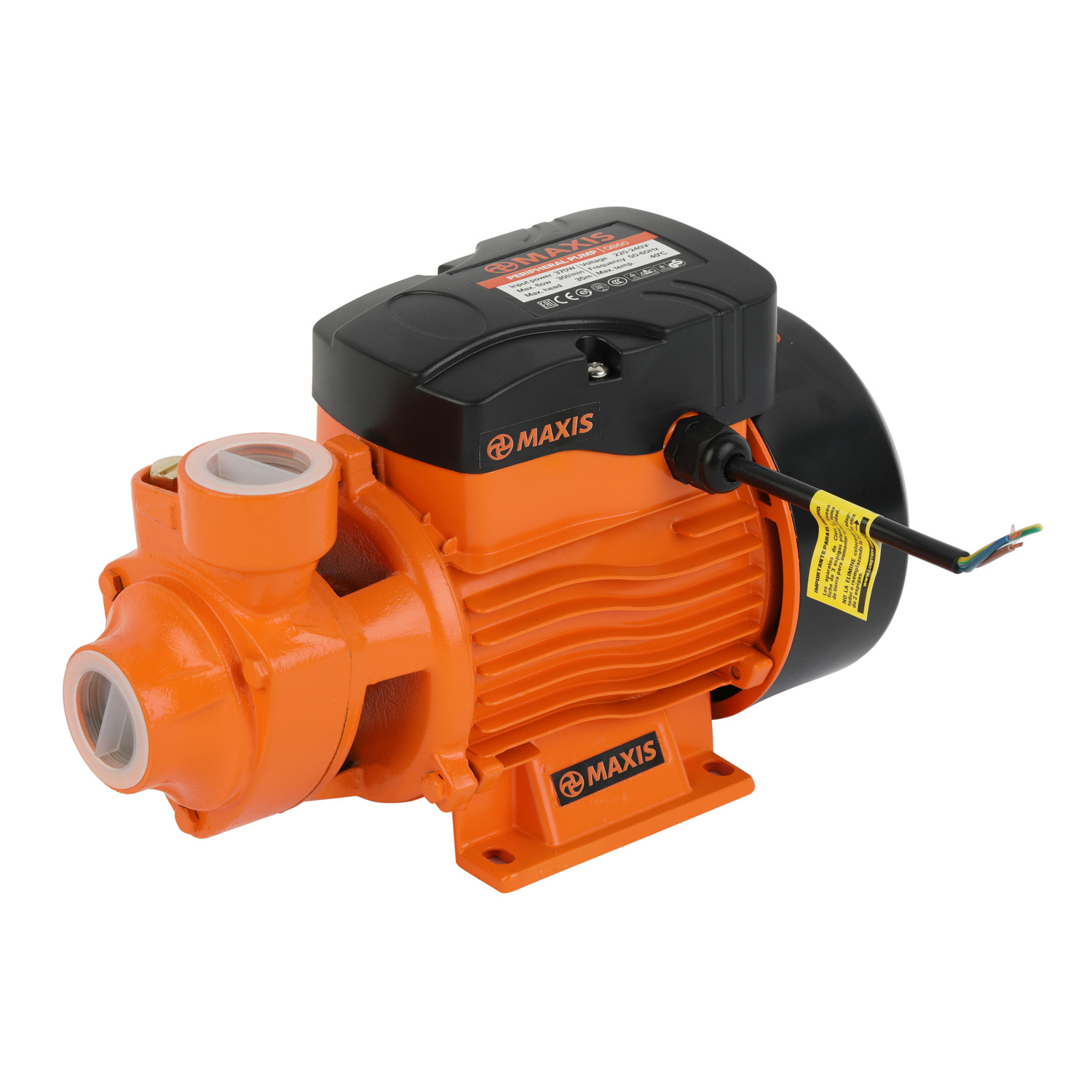

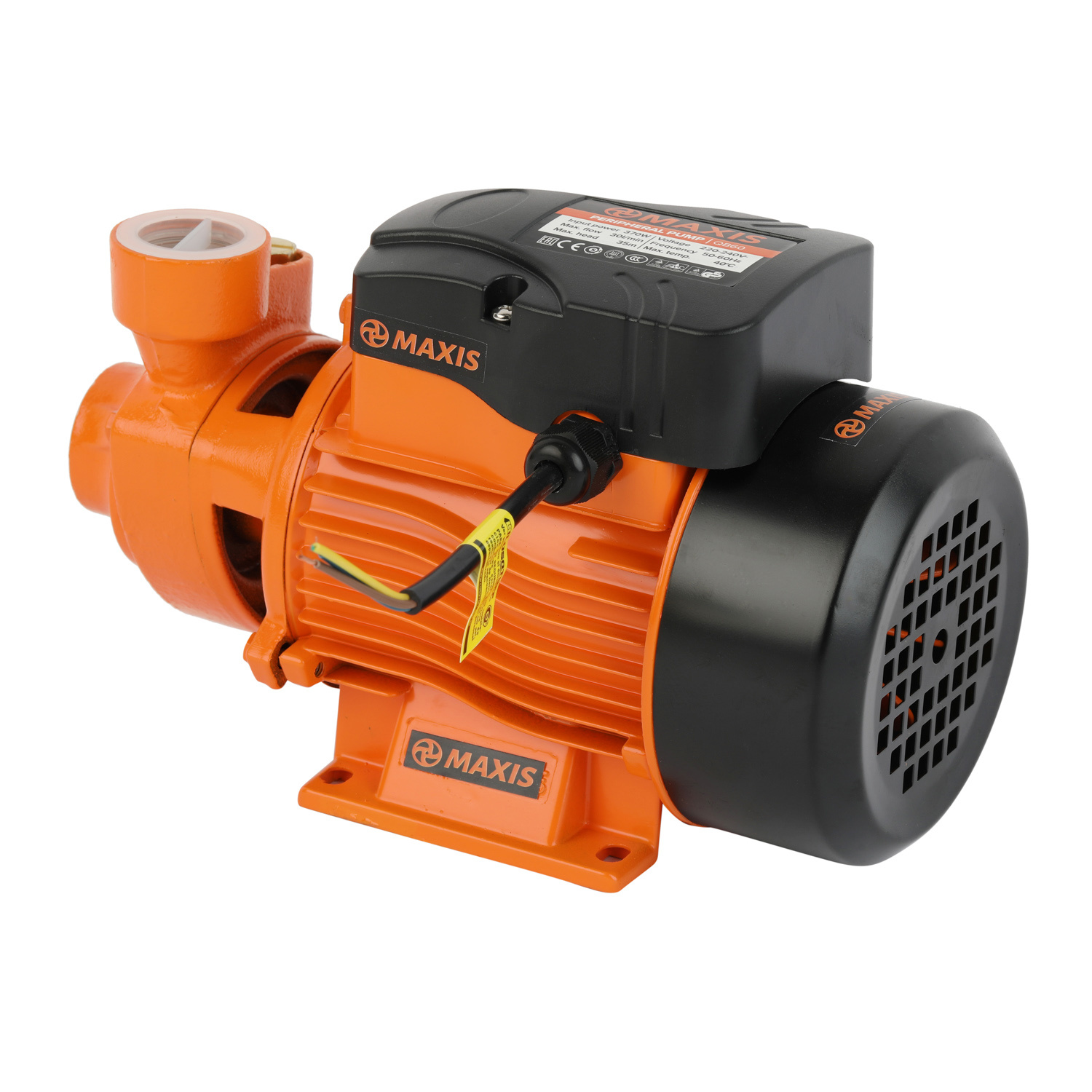

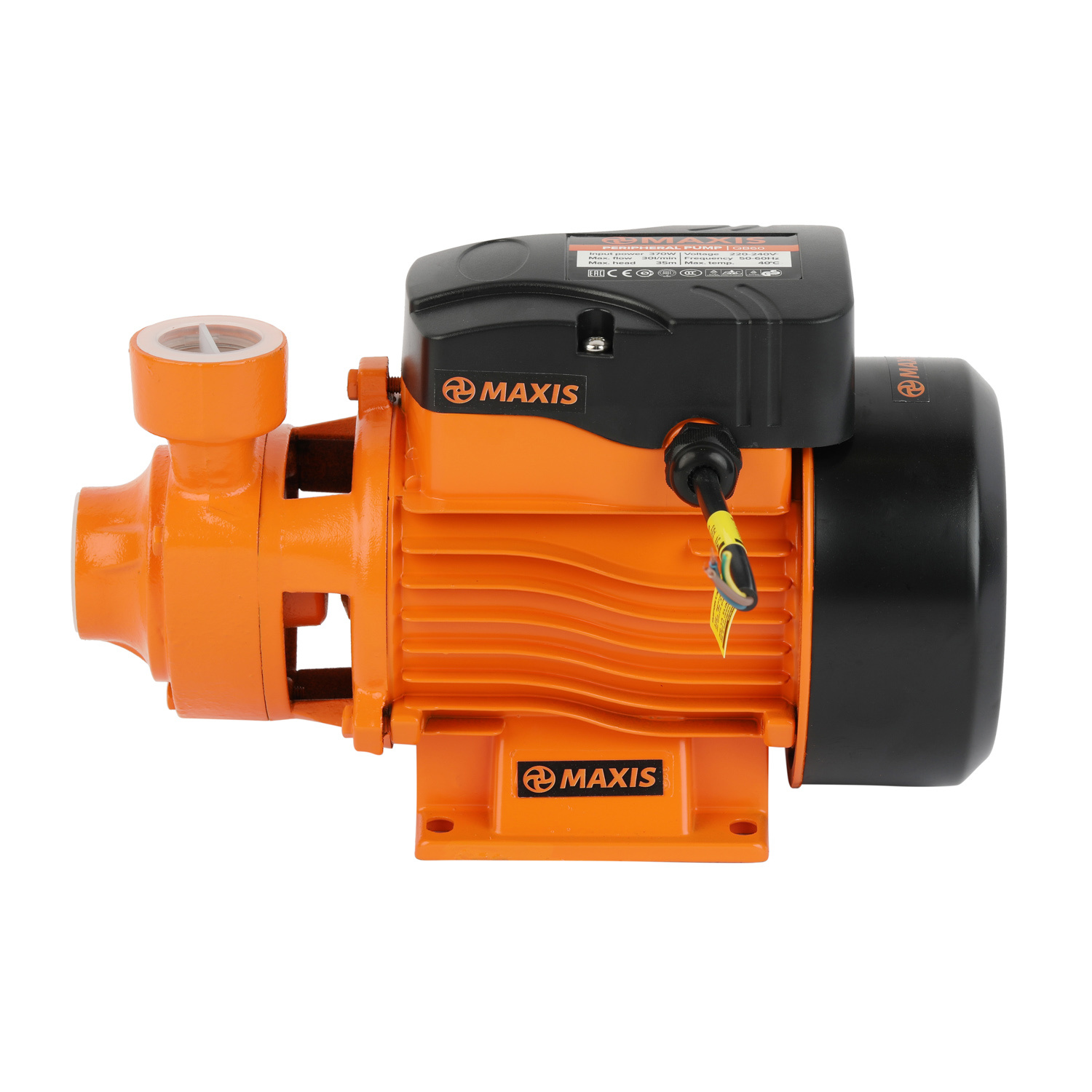

Electric Irrigation Small Peripheral Electric Water Pump Qb60 Qb70 Qb80 Agriculture

Quantity:



Inquire Add to Basket

Model NO.:
QB60
Max.Capacity:
50-100 L/min
Driving Type:
Motor
Material:
Cast Iron
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Peripheral Pump
Application:
Transfer Water Pump
Industry:
Agriculture
Media:
Clean Water
Performance:
No Leakage Pump
Theory:
Vortex Pump
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Package size per unit product:
12.00cm * 20.00cm * 15.00cm
Gross weight per unit product:
4.000kg
After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
50-80m

Product Description

Application

Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

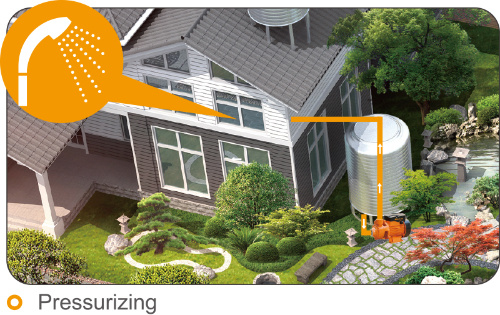

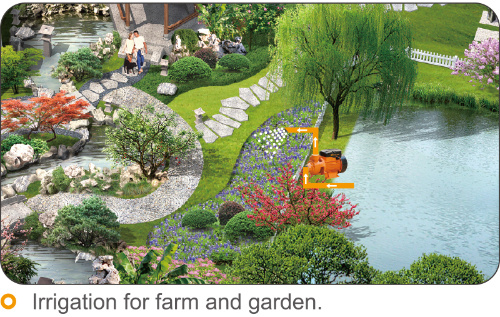

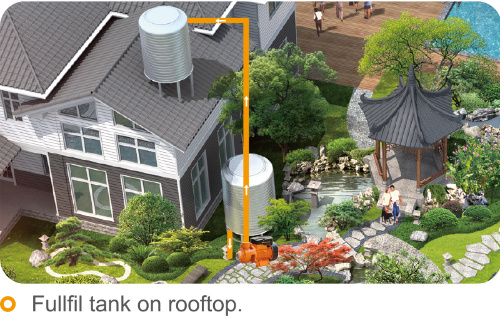

Suitable for lifting water from the well, sprinkling irrigation in garden pressure boosting of running water, and supporting equipment etc

Pump

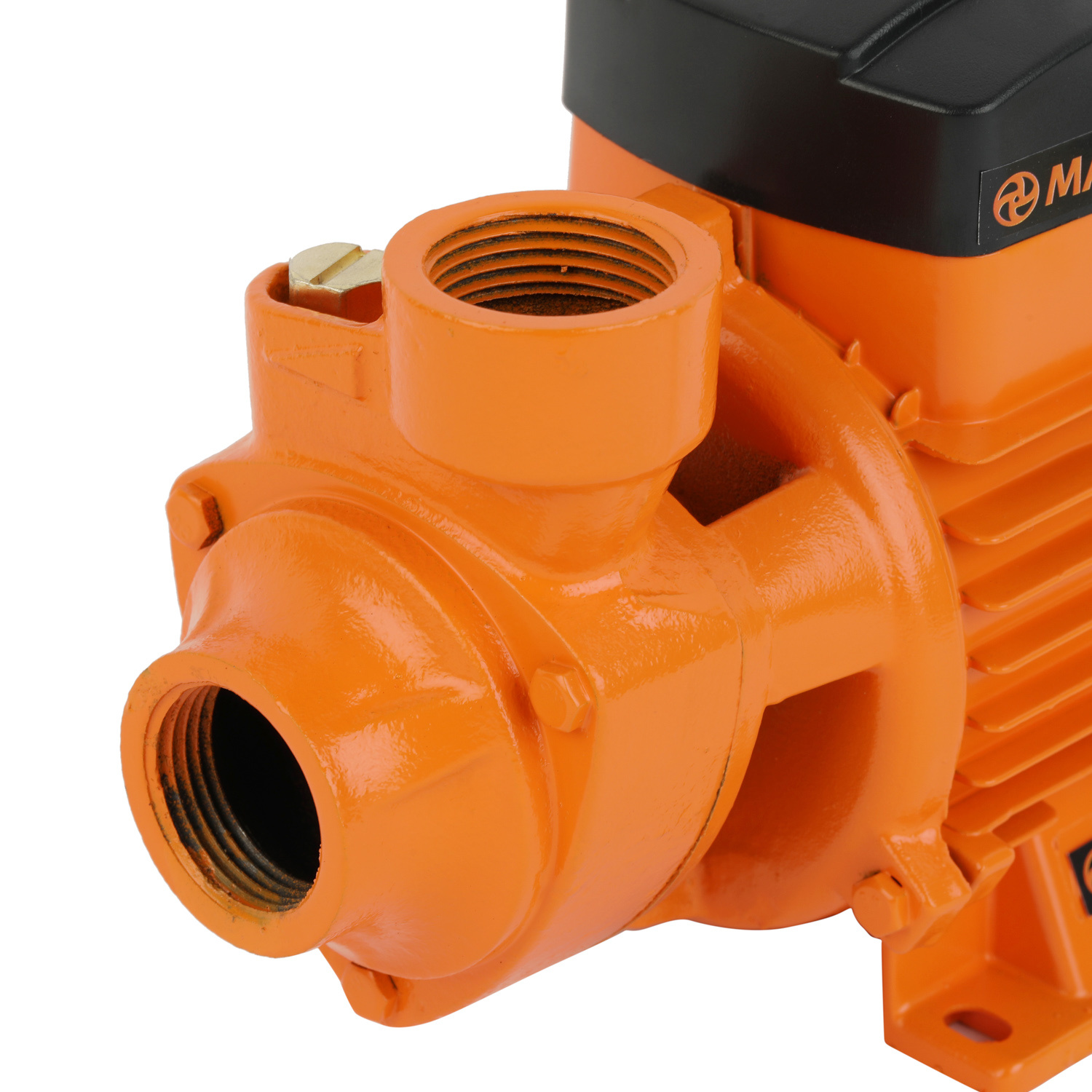

Special anti-rust treatment for cast iron pump body and support
Anti-block system for impeller
Bass impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carbon steel shaft both available
Max.liquid temperature: +40ºC
Max. suction:+8m
Electric Irrigation Small Peripheral Electric Water Pump Qb60 Qb70 Qb80 Agriculture

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
QB60	370W	1/2	2100 L/H	35 L/Min	35 M	8 M	1'' x 1''	IPX4
QB70	550W	3/4	2400 L/H	40 L/Min	50 M	8 M	1'' x 1''	IPX4
QB80	750W	1	3000 L/H	50 L/Min	60 M	8 M	1'' x 1''	IPX4

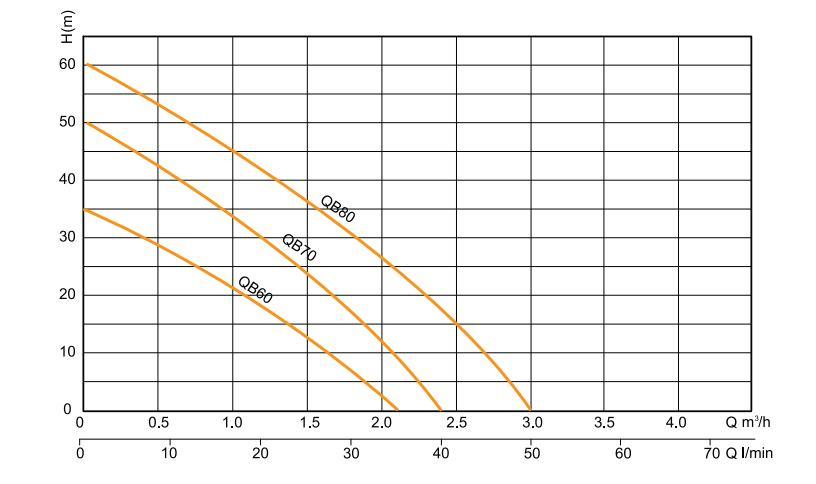

Performance Curve
Electric Irrigation Small Peripheral Electric Water Pump Qb60 Qb70 Qb80 Agriculture
