| Quantity: | |
|---|---|
Free Spare Parts
1 Year
30-50m
<50 L/min
Motor
Cast Iron
LPS25-13Z
Single-stage Pump
Pipeline Pump
Electric
Electric Pump
Circulating Pump
Submersible Pump, Sewage Pump
Wastewater Drainage
Hot Water
Wear Pump
Mixed Flow Pump
CE GS RoHS PAHs
Carton
6kg
MAXIS
China
8413709990
500000PCS/Year
Available | Customized Request
Application
Circulation for the underfloor heating system or equipment
Pump
Casting Iron pump body
Motor with cooper winding both available
Built-in thermal protector for single phase motor
Stainless steel shaft
High quality bearing
Max.liquid temperature: +100ºC

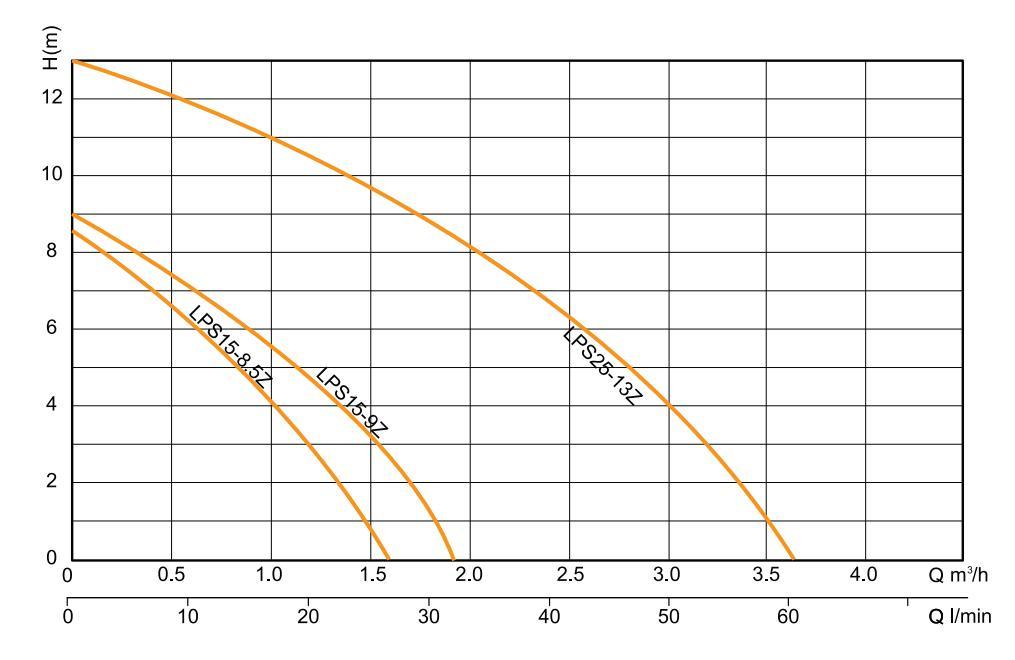

Peformance Curve
Techenical Data
| Model | Power | HP | Max Flow | Max Head | Max Suction | Inlet / Outlet | Protection rating | |
| LPS15-8.5Z | 100W | 1/8 | 1600 L/H | 26 L/Min | 8.5 M | 8 M | 3/4'' x 3/4'' | IPX2 |
| LPS15-9Z | 120W | 1/6 | 1800 L/H | 30 L/Min | 9 M | 8 M | 3/4'' x 3/4'' | IPX2 |
| LPS25-13Z | 260W | 1/3 | 3600 L/H | 60 L/Min | 13 M | 8 M | 1'' x 1'' | IPX2 |
Application
Circulation for the underfloor heating system or equipment
Pump
Casting Iron pump body
Motor with cooper winding both available
Built-in thermal protector for single phase motor
Stainless steel shaft
High quality bearing
Max.liquid temperature: +100ºC
Peformance CurveTechenical Data
| Model | Power | HP | Max Flow | Max Head | Max Suction | Inlet / Outlet | Protection rating | |
| LPS15-8.5Z | 100W | 1/8 | 1600 L/H | 26 L/Min | 8.5 M | 8 M | 3/4'' x 3/4'' | IPX2 |
| LPS15-9Z | 120W | 1/6 | 1800 L/H | 30 L/Min | 9 M | 8 M | 3/4'' x 3/4'' | IPX2 |
| LPS25-13Z | 260W | 1/3 | 3600 L/H | 60 L/Min | 13 M | 8 M | 1'' x 1'' | IPX2 |
