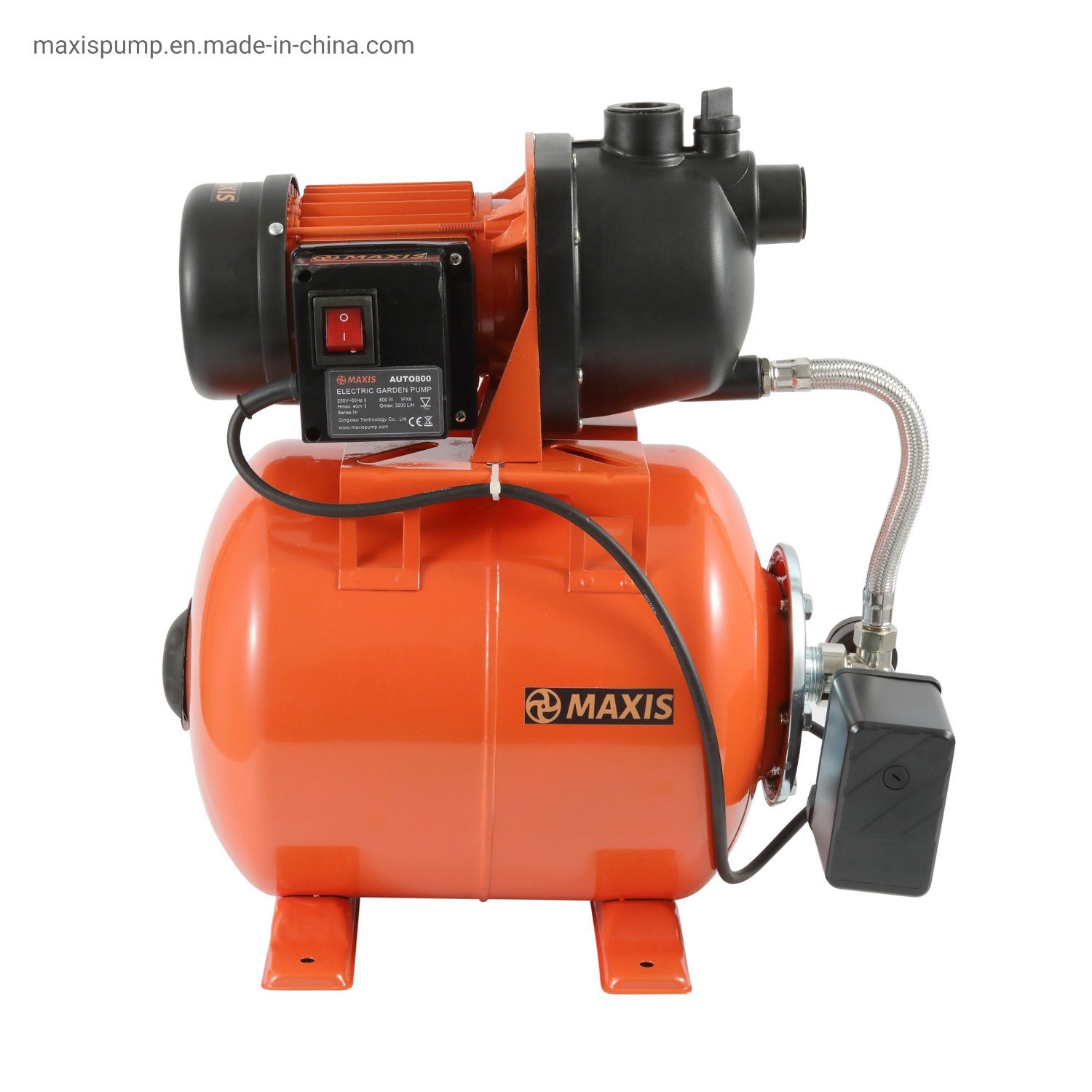

Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank

Quantity:
Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank
Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank
Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank
Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank
Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank
Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank
  • Free Spare Parts

  • 1 Year

  • 30-50m

  • 50-100 L/min

  • Motor

  • Plastic

  • AUTO800

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Jet Pump

  • Booster Pump

  • Pressure Pump

  • Water

  • Automatic Pump

  • Jet Pump

  • CE GS RoHS PAHs

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 40/Piece 1 Piece(Min.Order) | Request Sample

Application
1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

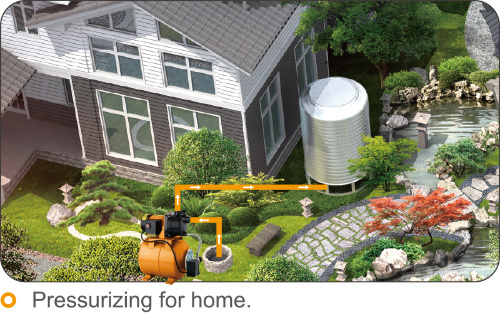

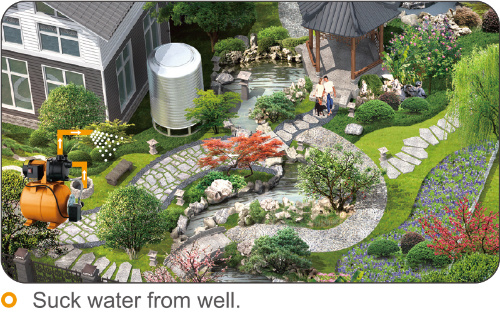

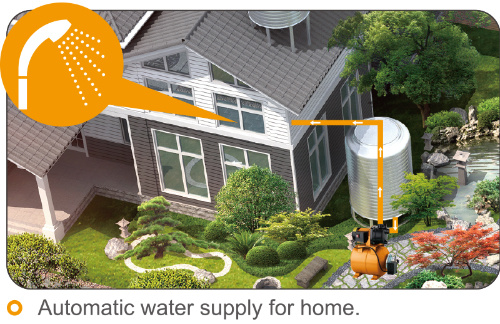

2. Fully automatic water supply in house and garden

Electric Home Booster Automatic High Pressure Water Pump with Pressure TankElectric Home Booster Automatic High Pressure Water Pump with Pressure TankElectric Home Booster Automatic High Pressure Water Pump with Pressure Tank

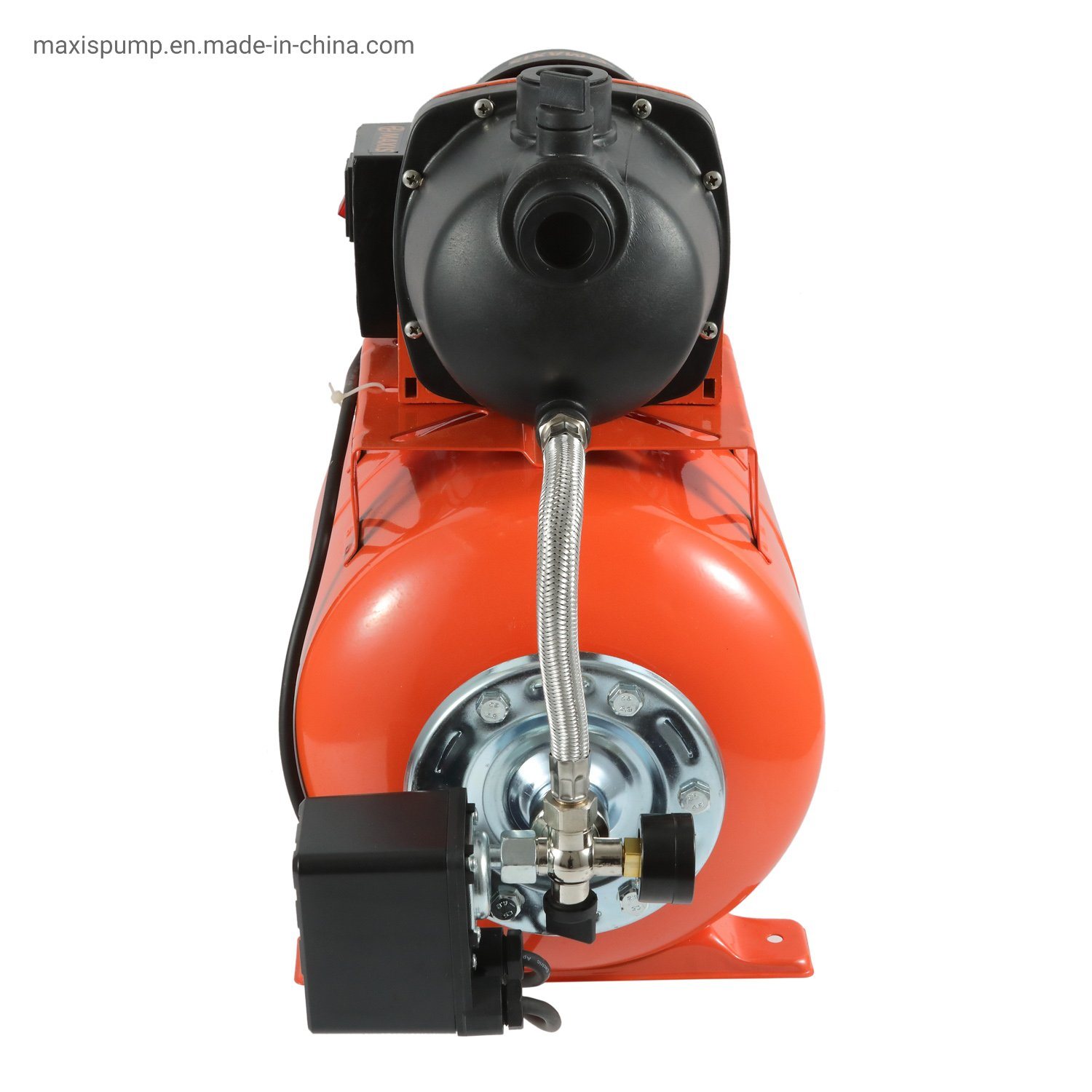

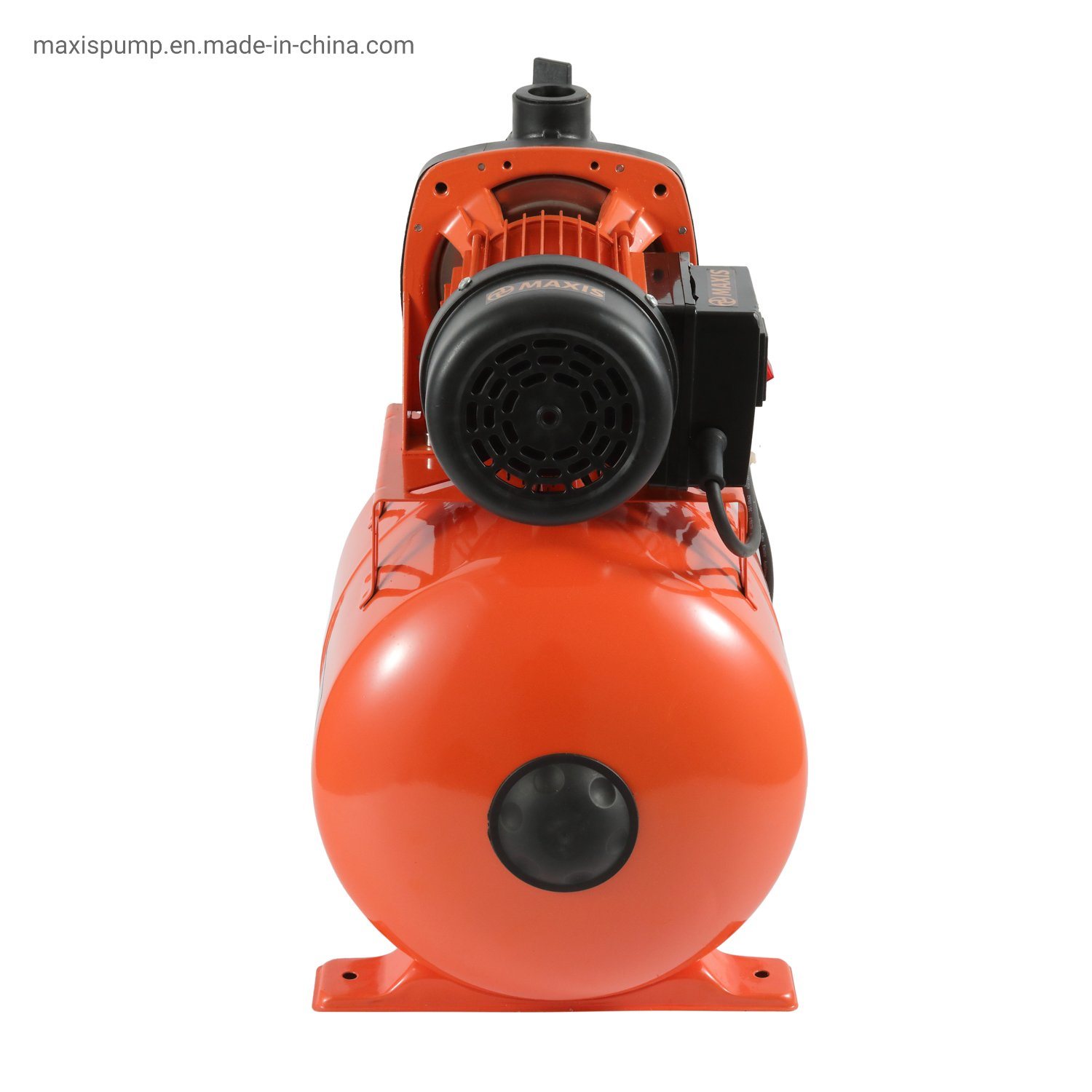

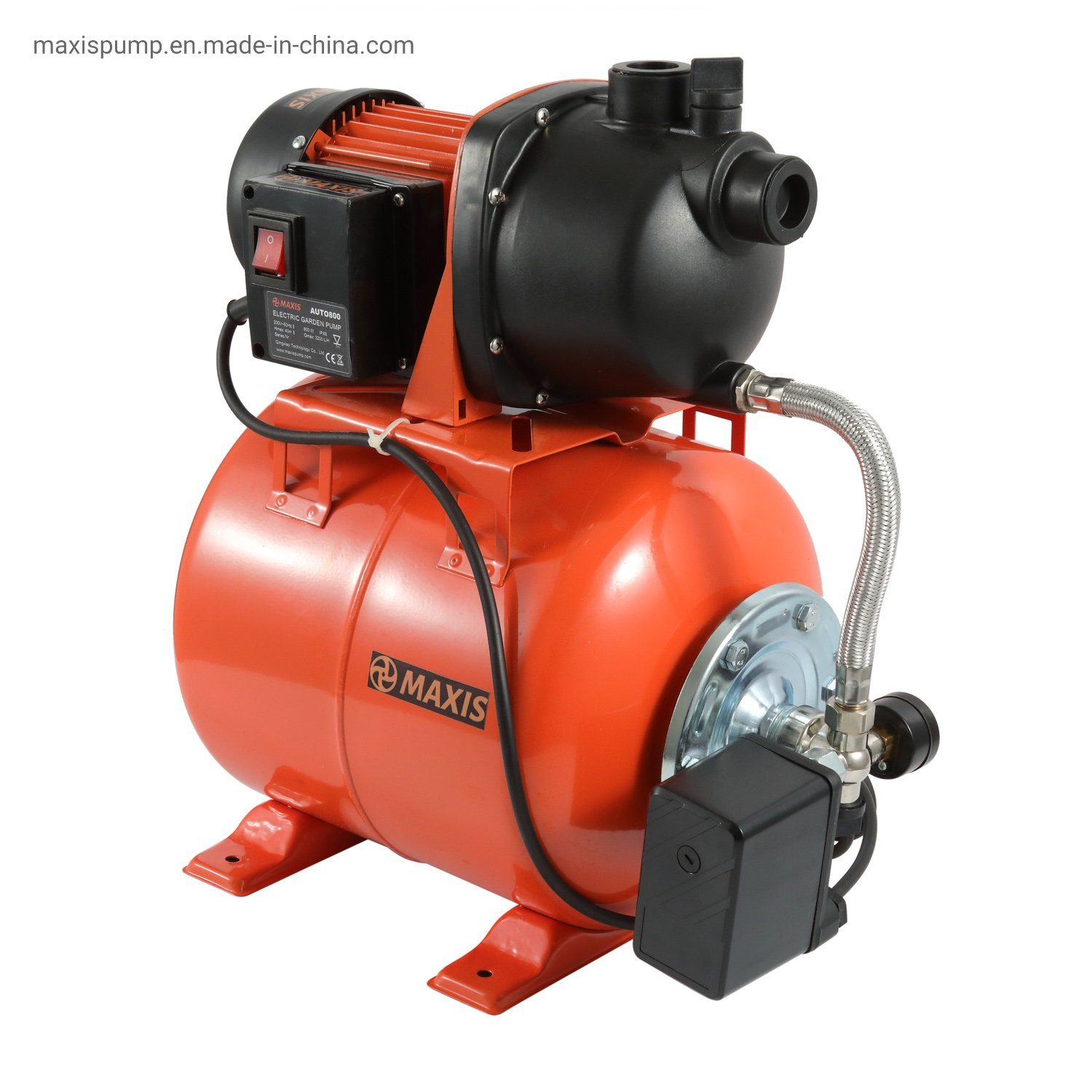

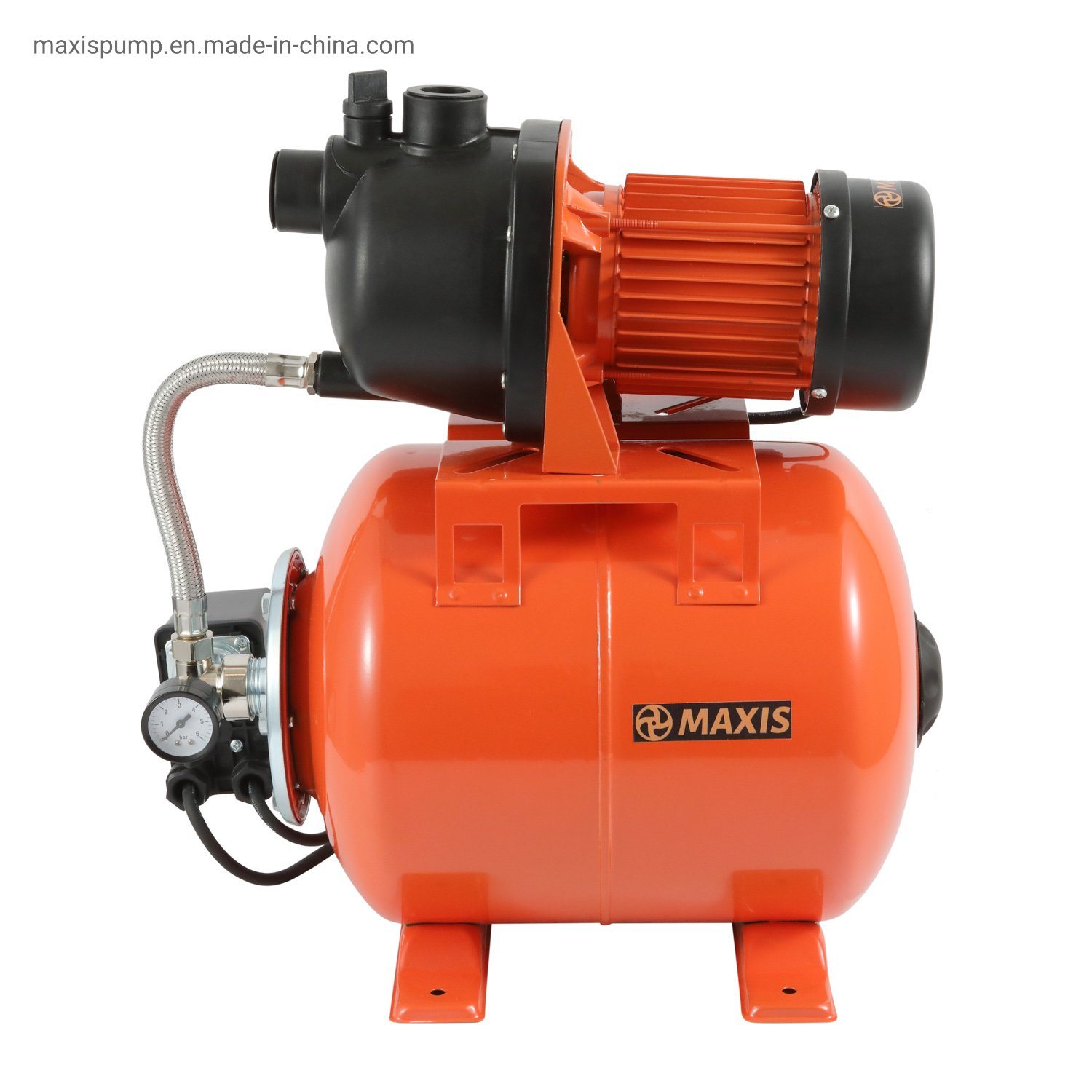

Pump
Plastic pump body
Plastic impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbo Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m

Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
AUTO600 600W 3/4 3000 L/H 50 L/Min 35 M 8 M 1'' x 1'' IP44
AUTO800 800W 1 3200 L/H 53 L/Min 40 M 8 M 1'' x 1'' IP44
AUTO1000 1000W 1.3 3500 L/H 58 L/Min 44 M 8 M 1'' x 1'' IP44
AUTO1200 1200W 1.6 3800 L/H 63 L/Min 48 M 8 M 1'' x 1'' IP44

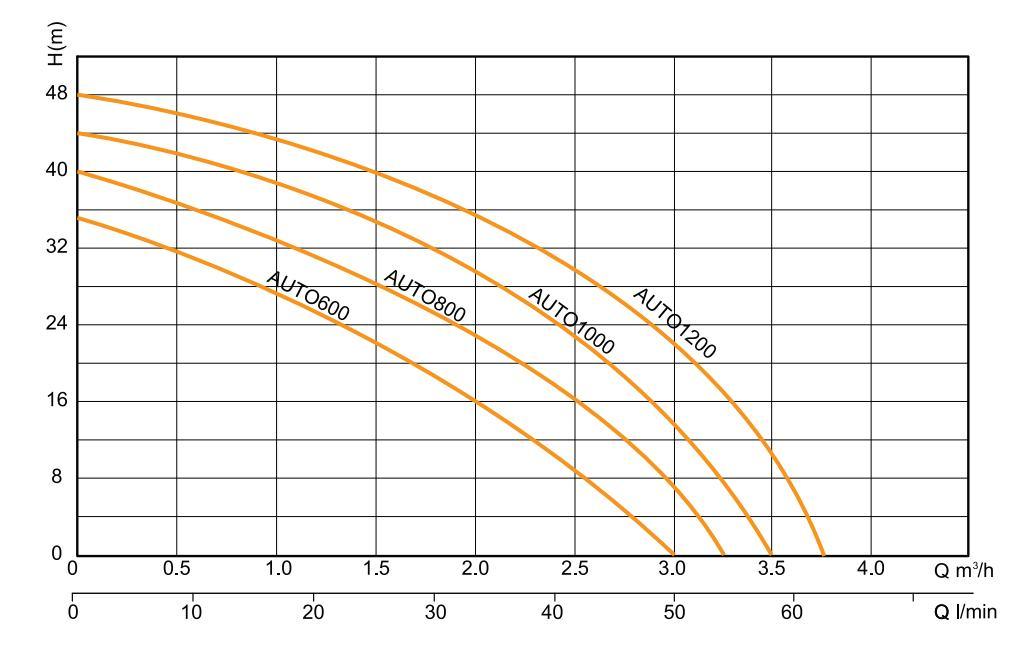

Performance Curve
Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank

Company view
Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank Electric Home Booster Automatic High Pressure Water Pump with Pressure Tank
