| Quantity: | |
|---|---|
Free Spare Parts
1 Year
10-30m
200-300 L/min
Motor
Stainless Steel
V750C
Single-stage Pump
Liquid Pumps
Electric
Electric Pump
Sewage Pump
Submersible Pump, Sewage Pump
Wastewater Drainage
Sewage Pumps
No Leakage Pump
Mixed Flow Pump
CE GS RoHS PAHs
Carton
9kg
MAXIS
China
8413709990
500000PCS/Year
US$ 40/Piece 1 Piece(Min.Order) | Request Sample
Application
1. Wastewater drainage in factories, constructionsites and commercial facilities

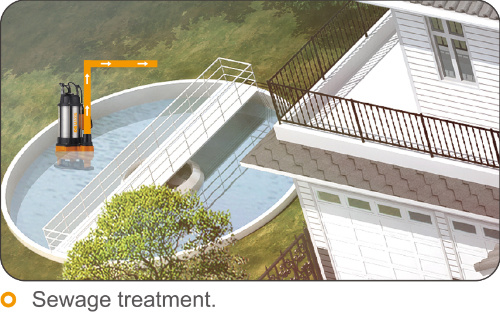

2. Drainage system in municipal sewage treatment plants
3. Drainage station in residential quarters
4. Municipal projects
5. Methans pools and field irrigation in countries

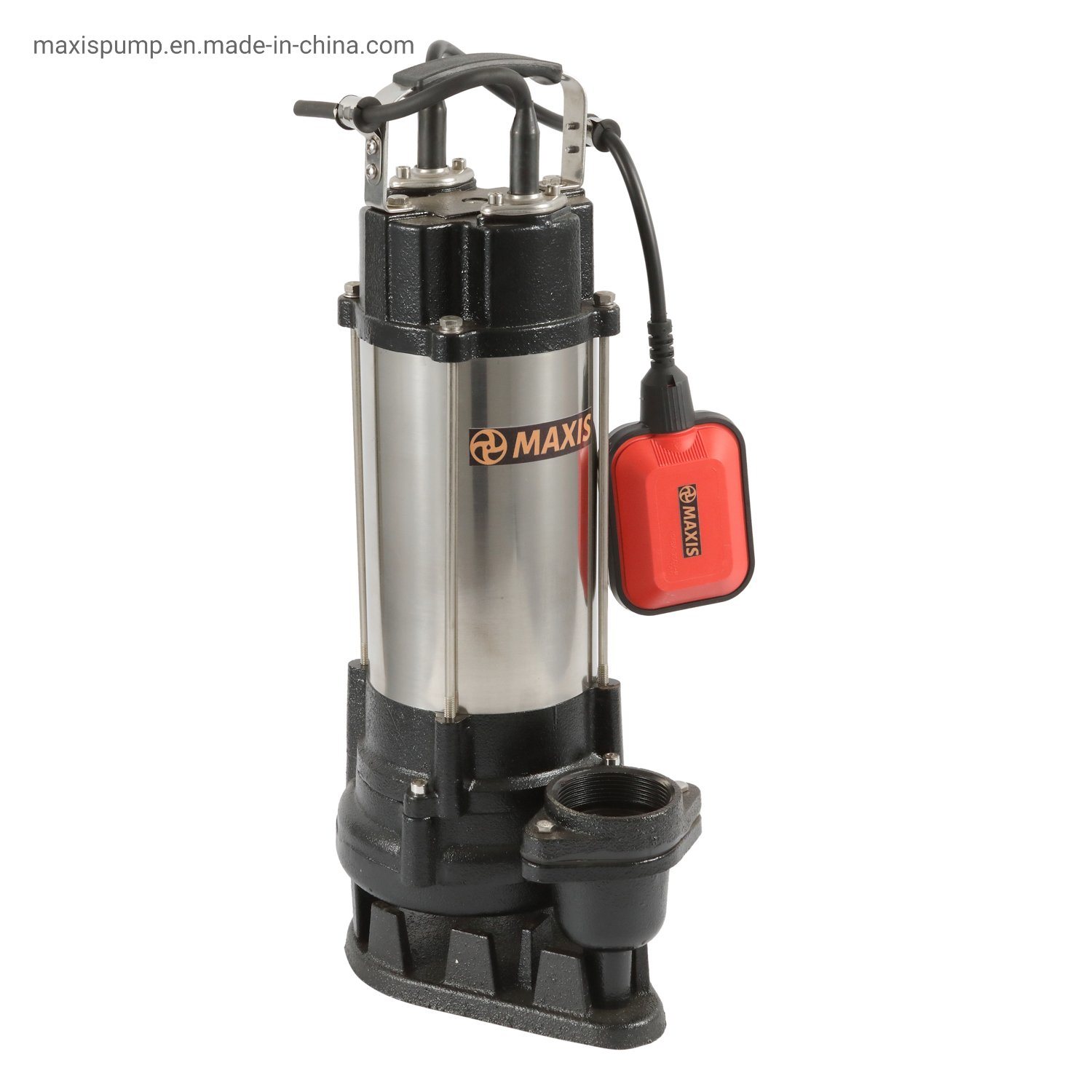

Pump
Stainelss steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Stainless steel welded shaft
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
Liquid pH value: 4-10
Max.liquid desity:1.2*10³ kg/m³

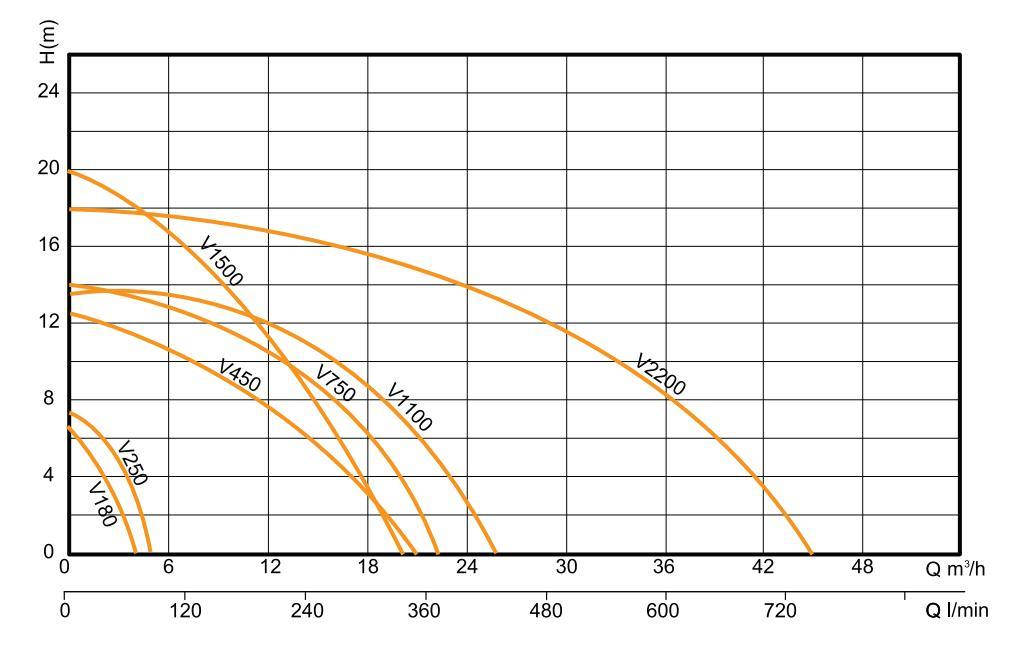

Techenical Data | Model | Mains | Power | HP | Max Flow | Max Head | Max Suction | Inlet / Outlet | Protection rating | |
| V370C | 230V~50HZ | 370W | 1/3 | 7800 L/H | 130 L/Min | 7.5 M | 8 M | 1-1/4'' | IPX8 |
| V550C | 230V~50HZ | 550W | 2/3 | 12000 L/H | 200 L/Min | 10 M | 8 M | 2'' | IPX8 |
| V750C | 230V~50HZ | 750W | 1 | 18000 L/H | 300 L/Min | 12 M | 8 M | 2'' | IPX8 |
| V1100C | 230V~50HZ | 1100W | 1-1/2 | 21000 L/H | 350 L/Min | 13 M | 8 M | 2'' | IPX8 |
| V1300C | 230V~50HZ | 1300W | 1-4/5 | 24000 L/H | 400 L/Min | 15 M | 8 M | 2'' | IPX8 |
