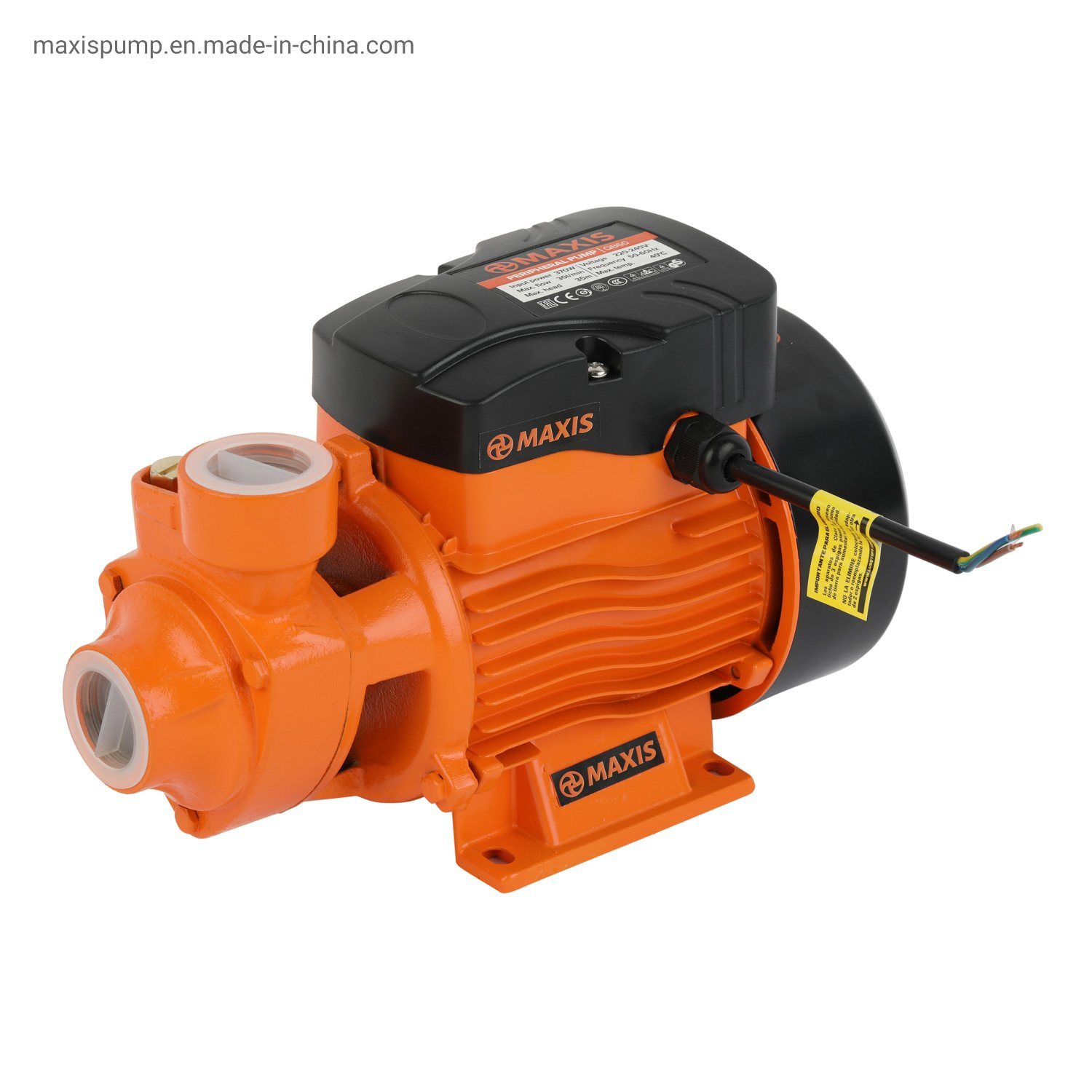

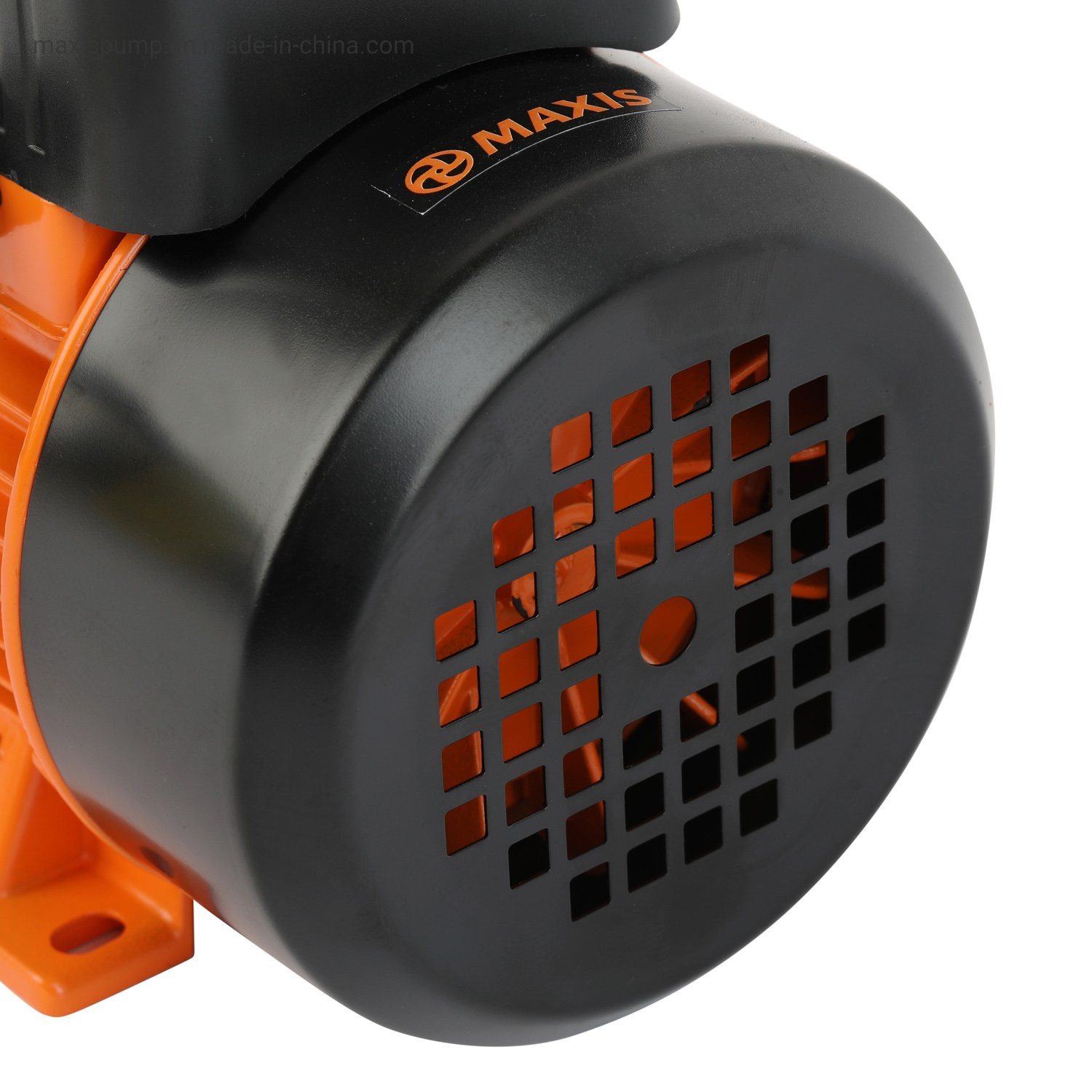

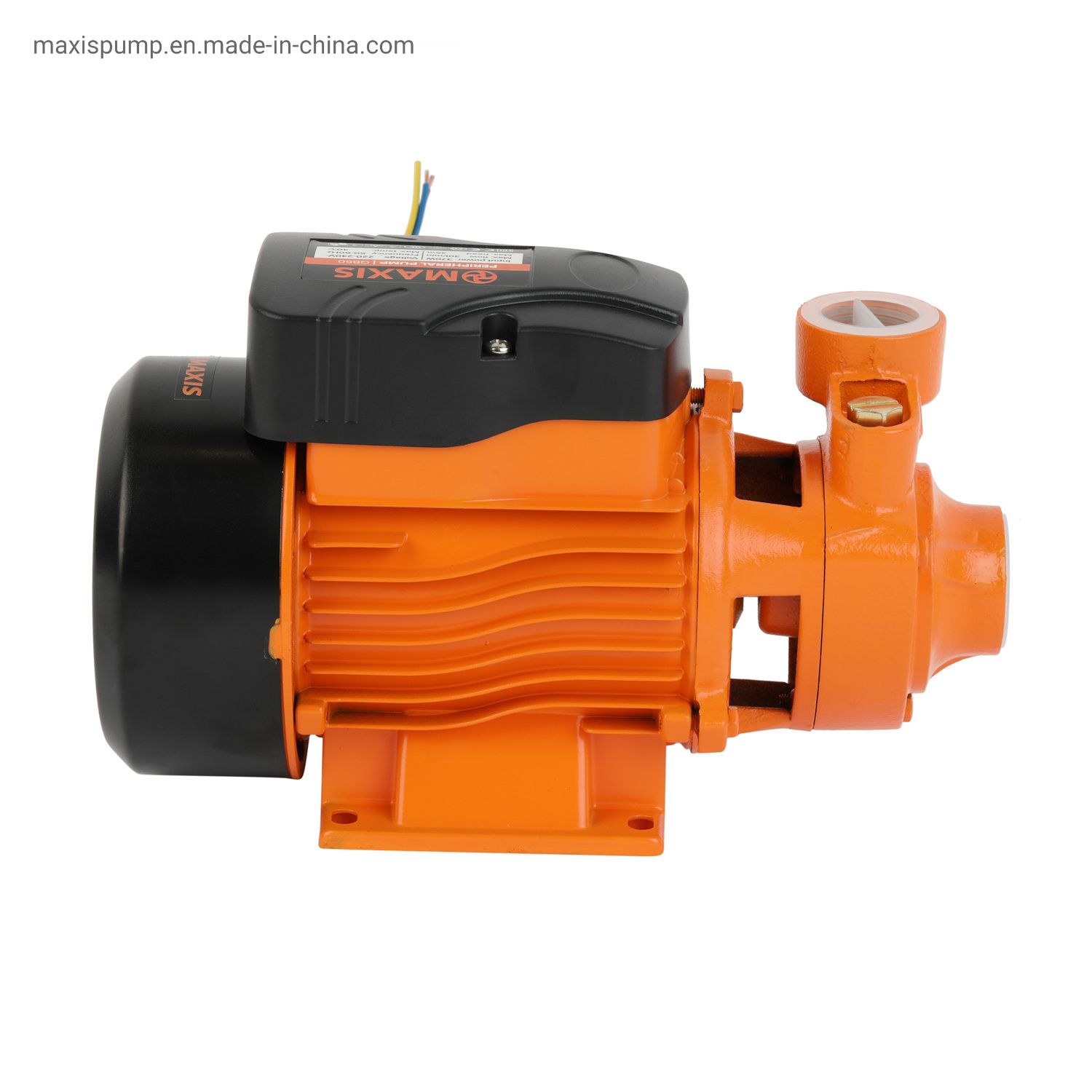

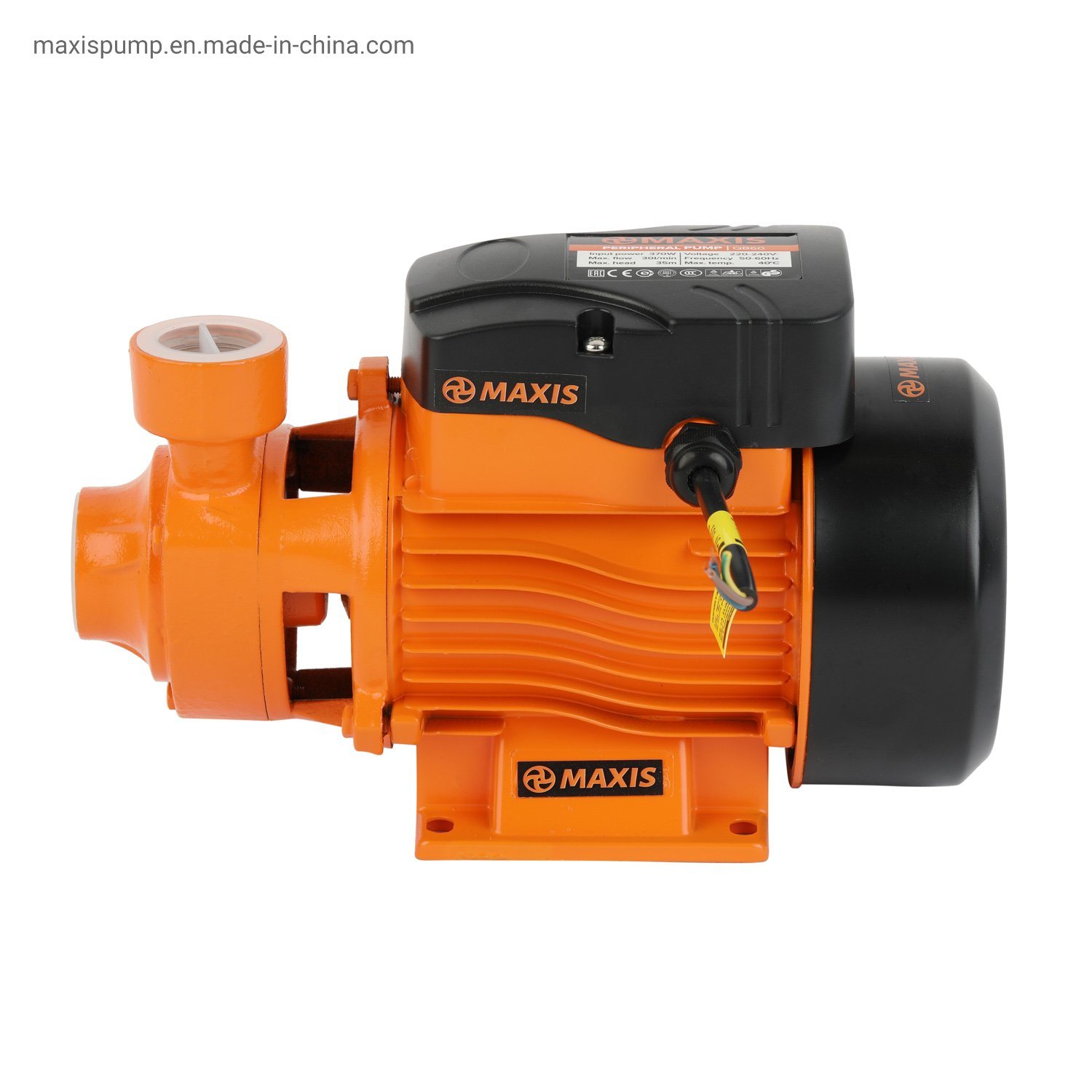

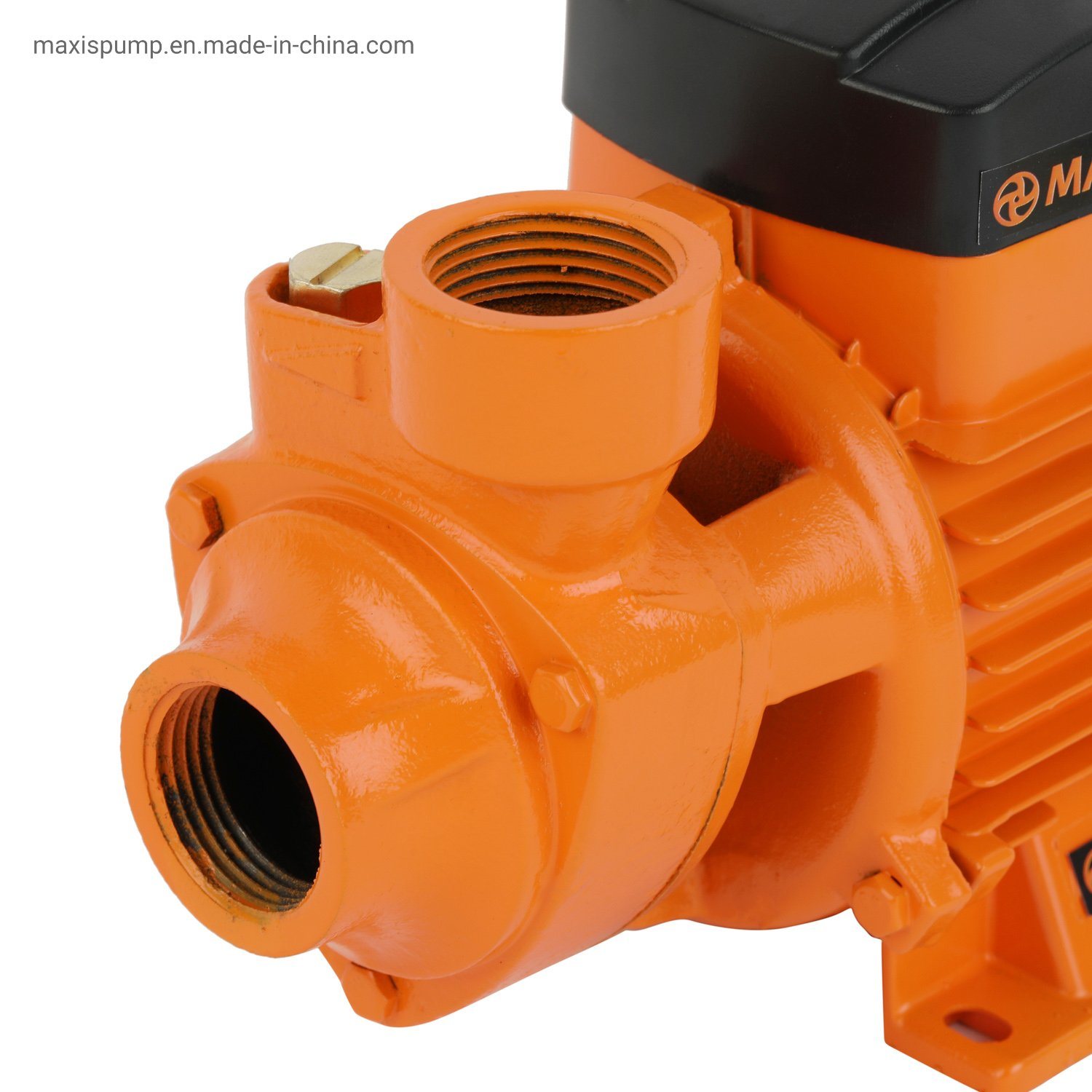

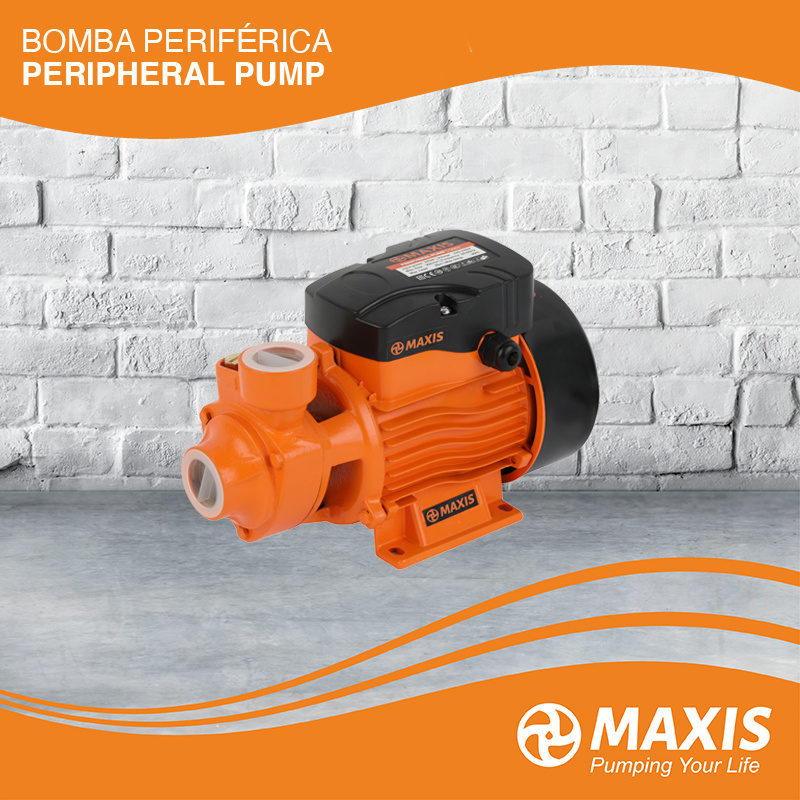

Electric Domestic End Suction Peripheral Engine Water Pump Qb60

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
50-80m
Max.Capacity:
50-100 L/min
Driving Type:
Motor
Material:
Cast Iron
Model NO.:
QB60
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Peripheral Pump
Application:
Transfer Water Pump
Industry:
Agriculture
Media:
Clean Water
Performance:
No Leakage Pump
Theory:
Vortex Pump
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

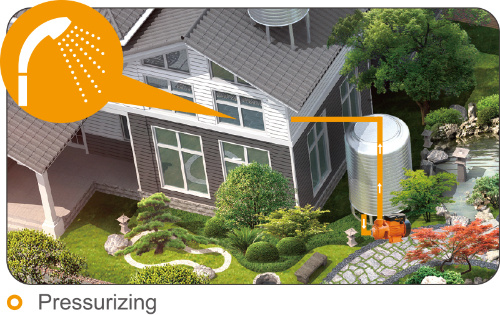

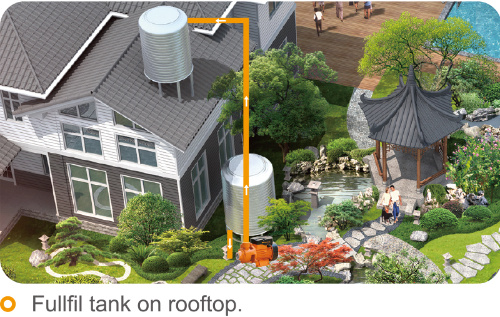

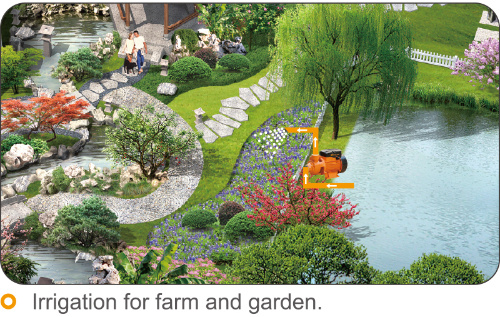

Suitable for lifting water from the well, sprinkling irrigation in garden pressure boosting of running water, and supporting equipment etc

Pump
Special anti-rust treatment for cast iron pump body and support
Anti-block system for impeller
Bass impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carbon steel shaft both available
Max.liquid temperature: +40ºC
Max. suction:+8m

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
QB60	370W	1/2	2100 L/H	35 L/Min	35 M	8 M	1'' x 1''	IPX4
QB70	550W	3/4	2400 L/H	40 L/Min	50 M	8 M	1'' x 1''	IPX4
QB80	750W	1	3000 L/H	50 L/Min	60 M	8 M	1'' x 1''	IPX4

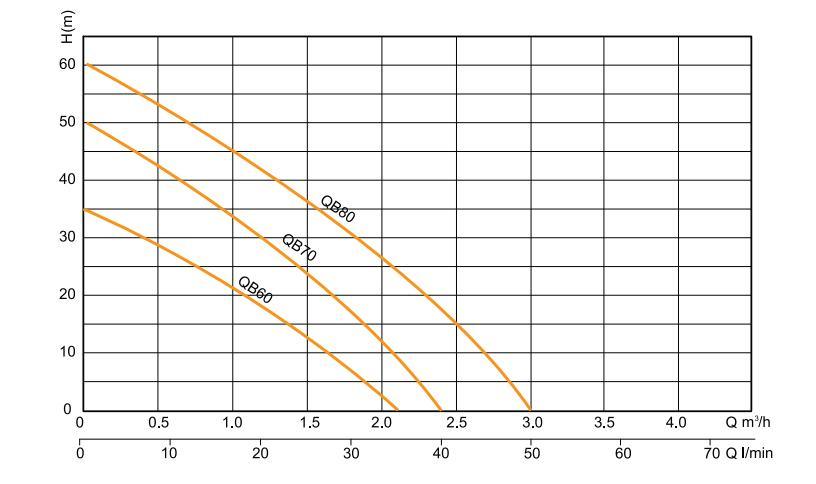

Performance Curve
Electric Domestic End Suction Peripheral Engine Water Pump Qb60

Company view
Electric Domestic End Suction Peripheral Engine Water Pump Qb60

RFQ
Q: What is your MOQ of this item?
A: Regular MOQ is 500pcs, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year

Q:How about your service?
A:We have pre-sale, in-sale and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
