| Quantity: | |
|---|---|
Free Spare Parts
1 Year
30-50m
50-100 L/min
Motor
Stainless Steel
DS5.1-40/5
Single-stage Pump
Liquid Pumps
Electric
Electric Pump
Submersible Pump
Submersible Pump, Sewage Pump
Domestic
Clean Water
Wear Pump
Centrifugal Pump
CE GS RoHS PAHs
Carton
5.2kg
MAXIS
China
8413709990
500000PCS/Year
US$ 50/Piece 1 Piece(Min.Order) | Request Sample
Application

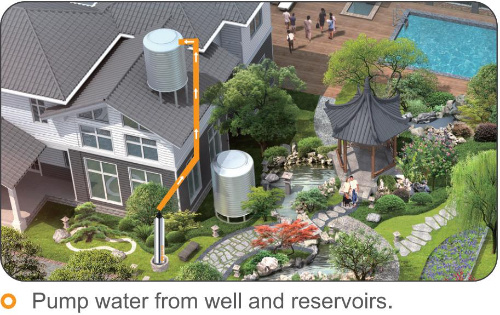

1.For water supply from wells or reservoris
2.For domestic use, for civil and industrial applications
3.For garden use and irrigation

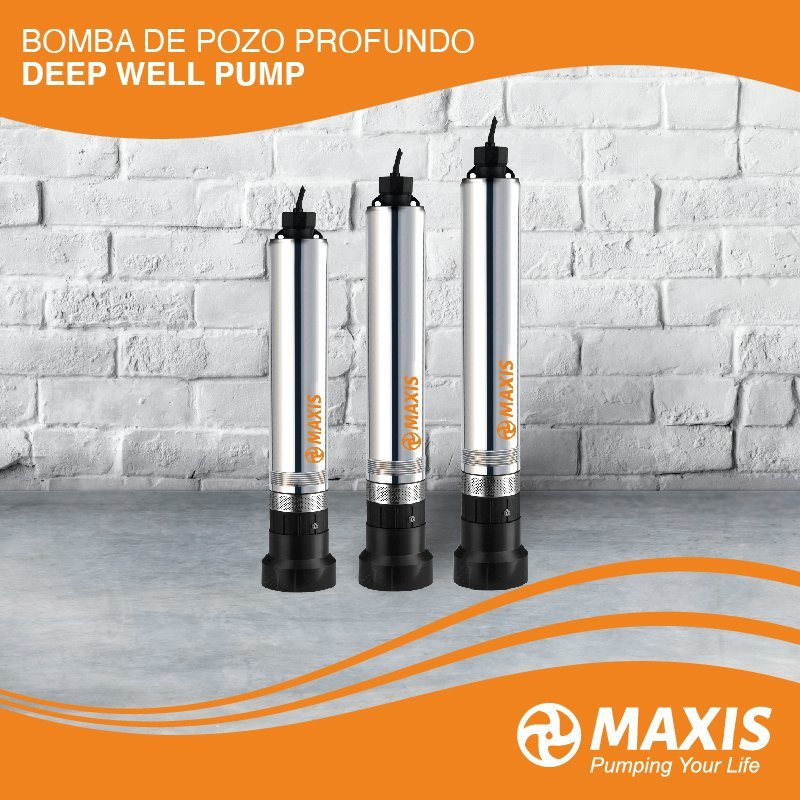

Pump

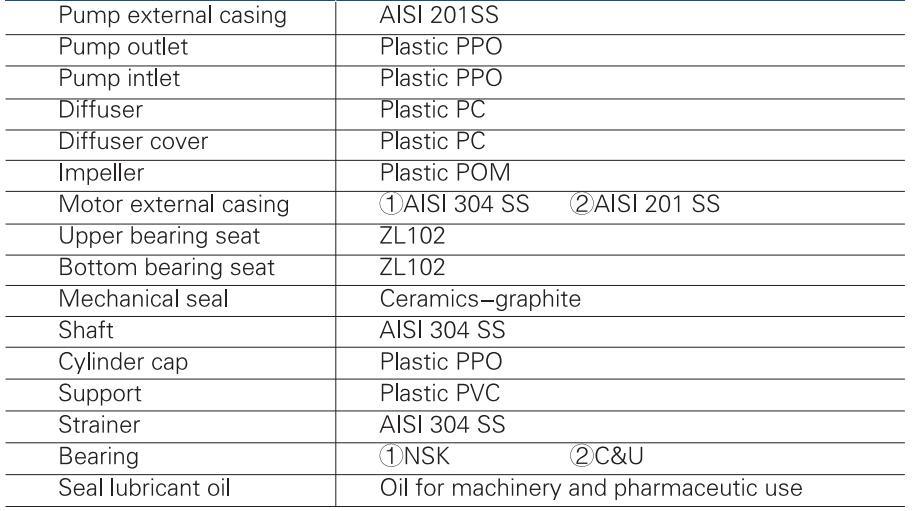

Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"
Techenical Data

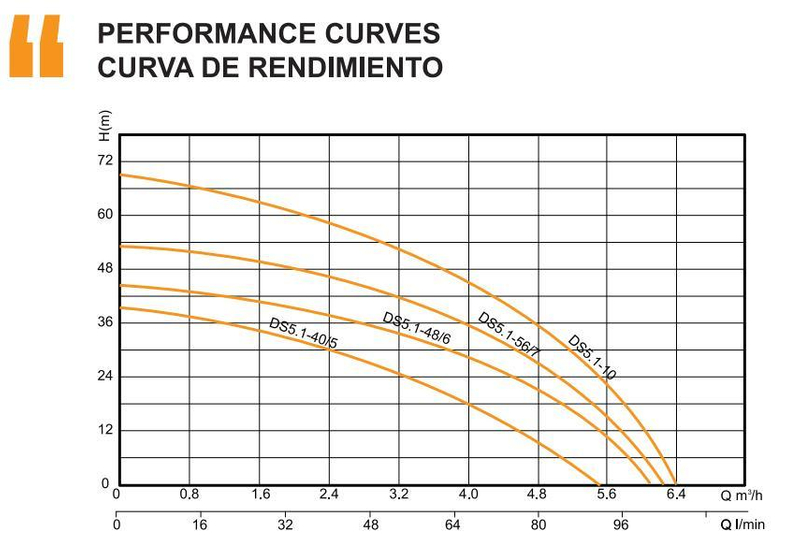

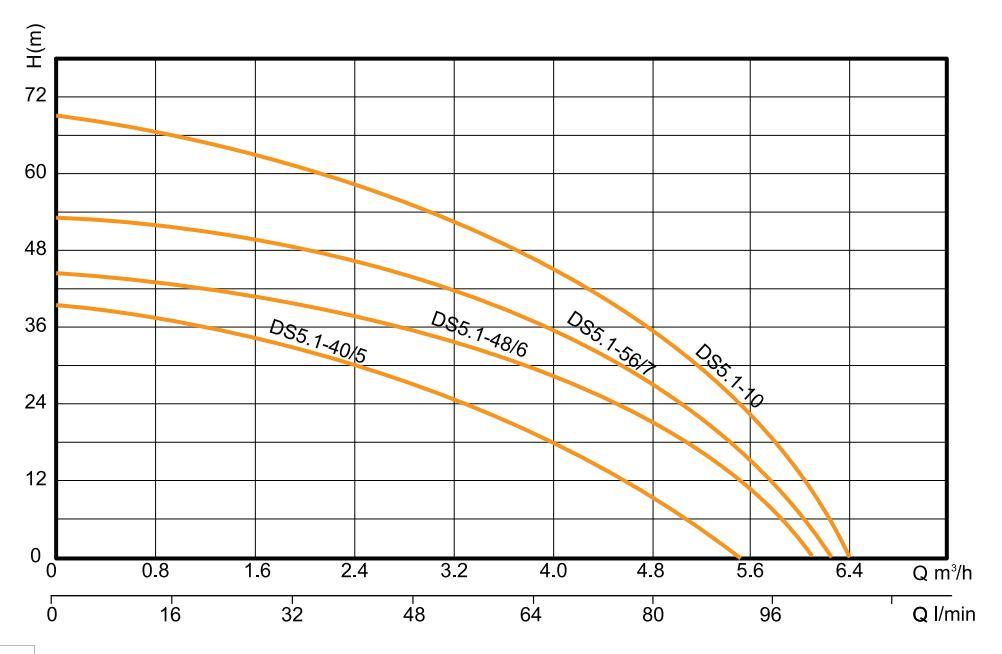

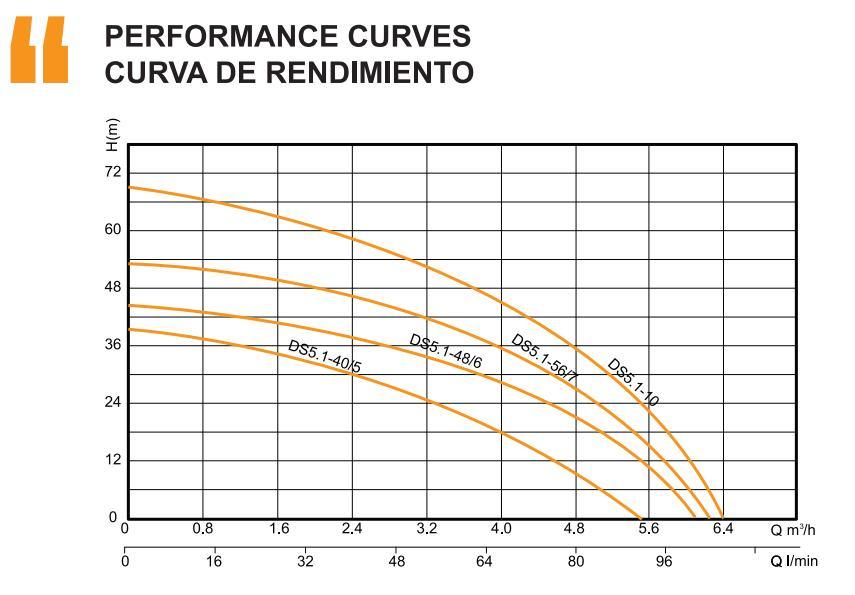

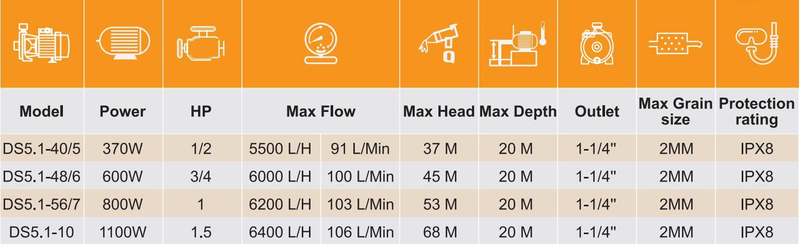

| Model | Power | HP | Max Flow | Max Head | Max Depth | Outlet | Max Grain size | Protection rating | |
| DS5.1-40/5 | 370W | 1/2 | 5500 L/H | 91 L/Min | 37 M | 20 M | 1-1/4'' | 2MM | IPX8 |
| DS5.1-48/6 | 600W | 3/4 | 6000 L/H | 100 L/Min | 45 M | 20 M | 1-1/4'' | 2MM | IPX8 |
| DS5.1-56/7 | 800W | 1 | 6200 L/H | 103 L/Min | 53 M | 20 M | 1-1/4'' | 2MM | IPX8 |
| DS5.1-10 | 1100W | 1.5 | 6400 L/H | 106 L/Min | 68 M | 20 M | 1-1/4'' | 2MM | IPX8 |
Application
1.For water supply from wells or reservoris
2.For domestic use, for civil and industrial applications
3.For garden use and irrigation
Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"Techenical Data

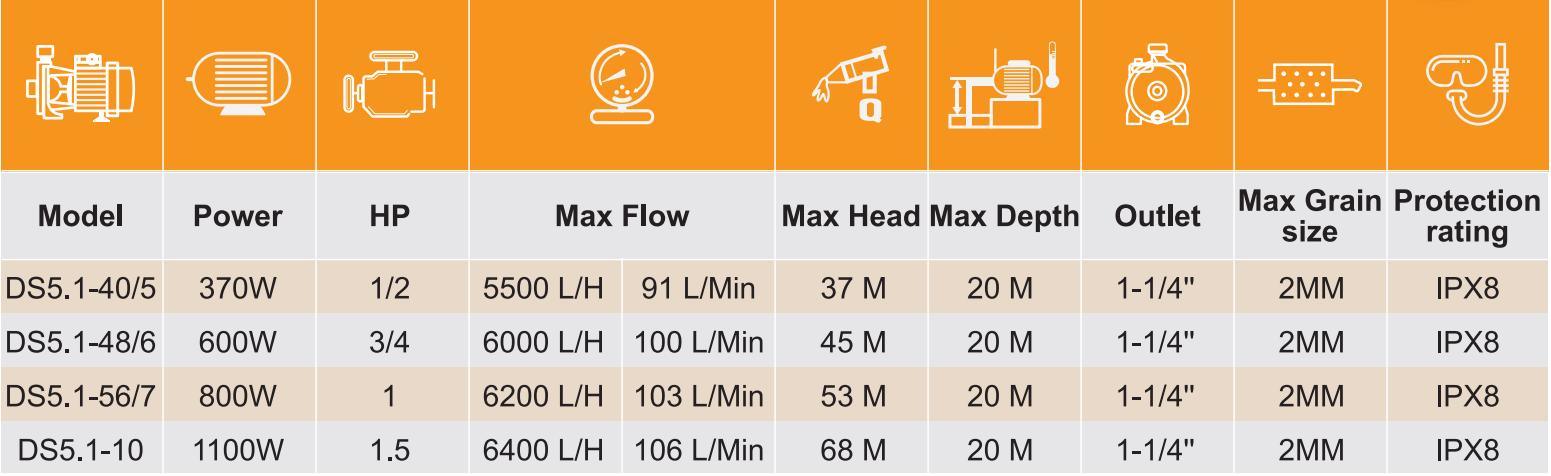

| Model | Power | HP | Max Flow | Max Head | Max Depth | Outlet | Max Grain size | Protection rating | |
| DS5.1-40/5 | 370W | 1/2 | 5500 L/H | 91 L/Min | 37 M | 20 M | 1-1/4'' | 2MM | IPX8 |
| DS5.1-48/6 | 600W | 3/4 | 6000 L/H | 100 L/Min | 45 M | 20 M | 1-1/4'' | 2MM | IPX8 |
| DS5.1-56/7 | 800W | 1 | 6200 L/H | 103 L/Min | 53 M | 20 M | 1-1/4'' | 2MM | IPX8 |
| DS5.1-10 | 1100W | 1.5 | 6400 L/H | 106 L/Min | 68 M | 20 M | 1-1/4'' | 2MM | IPX8 |
