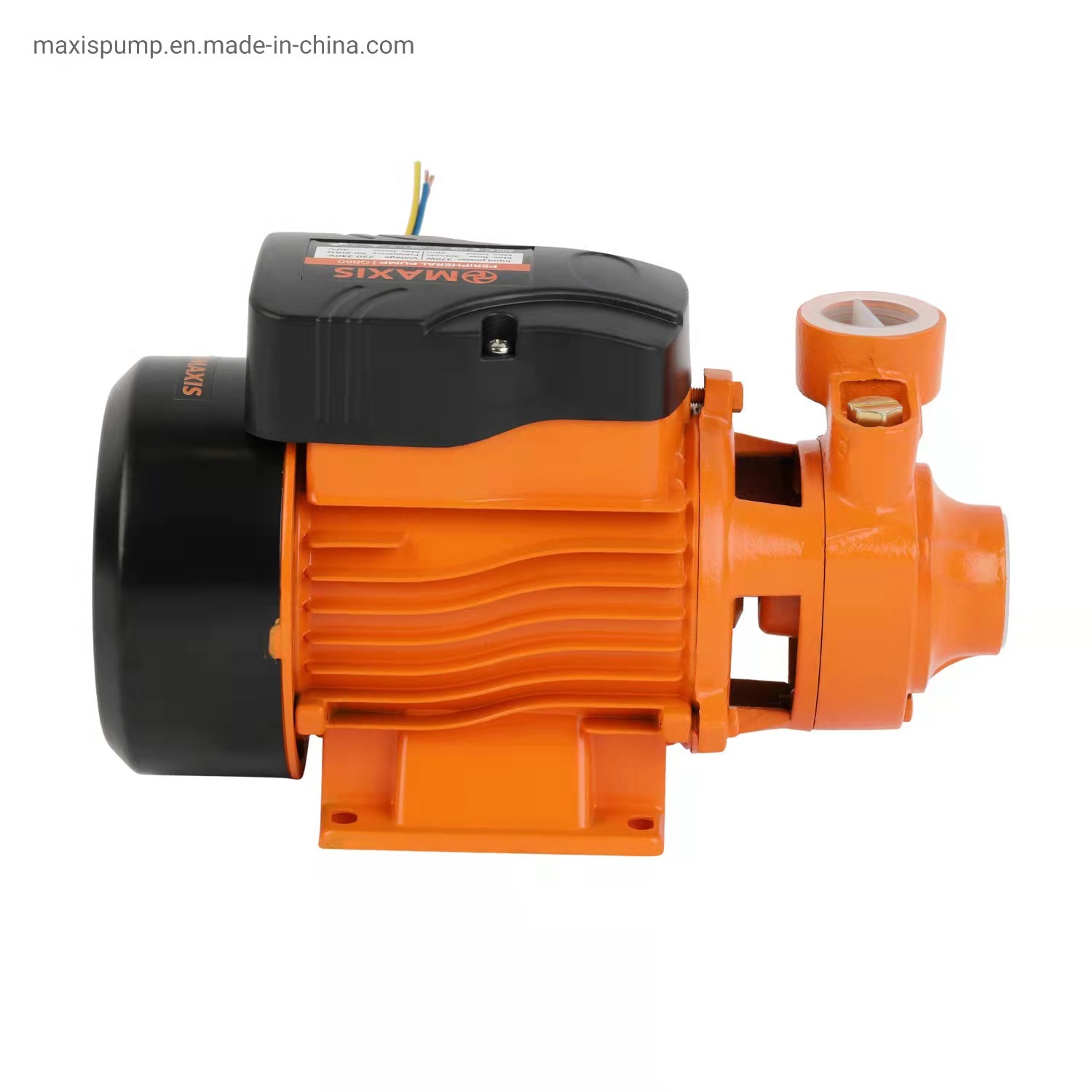

Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use

Quantity:
Inquire Add to Basket

Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use
Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use
Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use
Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use
Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use
Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use

  • Free Spare Parts

  • 1 Year

  • 50-80m

  • 50-100 L/min

  • Motor

  • Cast Iron

  • QB60

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Peripheral Pump

  • Transfer Water Pump

  • Agriculture

  • Clean Water

  • No Leakage Pump

  • Vortex Pump

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 30/Piece 1 Piece(Min.Order) | Request Sample

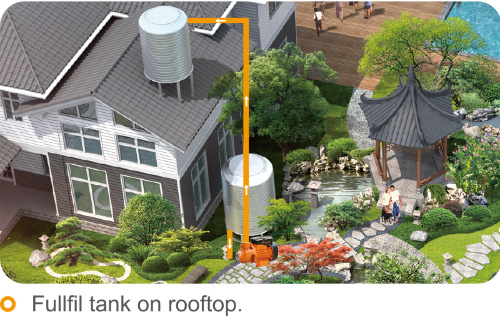

Application
  1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

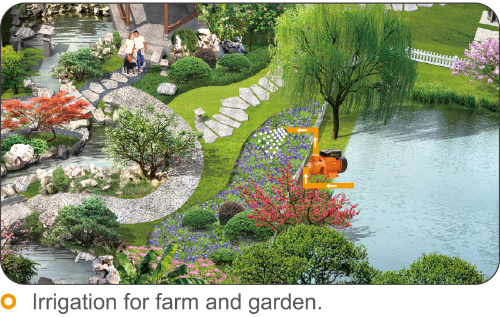

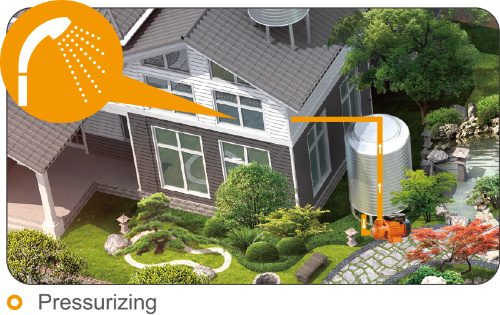

  2. Suitable for lifting water from the well, sprinkling irrigation in garden pressure boosting of running water, and supporting equipment etc
Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use
Pump
Special anti-rust treatment for cast iron pump body and support
Anti-block system for impeller
Bass impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carbon steel shaft both available
Max.liquid temperature: +40ºC
Max. suction:+8m
Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
QB60 370W 1/2 2100 L/H 35 L/Min 35 M 8 M 1'' x 1'' IPX4
QB70 550W 3/4 2400 L/H 40 L/Min 50 M 8 M 1'' x 1'' IPX4
QB80 750W 1 3000 L/H 50 L/Min 60 M 8 M 1'' x 1'' IPX4

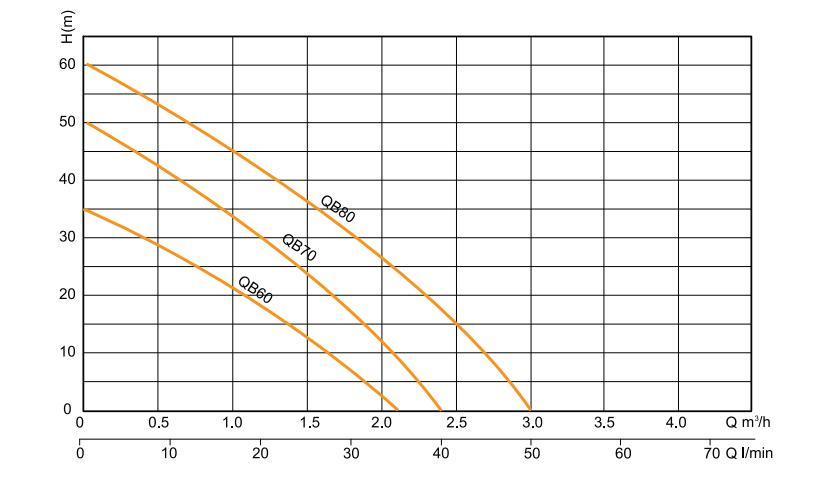

Performance Curve
Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use
Company view
Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use Domestic Electric Peripheral Clean High Pressure Water Pumps for Garden Use
