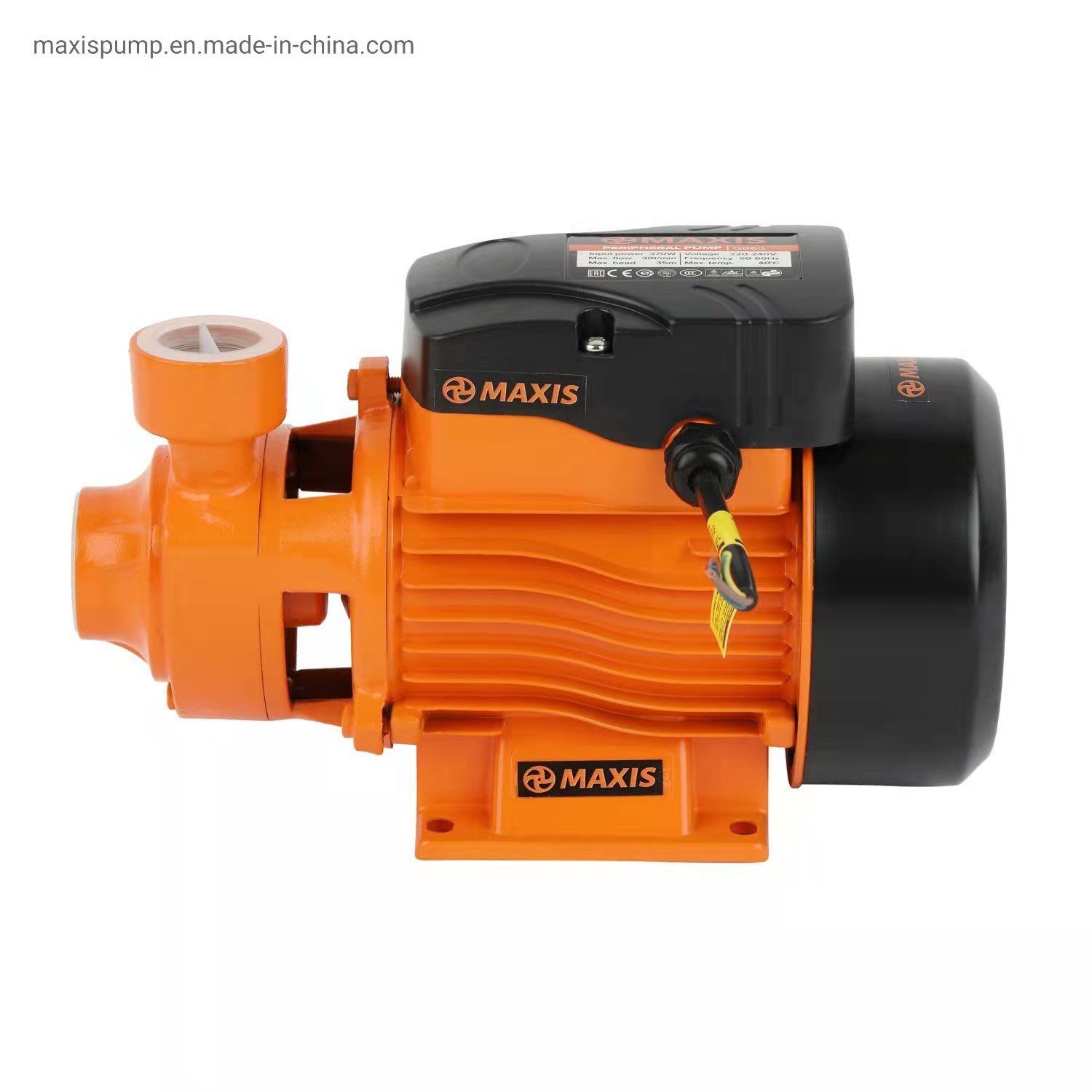

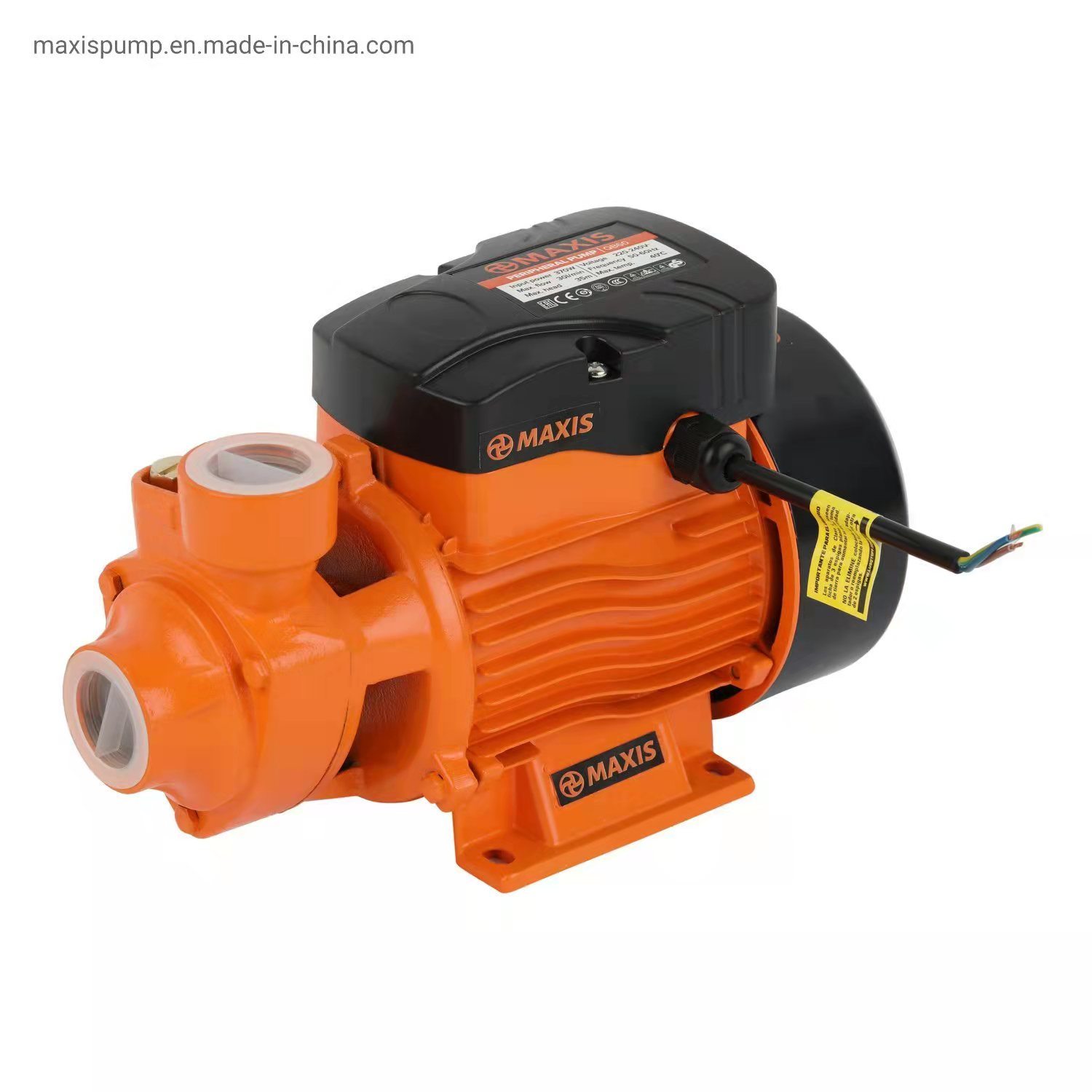

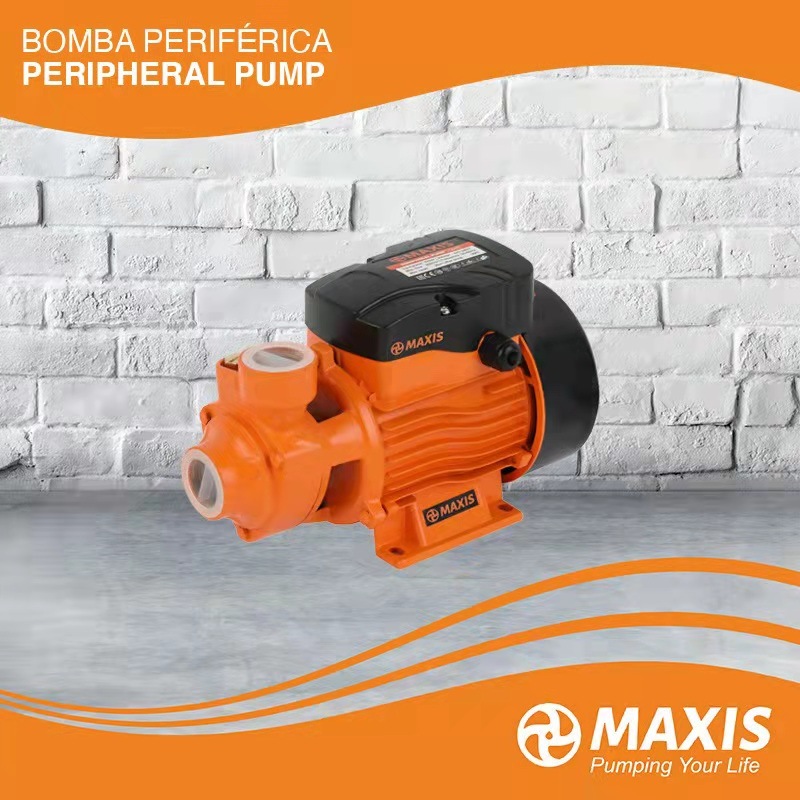

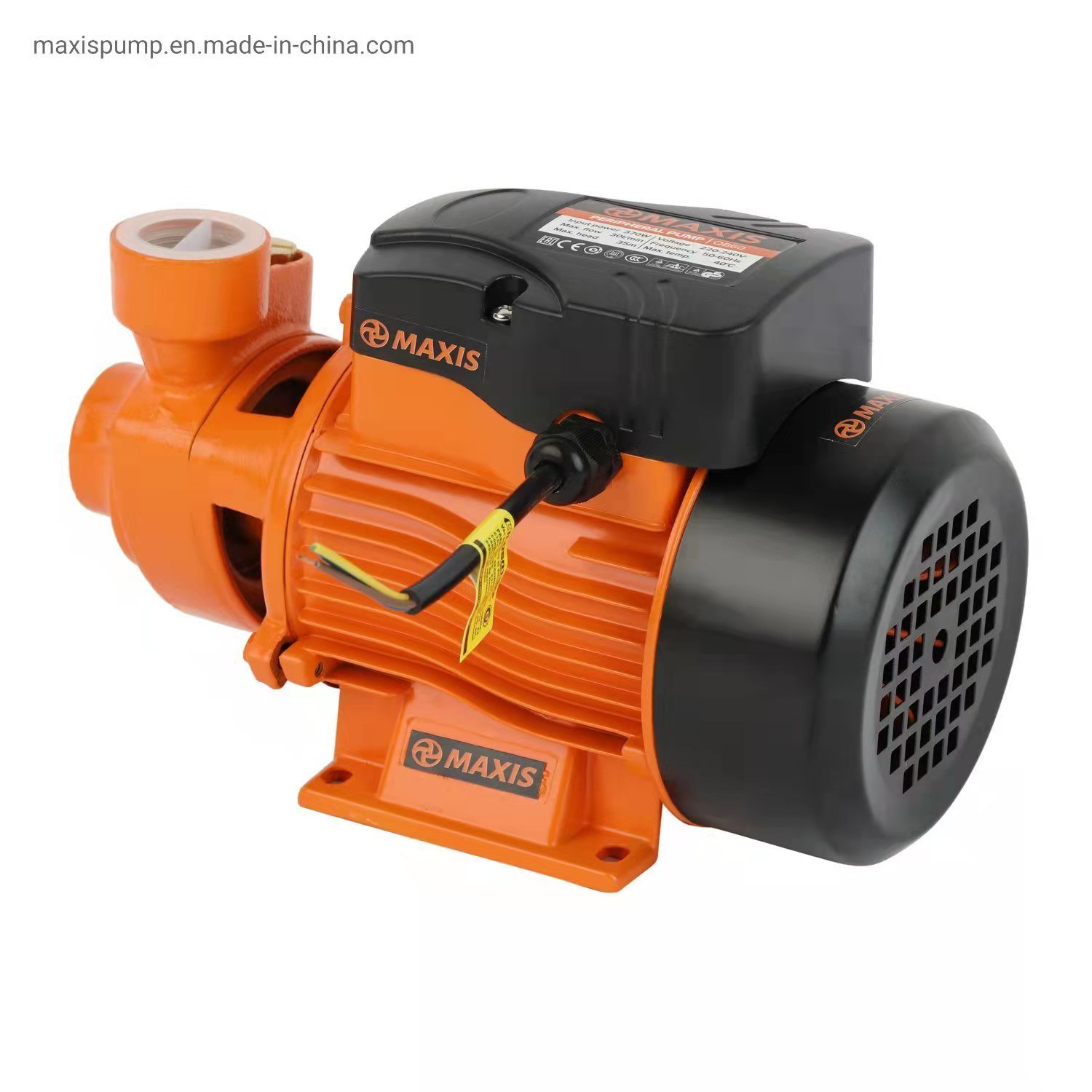

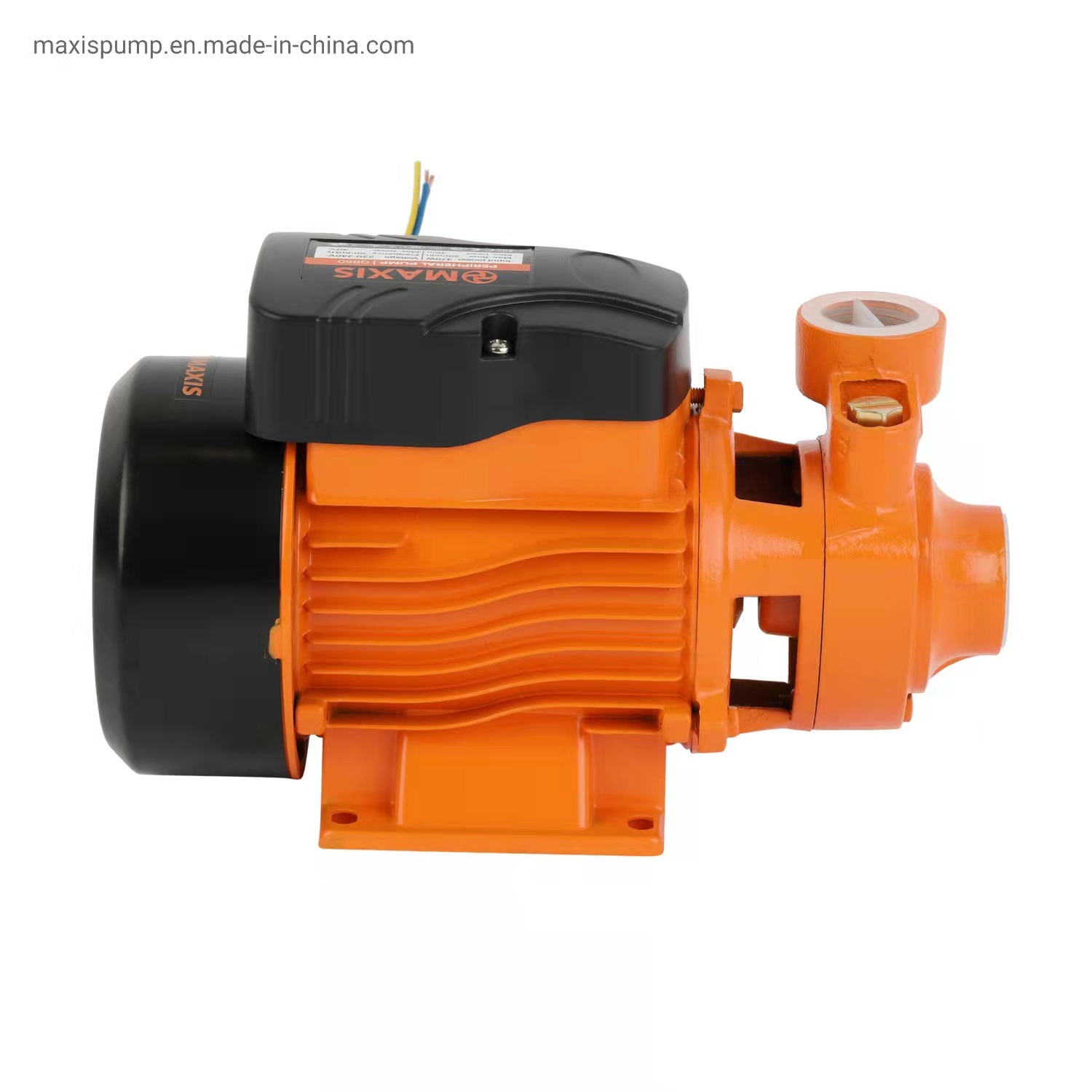

Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60

Quantity:
Inquire Add to Basket

Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60
Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60
Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60
Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60
Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60
Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60

  • Free Spare Parts

  • 1 Year

  • 50-80m

  • 50-100 L/min

  • Motor

  • Cast Iron

  • QB60

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Peripheral Pump

  • Transfer Water Pump

  • Agriculture

  • Clean Water

  • No Leakage Pump

  • Vortex Pump

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Application
  1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

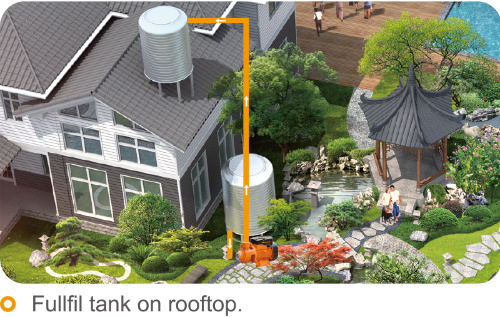

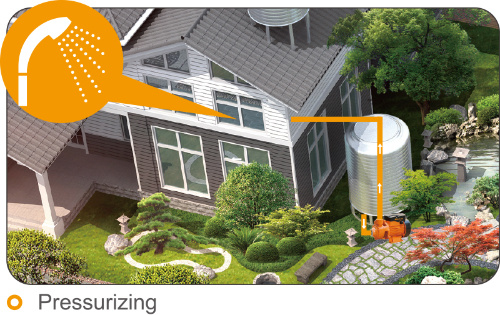

  2. Suitable for lifting water from the well, sprinkling irrigation in garden pressure boosting of running water, and supporting equipment etc
Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60 Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60 Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60
Pump
Special anti-rust treatment for cast iron pump body and support
Anti-block system for impeller
Bass impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carbon steel shaft both available
Max.liquid temperature: +40ºC
Max. suction:+8m
Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60 Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
QB60 370W 1/2 2100 L/H 35 L/Min 35 M 8 M 1'' x 1'' IPX4
QB70 550W 3/4 2400 L/H 40 L/Min 50 M 8 M 1'' x 1'' IPX4
QB80 750W 1 3000 L/H 50 L/Min 60 M 8 M 1'' x 1'' IPX4

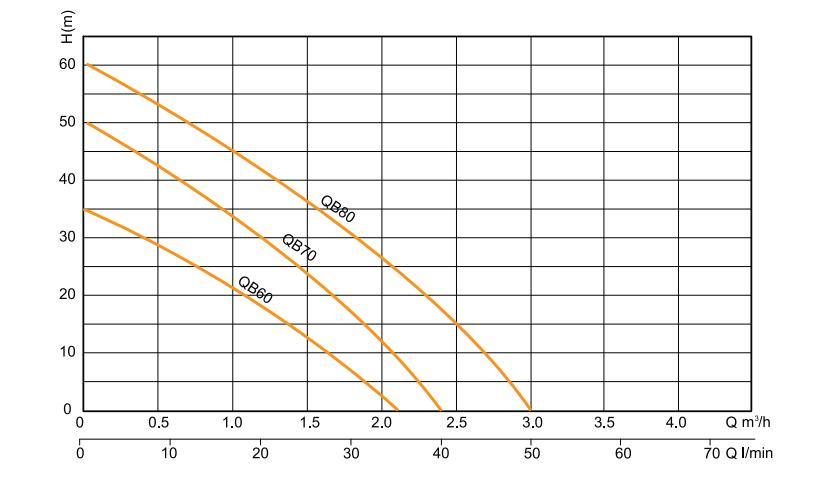

Performance Curve
Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60
Company view
Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60 Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60 Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60 Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60 Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60 Domestic Cast Iron Mini Boosting Water Pump 0.5HP Surface Use Qb60
