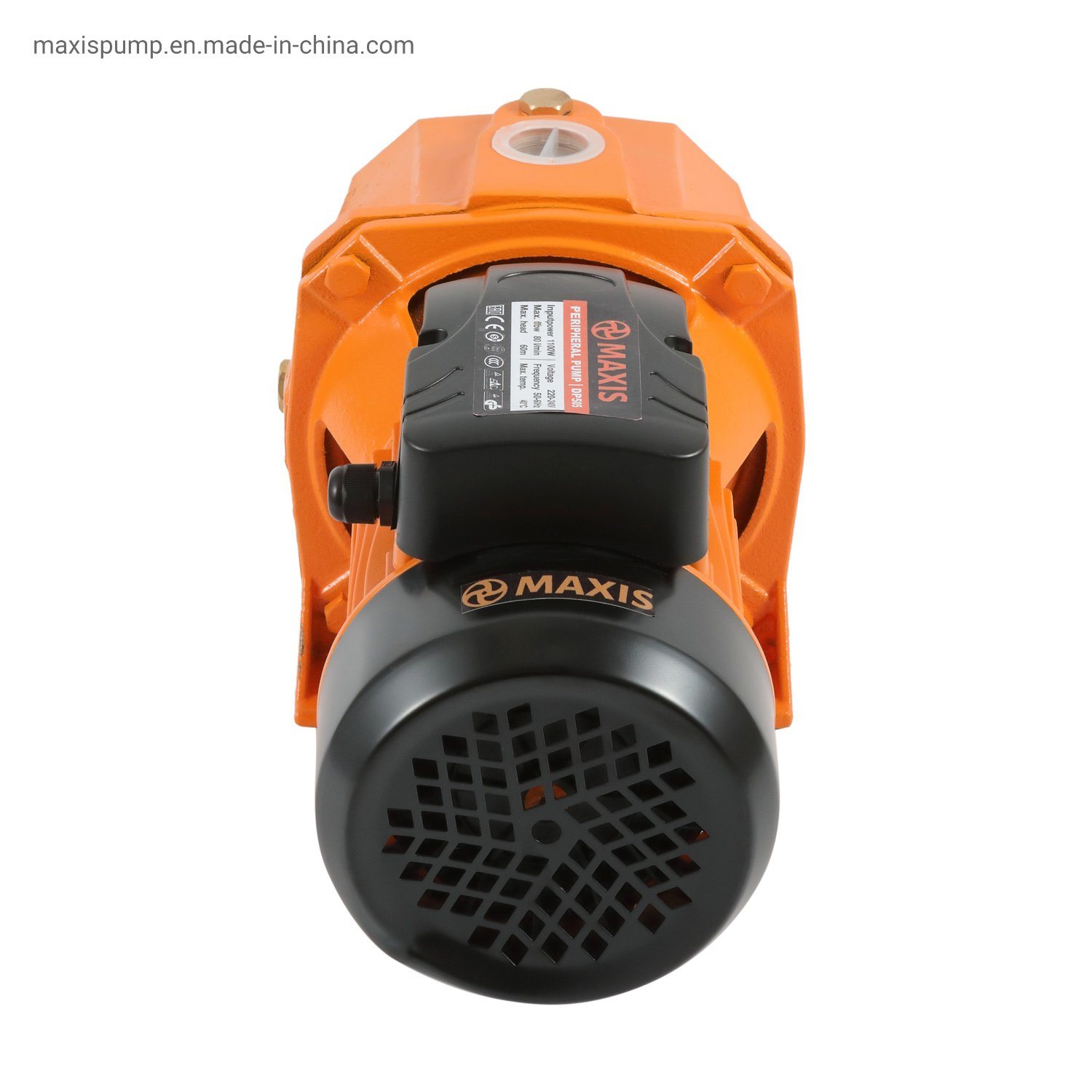

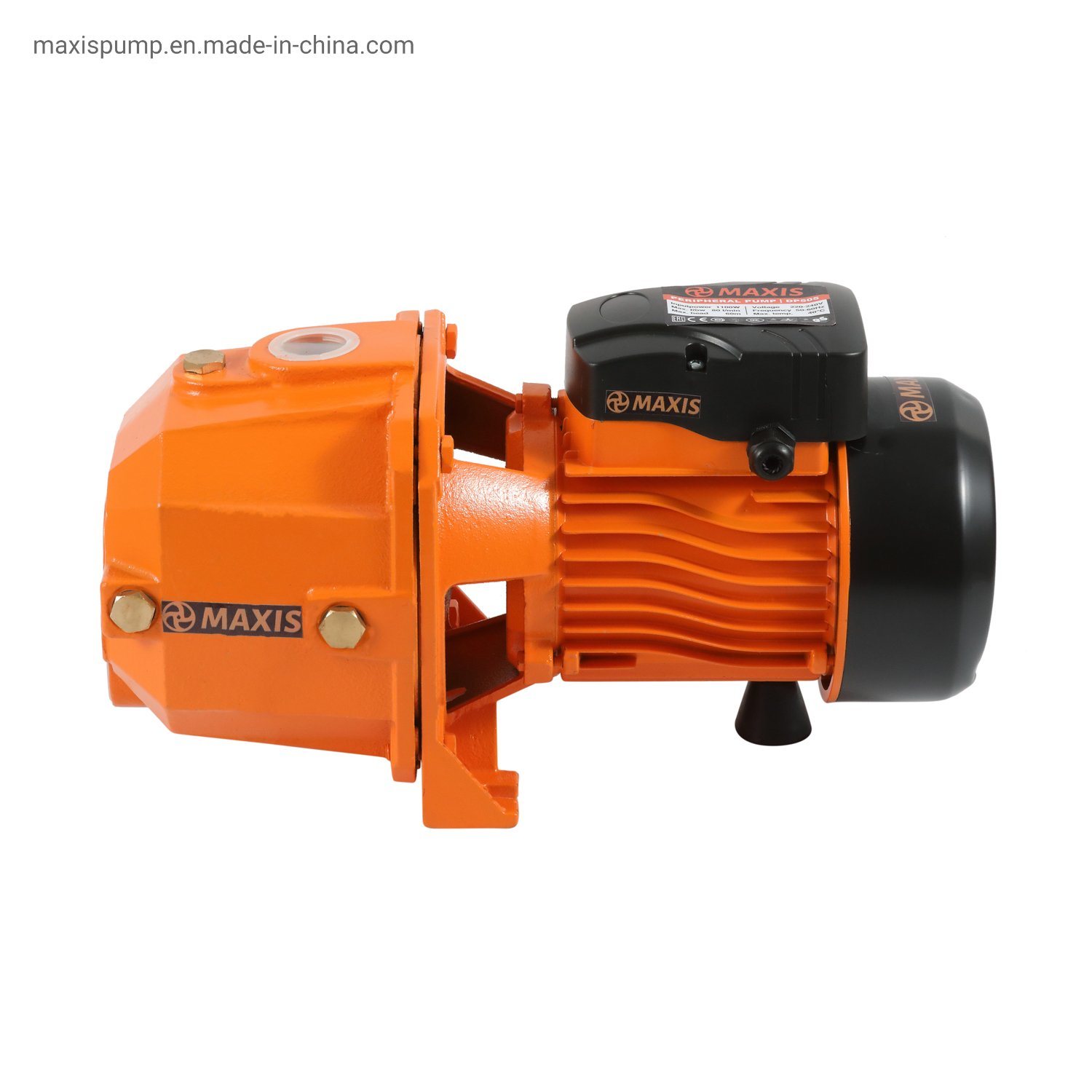

Deep Well Water Transferring Self Priming Water Jet Pump

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
50-100 L/min
Driving Type:
Motor
Material:
Cast Iron
Model NO.:
DP255
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Jet Pump
Application:
Casting Iron Pump
Industry:
Farm Irrigation
Media:
Clear Water Pump
Performance:
Centrifugal Pump
Theory:
Jet Pump
Certificate:
CE GS RoHS
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 40/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

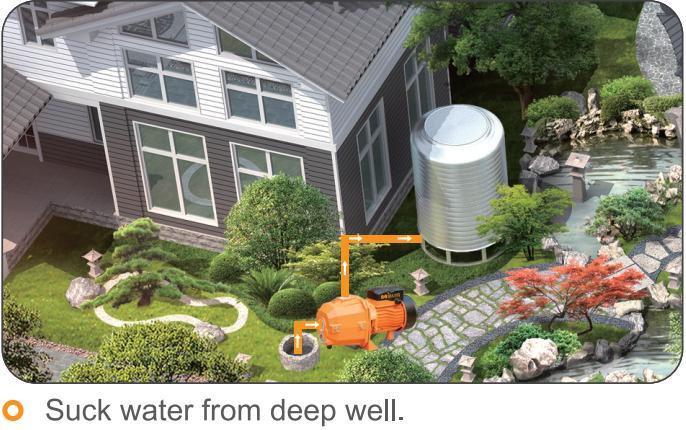

2. Suitable for pumping water from lake, river and well
3. Industrial use and agricultural irrigation
Deep Well Water Transferring Self Priming Water Jet Pump

Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbo Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
Deep Well Water Transferring Self Priming Water Jet Pump

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
DP255	550W	3/4	1800 L/H	30 L/Min	40 M	20 M	1¼'' x 1''	IPX4
DP370	750W	1	2400 L/H	40 L/Min	45 M	25 M	1¼'' x 1''	IPX4
DP505	1100W	1.5	4800 L/H	80 L/Min	60 M	20 M	1½'''' x 1''	IPX4
DP600	1500W	2	6000 L/H	100 L/Min	60 M	25 M	1½'''' x 1''	IPX4

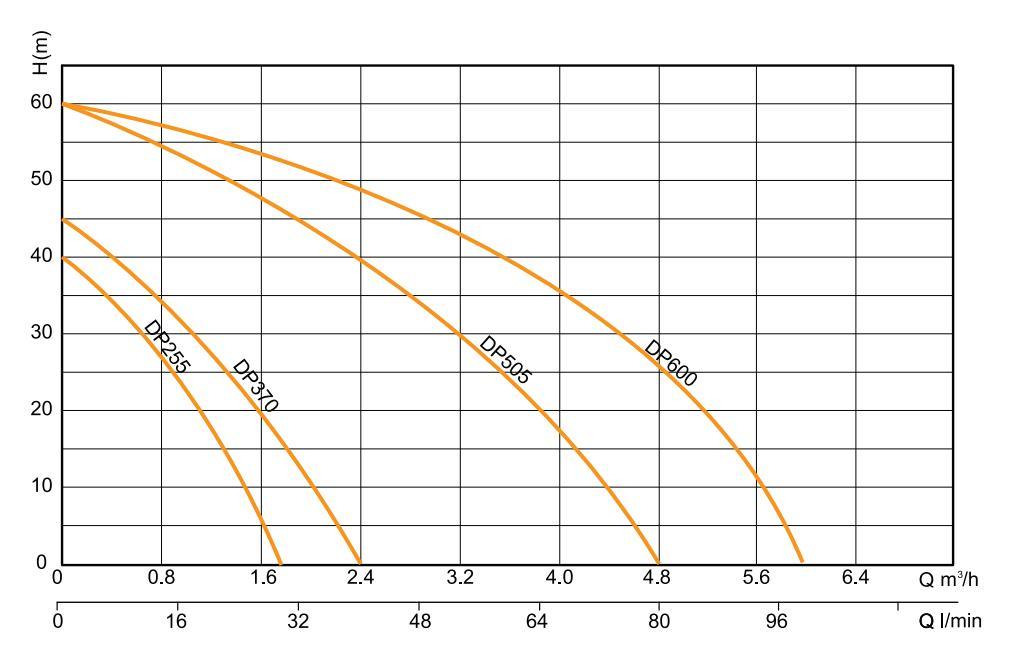

Performance Curve

Company view
Deep Well Water Transferring Self Priming Water Jet Pump
