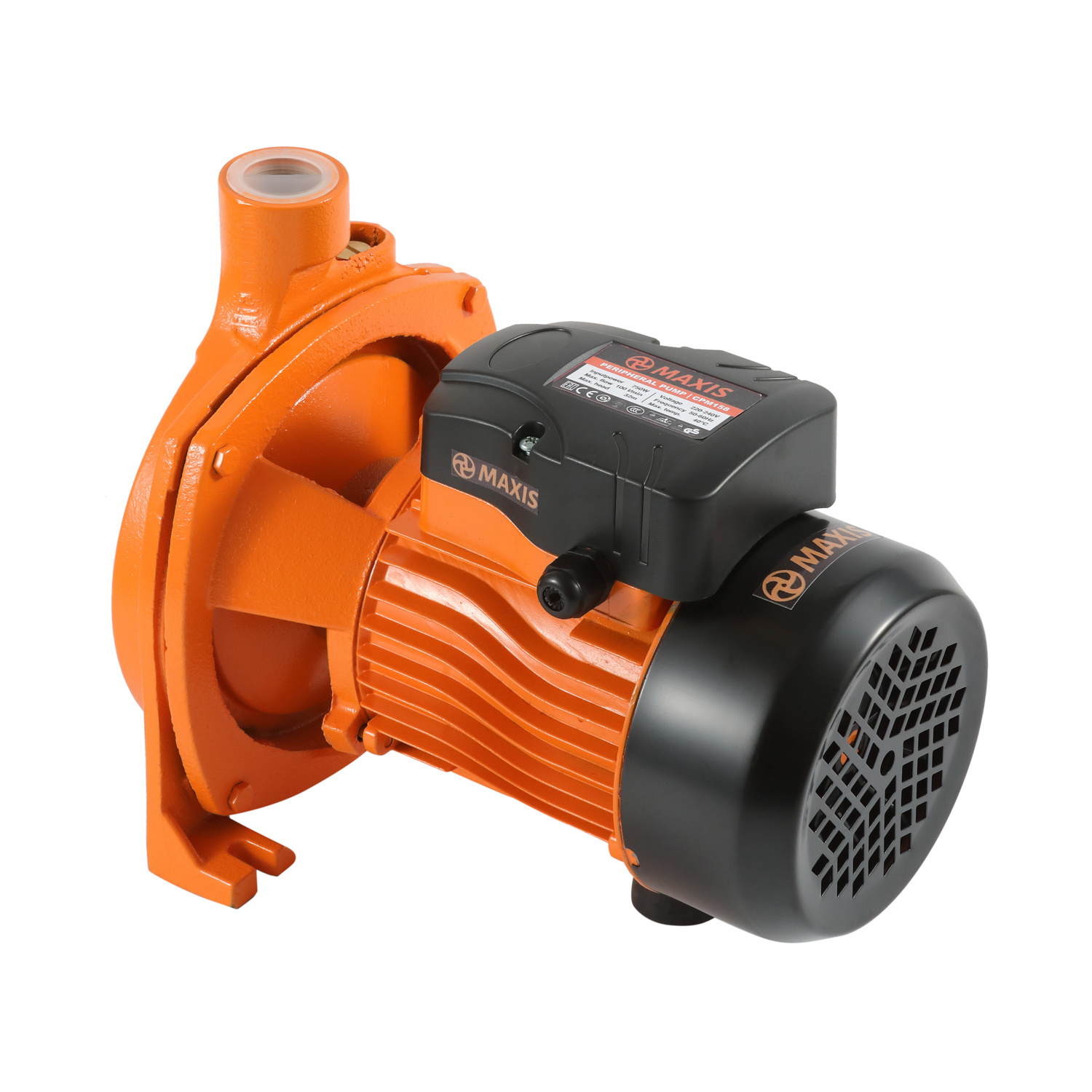

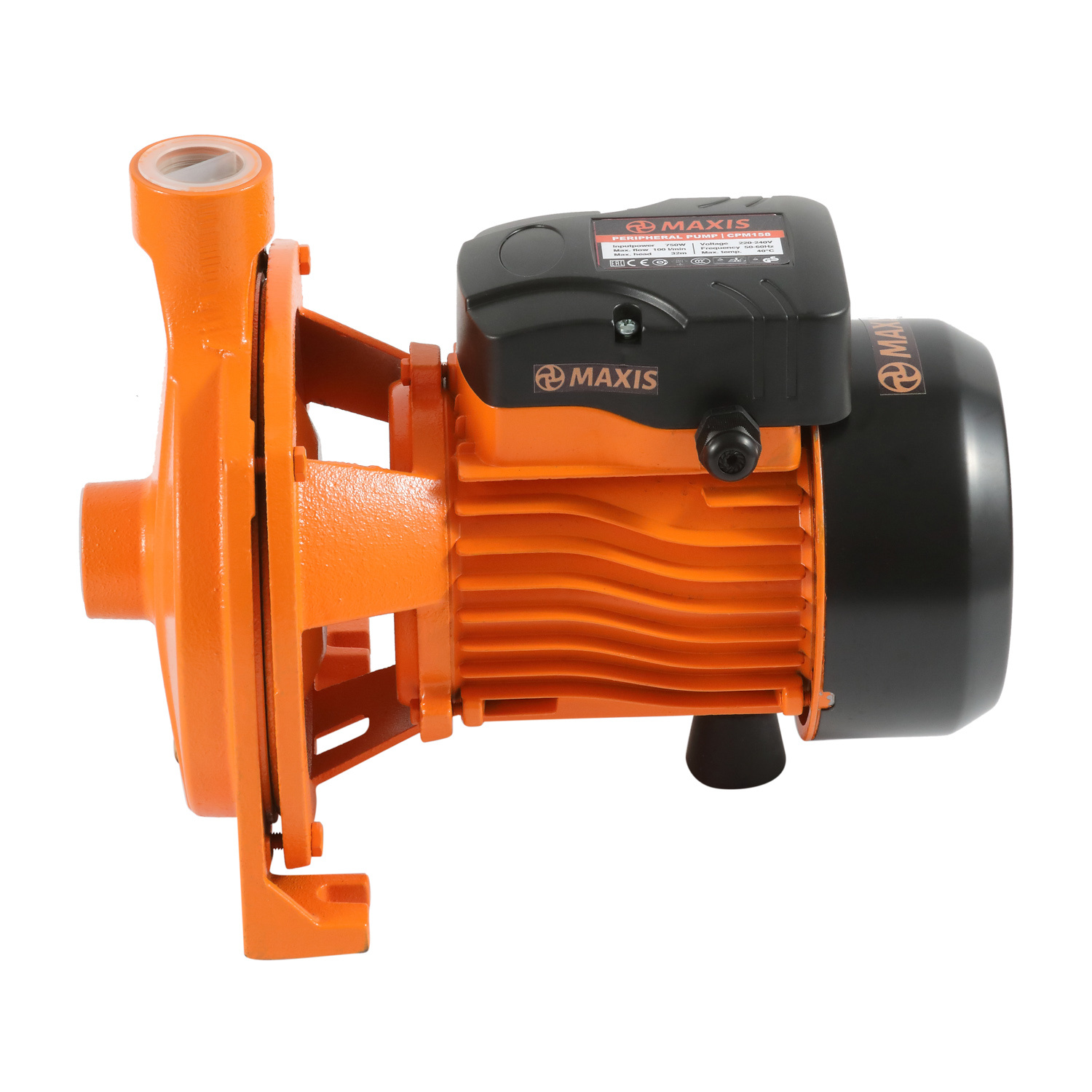

Cpm Series 130 146 158 Centrifugal Pump Price with High Flow

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
100-200 L/min
Driving Type:
Motor
Material:
Cast Iron
Model NO.:
CPM 158
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Centrifugal Pump
Application:
Transfer Water Pump
Industry:
Farm Irrigation Pump
Media:
Water
Performance:
Centrifugal Pump
Theory:
Centrifugal Pump
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

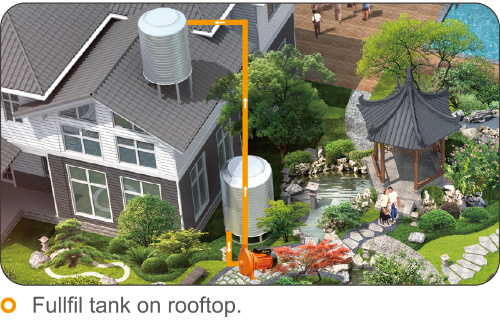

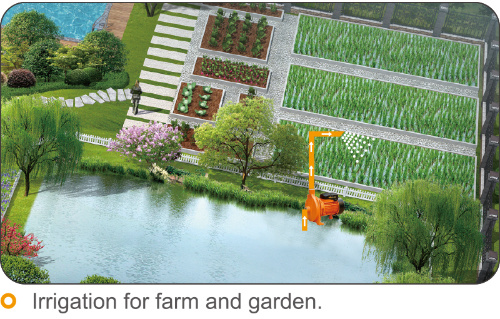

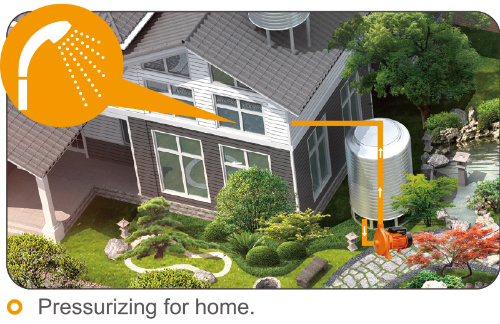

Suitable for lifting water from the well, sprinkling irrigation in garden pressure boosting of running water, and supporting equipment etc

Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carton steel shaft
Max.liquid temperature: +40ºC
Max. suction:+8

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
CPM 130	370W	1/2	4800 L/H	80 L/Min	18 M	8 M	1'' x 1''	IP44
CPM 146	550W	3/4	5800 L/H	96 L/Min	26 M	8 M	1'' x 1''	IP44
CPM 158	750W	1	6000 L/H	100 L/Min	32 M	8 M	1'' x 1''	IP44
CPM 180	1100W	1.5	6500 L/H	108 L/Min	32 M	8 M	1'' x 1''	IP44
CPM 200	1500W	2	6600 L/H	110 L/Min	38 M	8 M	1'' x 1''	IP44

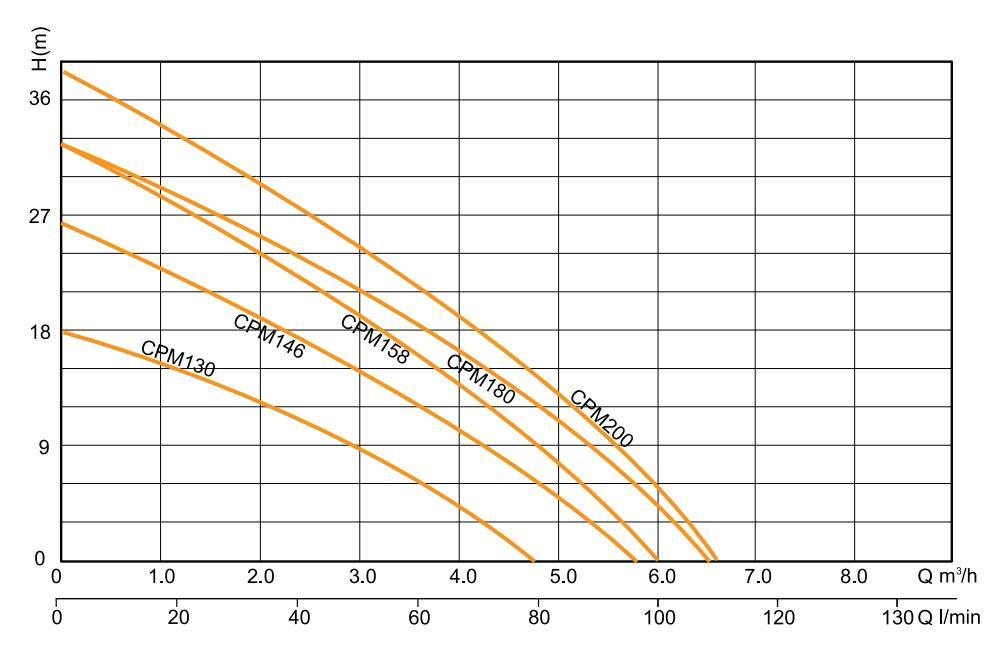

Peformance Curve

Company view
Cpm Series 130 146 158 Centrifugal Pump Price with High Flow

RFQ
Q: What is your MOQ of this item?
A: Regular MOQ is 500pcs, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year

Q:How about your service?
A:We have pre-sale, in-sale and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
