| Quantity: | |
|---|---|
Free Spare Parts
1 Year
10-30m
200-300 L/min
Motor
Stainless Steel
WQD0.75
Single-stage Pump
Liquid Pumps
Electric
Electric Pump
Blade Pump
Submersible Pump, Sewage Pump
Wastewater Drainage
Sewage Pumps
Wear Pump
Mixed Flow Pump
CE GS RoHS PAHs
Carton
8.5kg
MAXIS
China
8413709990
500000PCS/Year
US$ 35/Piece 1 Piece(Min.Order) | Request Sample

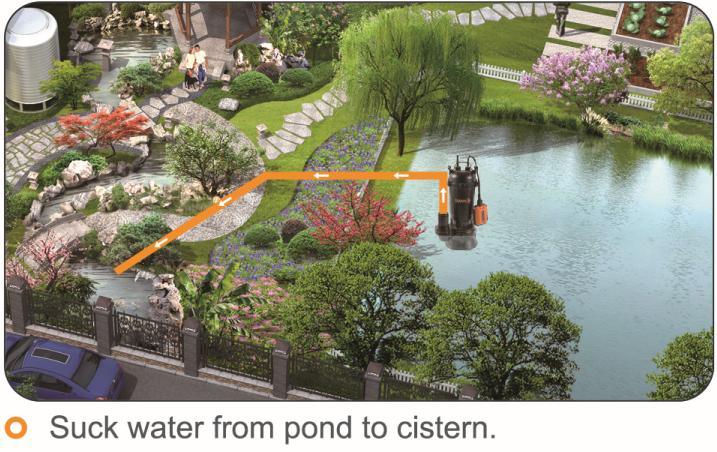

Application
1. Wastewater drainage in factories, constructionsites and commercial facilities
2. Drainage system in municipal sewage treatment plants
3. Drainage station in residential quarters
4. Municipal projects
5. Methans pools and field irrigation in countries

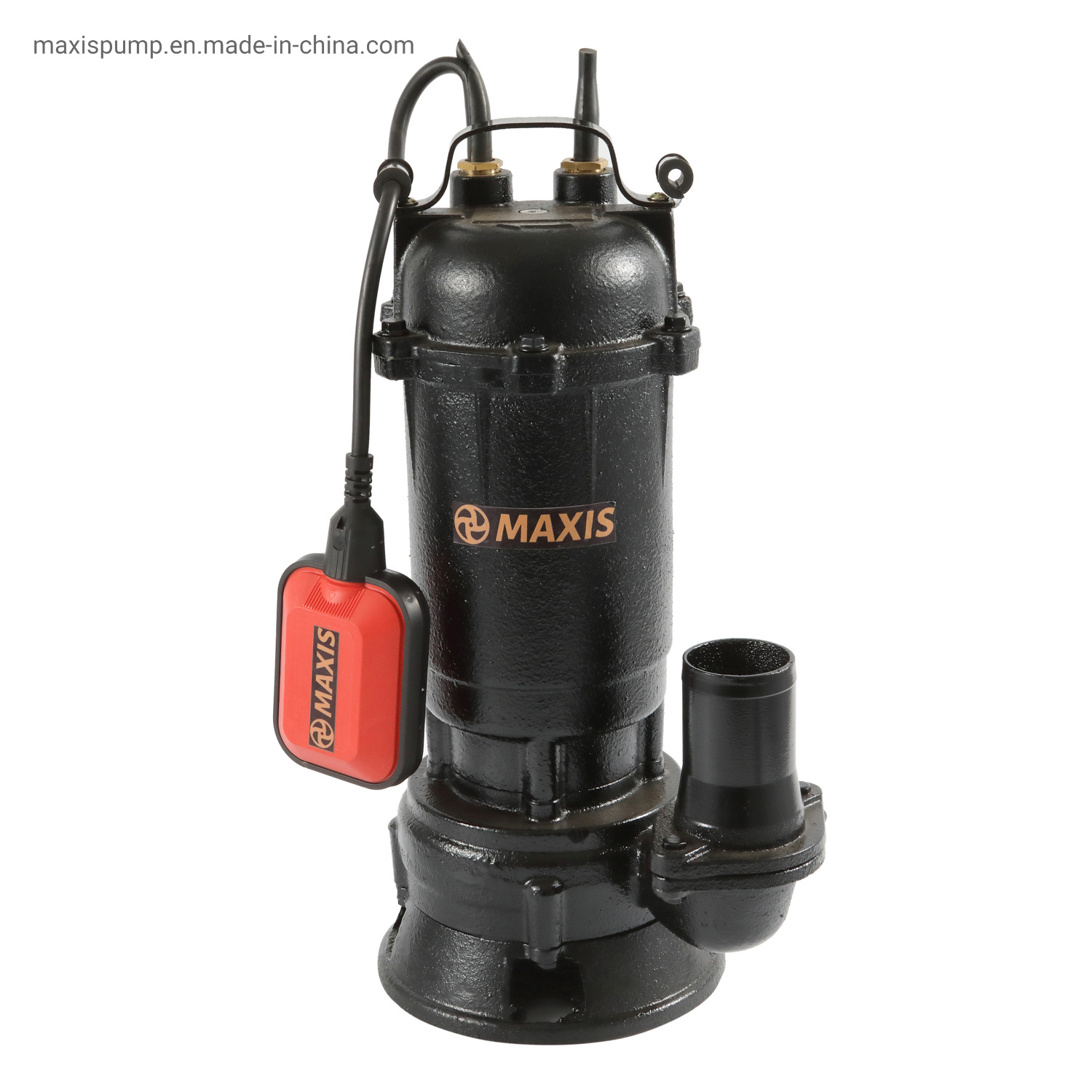

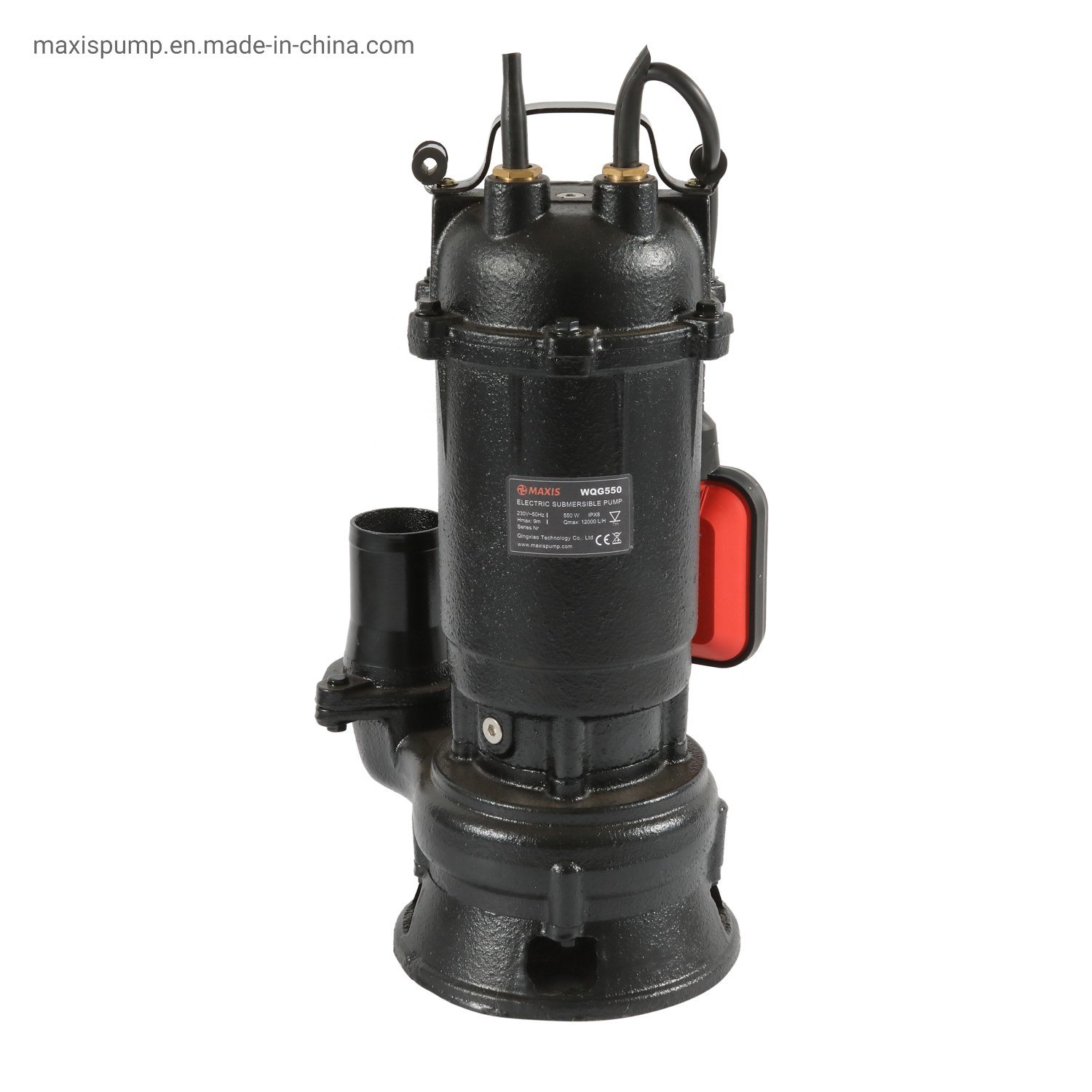

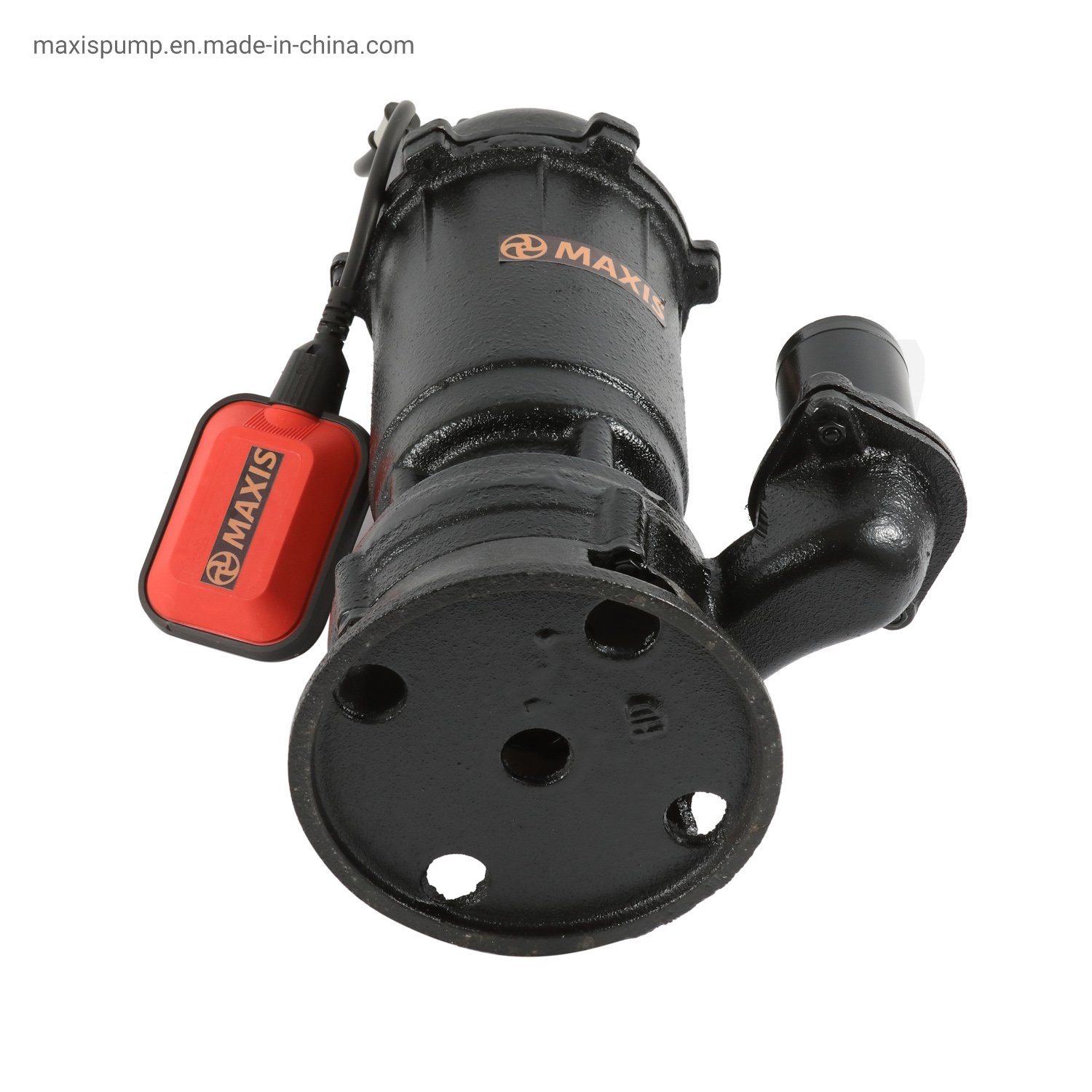

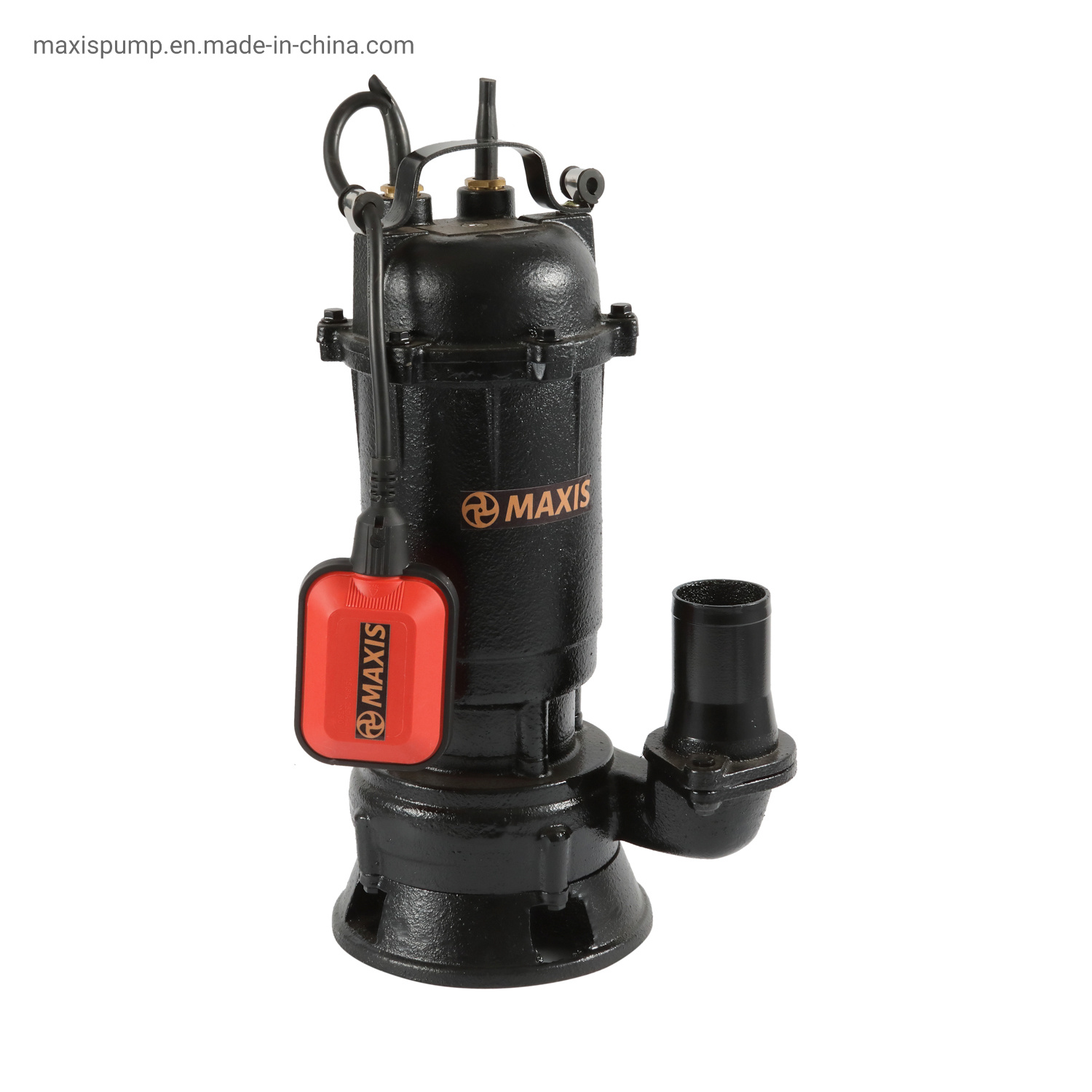

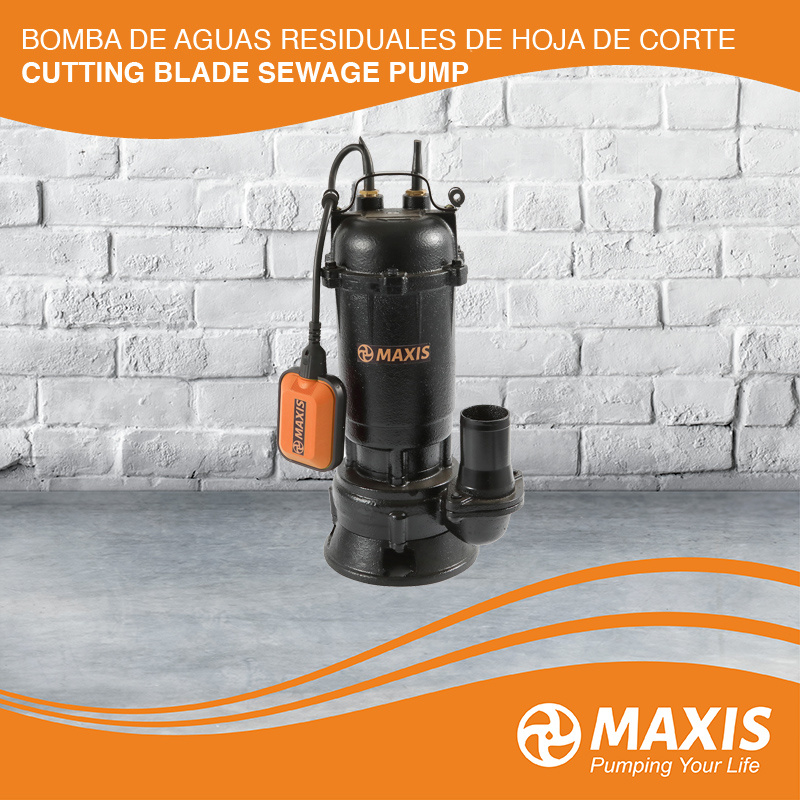

Pump

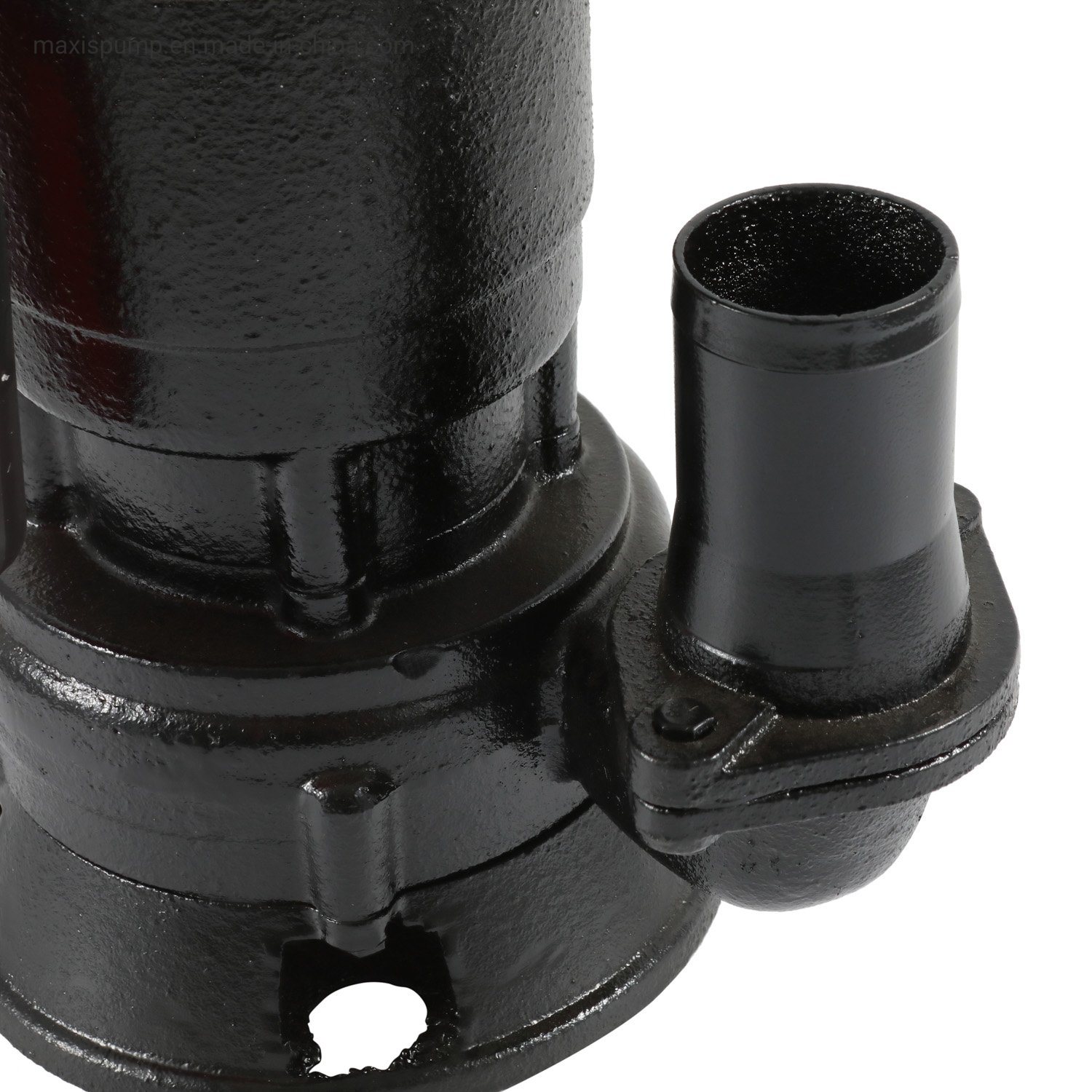

Casting Iron pump body
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
Stainless steel welded shaft
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m

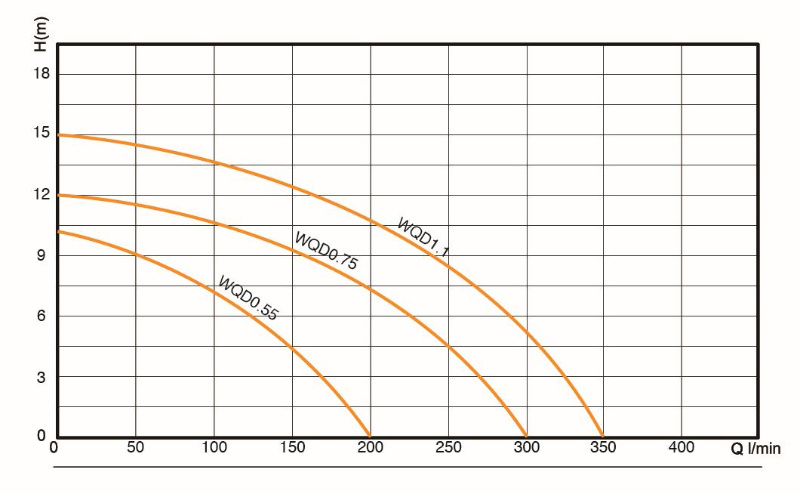

Techenical Data | Model | Mains | Power | HP | Max Flow | Max Head | Max Suction | Inlet / Outlet | Protection rating | |
| WQD0.55 | 230V~50HZ | 550W | 1/3 | 4000 | 200 L/Min | 10 M | 8 M | 2'' | IPX8 |
| WQD0.75 | 230V~50HZ | 750W | 1/2 | 6000 | 300 L/Min | 12 M | 8 M | 2'' | IPX8 |
| WQD1.1 | 230V~50HZ | 1100W | 3/4 | 5000 | 350 L/Min | 15 M | 8 M | 2'' | IPX8 |
Application
1. Wastewater drainage in factories, constructionsites and commercial facilities
2. Drainage system in municipal sewage treatment plants
3. Drainage station in residential quarters
4. Municipal projects
5. Methans pools and field irrigation in countries
Pump
Casting Iron pump body
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
Stainless steel welded shaft
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
Techenical Data | Model | Mains | Power | HP | Max Flow | Max Head | Max Suction | Inlet / Outlet | Protection rating | |
| WQD0.55 | 230V~50HZ | 550W | 1/3 | 4000 | 200 L/Min | 10 M | 8 M | 2'' | IPX8 |
| WQD0.75 | 230V~50HZ | 750W | 1/2 | 6000 | 300 L/Min | 12 M | 8 M | 2'' | IPX8 |
| WQD1.1 | 230V~50HZ | 1100W | 3/4 | 5000 | 350 L/Min | 15 M | 8 M | 2'' | IPX8 |
