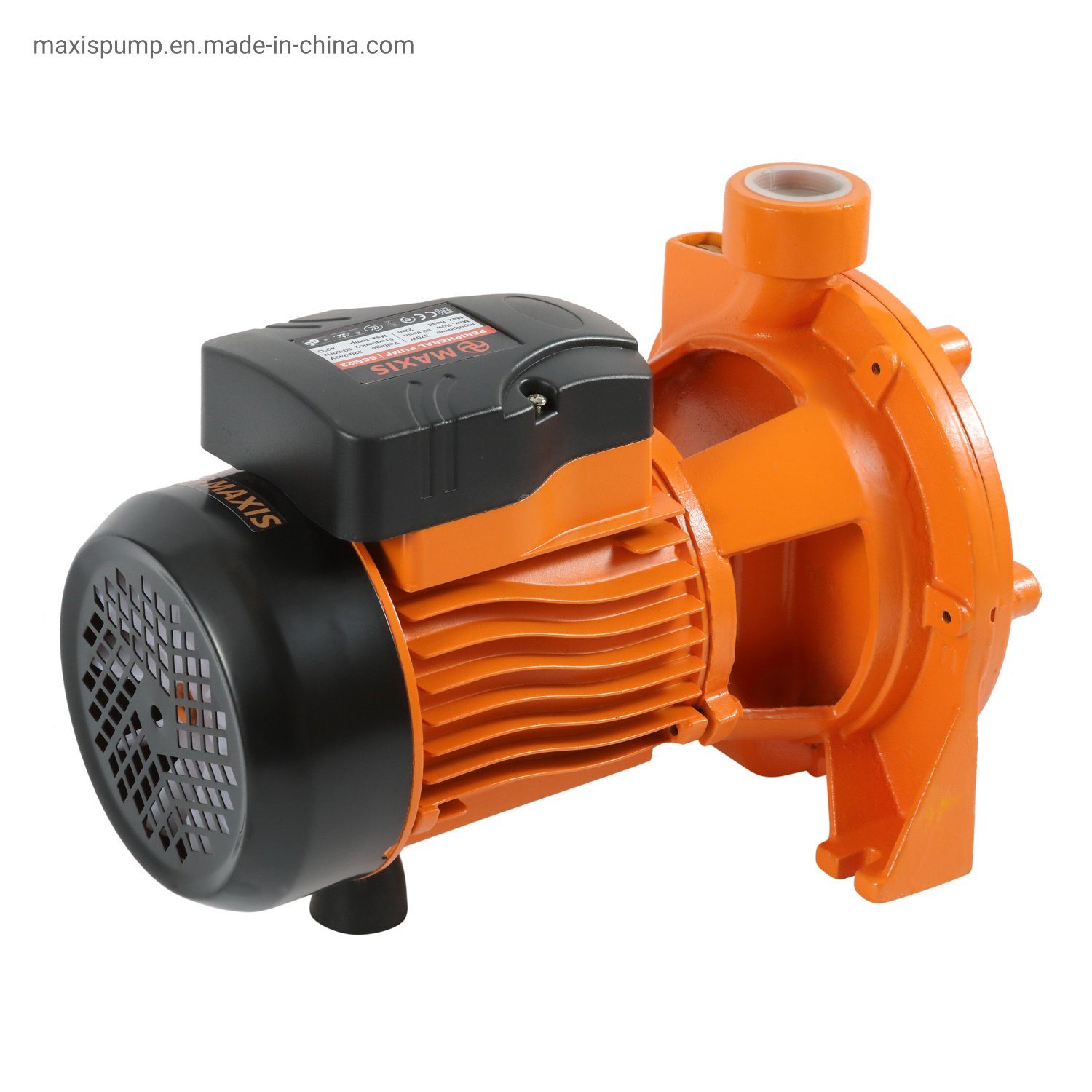

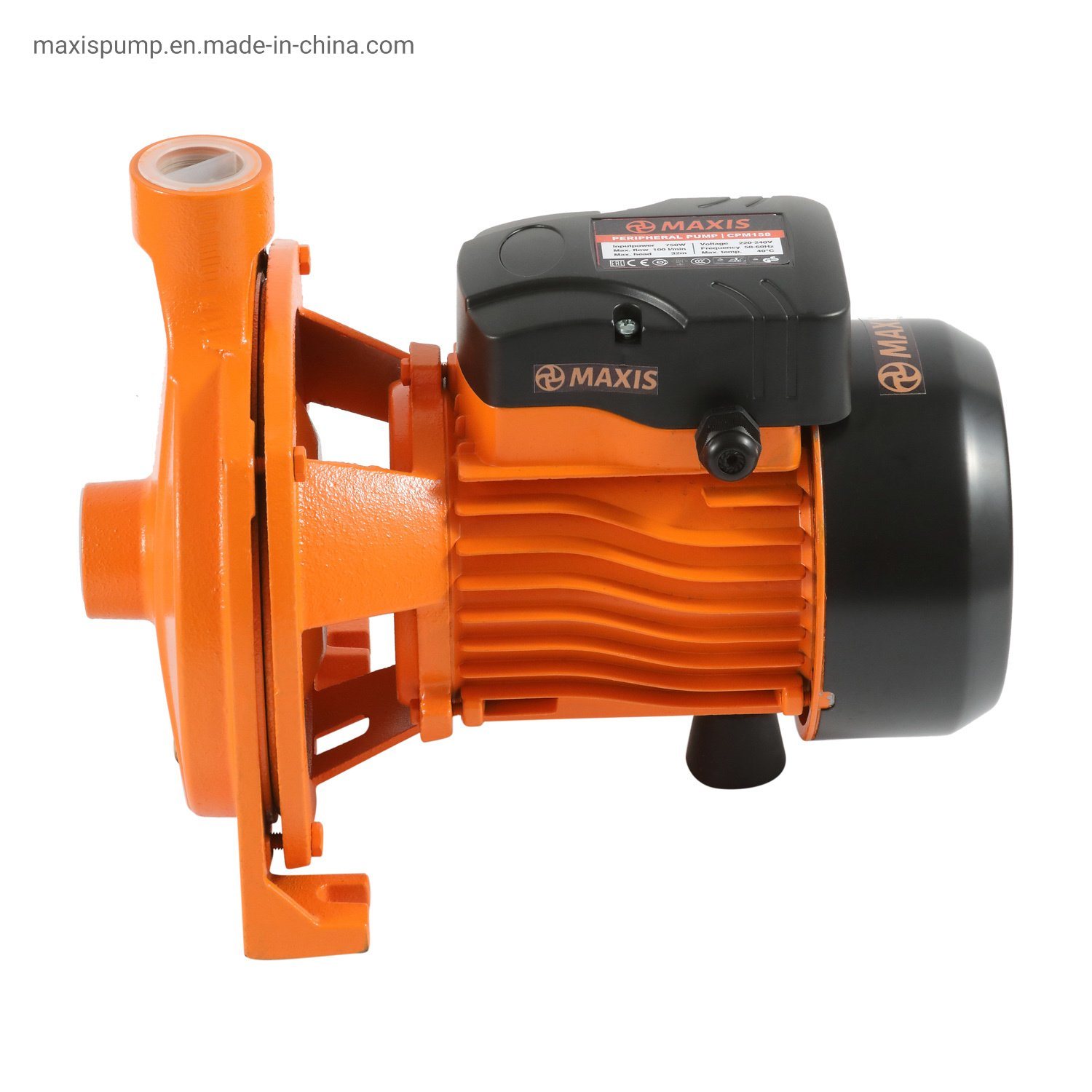

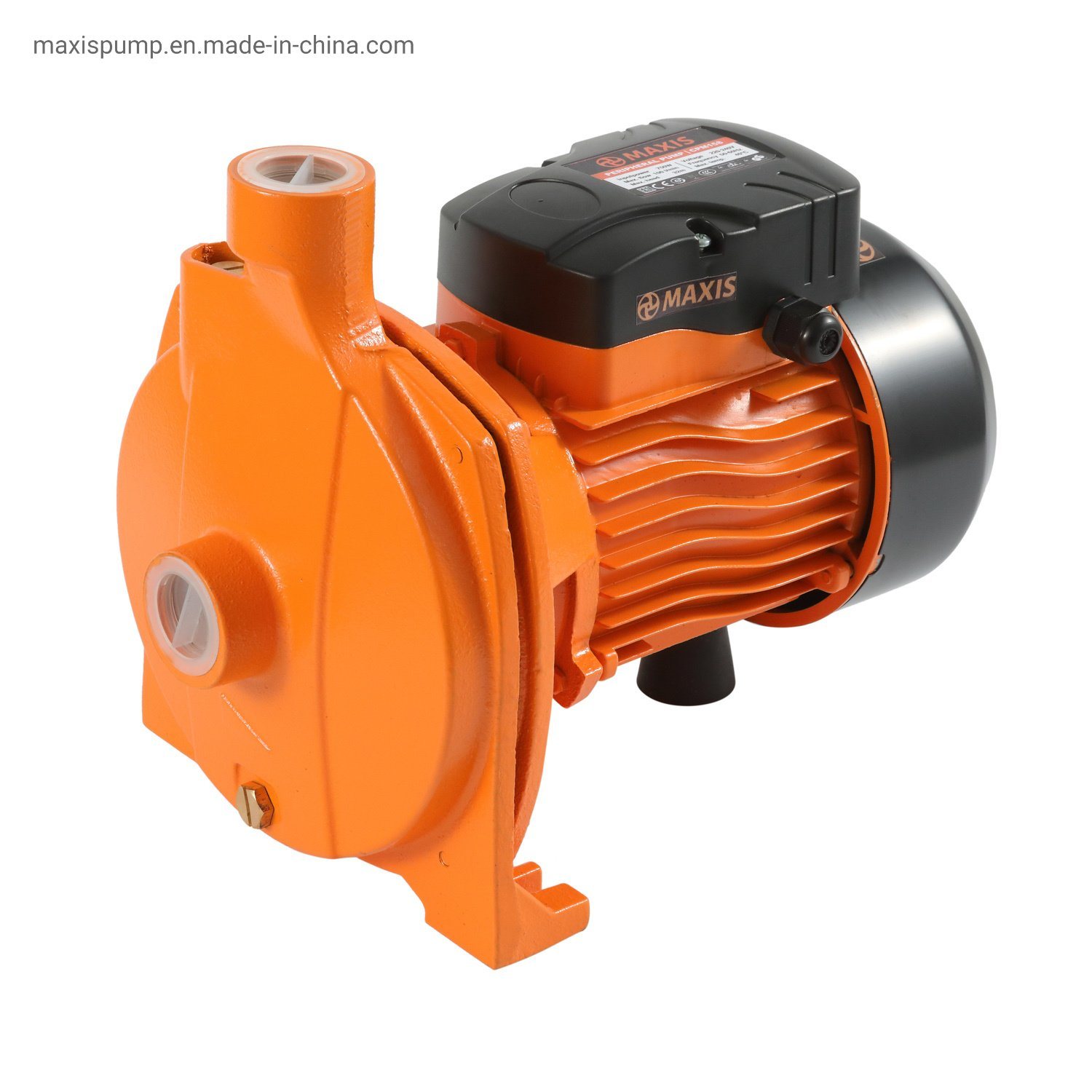

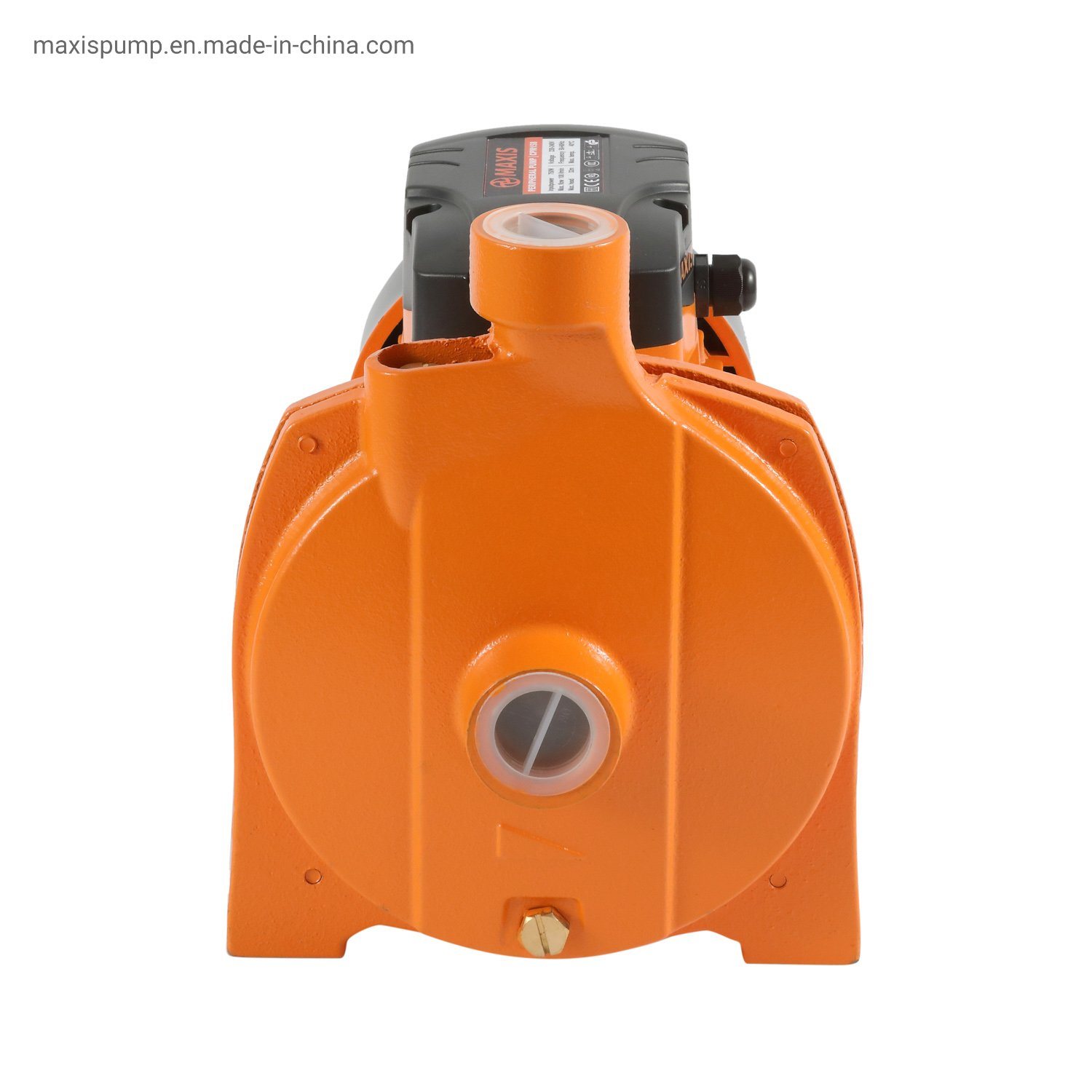

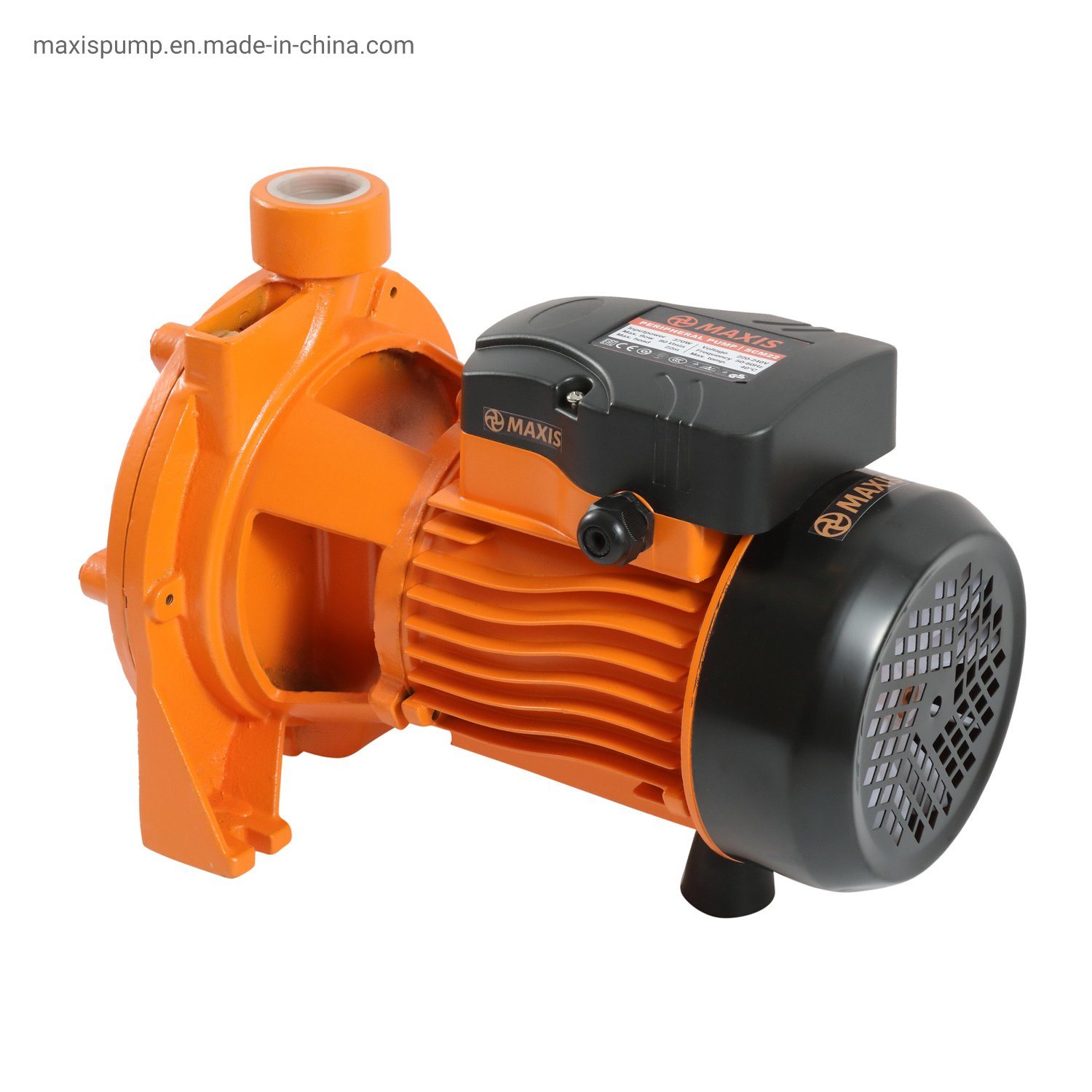

Casting Iron Water Pumping Machine for Farm and Garden Irrigation with High Flow Rate

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
100-200 L/min
Driving Type:
Motor
Impeller Number:
Single-Stage Pump
Model NO.:
CPM146
Working Pressure:
High Pressure Pump
Influent Type of Impeller:
Single Suction Pump
Position of Pump Shaft:
Horizontal Pump
Pump Casing Combined:
Verticaljoint Surface Pump
Mounting Height:
Suction Centrifugal
Impeller:
Closed
Usage:
Transfer Water Pump
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000/Year
Samples:
US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

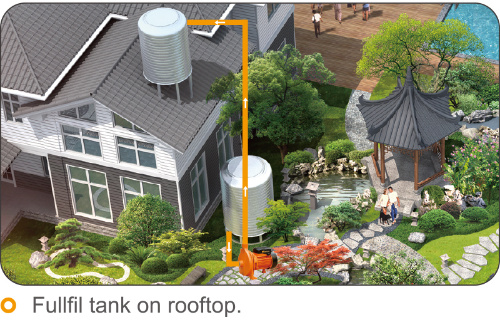

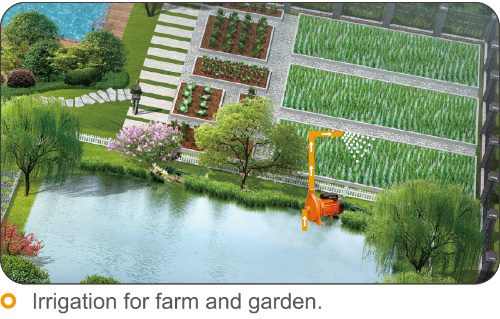

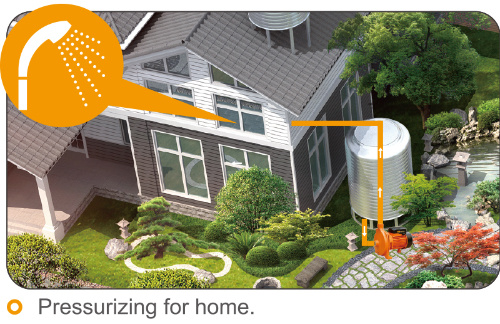

Suitable for lifting water from the well, sprinkling irrigation in garden pressure boosting of running water, and supporting equipment etc

Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carton steel shaft
Max.liquid temperature: +40ºC
Max. suction:+8

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
CPM 130	370W	1/2	4800 L/H	80 L/Min	18 M	8 M	1'' x 1''	IP44
CPM 146	550W	3/4	5800 L/H	96 L/Min	26 M	8 M	1'' x 1''	IP44
CPM 158	750W	1	6000 L/H	100 L/Min	32 M	8 M	1'' x 1''	IP44
CPM 180	1100W	1.5	6500 L/H	108 L/Min	32 M	8 M	1'' x 1''	IP44
CPM 200	1500W	2	6600 L/H	110 L/Min	38 M	8 M	1'' x 1''	IP44

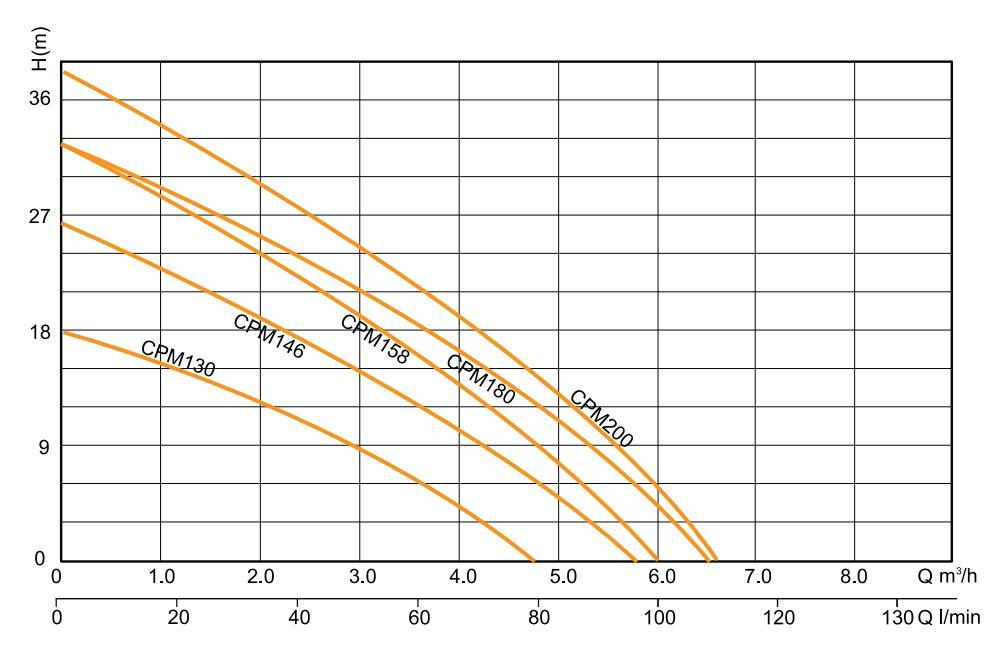

Peformance Curve

Company view
Casting Iron Water Pumping Machine for Farm and Garden Irrigation with High Flow Rate

RFQ
Q: What is your MOQ of this item?
A: Regular MOQ is 500pcs, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year

Q:How about your service?
A:We have pre-sale, in-sale and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.

Casting Iron Water Pumping Machine for Farm and Garden Irrigation with High Flow Rate

Welcome Inqiury:

Casting Iron Water Pumping Machine for Farm and Garden Irrigation with High Flow Rate

Centrifugal Pump Casting Iron Pump Electric Water Pumps
