Brass Pump Body Cast Iron Heating System Electric Boiler Circulating Water Pumps

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
<10m
Max.Capacity:
<50 L/min
Driving Type:
Motor
Material:
Cast Iron
Model NO.:
RS15-6
Structure:
Single-stage Pump
Assembly:
Pipeline Pump
Power:
Electric
Start Up:
Electric Pump
Type:
Circulating Pump
Application:
Circulation Pump
Industry:
Heating System
Media:
Hot Water
Performance:
Wear Pump
Theory:
Mixed Flow Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Carton
Specification:
8.5kg
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 20/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

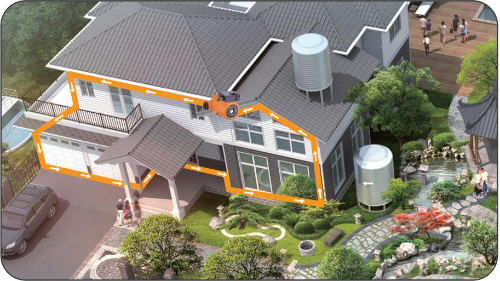

Circulation for the underfloor heating system or equipment

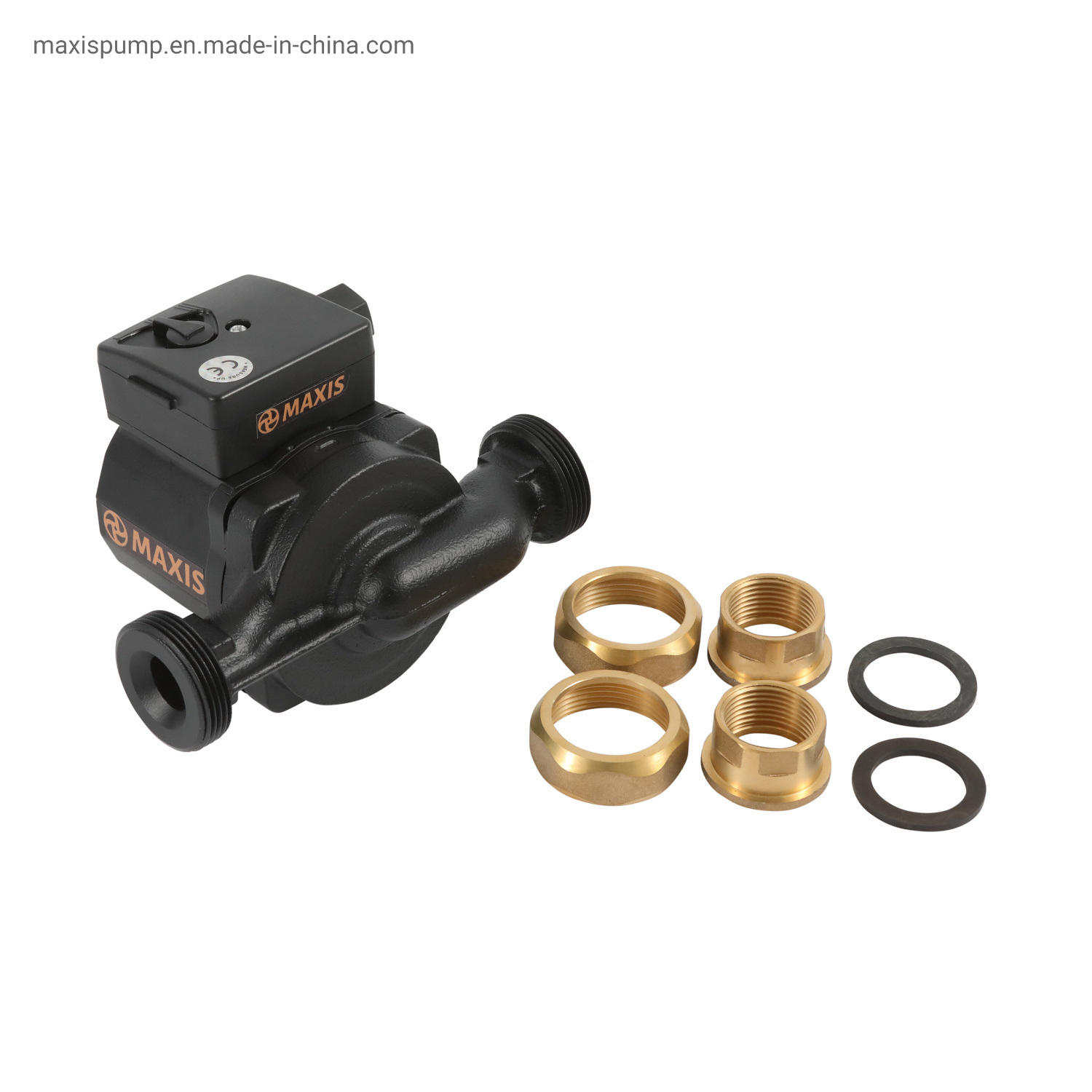

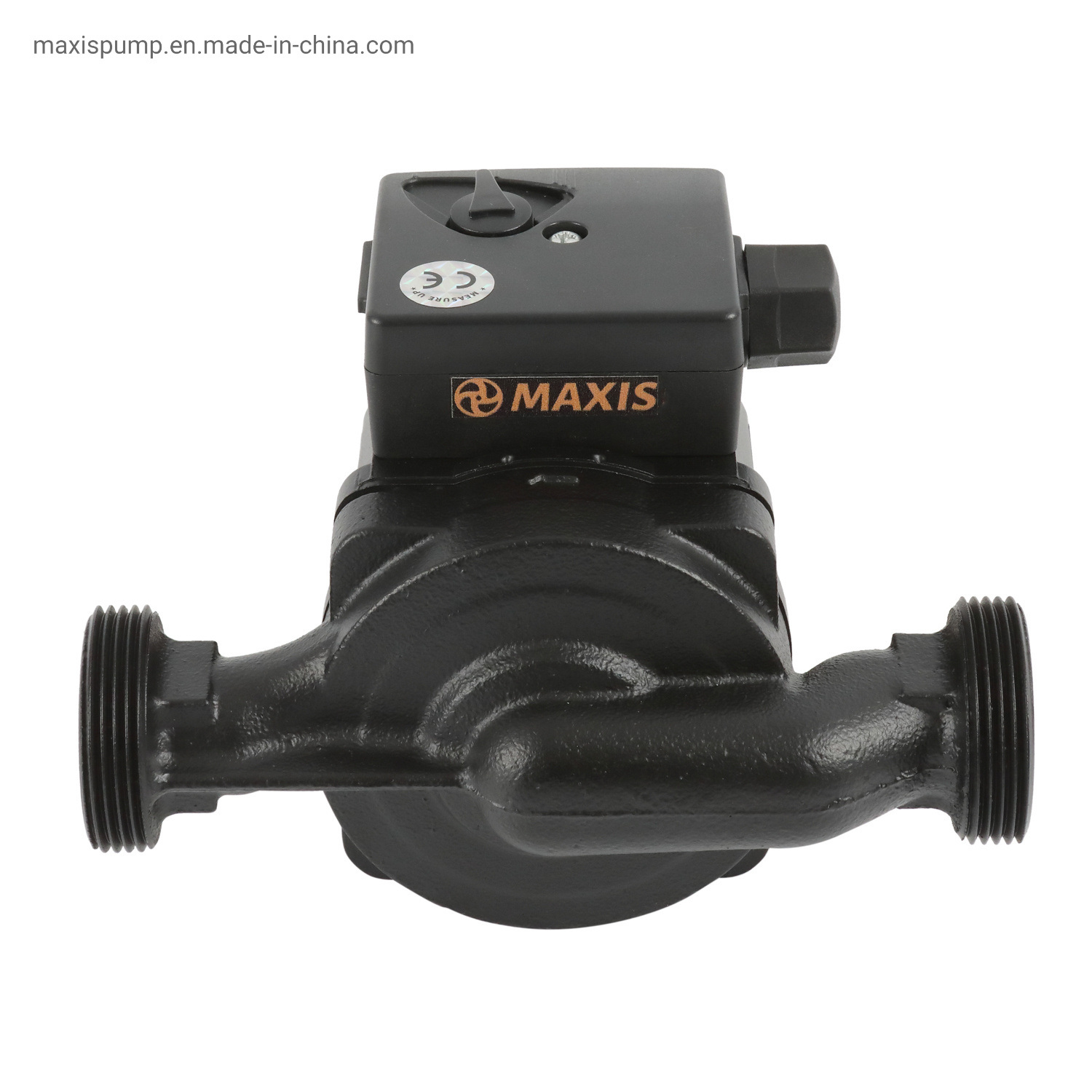

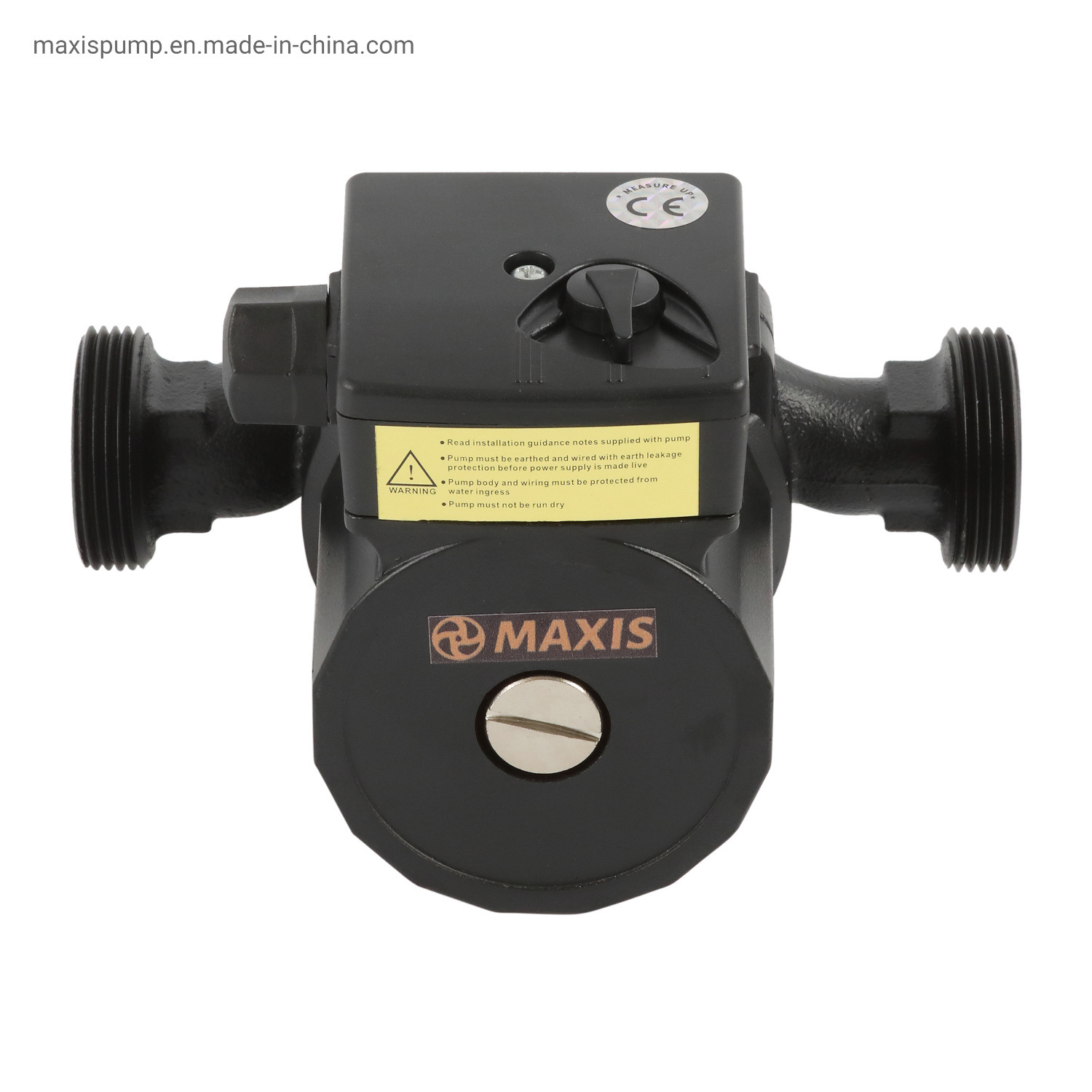

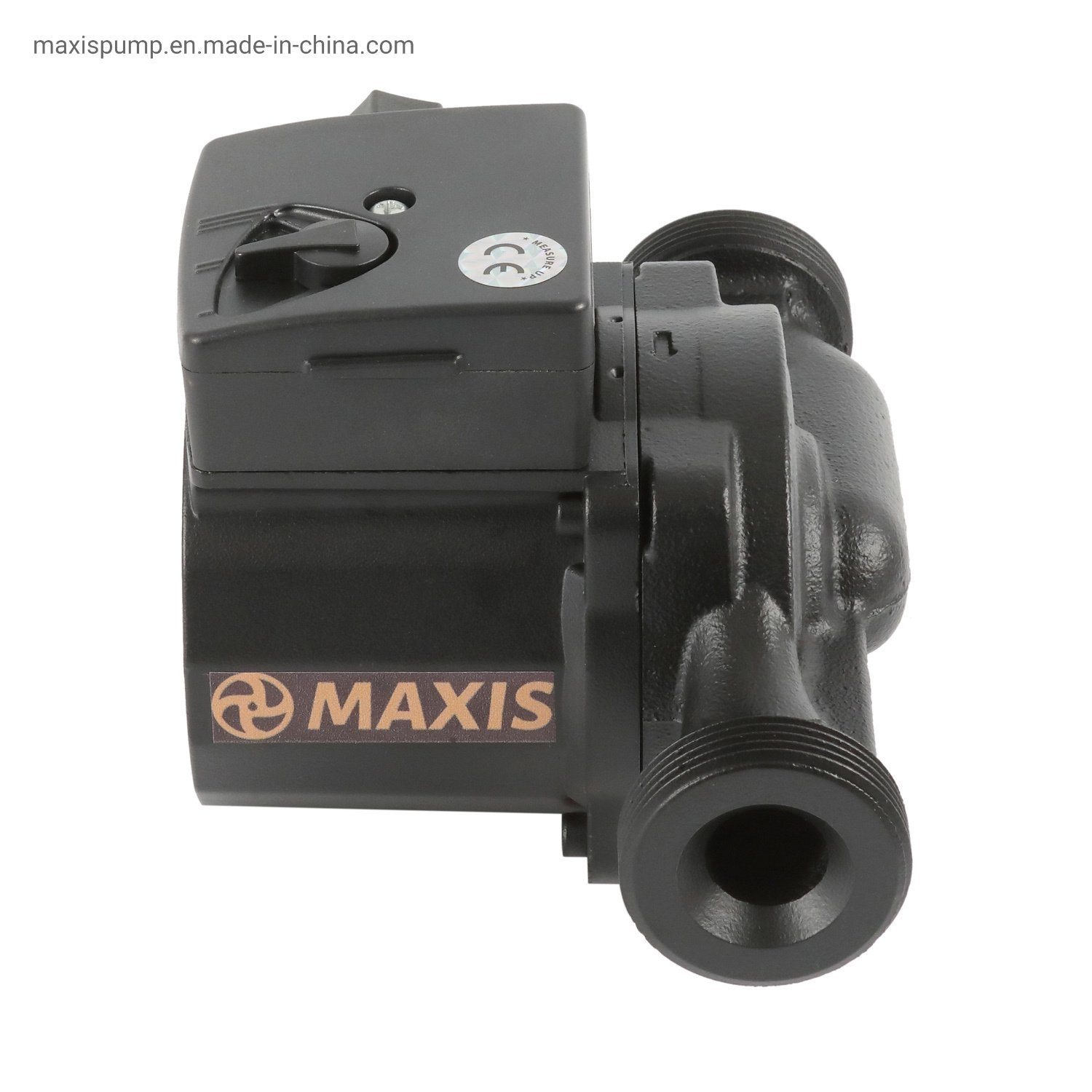

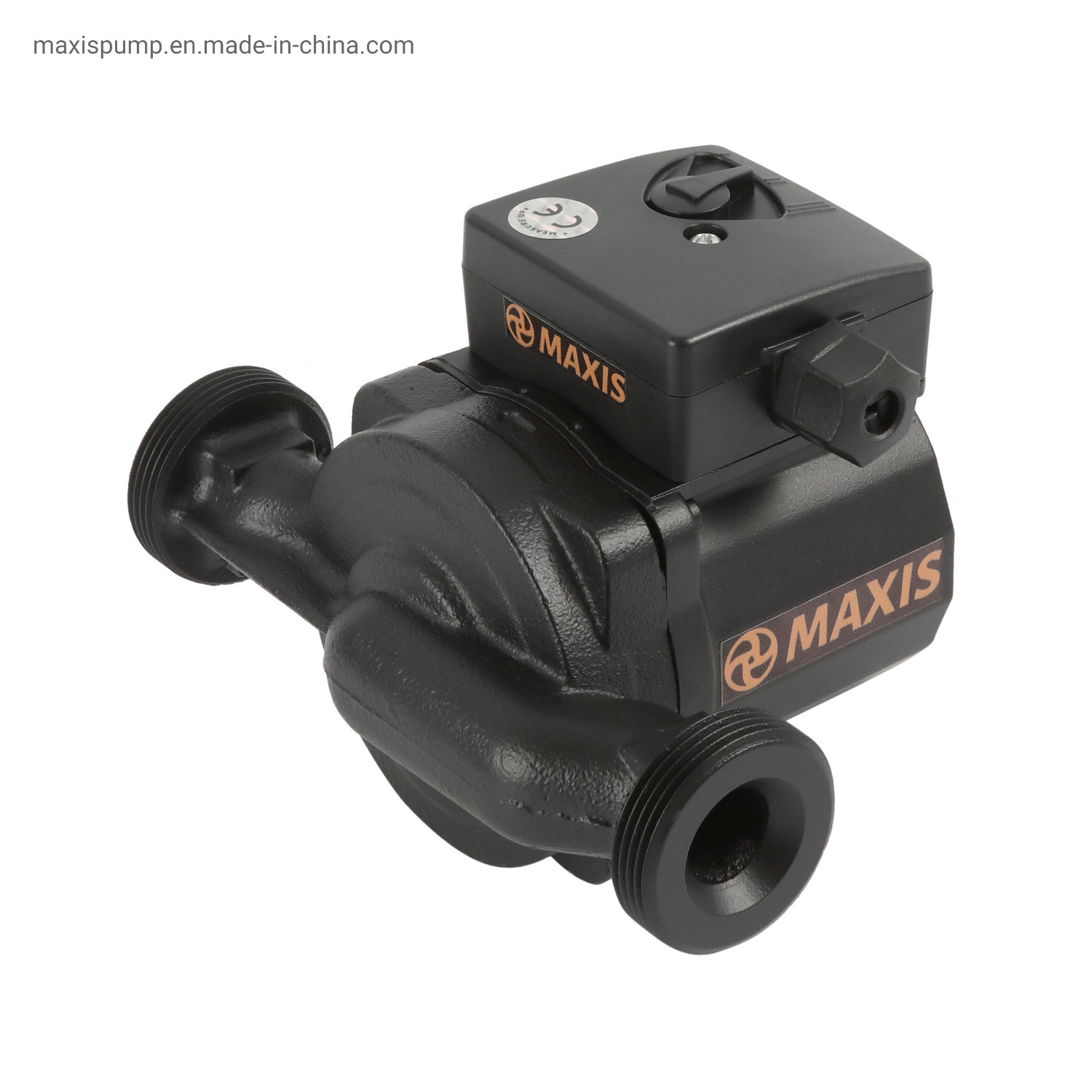

Brass Pump Body Cast Iron Heating System Electric Boiler Circulating Water Pumps
Pump
Casting Iron pump body
Motor with cooper winding both available
Built-in thermal protector for single phase motor
High quality bearing
Max.liquid temperature: +100ºC

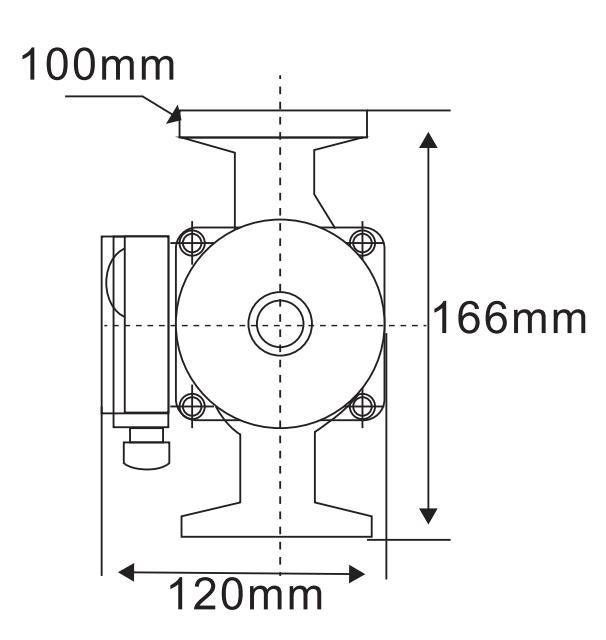

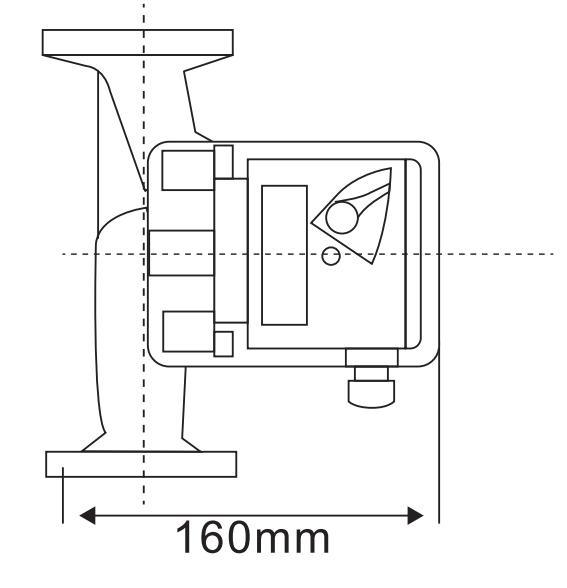

Pump Size
Techenical Data

Model	Power	Max Flow	Max Head	Inlet / Outlet	Protection rating
RS15-4	72/53/38W	42/34/23 L/Min	4.5/4/3 M	1'' x 1''	IP44
RS25-4	72/53/38W	48/36/18 L/Min	4.5/4/3 M	1.5'' x 1.5''	IP44
RS32-4	72/53/38W	48/36/18 L/Min	4.5/4/3 M	2'' x 2''	IP44
RS15-6	93/67/46W	48/35/21 L/Min	6/5/3 M	1'' x 1''	IP44
RS25-6	93/67/46W	55/38/22 L/Min	6/5/3 M	1.5'' x 1.5''	IP44
RS32-6	93/67/46W	55/38/22 L/Min	6/5/3 M	2'' x 2''	IP44
RS15-8	270/210/150W	160/103/43 L/Min	8/7.5/6 M	1'' x 1''	IP44
RS25-8	270/210/150W	115/95/45 L/Min	8/7.5/6 M	1.5'' x 1.5''	IP44
RS32-8	270/210/150W	160/103/43 L/Min	8/7.5/6 M	2'' x 2''	IP44

Company Information

RFQ
Q: What is your MOQ of this item?
A: Regular MOQ is 500pcs, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year

Q:How about your service?
A:We have pre-sale, in-sale and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
