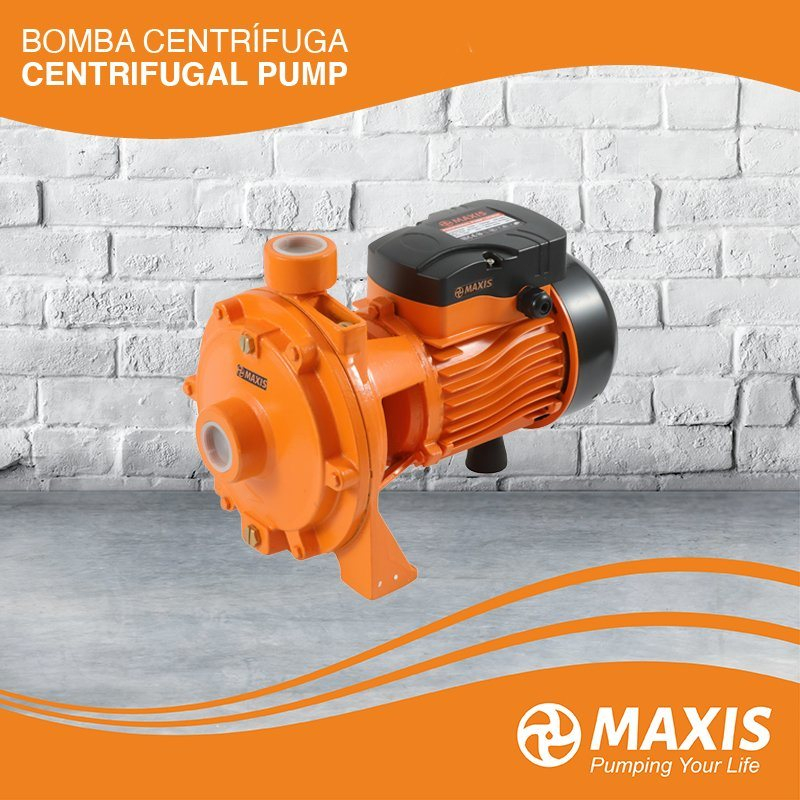

Brass Impeller 100% Cooper Wire Powe Centrifugal Electric Scm50 Centrifugal Pump

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
100-200 L/min
Driving Type:
Motor
Material:
Cast Iron
Model NO.:
SCM50
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Centrifugal Pump
Application:
Clarified Water Pump
Industry:
Farm Irrigation
Media:
Water
Performance:
Centrifugal Pump
Theory:
Centrifugal Pump
Certificate:
CE GS RoHS
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
2. Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.

Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m

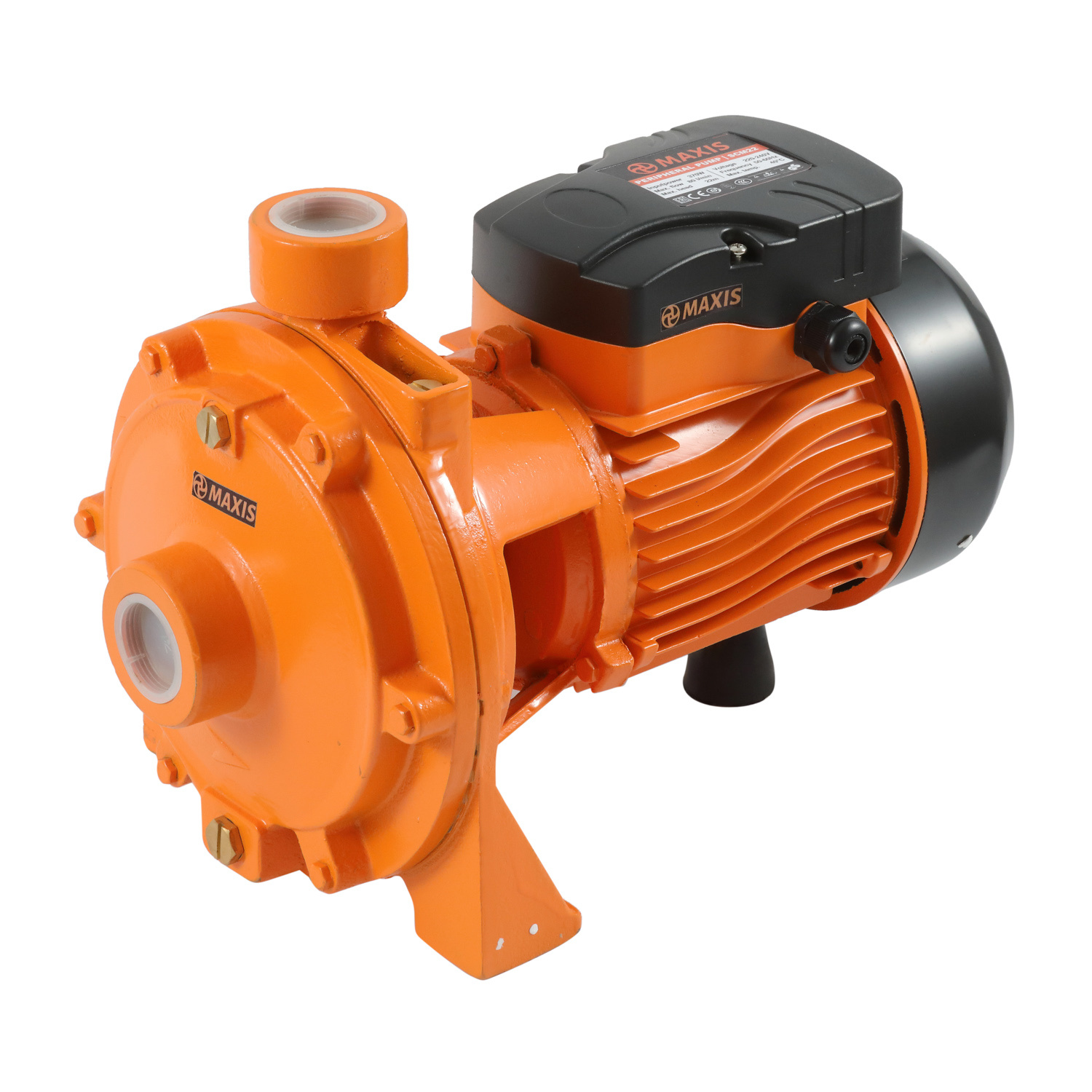

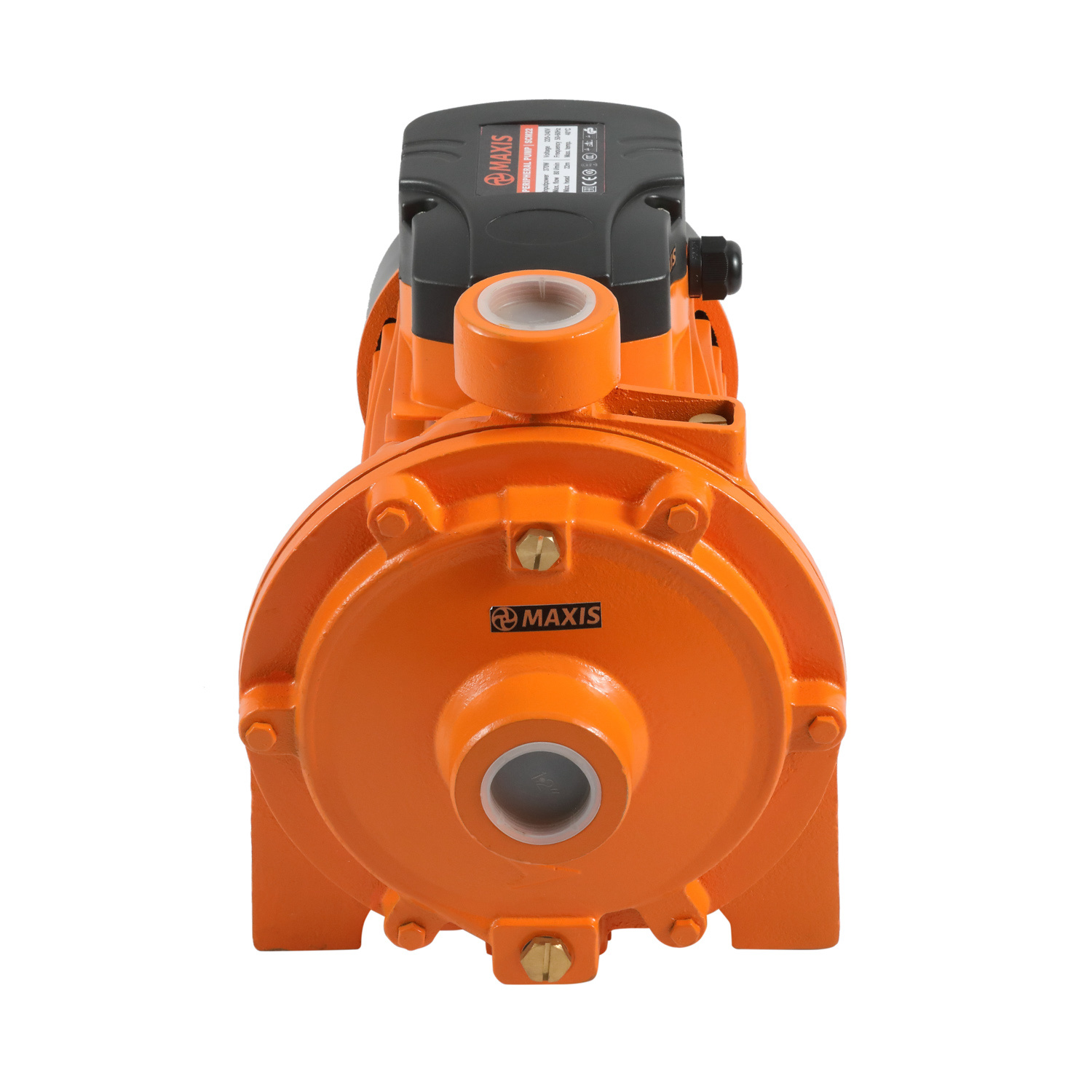

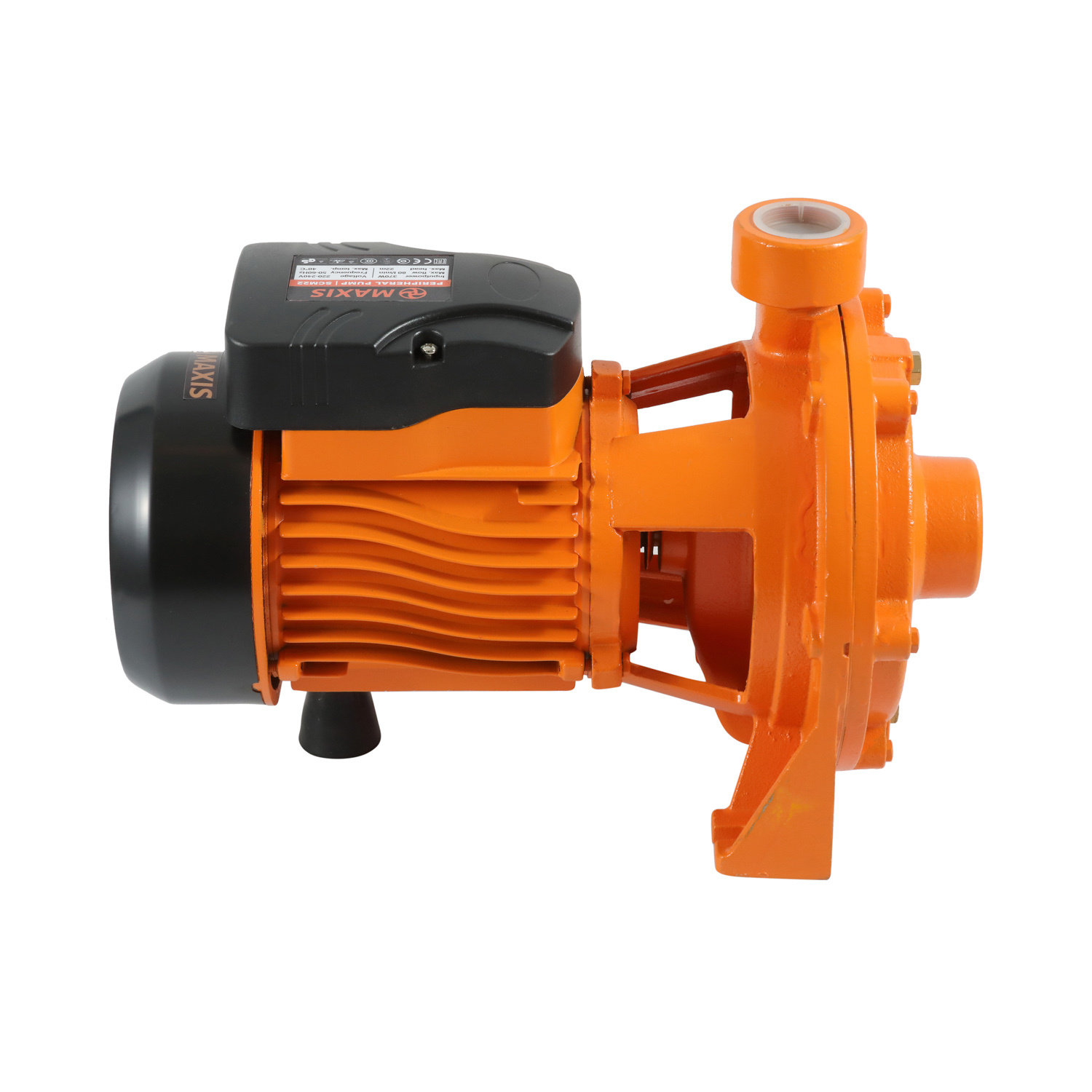

Brass Impeller 100% Cooper Wire Powe Centrifugal Electric Scm50 Centrifugal Pump

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
SCM22	370W	1/2	4800 L/H	80 L/Min	22 M	8 M	1'' x 1''	IPX4
SCM42	550W	3/4	5500 L/H	91 L/Min	25 M	8 M	1'' x 1''	IPX4
SCM50	750W	1	6000 L/H	100 L/Min	32 M	8 M	1'' x 1''	IPX4
2MCP160/160	1500W	2	6600 L/H	110 L/Min	55 M	8 M	1¼'' x 1''	IPX4

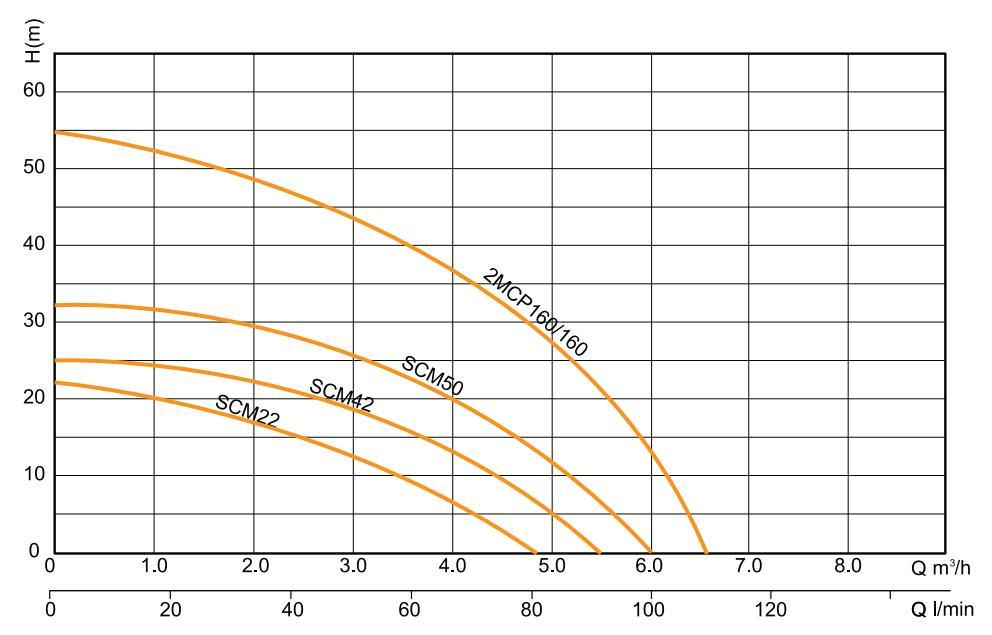

Performance Curve

Company view

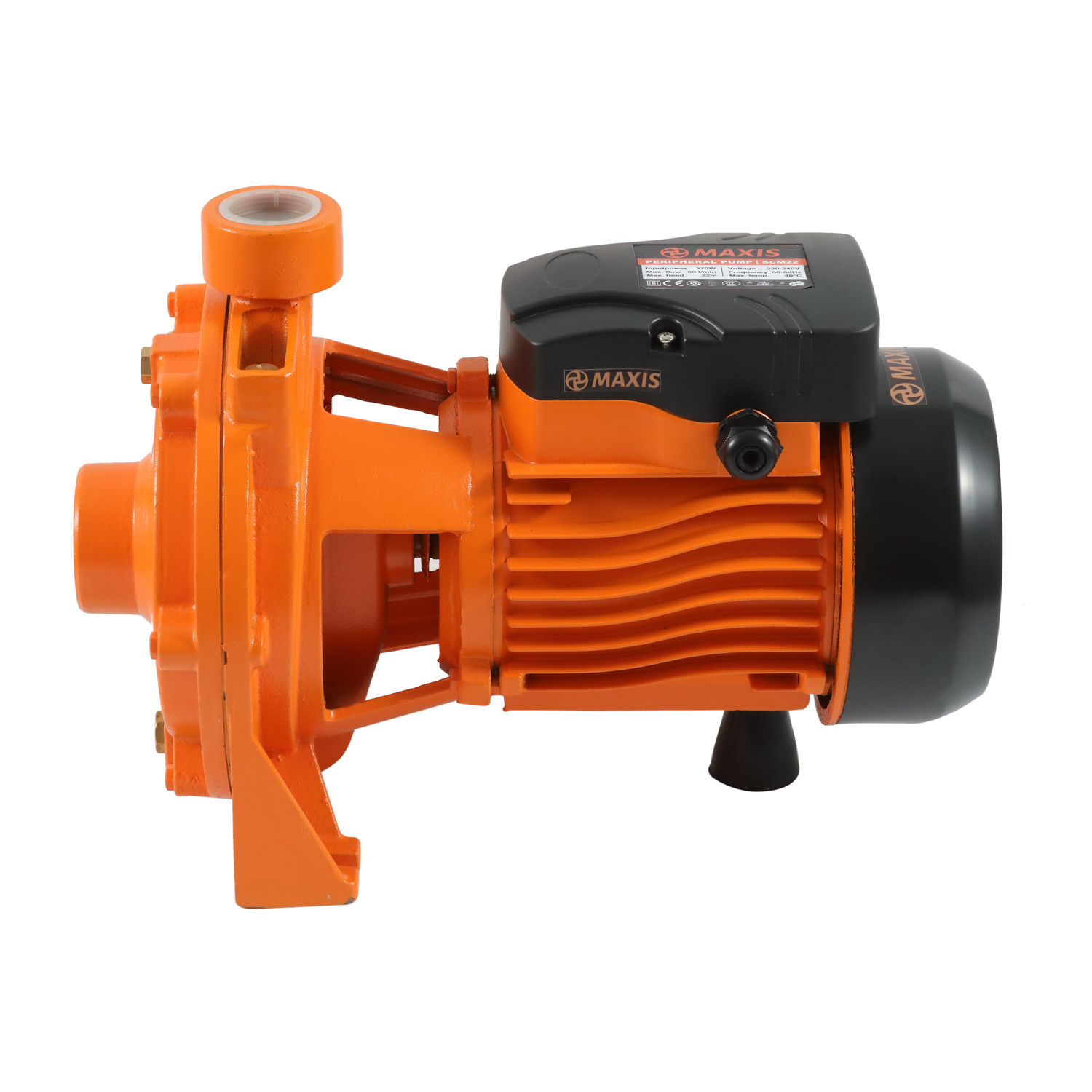

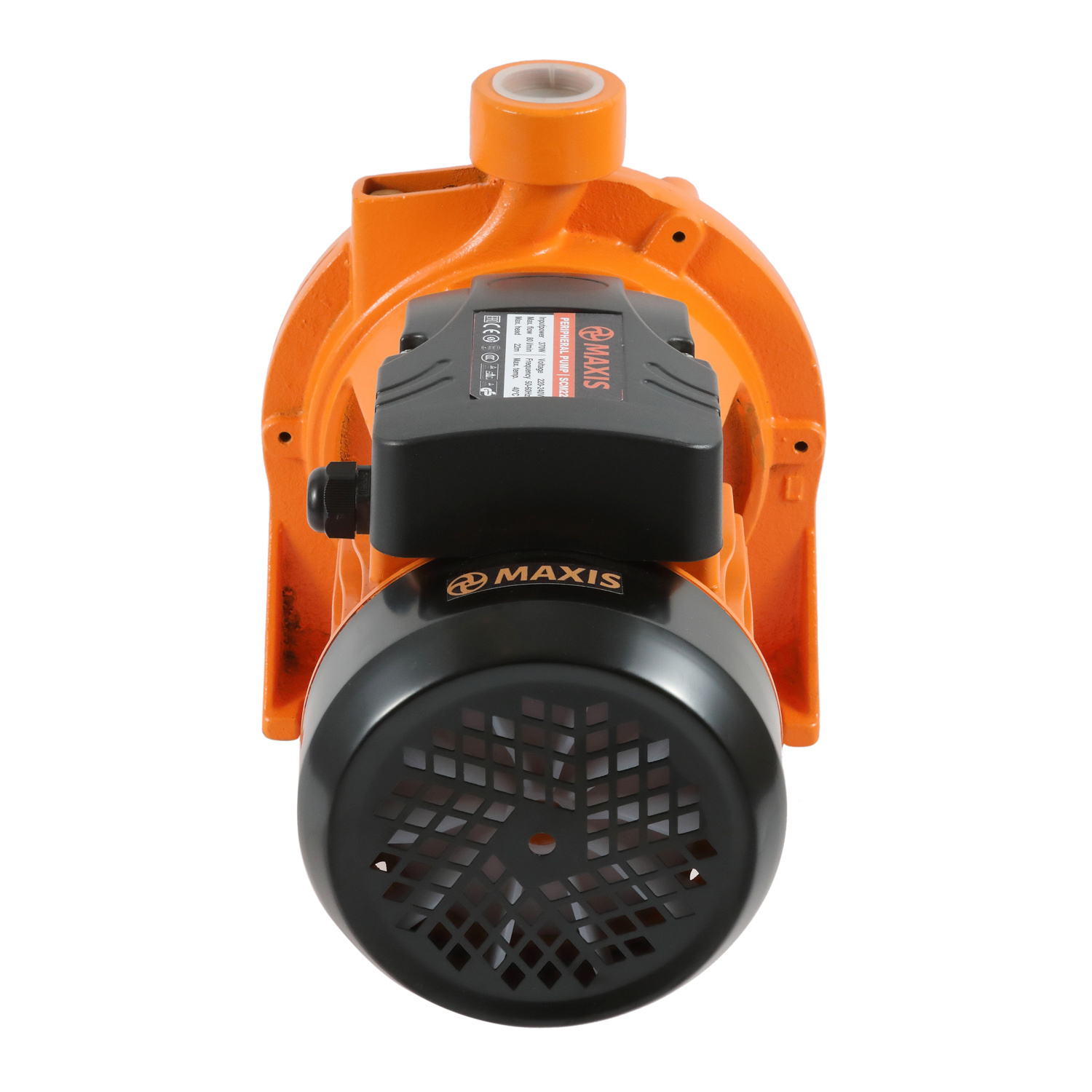

Brass Impeller 100% Cooper Wire Powe Centrifugal Electric Scm50 Centrifugal Pump
