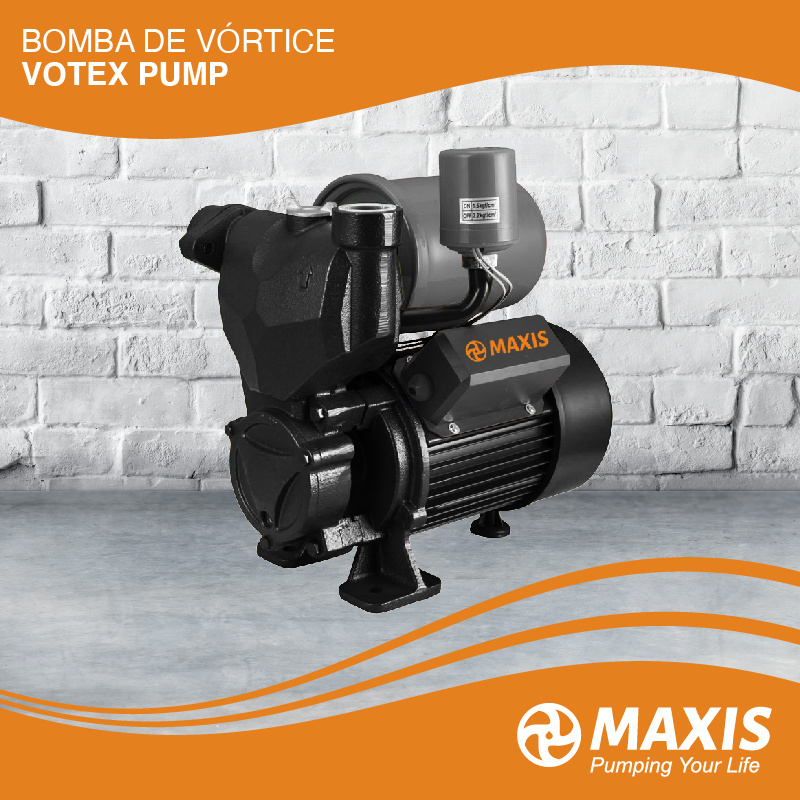

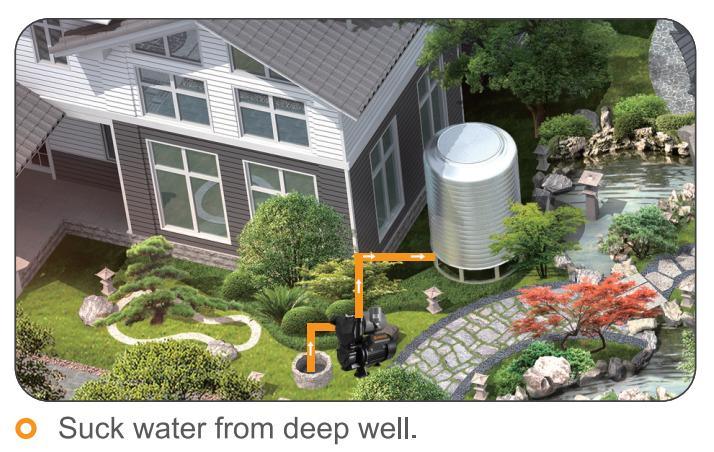

Automatic Self-Priming Surface Water Pump Suck From Deep Well Clean Water

Quantity:
Inquire Add to Basket

Automatic Self-Priming Surface Water Pump Suck From Deep Well Clean Water
Automatic Self-Priming Surface Water Pump Suck From Deep Well Clean Water
Automatic Self-Priming Surface Water Pump Suck From Deep Well Clean Water
Automatic Self-Priming Surface Water Pump Suck From Deep Well Clean Water
Automatic Self-Priming Surface Water Pump Suck From Deep Well Clean Water
Automatic Self-Priming Surface Water Pump Suck From Deep Well Clean Water

  • Free Spare Parts

  • 1 Year

  • 50-80m

  • 50-100 L/min

  • Motor

  • Cast Iron

  • 25WZB1100A

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Casting Iron Pump

  • Transfer Water Pump

  • Agriculture

  • Sewage Pumps

  • Centrifugal Pump

  • Vortex Pump

  • CE GS RoHS

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Application
1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

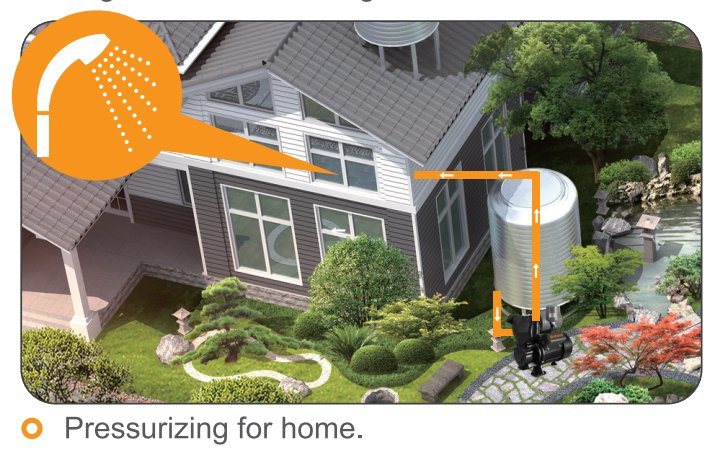

2. Suitable for small domestic living water supply ,automatic water sprinkler system small air conditioner system or supporting equipment etc.
Automatic Self-Priming Surface Water Pump Suck From Deep Well Clean WaterAutomatic Self-Priming Surface Water Pump Suck From Deep Well Clean Water
Automatic Self-Priming Surface Water Pump Suck From Deep Well Clean Water
Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m

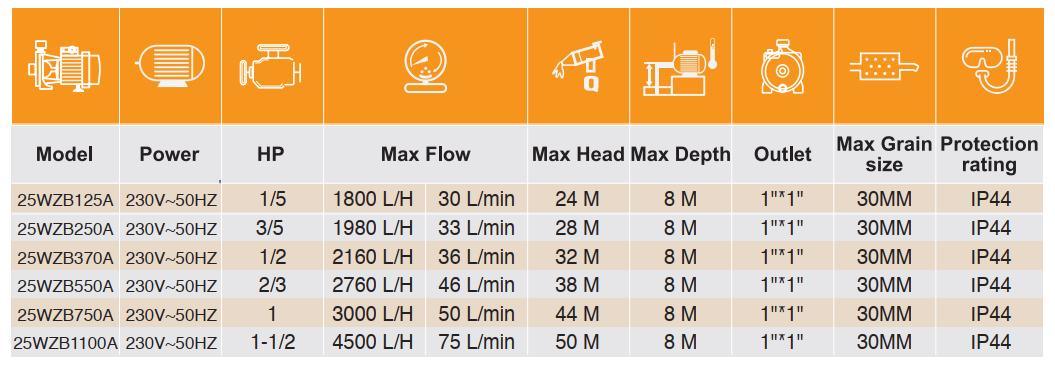

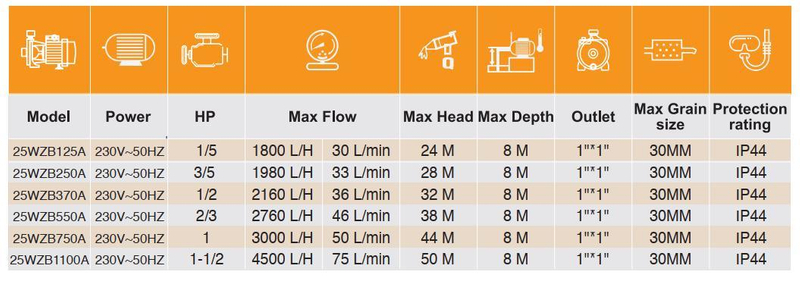

Automatic Self-Priming Surface Water Pump Suck From Deep Well Clean Water Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
25WZB125A 125W 1/5 1800 L/H 30 L/min 24 M 8 M 1"*1" IP44
25WZB250A 250W 3/5 1980 L/H 33 L/min 28 M 8 M 1"*1" IP44
25WZB370A 370W 1/2 2160 L/H 36 L/min 32 M 8 M 1"*1" IP44
25WZB550A 550W 2/3 2760 L/H 46 L/min 38 M 8 M 1"*1" IP44
25WZB750A 750W 1 3000 L/H 50 L/min 44 M 8 M 1"*1" IP44
25WZB1100A 1000W 1-1/2 4500 L/H 75 L/min 50 M 8 M 1"*1" IP44

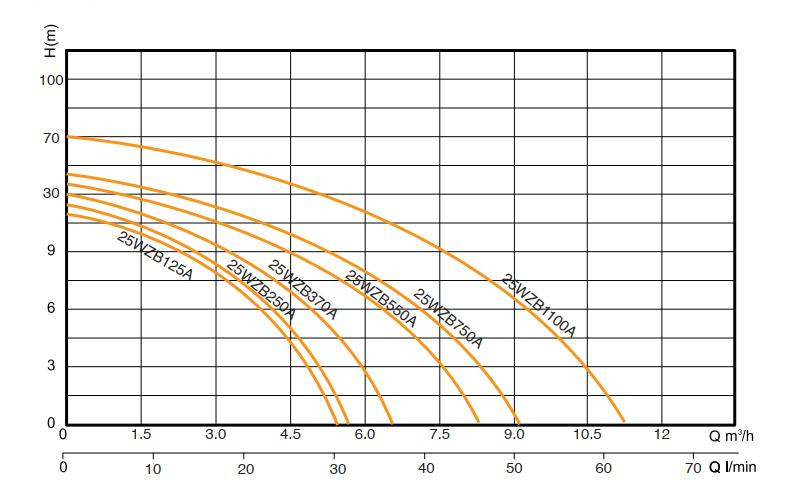

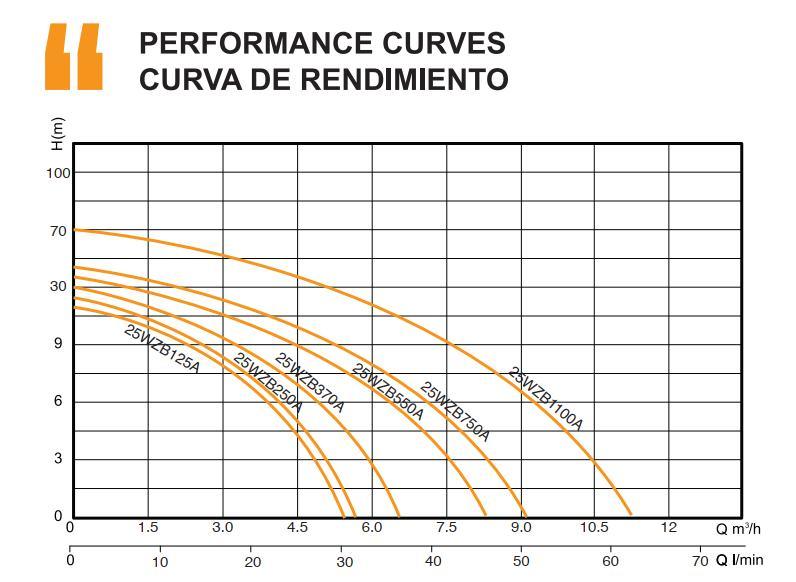

Performance Curve
Automatic Self-Priming Surface Water Pump Suck From Deep Well Clean Water
