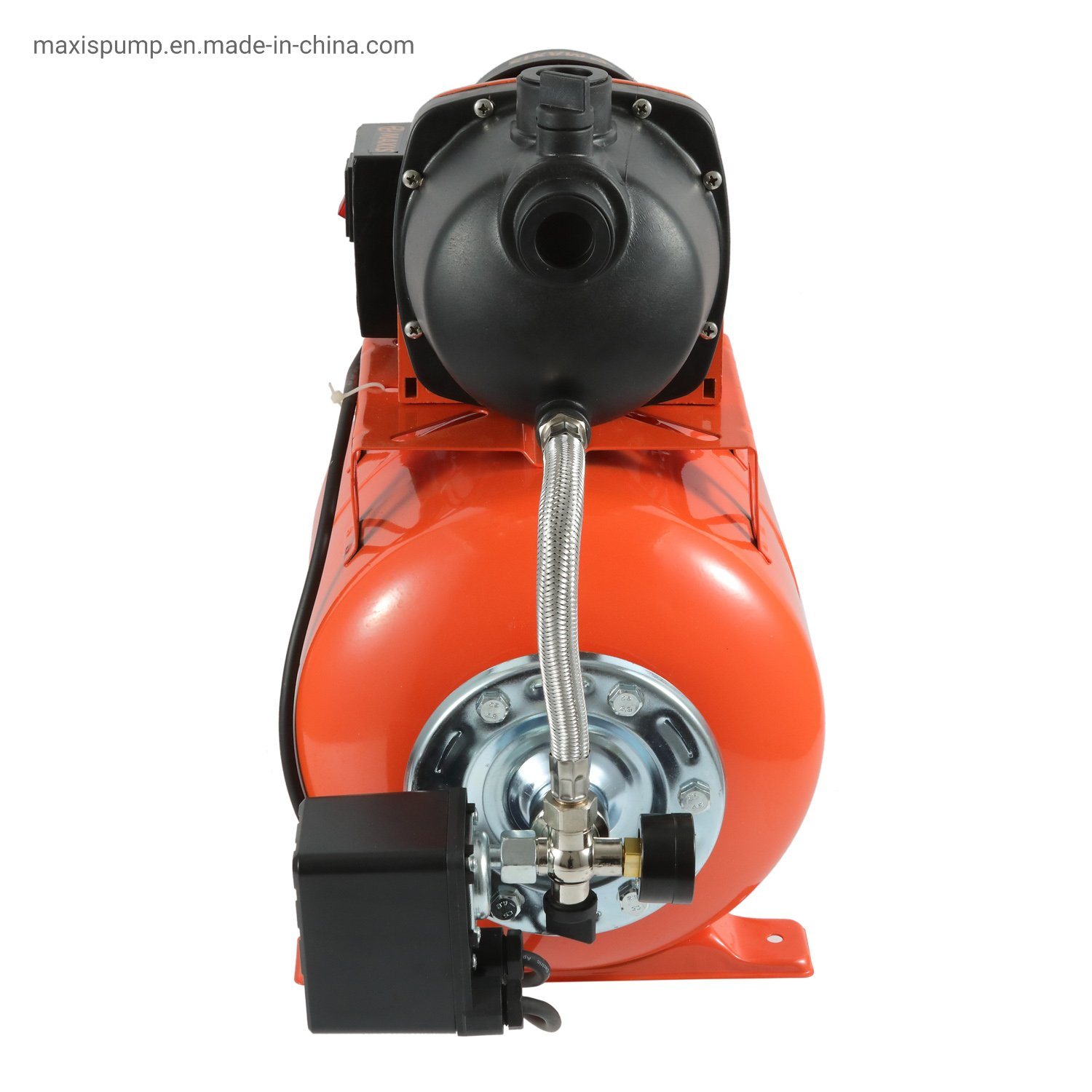

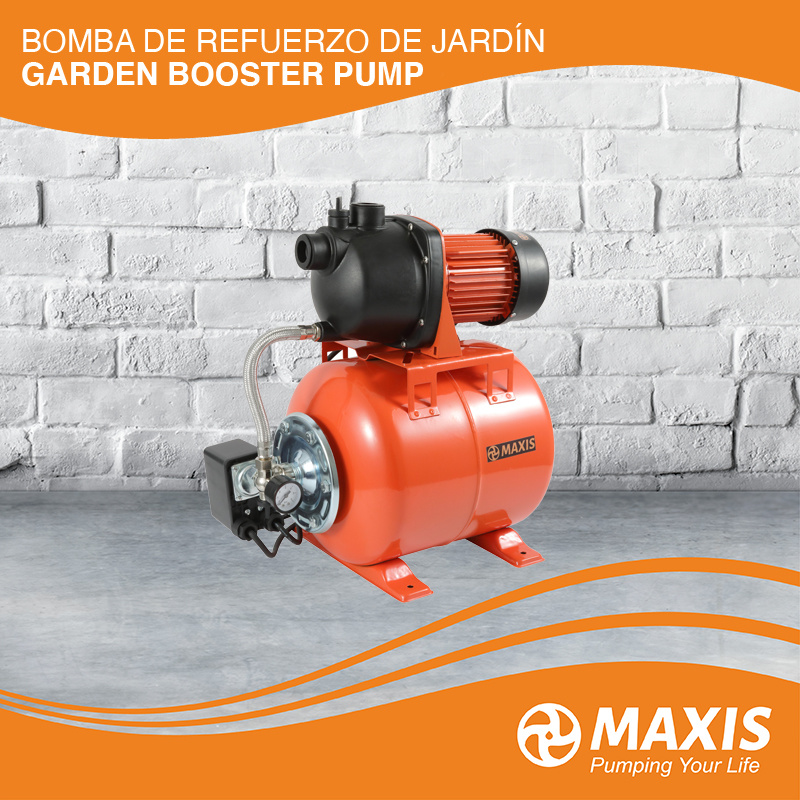

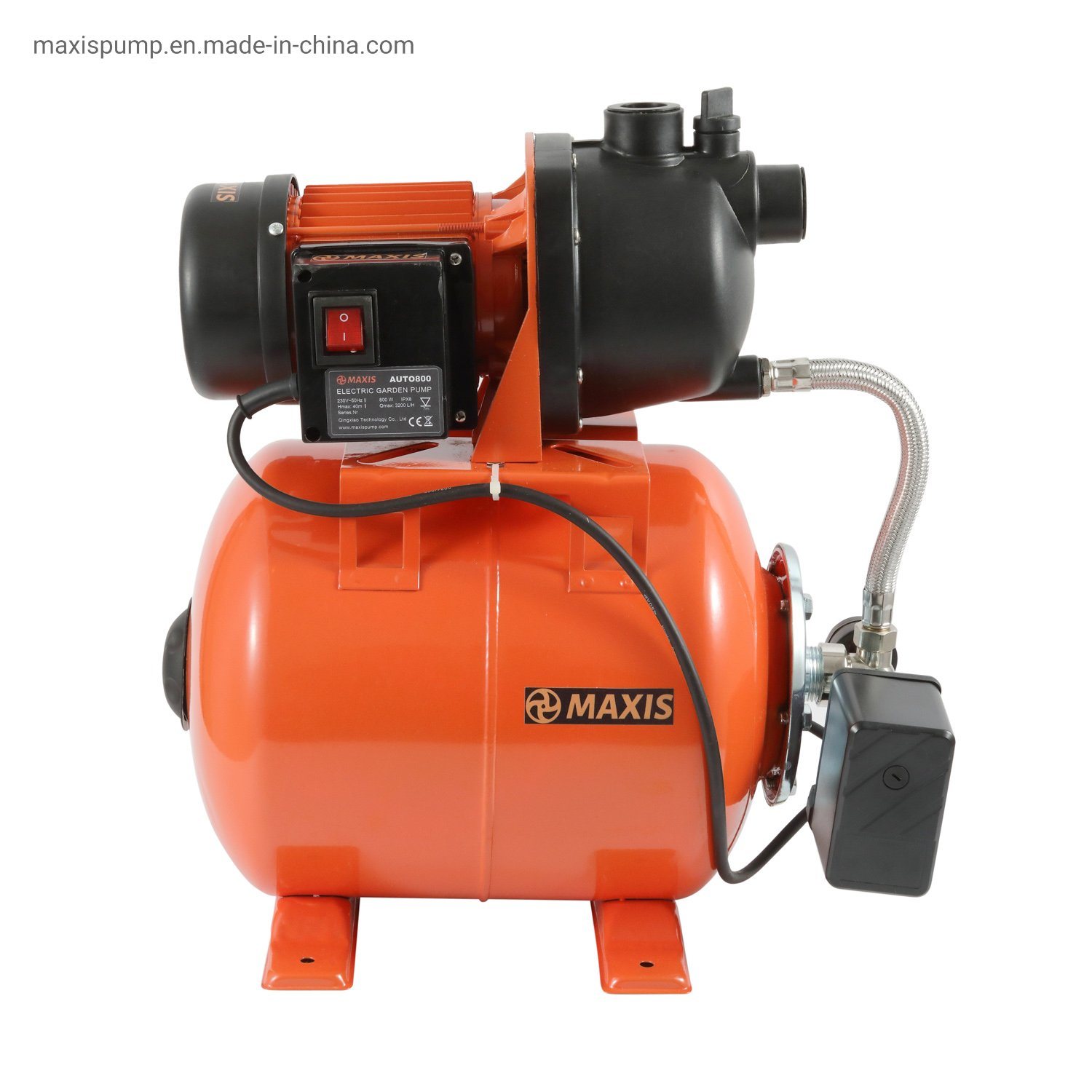

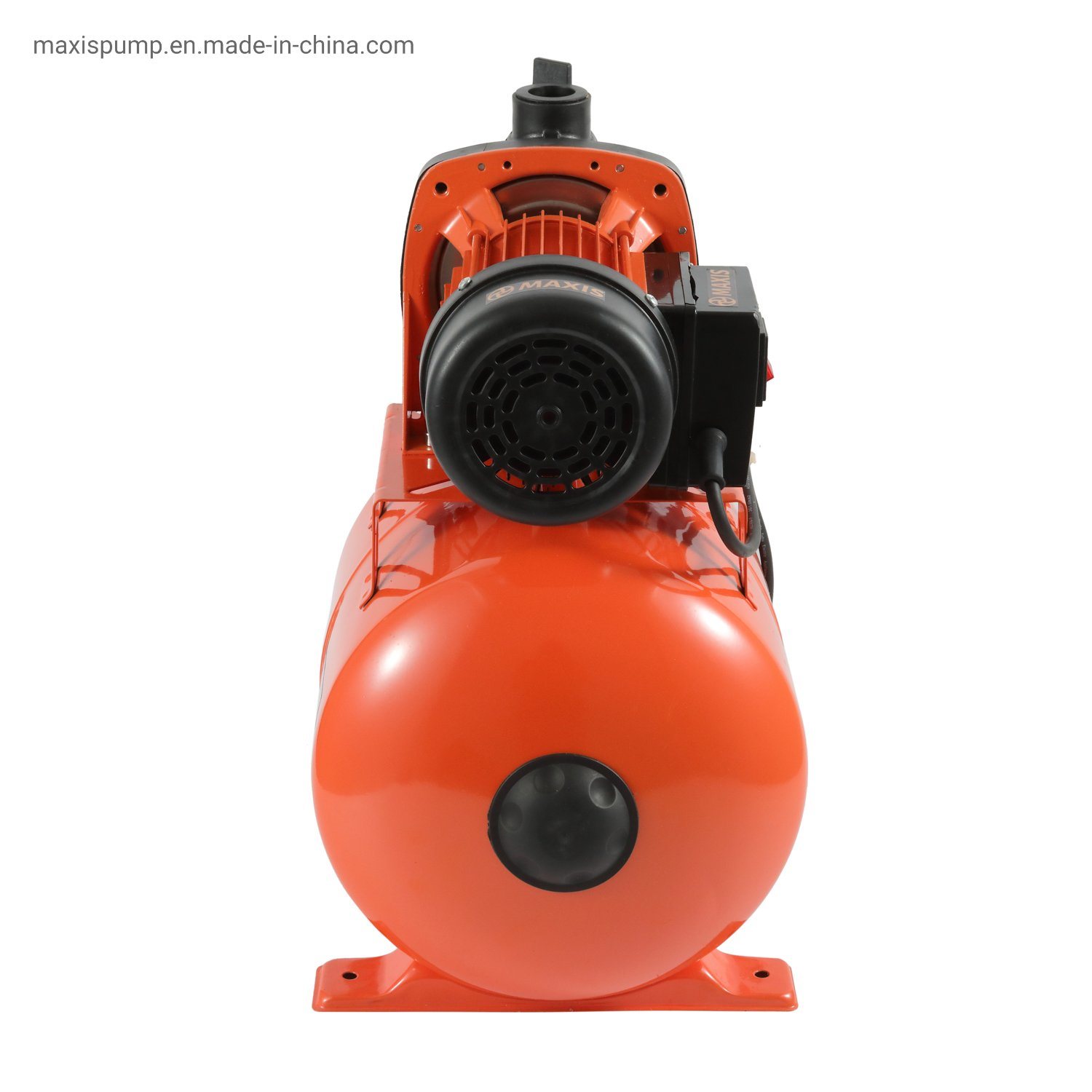

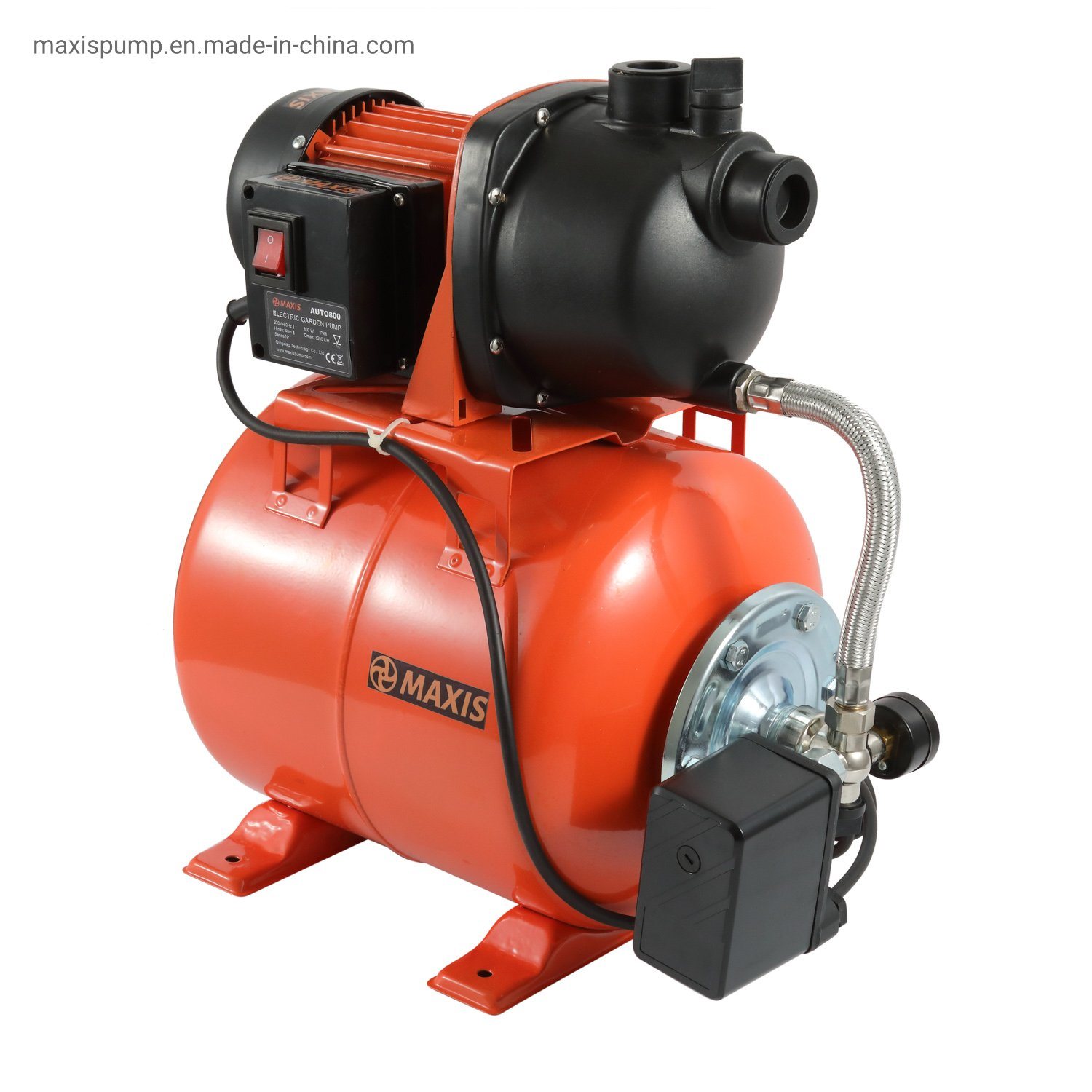

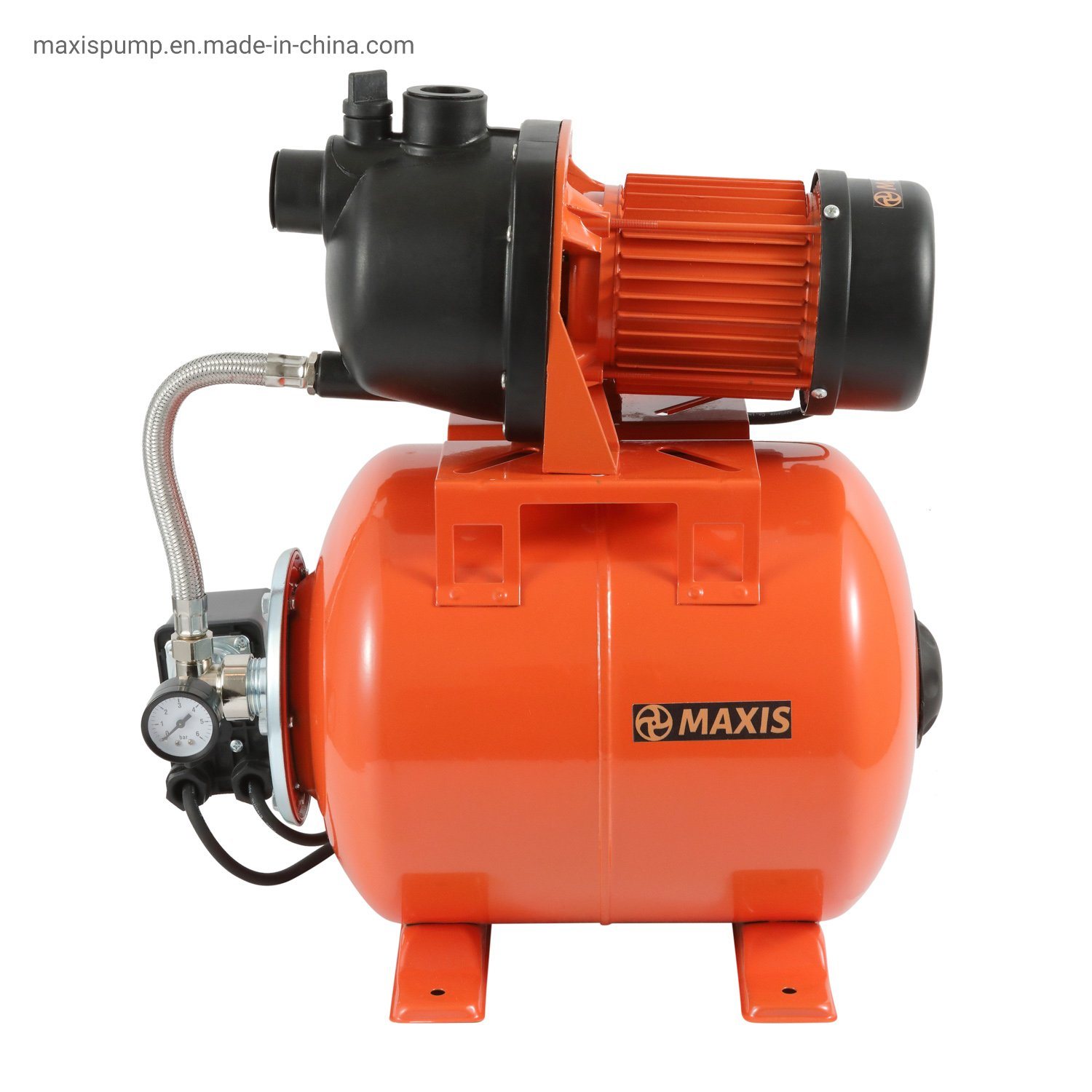

Automatic Self-Priming Electric Booster Pressure Jet Pump with Steel Tank 20L

Quantity:



Inquire Add to Basket

Model NO.:
JS800
Max.Capacity:
50-100 L/min
Driving Type:
Motor
Material:
Plastic
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Jet Pump
Application:
Boosting Pump
Industry:
Pressure Pump
Media:
Clean Water
Performance:
Automatic Pump
Theory:
Jet Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Package size per unit product:
30.00cm * 20.00cm * 30.00cm
Gross weight per unit product:
8.000kg
After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m

Product Description

Application

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

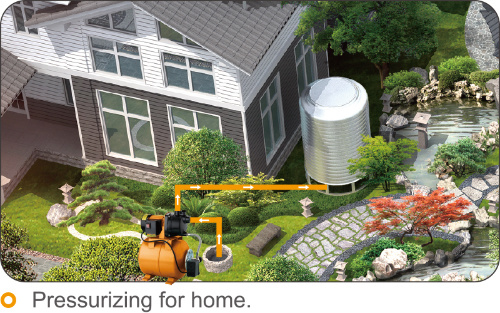

2. Fully automatic water supply in house and garden

Automatic Self-Priming Electric Booster Pressure Jet Pump with Steel Tank 20L

Pump

Plastic pump body
Plastic impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbo Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
AUTO600	600W	3/4	3000 L/H	50 L/Min	35 M	8 M	1'' x 1''	IP44
AUTO800	800W	1	3200 L/H	53 L/Min	40 M	8 M	1'' x 1''	IP44
AUTO1000	1000W	1.3	3500 L/H	58 L/Min	44 M	8 M	1'' x 1''	IP44
AUTO1200	1200W	1.6	3800 L/H	63 L/Min	48 M	8 M	1'' x 1''	IP44

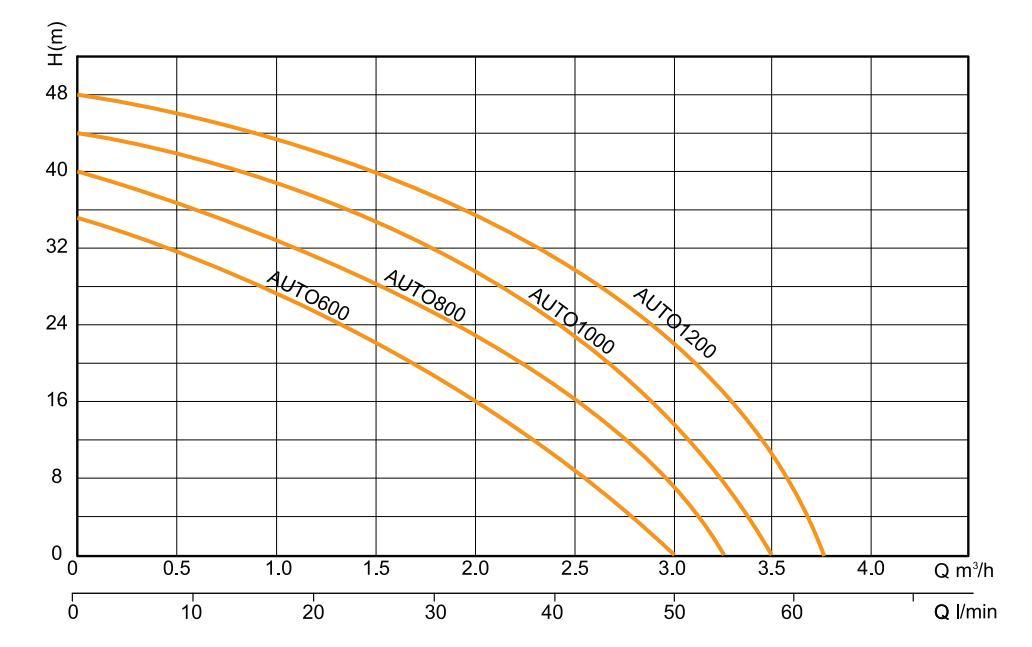

Performance Curve

Company view
Automatic Self-Priming Electric Booster Pressure Jet Pump with Steel Tank 20L

FAQ
Q: What is your MOQ of this item?
A: Regular MOQ is 500pcs, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year

Q:How about your service?
A:We have pre-sale, in-sale and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
