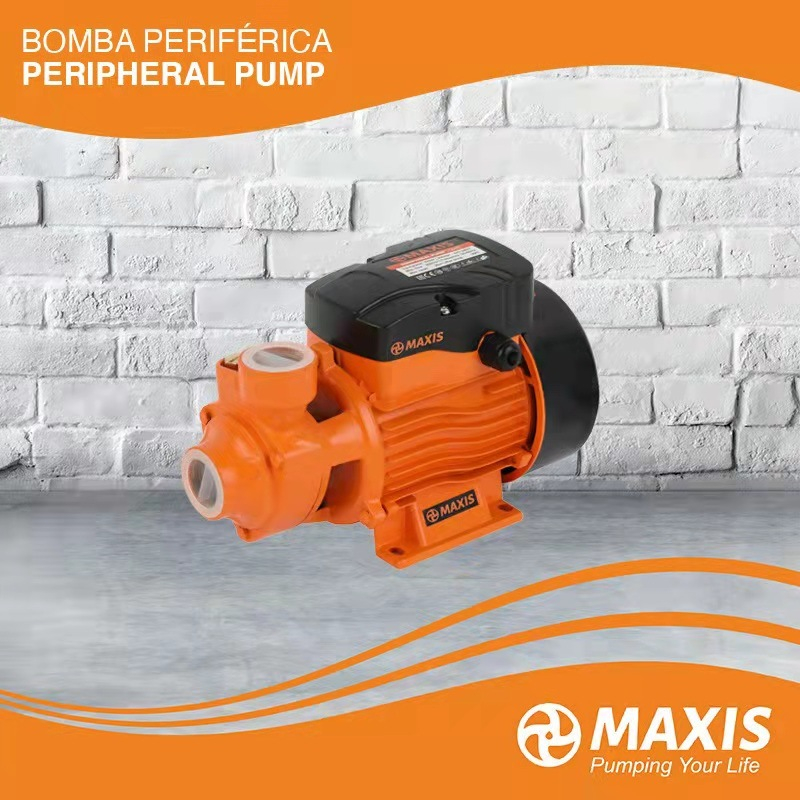

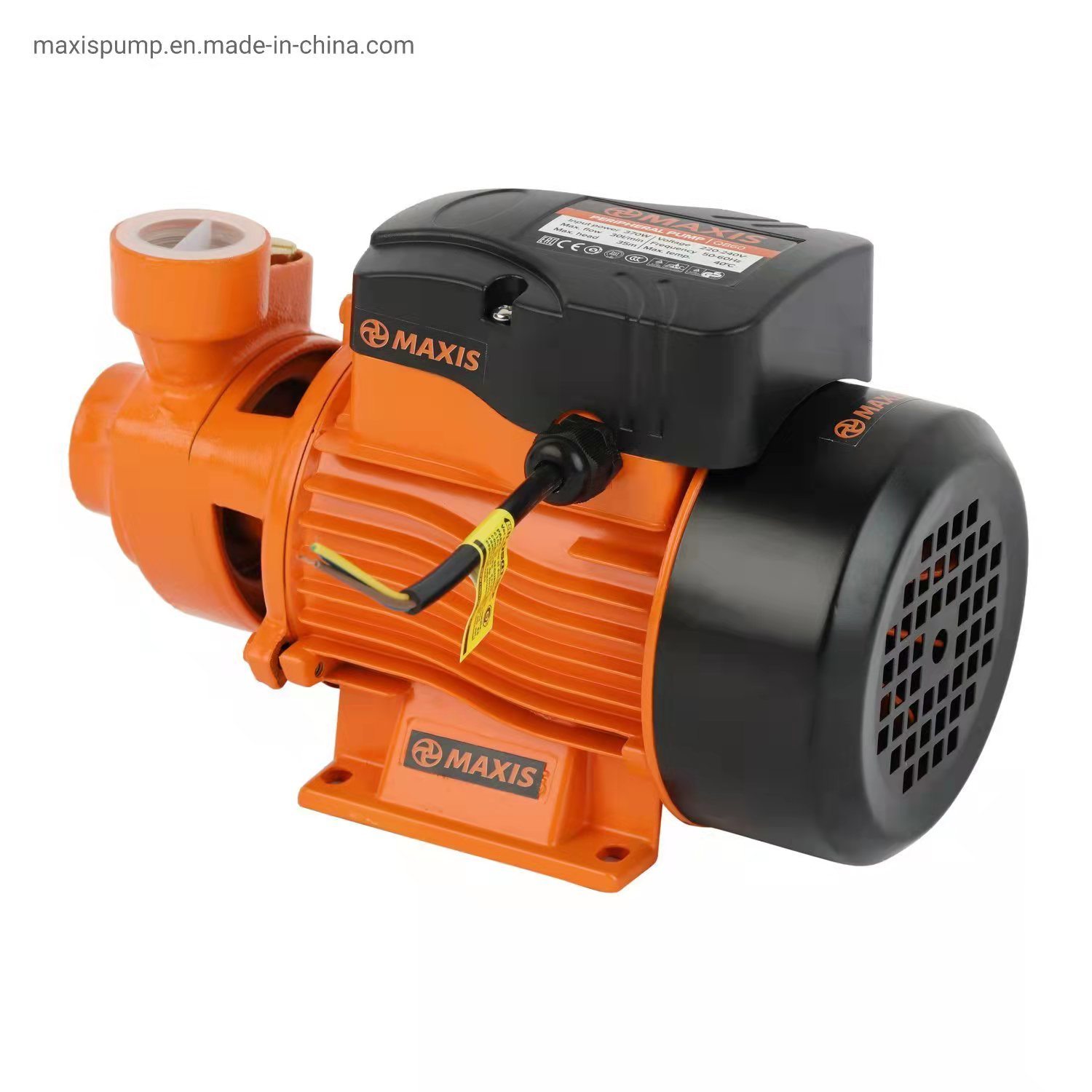

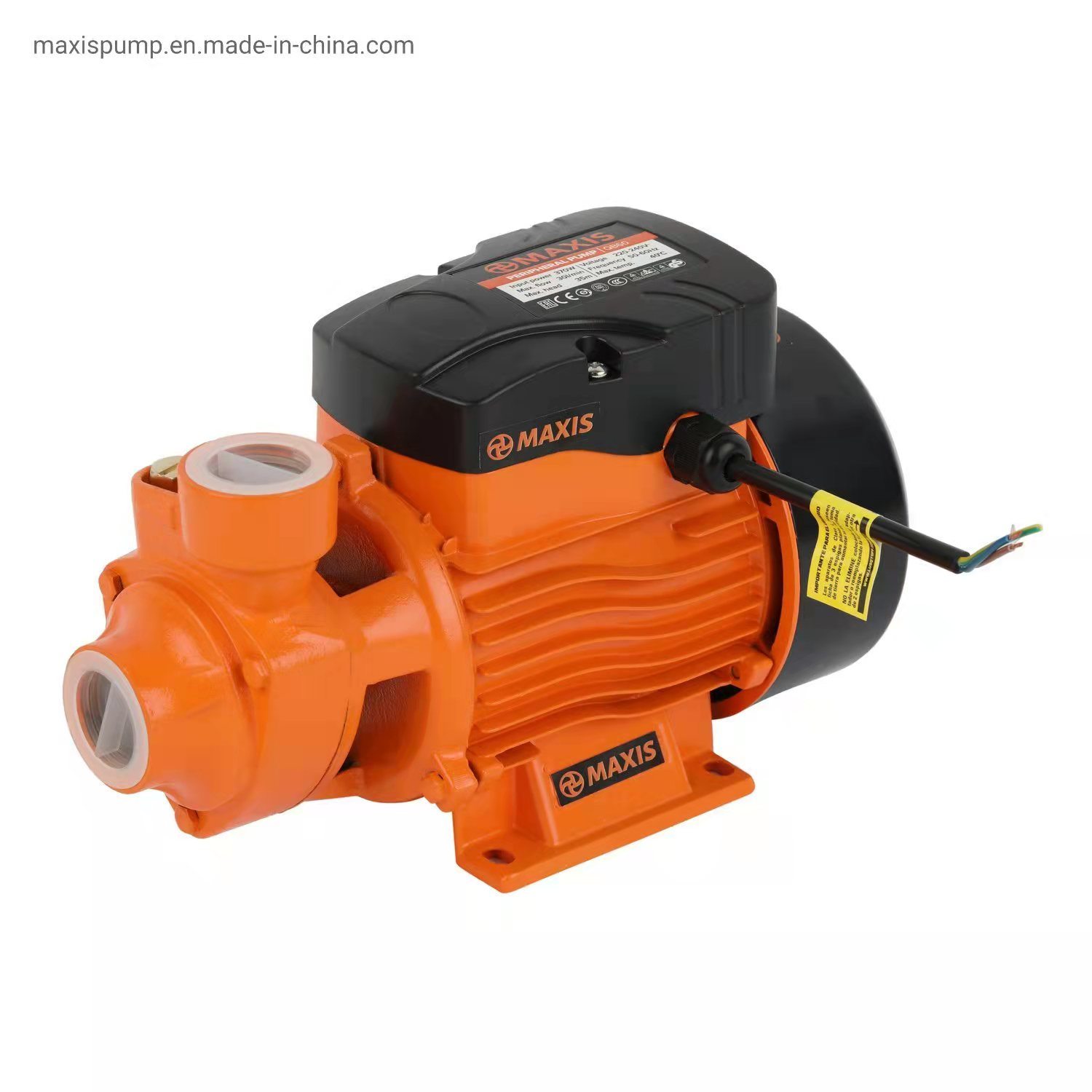

Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting

Quantity:
Inquire Add to Basket

Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting
Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting
Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting
Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting
Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting
Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting

  • Free Spare Parts

  • 1 Year

  • 50-80m

  • 50-100 L/min

  • Motor

  • Cast Iron

  • QB60

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Peripheral Pump

  • Transfer Water Pump

  • Agriculture

  • Clean Water

  • No Leakage Pump

  • Vortex Pump

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Application
  1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

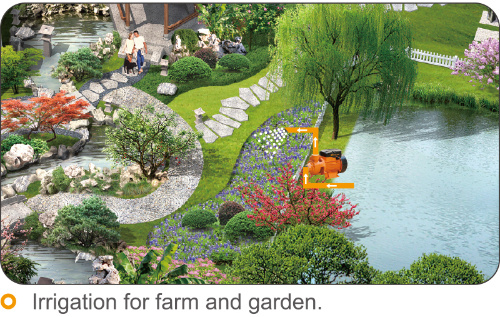

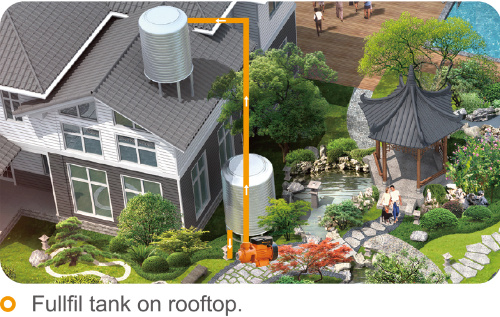

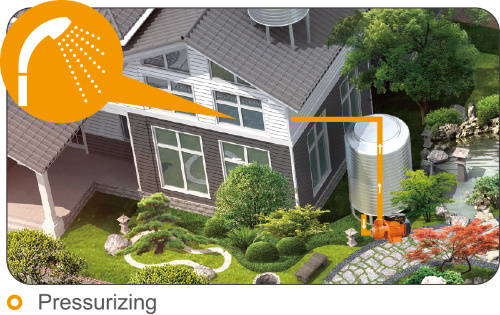

  2. Suitable for lifting water from the well, sprinkling irrigation in garden pressure boosting of running water, and supporting equipment etc
Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting

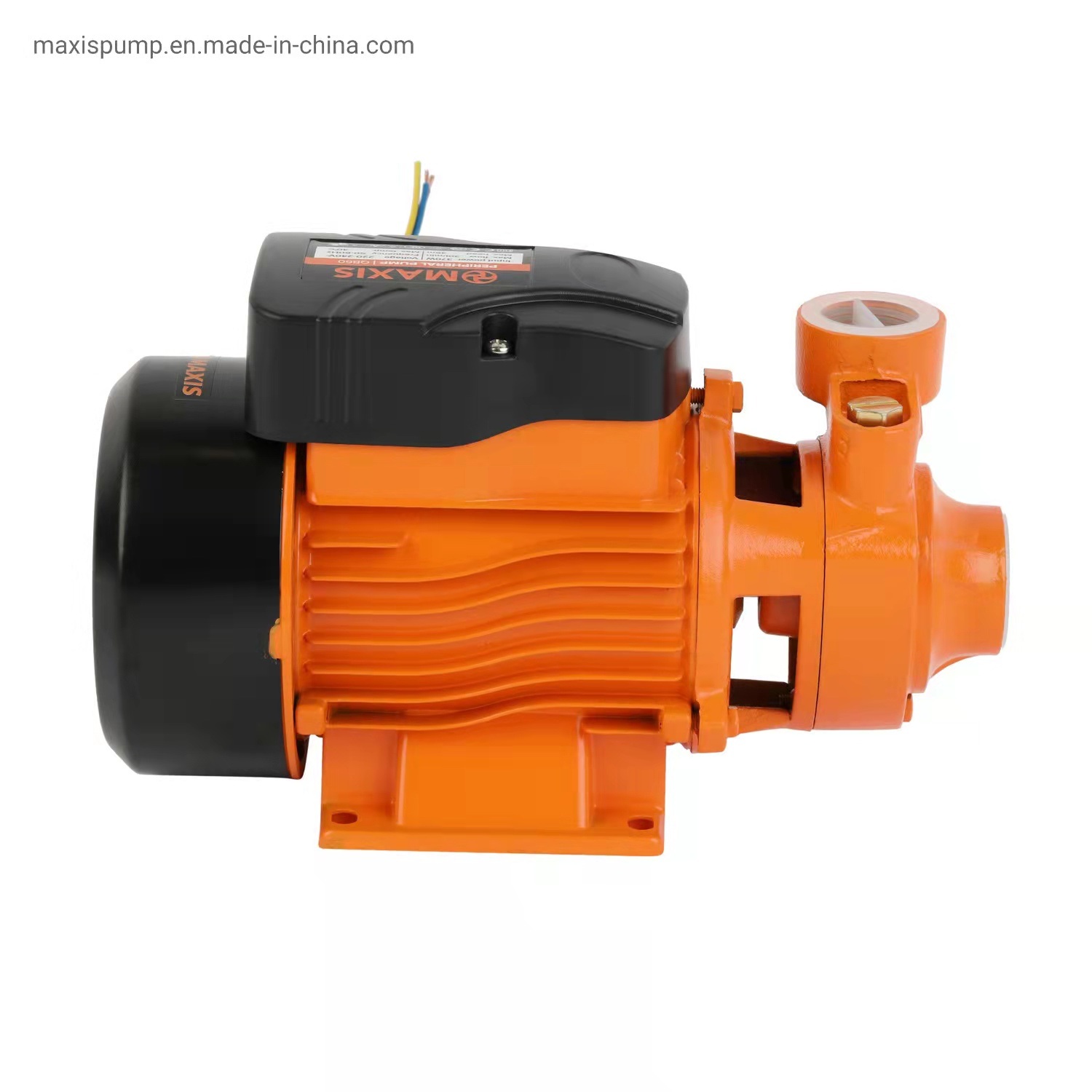

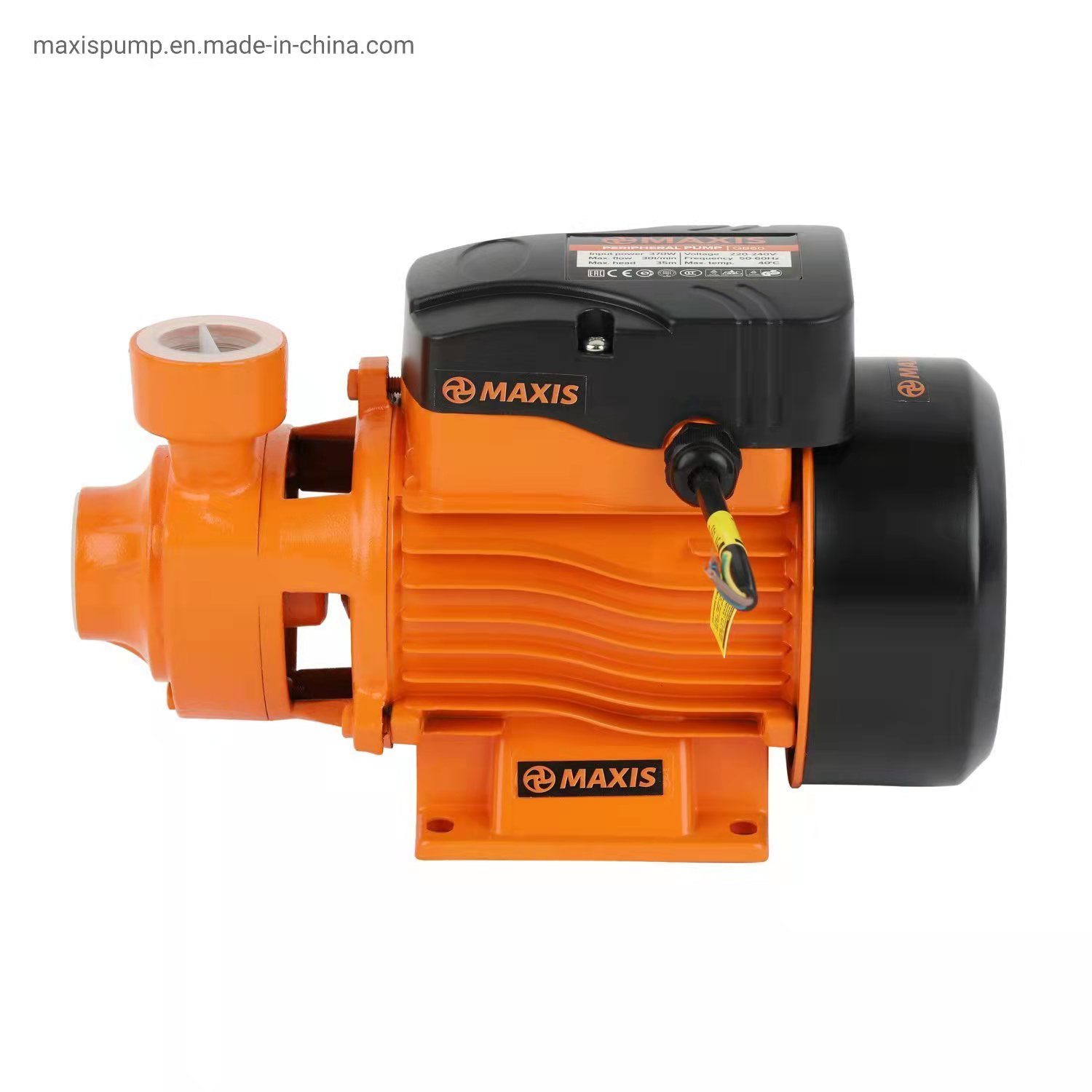

Pump
Special anti-rust treatment for cast iron pump body and support
Anti-block system for impeller
Bass impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carbon steel shaft both available
Max.liquid temperature: +40ºC
Max. suction:+8m
Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
QB60 370W 1/2 2100 L/H 35 L/Min 35 M 8 M 1'' x 1'' IPX4
QB70 550W 3/4 2400 L/H 40 L/Min 50 M 8 M 1'' x 1'' IPX4
QB80 750W 1 3000 L/H 50 L/Min 60 M 8 M 1'' x 1'' IPX4

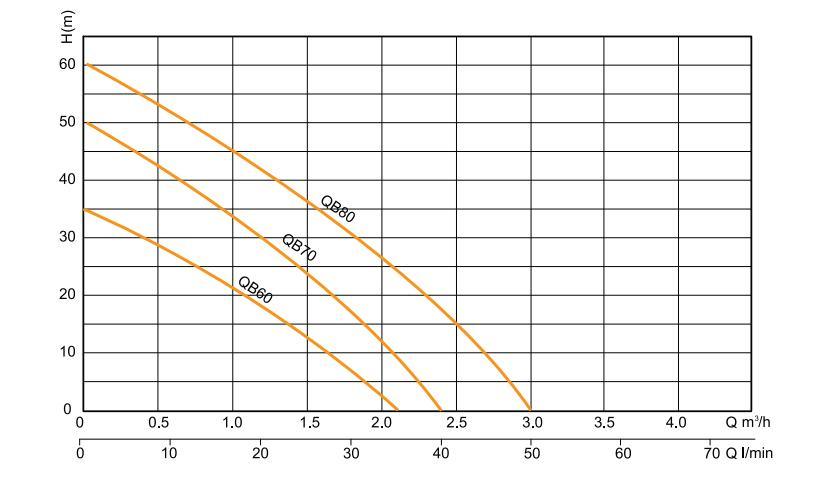

Performance Curve
Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting
Company view
Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting Automatic Peripheral Electric Home Garden Irrigation CE Standard Water Pump for Water Transfer and Lifting
