Automatic Multistage Bore Hole Liquid Pump for Agricultural

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
50-80m
Max.Capacity:
100-200 L/min
Driving Type:
Motor
Material:
Stainless Steel
Model NO.:
DS5.1-56/7
Structure:
Multistage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Submersible Pump
Application:
Submersible Pump, Sewage Pump
Industry:
Domestic
Media:
Water
Performance:
Wear Pump
Theory:
Centrifugal Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Carton
Specification:
8kg
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 50/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

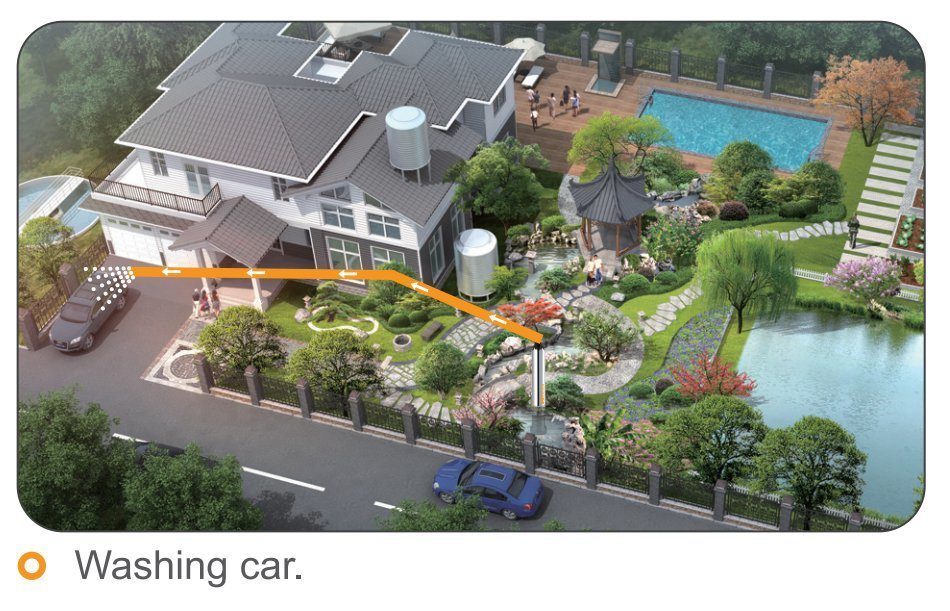

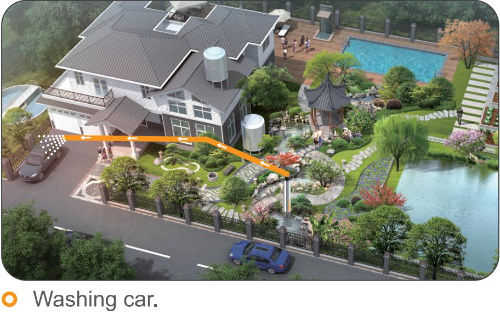

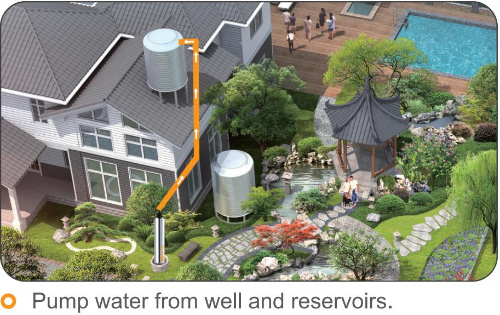

1.For water supply from wells or reservoris
2.For domestic use, for civil and industrial applications
3.For garden use and irrigation

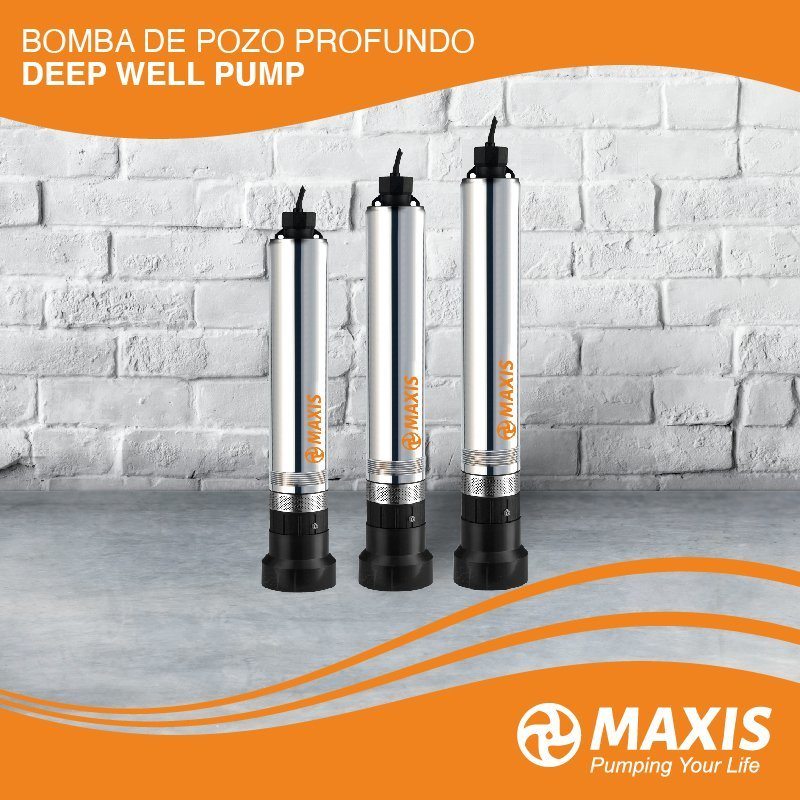

Automatic Multistage Bore Hole Liquid Pump for Agricultural

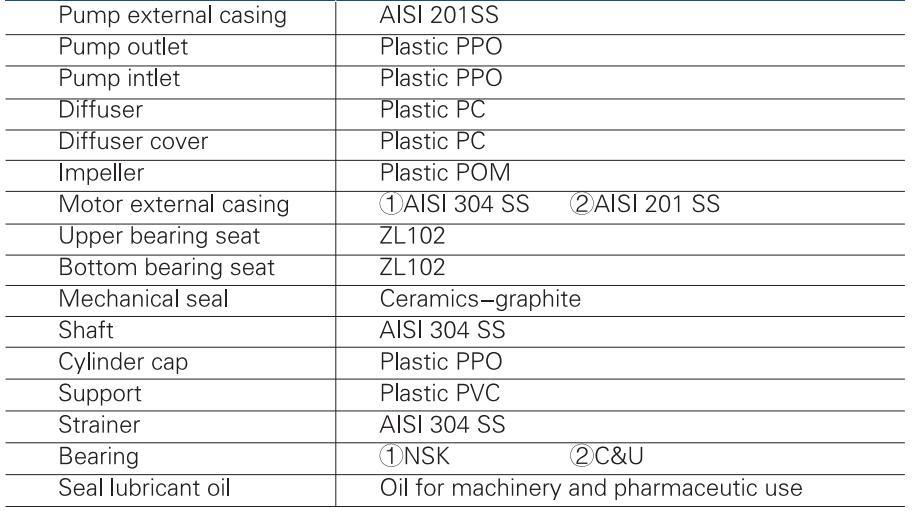

Pump
Stainless steel pump body
Motor with cooper winding
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max.sand content: 0.15%
Max.immersion:50m
Max.well diameter: 4"

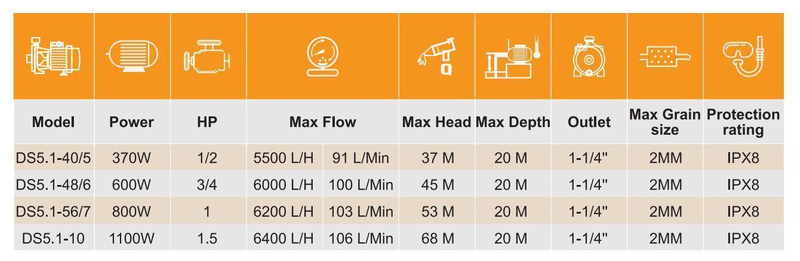

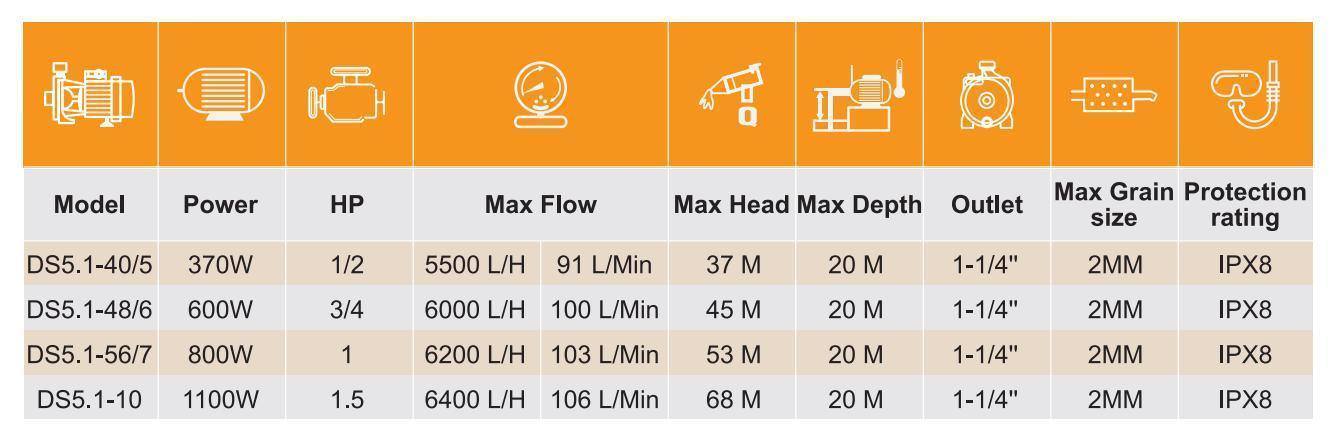

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Depth	Outlet	Max Grain size	Protection rating
DS5.1-40/5	370W	1/2	5500 L/H	91 L/Min	37 M	20 M	1-1/4''	2MM	IPX8
DS5.1-48/6	600W	3/4	6000 L/H	100 L/Min	45 M	20 M	1-1/4''	2MM	IPX8
DS5.1-56/7	800W	1	6200 L/H	103 L/Min	53 M	20 M	1-1/4''	2MM	IPX8
DS5.1-10	1100W	1.5	6400 L/H	106 L/Min	68 M	20 M	1-1/4''	2MM	IPX8

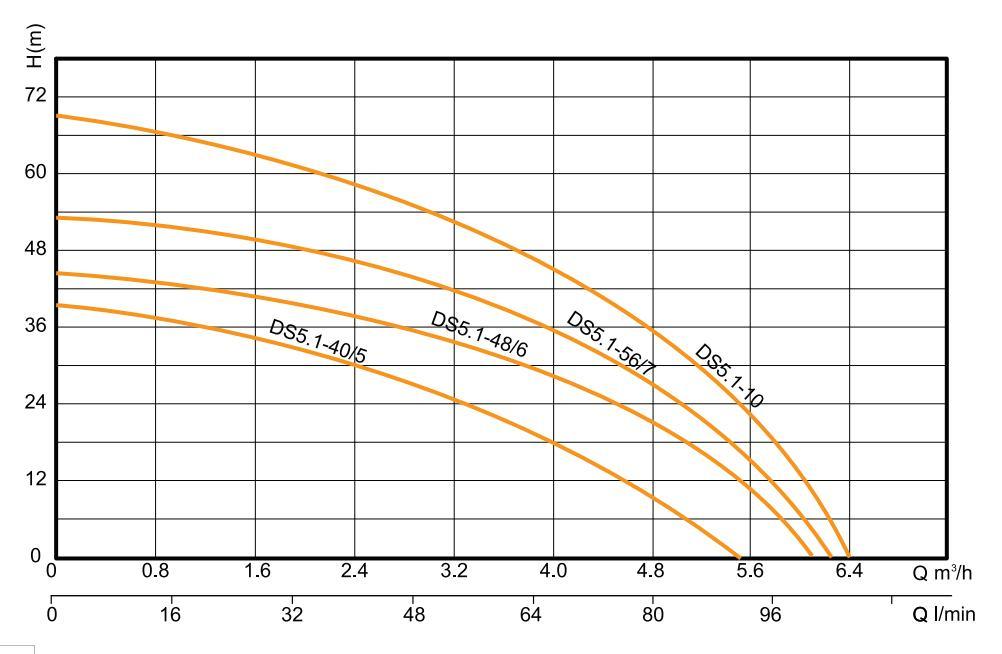

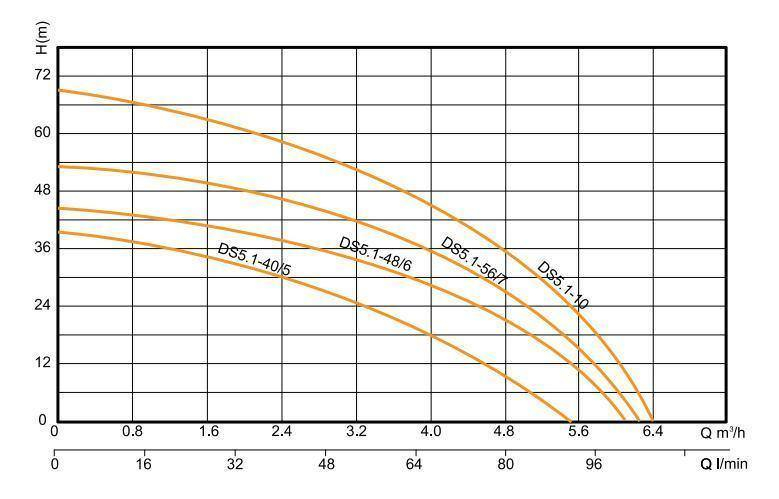

Performance Curve

Company View

RFQ
Q: What is your MOQ of this item?
A: Regular MOQ is 500pcs, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year

Q:How about your service?
A:We have pre-sale, in-sale and after-sale service. What we pursue is long-term cooperation, so our principle is customer first.
