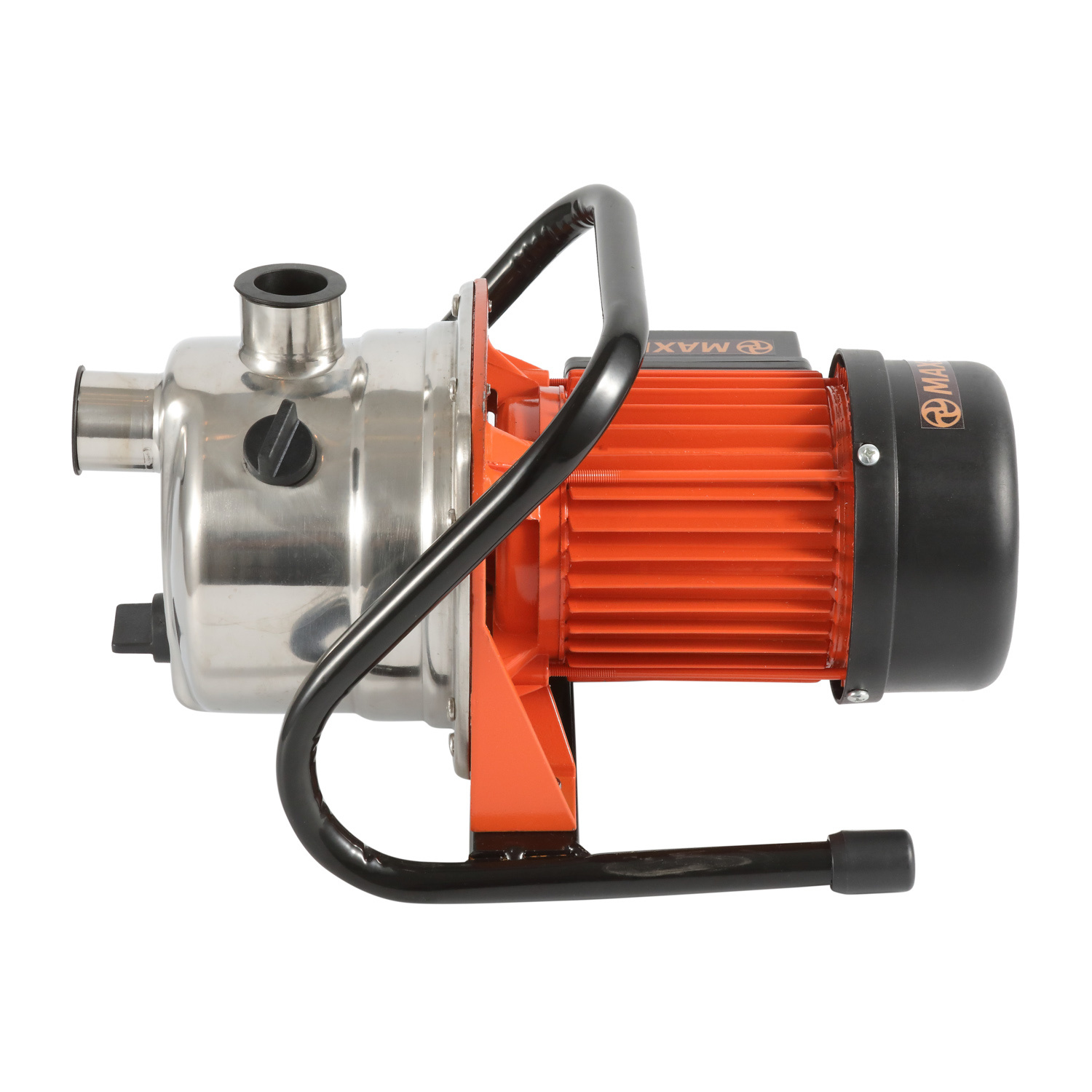

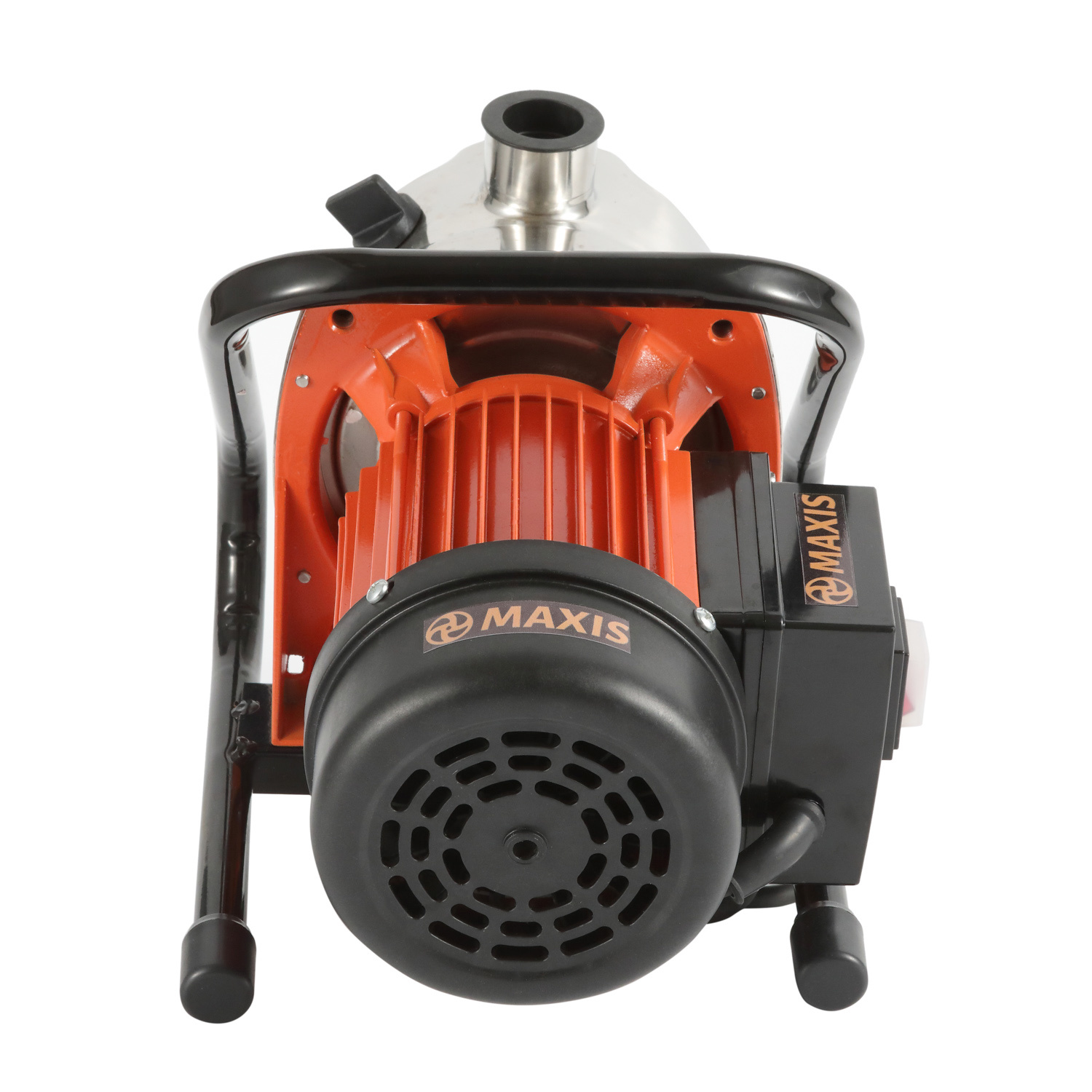

Aluminum Motor Housing Garden 1HP Irrigation Water Jet Submersible Pump

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
50-100 L/min
Driving Type:
Motor
Material:
Plastic
Model NO.:
AUTO800 INOX
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Jet Pump
Application:
Garden Pump
Industry:
Irrigation
Media:
Water
Performance:
Centrifugal Pump
Theory:
Jet Pump
Certificate:
CE GS RoHS PAHs
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

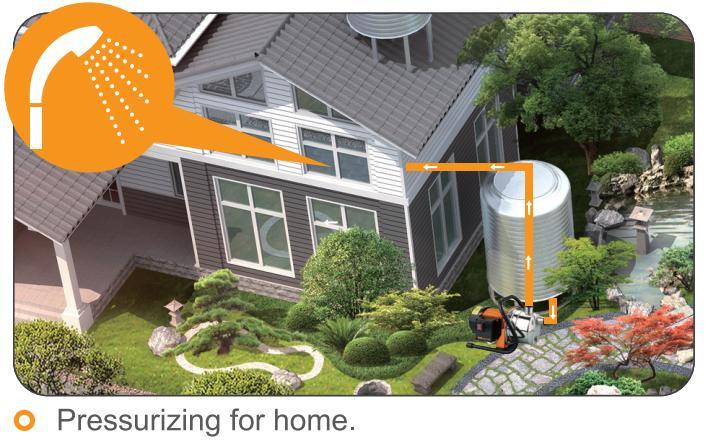

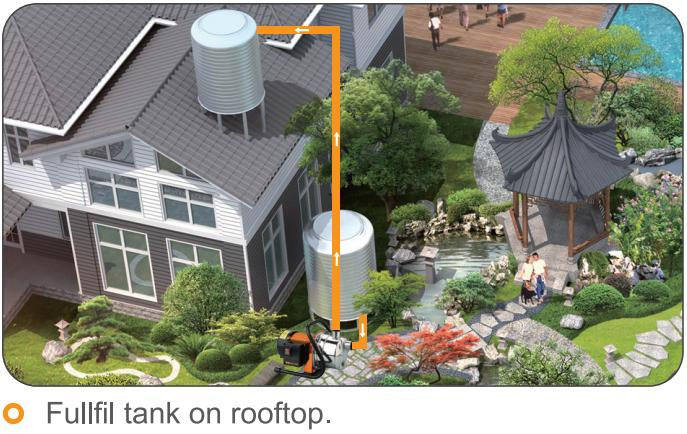

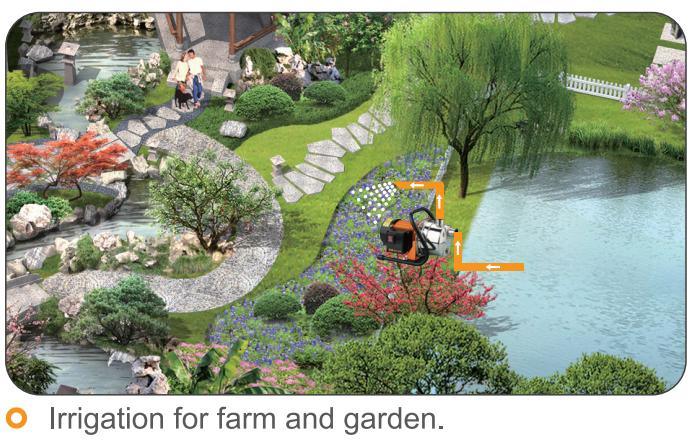

2. Suitable for water supply and drainage in garden irrigation greenhouses, fish breeding and poultry raising. The pump also can be used for domestic automatic water supply places, such as lifting water from a deep well, pressure boosting of running water ect.

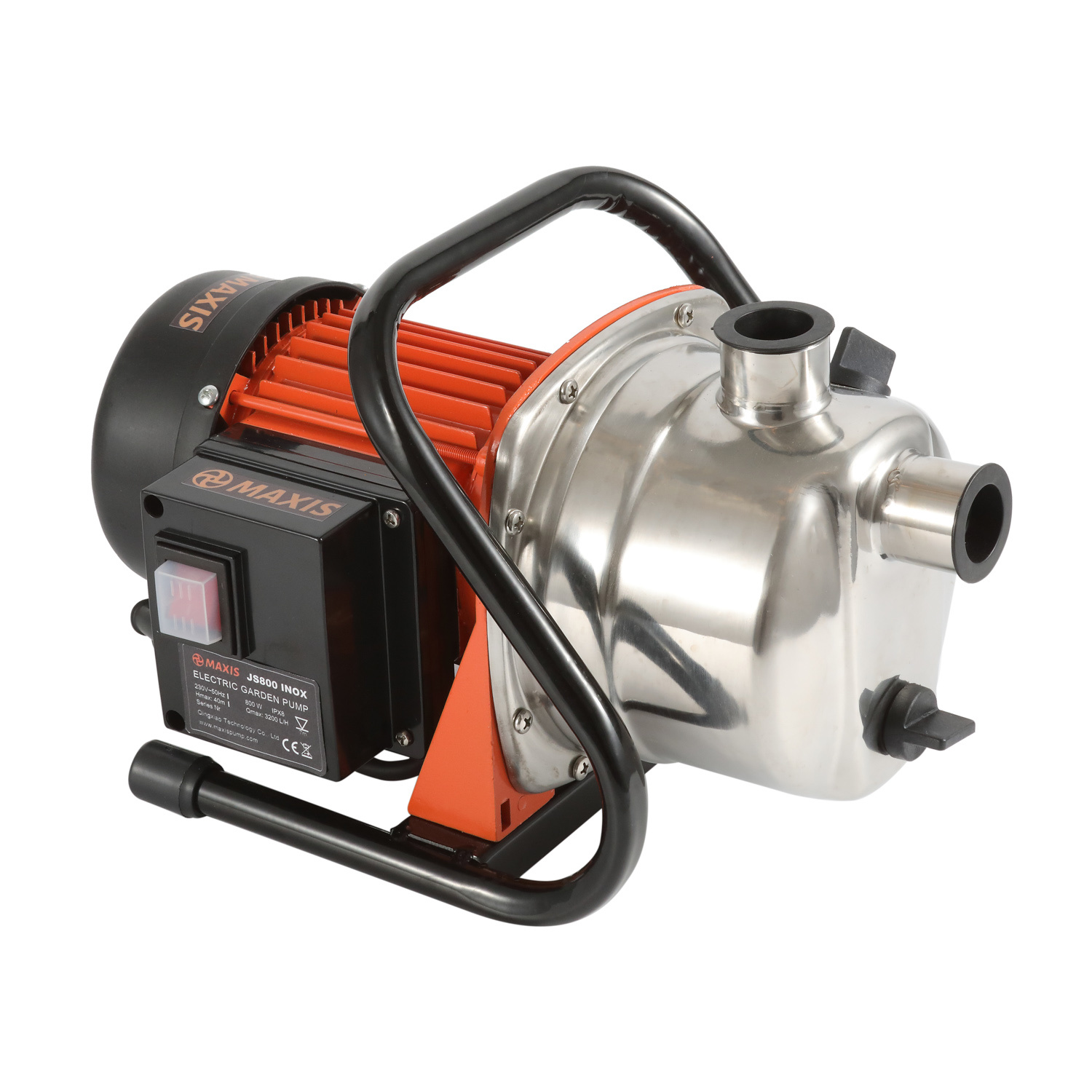

Aluminum Motor Housing Garden 1HP Irrigation Water Jet Submersible Pump

Pump
Plastic pump body
Plastic impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbo Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m

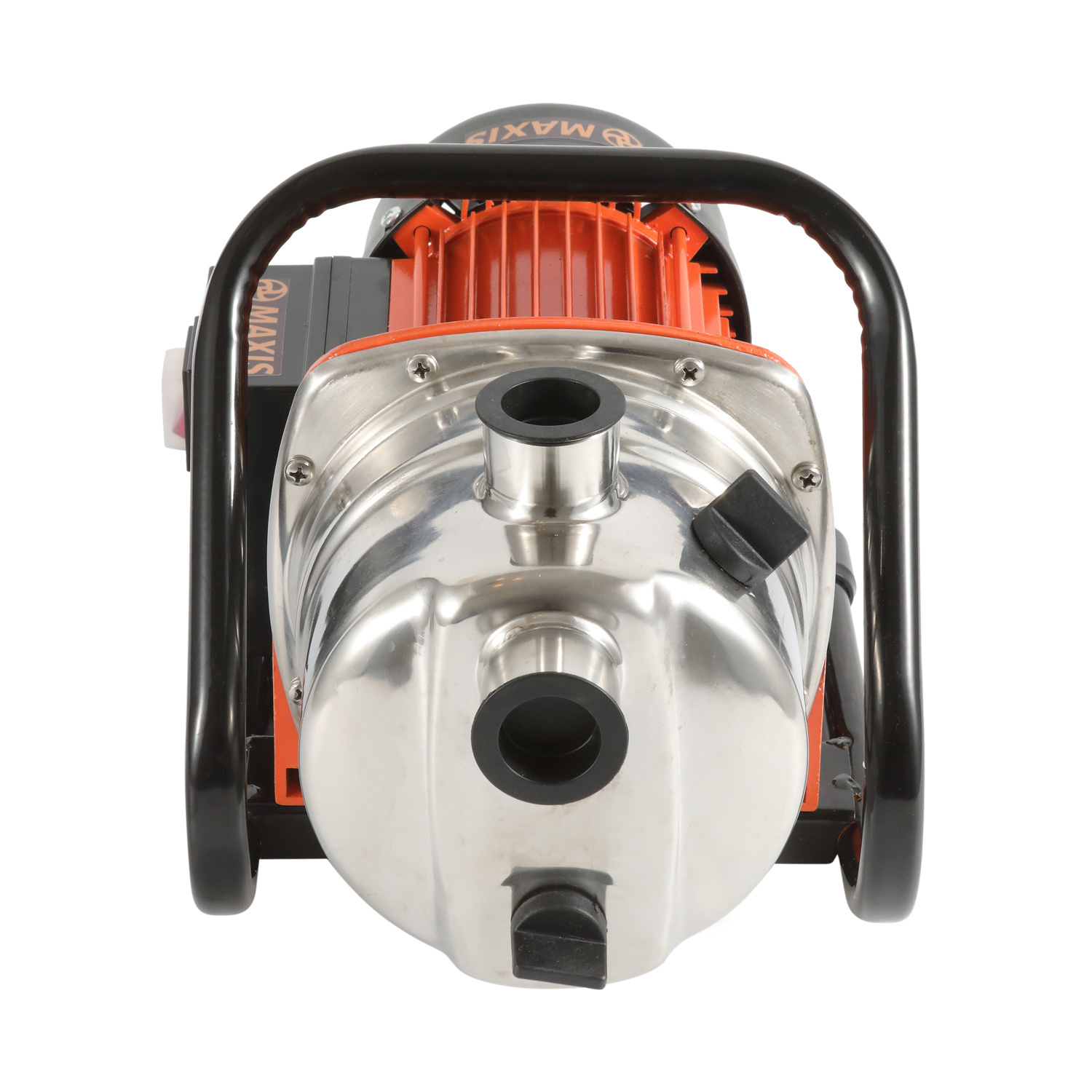

Aluminum Motor Housing Garden 1HP Irrigation Water Jet Submersible Pump

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
JS600 Inox	600W	3/4	3000 L/H	50 L/Min	35 M	8 M	1'' x 1''	IP44
JS800 Inox	800W	1	3200 L/H	53 L/Min	40 M	8 M	1'' x 1''	IP44
JS1000 Inox	1000W	1.3	3500 L/H	58 L/Min	44 M	8 M	1'' x 1''	IP44
JS1200 Inox	1200W	1.6	3800 L/H	63 L/Min	48 M	8 M	1'' x 1''	IP44

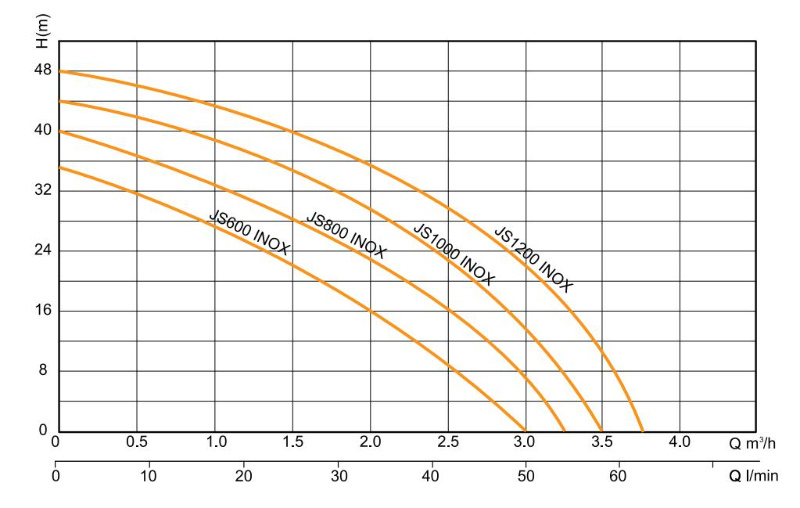

Performance Curve

Company view

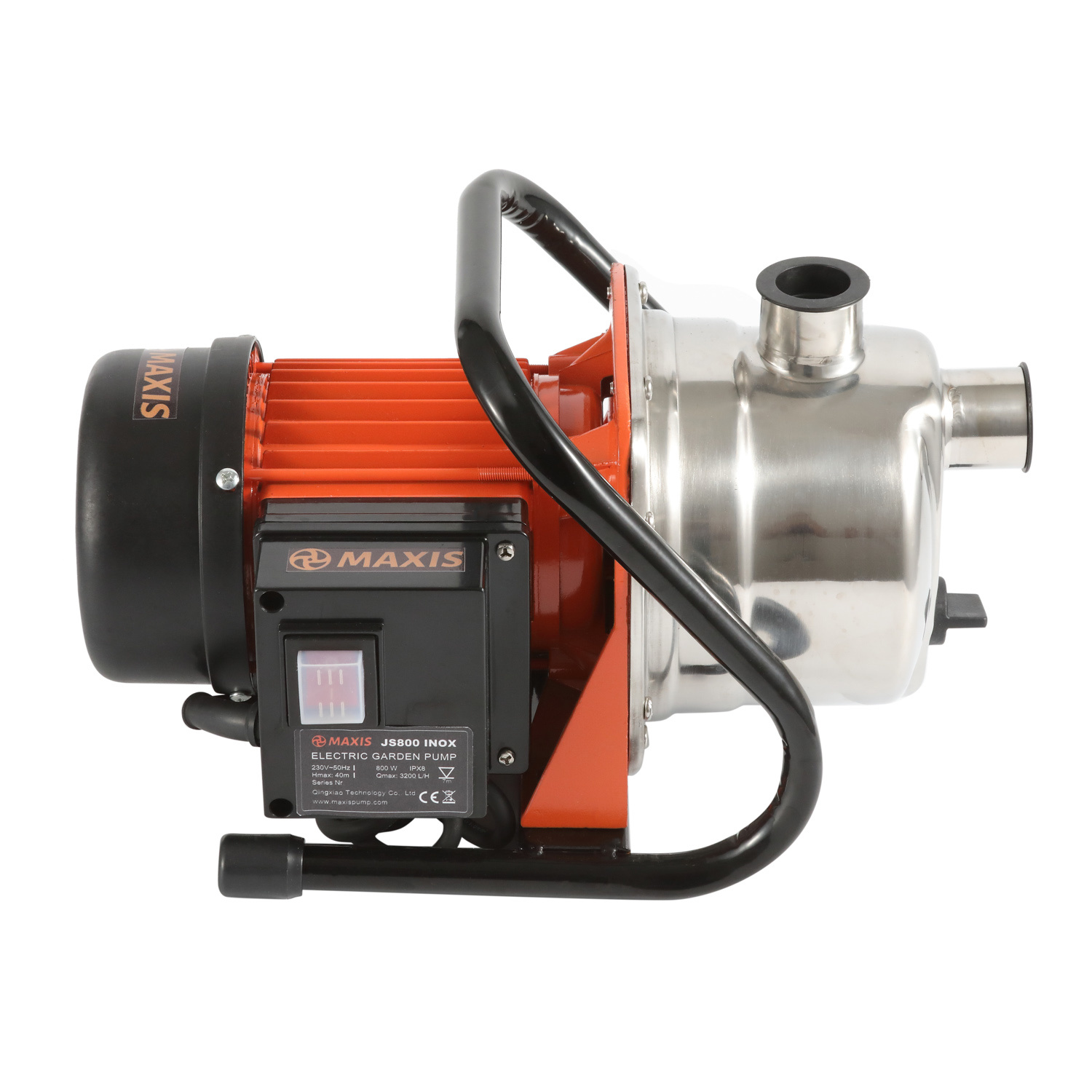

Aluminum Motor Housing Garden 1HP Irrigation Water Jet Submersible Pump
