AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well

Quantity:
Inquire Add to Basket

AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well
AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well
AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well
AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well
AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well
AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well

  • Free Spare Parts

  • 1 Year

  • 30-50m

  • <50 L/min

  • Motor

  • Cast Iron

  • DP255

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Jet Pump

  • Casting Iron Pump

  • Agriculture

  • Water

  • Centrifugal Pump

  • Jet Pump

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 30/Piece 1 Piece(Min.Order) | Request Sample

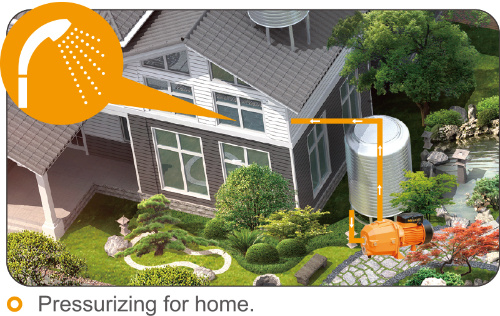

Application
1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
2. Suitable for pumping water from lake, river and well
3. Industrial use and agricultural irrigation
AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep WellAC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep WellAC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well

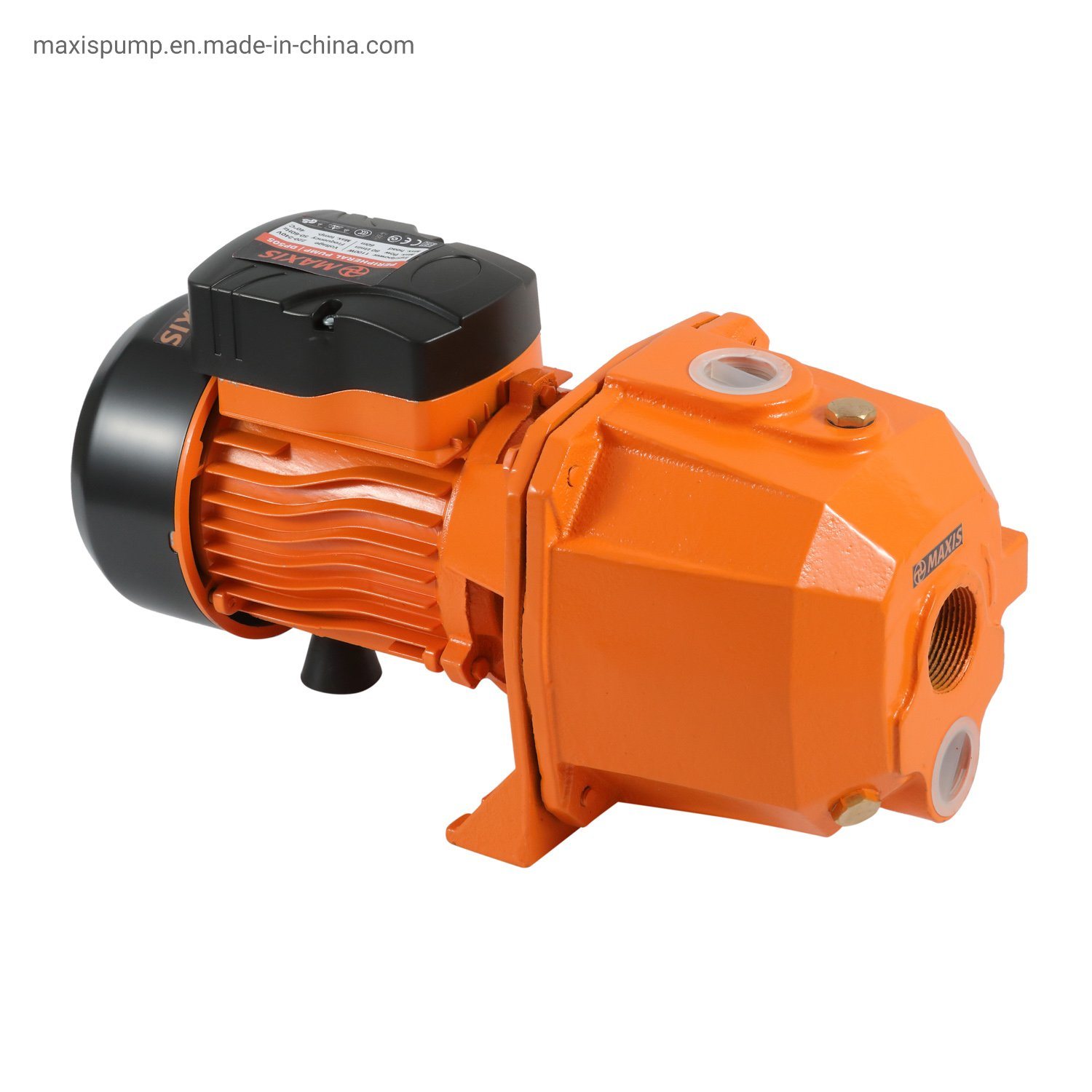

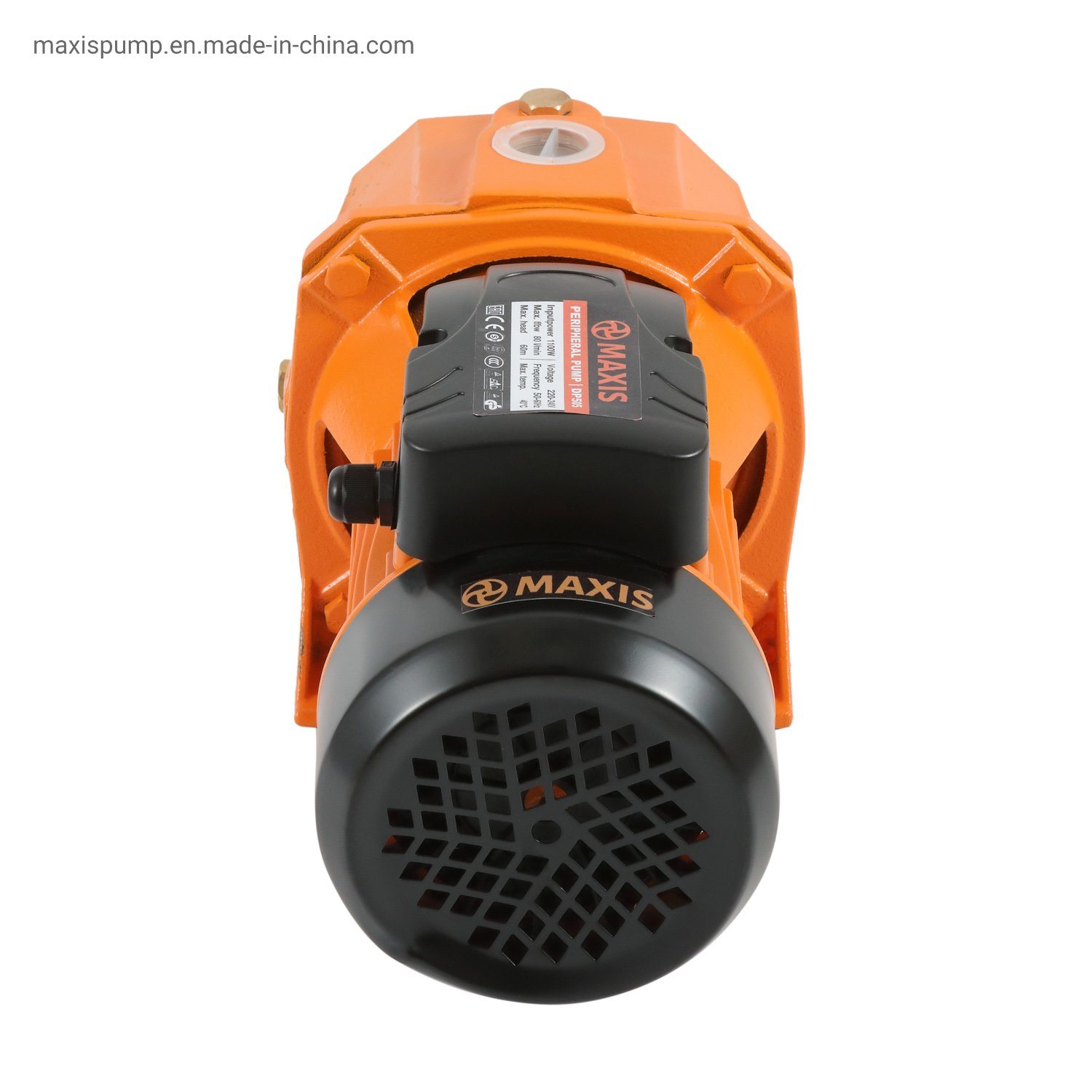

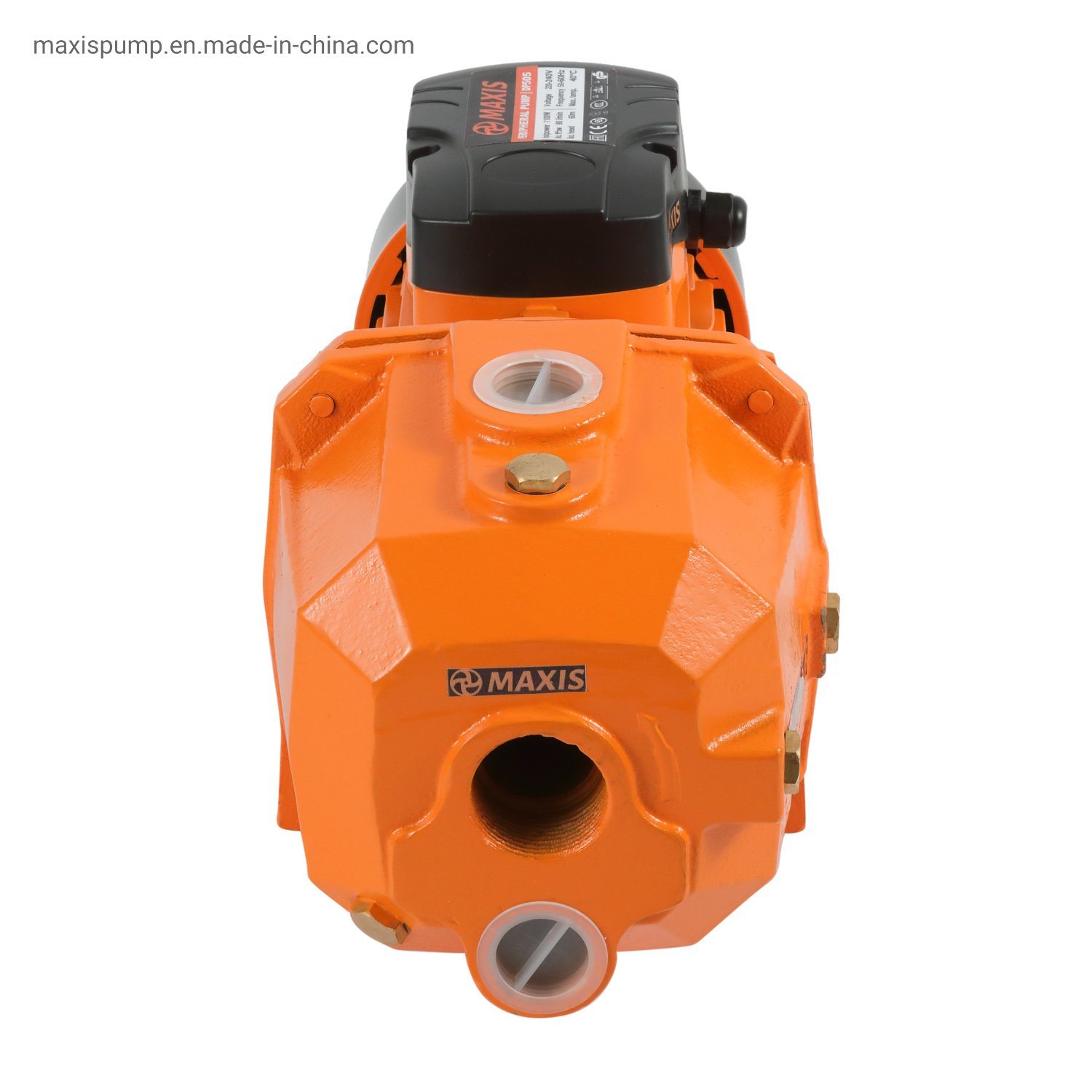

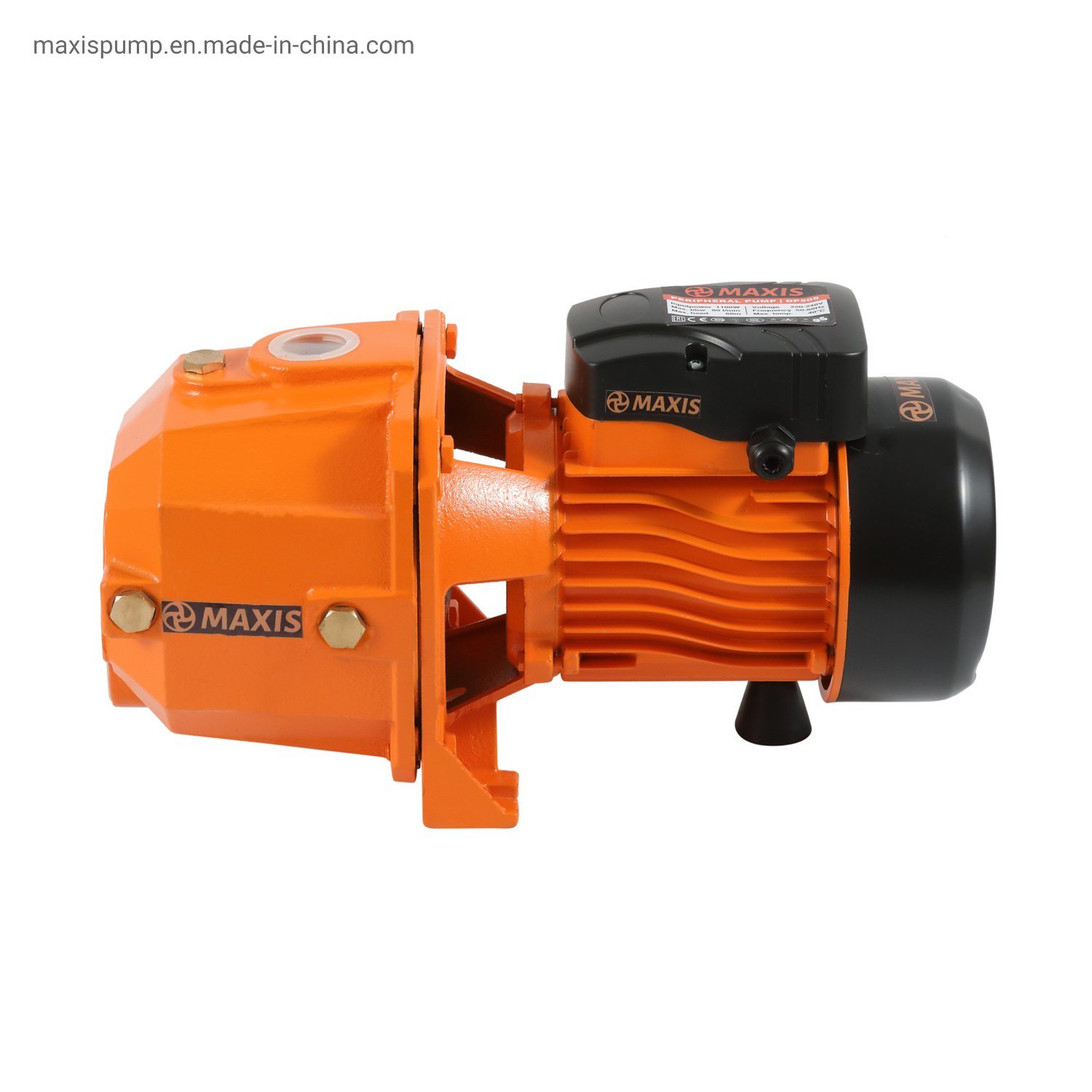

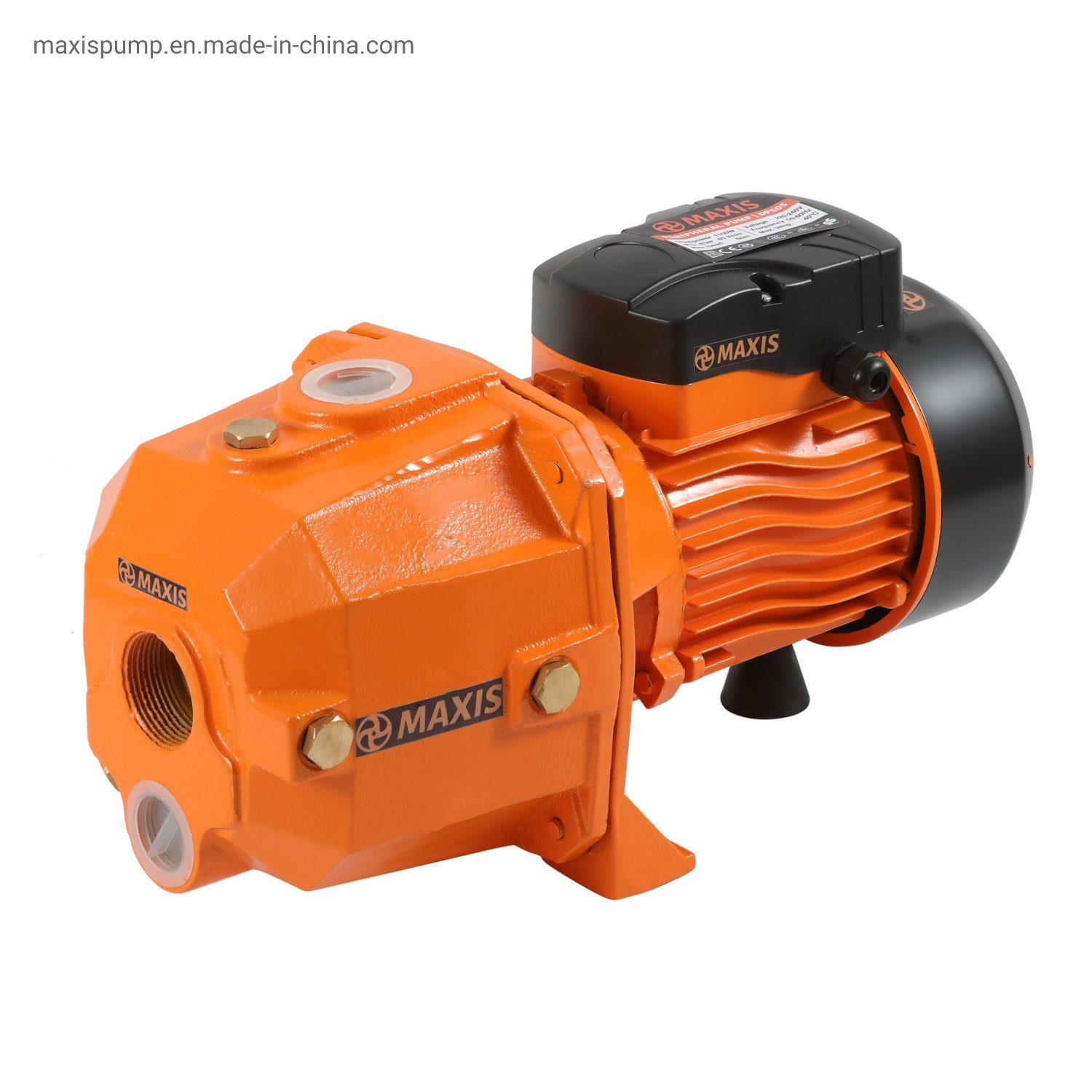

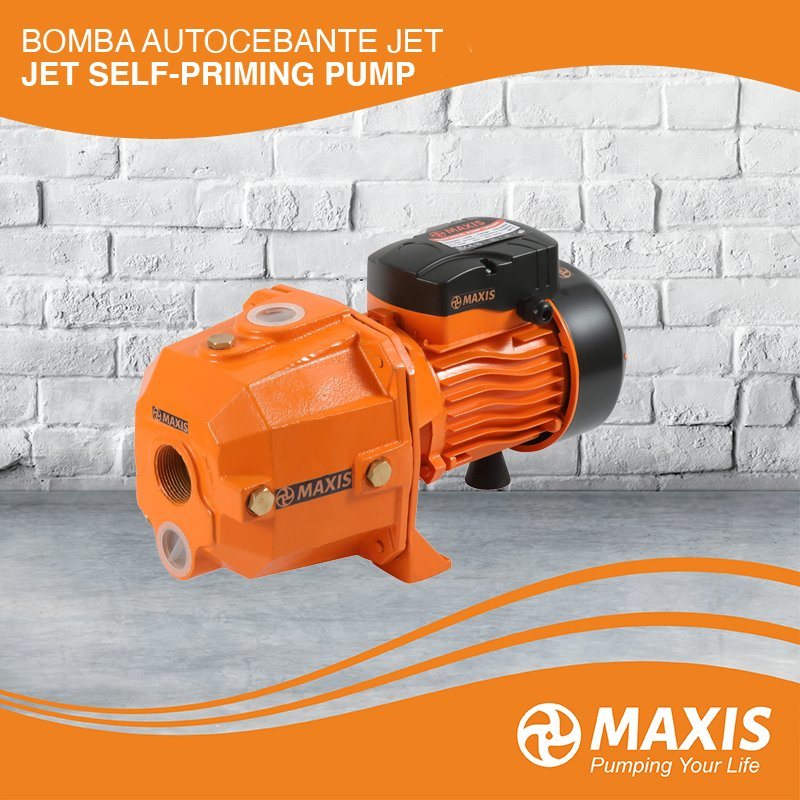

Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
DP255 550W 3/4 1800 L/H 30 L/Min 40 M 20 M 1¼'' x 1'' IPX4
DP370 750W 1 2400 L/H 40 L/Min 45 M 25 M 1¼'' x 1'' IPX4
DP505 1100W 1.5 4800 L/H 80 L/Min 60 M 20 M 1½'''' x 1'' IPX4
DP600 1500W 2 6000 L/H 100 L/Min 60 M 25 M 1½'''' x 1'' IPX4

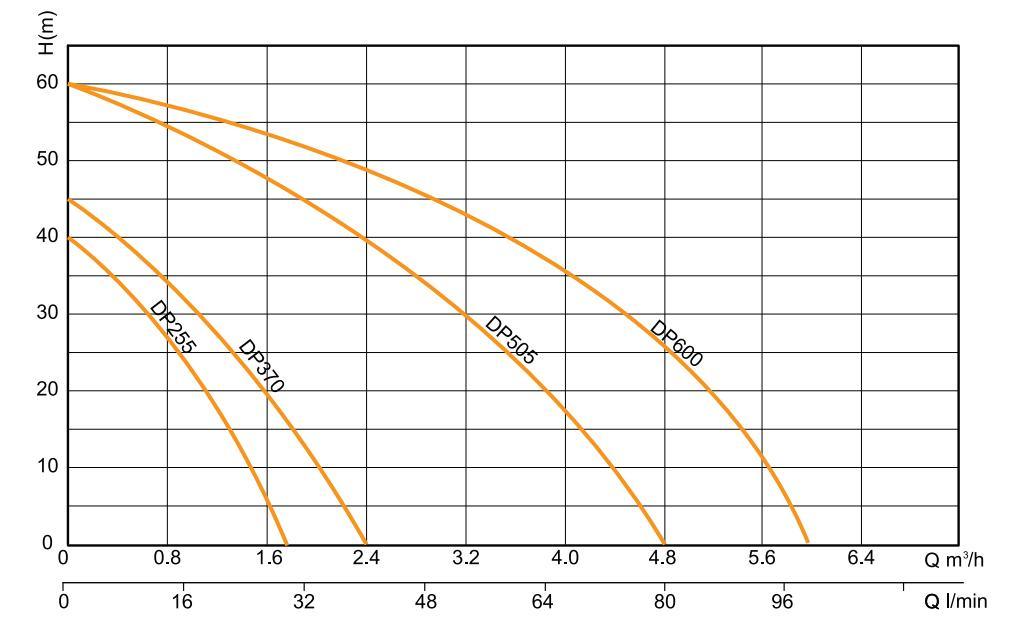

Performance Curve
AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well
Company view
AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well
Welcome Inquiry:
AC Casting Iron Jet Self-Priming Water Pump for Agricultural Irrigation Transfer Deep Well
