`370W 1/2HP Casting Iron Electric Auto Pump with High Pressure

Quantity:



Inquire Add to Basket

After-sales Service:
Free Spare Parts
Warranty:
1 Year
Max.Head:
30-50m
Max.Capacity:
<50 L/min
Driving Type:
Motor
Material:
Cast Iron
Model NO.:
25WZB370A
Structure:
Single-stage Pump
Assembly:
Liquid Pumps
Power:
Electric
Start Up:
Electric Pump
Type:
Casting Iron Pump
Application:
Transfer Water Pump
Industry:
Agriculture
Media:
Sewage Pumps
Performance:
Centrifugal Pump
Theory:
Vortex Pump
Certificate:
CE GS RoHS
Transport Package:
Color Box
Specification:
Corrugated paper
Trademark:
MAXIS
Origin:
China
HS Code:
8413709990
Production Capacity:
500000PCS/Year
Samples:
US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Application

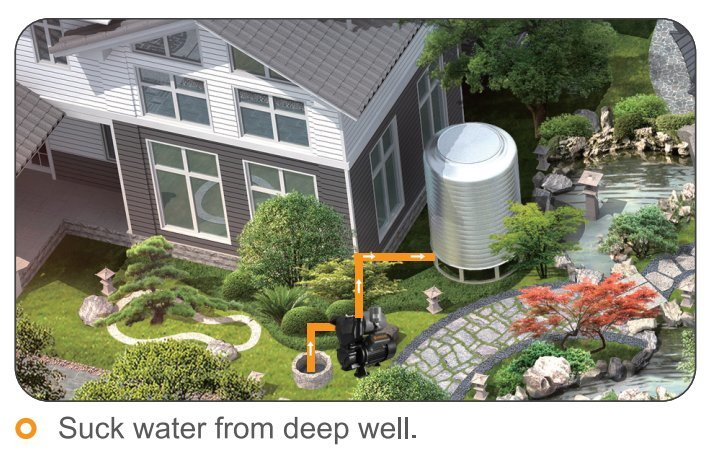

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

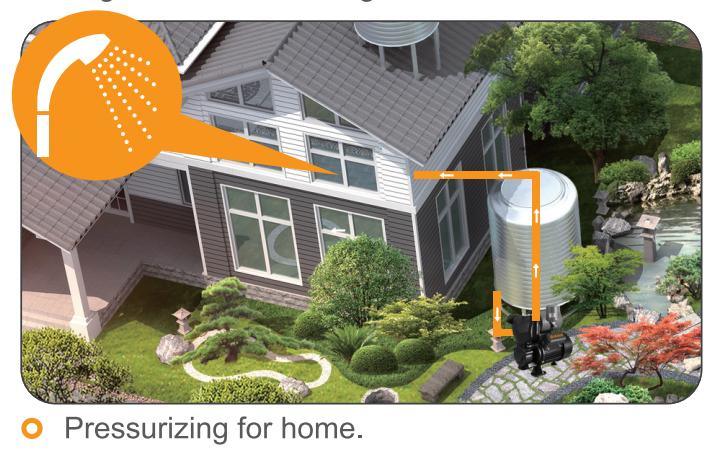

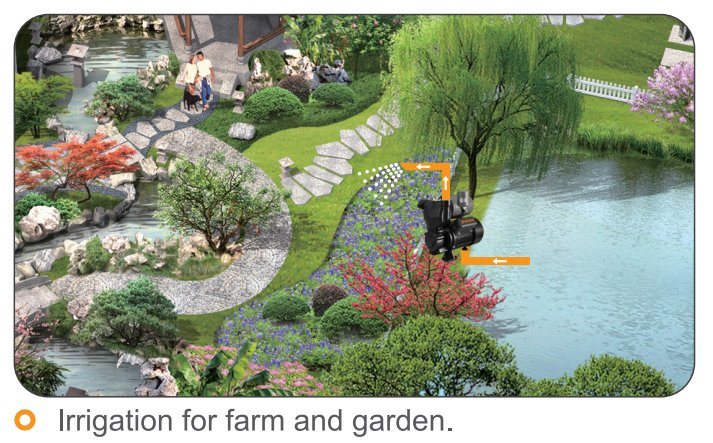

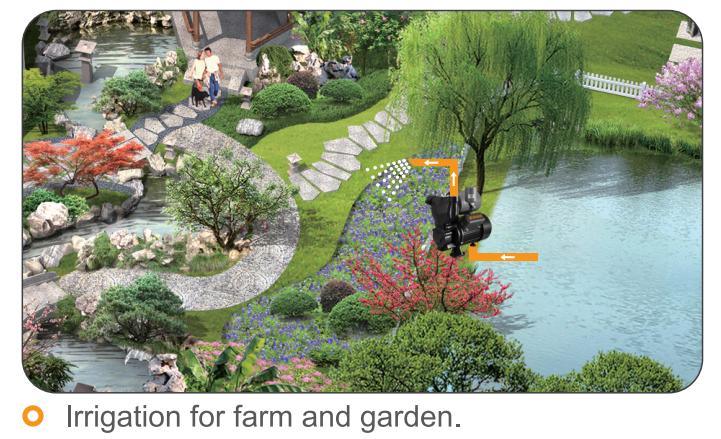

2. Suitable for small domestic living water supply ,automatic water sprinkler system small air conditioner system or supporting equipment etc.

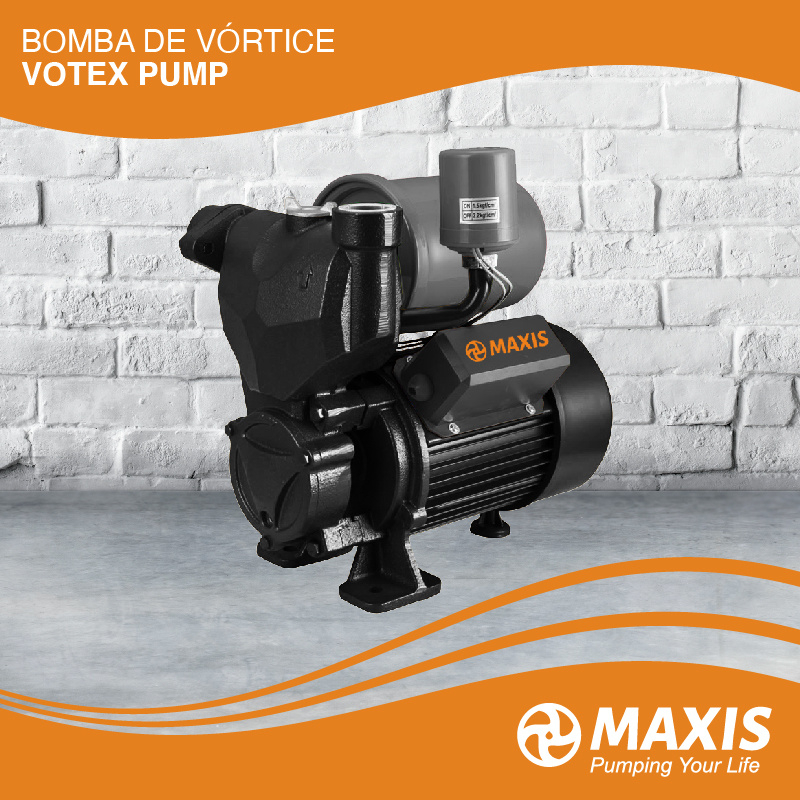

`370W 1/2HP Casting Iron Electric Auto Pump with High Pressure

Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
`370W 1/2HP Casting Iron Electric Auto Pump with High Pressure

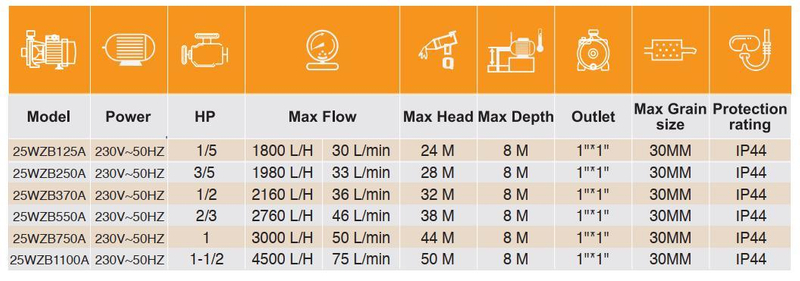

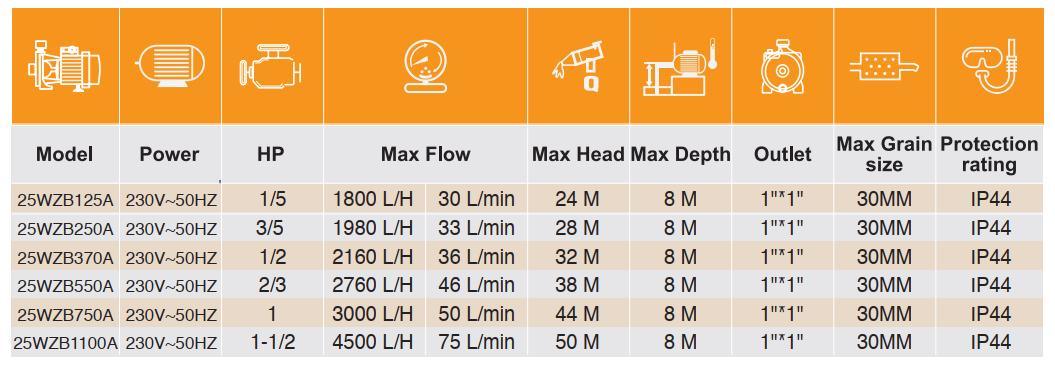

Techenical Data

Model	Power	HP	Max Flow		Max Head	Max Suction	Inlet / Outlet	Protection rating
25WZB125A	125W	1/5	1800 L/H	30 L/min	24 M	8 M	1"*1"	IP44
25WZB250A	250W	3/5	1980 L/H	33 L/min	28 M	8 M	1"*1"	IP44
25WZB370A	370W	1/2	2160 L/H	36 L/min	32 M	8 M	1"*1"	IP44
25WZB550A	550W	2/3	2760 L/H	46 L/min	38 M	8 M	1"*1"	IP44
25WZB750A	750W	1	3000 L/H	50 L/min	44 M	8 M	1"*1"	IP44
25WZB1100A	1000W	1-1/2	4500 L/H	75 L/min	50 M	8 M	1"*1"	IP44

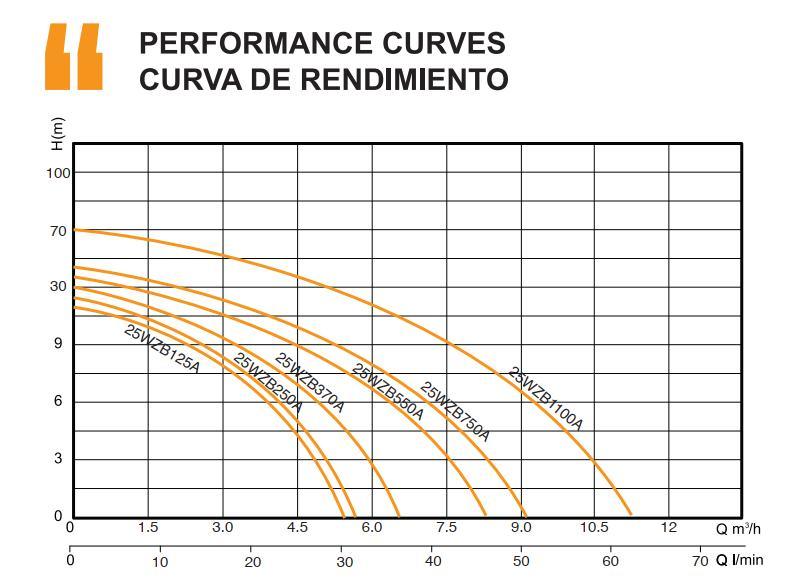

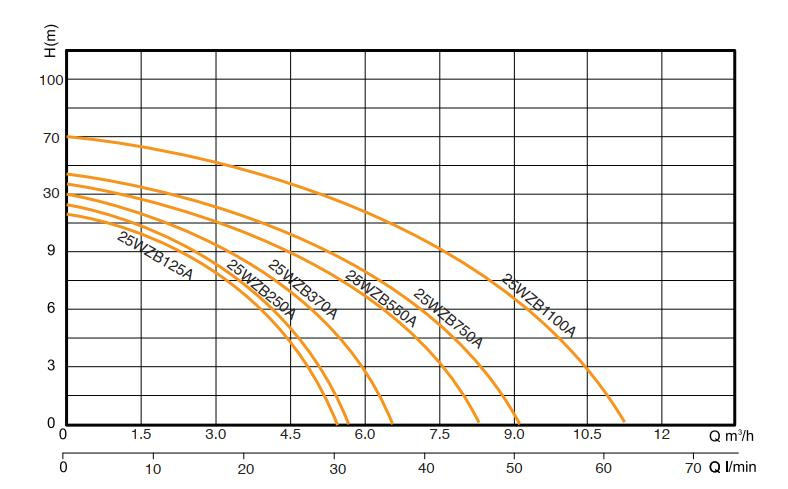

Performance Curve
