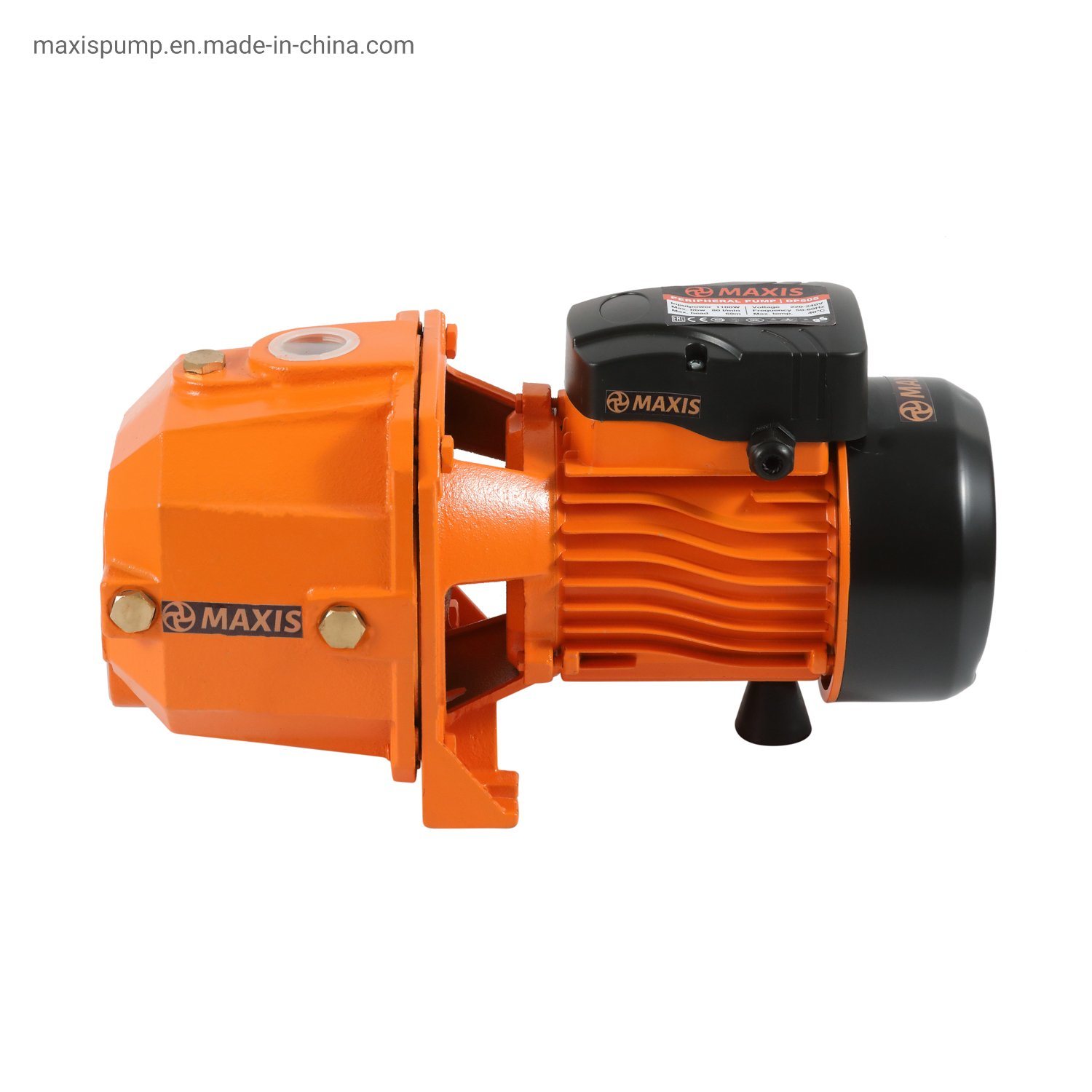

2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation

Quantity:
Inquire Add to Basket

2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation
2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation
2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation
2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation
2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation
2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation

  • Free Spare Parts

  • 1 Year

  • 50-80m

  • 100-200 L/min

  • Motor

  • Cast Iron

  • DP600

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Jet Pump

  • Casting Iron Pump

  • Agriculture

  • Water

  • Centrifugal Pump

  • Jet Pump

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 30/Piece 1 Piece(Min.Order) | Request Sample

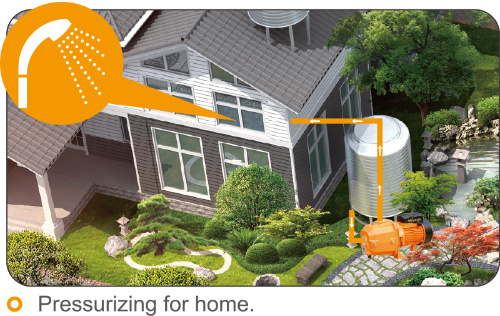

Application
1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

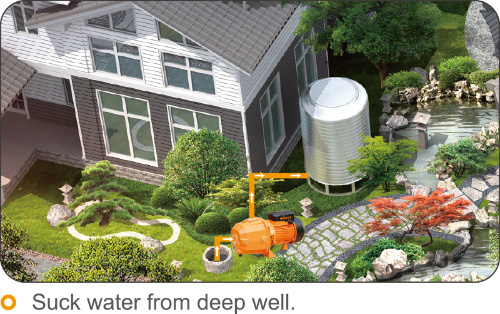

2. Suitable for pumping water from lake, river and well

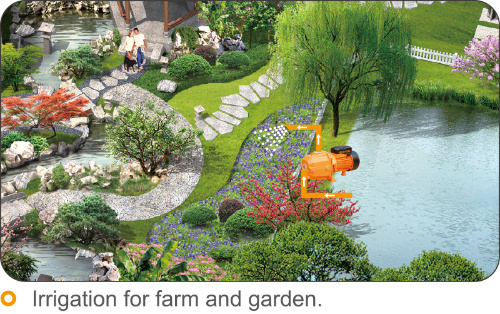

3. Industrial use and agricultural irrigation
2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation
Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
DP255 550W 3/4 1800 L/H 30 L/Min 40 M 20 M 1¼'' x 1'' IPX4
DP370 750W 1 2400 L/H 40 L/Min 45 M 25 M 1¼'' x 1'' IPX4
DP505 1100W 1.5 4800 L/H 80 L/Min 60 M 20 M 1½'''' x 1'' IPX4
DP600 1500W 2 6000 L/H 100 L/Min 60 M 25 M 1½'''' x 1'' IPX4

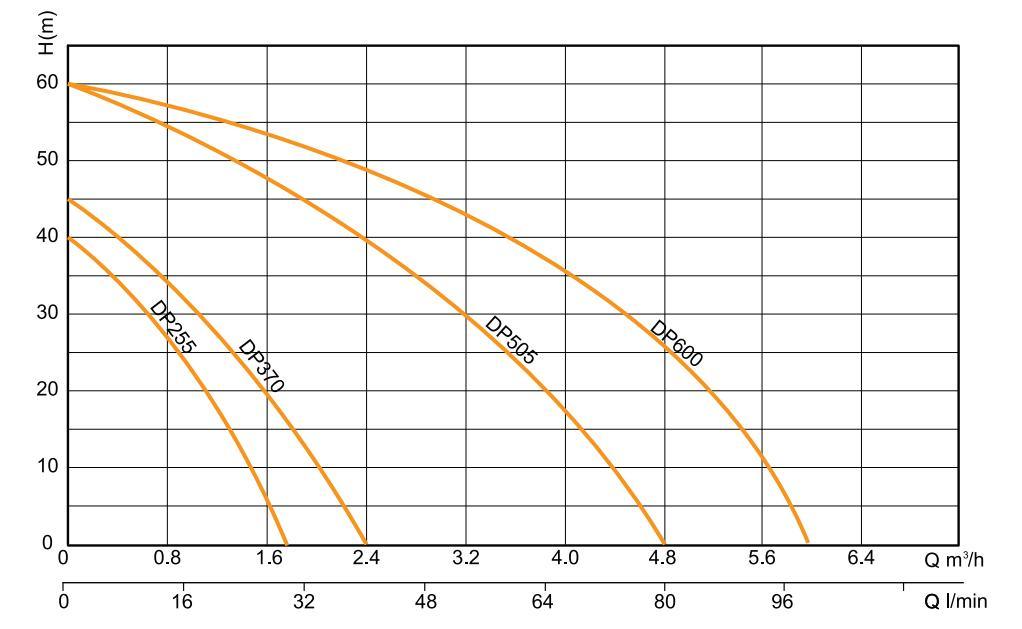

Performance Curve
2HP 1500W Self-Priming Casting Iron Water Jet Pump Industrial Use and Agricultural Irrigation
