| Quantity: | |
|---|---|
Free Spare Parts
1 Year
30-50m
<50 L/min
Motor
Plastic
VMP50
Single-stage Pump
Liquid Pumps
Electric
Electric Pump
Submersible Pump
Submersible Pump, Sewage Pump
Domestic
Clean Water
Wear Pump
Vibration Pump
CE
Carton
5.2kg
MAXIS
China
8413709990
500000PCS/Year
US$ 10/Piece 1 Piece(Min.Order) | Request Sample
Application
1. Can be used to transfer clean or slightly dirty water or other liquids similar to water in physical and chemical properties
2. Suitable to be immersed in water for lifting water from the well or the pool, and draining water from the basement.
Pump
Aluminum pump body
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max. suction:+8m

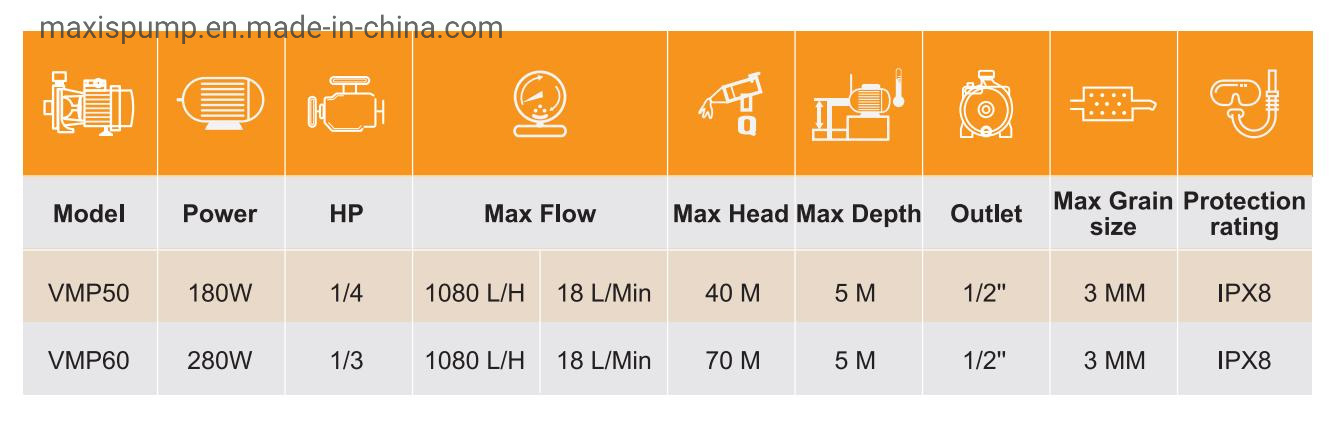

| Model | Power | HP | Max Flow | Max Head | Max Depth | Outlet | Max Grain size | Protection rating | |
| VMP50 | 180W | 1/4 | 1080 L/H | 18 L/Min | 40 M | 5 M | 1/2'' | 3 MM | IPX8 |
| VMP60 | 280W | 1/3 | 1080 L/H | 18 L/Min | 70 M | 5 M | 1/2'' | 3 MM | IPX8 |
Application
1. Can be used to transfer clean or slightly dirty water or other liquids similar to water in physical and chemical properties
2. Suitable to be immersed in water for lifting water from the well or the pool, and draining water from the basement.
Pump
Aluminum pump body
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
Max.liquid temperature: +40ºC
Max. suction:+8m
| Model | Power | HP | Max Flow | Max Head | Max Depth | Outlet | Max Grain size | Protection rating | |
| VMP50 | 180W | 1/4 | 1080 L/H | 18 L/Min | 40 M | 5 M | 1/2'' | 3 MM | IPX8 |
| VMP60 | 280W | 1/3 | 1080 L/H | 18 L/Min | 70 M | 5 M | 1/2'' | 3 MM | IPX8 |
