| Quantity: | |
|---|---|
Free Spare Parts
1 Year
<10m
<50 L/min
Motor
Cast Iron
RS32-4
Single-stage Pump
Pipeline Pump
Electric
Electric Pump
Circulating Pump
Circulation Pump
Heating System
Hot Water
Wear Pump
Mixed Flow Pump
CE GS RoHS PAHs
Carton
8.5kg
MAXIS
China
8413709990
500000PCS/Year
US$ 20/Piece 1 Piece(Min.Order) | Request Sample
Application

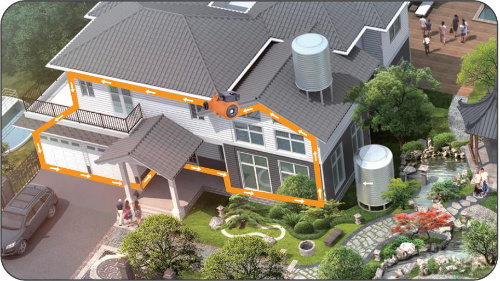

Circulation for the underfloor heating system or equipment
Pump
Casting Iron pump body
Motor with cooper winding both available
Built-in thermal protector for single phase motor
High quality bearing
Max.liquid temperature: +100ºC

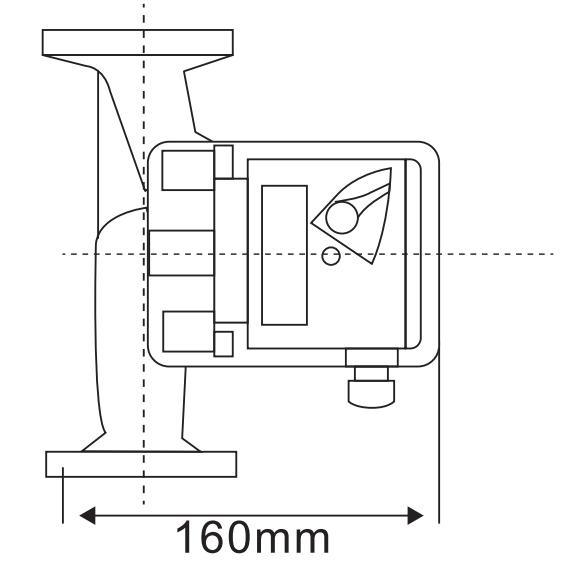

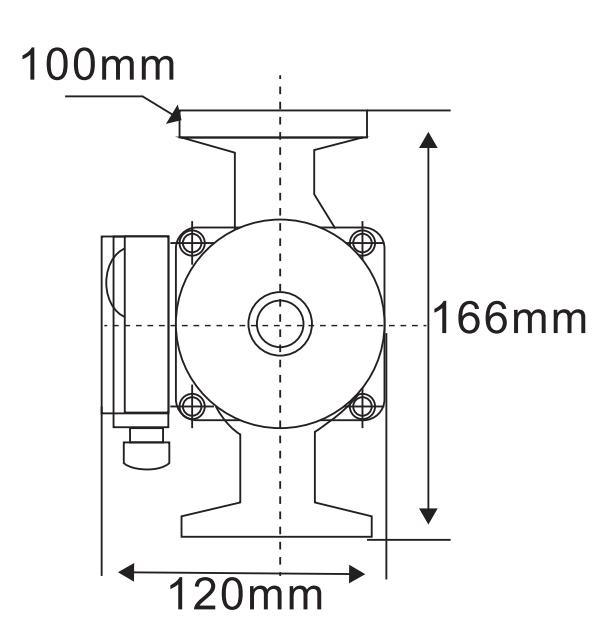

Pump Size
Techenical Data
| Model | Power | Max Flow | Max Head | Inlet / Outlet | Protection rating |
| RS15-4 | 72/53/38W | 42/34/23 L/Min | 4.5/4/3 M | 1'' x 1'' | IP44 |
| RS25-4 | 72/53/38W | 48/36/18 L/Min | 4.5/4/3 M | 1.5'' x 1.5'' | IP44 |
| RS32-4 | 72/53/38W | 48/36/18 L/Min | 4.5/4/3 M | 2'' x 2'' | IP44 |
| RS15-6 | 93/67/46W | 48/35/21 L/Min | 6/5/3 M | 1'' x 1'' | IP44 |
| RS25-6 | 93/67/46W | 55/38/22 L/Min | 6/5/3 M | 1.5'' x 1.5'' | IP44 |
| RS32-6 | 93/67/46W | 55/38/22 L/Min | 6/5/3 M | 2'' x 2'' | IP44 |
| RS15-8 | 270/210/150W | 160/103/43 L/Min | 8/7.5/6 M | 1'' x 1'' | IP44 |
| RS25-8 | 270/210/150W | 115/95/45 L/Min | 8/7.5/6 M | 1.5'' x 1.5'' | IP44 |
| RS32-8 | 270/210/150W | 160/103/43 L/Min | 8/7.5/6 M | 2'' x 2'' | IP44 |
Application
Circulation for the underfloor heating system or equipment
Pump
Casting Iron pump body
Motor with cooper winding both available
Built-in thermal protector for single phase motor
High quality bearing
Max.liquid temperature: +100ºC
Pump SizeTechenical Data
| Model | Power | Max Flow | Max Head | Inlet / Outlet | Protection rating |
| RS15-4 | 72/53/38W | 42/34/23 L/Min | 4.5/4/3 M | 1'' x 1'' | IP44 |
| RS25-4 | 72/53/38W | 48/36/18 L/Min | 4.5/4/3 M | 1.5'' x 1.5'' | IP44 |
| RS32-4 | 72/53/38W | 48/36/18 L/Min | 4.5/4/3 M | 2'' x 2'' | IP44 |
| RS15-6 | 93/67/46W | 48/35/21 L/Min | 6/5/3 M | 1'' x 1'' | IP44 |
| RS25-6 | 93/67/46W | 55/38/22 L/Min | 6/5/3 M | 1.5'' x 1.5'' | IP44 |
| RS32-6 | 93/67/46W | 55/38/22 L/Min | 6/5/3 M | 2'' x 2'' | IP44 |
| RS15-8 | 270/210/150W | 160/103/43 L/Min | 8/7.5/6 M | 1'' x 1'' | IP44 |
| RS25-8 | 270/210/150W | 115/95/45 L/Min | 8/7.5/6 M | 1.5'' x 1.5'' | IP44 |
| RS32-8 | 270/210/150W | 160/103/43 L/Min | 8/7.5/6 M | 2'' x 2'' | IP44 |
